Braun 5301 Manuale utente

7526

Syncro SystemSmart Logic

Type Modèle Modelo

5493

5301

5493462_S.1.fm Seite 1 Freitag, 25. Oktober 2002 8:43 08

English 4

Français 15

Español 26

Internet

www.braun.com

5-493-462/04/X-02/G2

USA / CDN / MEX

Printed in Germany

Imprimé en Allemagne

Impreso en Alemania

Thank you for purchasing a Braun product.

We hope you are completely satisfied with

your new Braun product.

If you have any questions, please call:

US residents 1-800-BRAUN-11

1-800-272-8611

Canadian residents 1-800-387-6657

Merci d’avoir fait l’achat d’un produit Braun.

Nous espérons que vous serez pleinement

satisfait de votre nouveau produit Braun.

Si vous avez des questions, veuillez appeler

Braun Canada : 1 800 387 6657

Gracias por haber comprado un producto

Braun.

Esperamos que Ud. completamente

satisfecha con su nuevo producto Braun.

Si Ud. tiene alguna duda, por favor llame al

01(800) 508-5800

5493462_S.2.fm Seite 1 Freitag, 25. Oktober 2002 8:43 08

Syncro 7526

A B

Clean &Charge

No. 7000

7526

5493462_S.3.fm Seite 1 Freitag, 25. Oktober 2002 8:43 08

English

IMPORTANT SAFETY

INSTRUCTIONS

When using an electrical appliance, basic precautions should always be follo-

wed, including the following:

Read all instructions before using this appliance.

DANGER

To reduce the risk of electric shock:

1. Do not reach for an appliance that has fallen into water.

Unplug immediately.

2. Do not use while bathing or in a shower.

3. Do not place, store or charge the appliance where it can fall or be pulled

into a tub or sink. Do not place in or drop into water or other liquid.

4. When not using for a longer period of time, unplug this appliance from the

electrical outlet.

5. Unplug this appliance before cleaning.

6. This appliance is provided with a low voltage adapter. Do not exchange or

manipulate any part of it.

FOR HOUSEHOLD USE

SAVE THESE INSTRUCTIONS

5493462_S.4-38.fm Seite 4 Freitag, 25. Oktober 2002 8:44 08

WARNING

To reduce the risk of burns, ﬁre, electric shock, or injury to persons:

1. Close supervision is necessary when this appliance is used by, on, or near

children.

2. Use this appliance only for its intended use as described in this manual.

Do not use attachments not recommended by the manufacturer.

3. The appliance should never be exposed to temperatures of less than

32 ºF / 0 ºC and more than 105 ºF/+40ºC for longer than a few hours.

Keep the appliance and cord dry at all times. Do not handle with wet hands.

Do not store in a damp environment. To avoid damage do not wind the cord

around the appliance. It is important to check the cord for damage periodi-

cally particularly at each end where the cord enters the plug.

4. Never operate this appliance if it has a damaged cord or plug, if it is not wor-

king properly, if it has been dropped or damaged, or dropped into water.

Return the appliance to a service center for examination and repair.

5. Keep the cord away from heated surfaces.

6. Never drop or insert any object into any opening.

7. Do not use outdoors or operate where aerosol (spray) products are being

used or where oxygen is being administered.

8. Do not use this appliance with a damaged or broken foil, as serious facial

injuries may occur.

9. Always attach plug to appliance ﬁrst, then to outlet.

To disconnect, turn all controls to «off», then remove plug from outlet.

5493462_S.4-38.fm Seite 5 Freitag, 25. Oktober 2002 8:44 08

A Shaver

Your Braun Syncro is supplied with a Braun

Clean&Charge (please see section B).

SmartLogic Inside

The «SmartLogic» electronics inside your shaver ana-

lyzes your personal shaving patterns, and then adapts

the battery care and cleaning cycles to ensure optimal

performance.

Technical speciﬁcations:

•Wattage via low voltage cord: 7 W

• Power supply via mains adapter, input voltage:

100-240 V ~ / 50 or 60 Hz (automatic adaptation)

• Shaver input voltage: 12 V

Description

1 Foil protection cap 7 Charging light (green)

2 Shaver foil 8 Low charge light (red)

3 Cutter block 9 Pilot light

4 Foil release button 10 Shaver socket

5 Long hair trimmer 11 Power supply cord set

6 Switch

Charging the shaver

• First charging: Using the power supply cord set,

connect the shaver to the mains with the switch in

position «0» and charge it for at least 4 hours (plug

might get warm).

The SmartLogic inside your shaver automatically

monitors the condition of the batteries as well as the

charging/discharging processes and adapts them to

your personal shaving patterns.

•From now on, the SmartLogic inside your shaver will

ensure optimal care of the batteries. If, for instance,

it is your habit to never let the batteries get low, the

SmartLogic will recognize this, look for a pause

when you are likely to not use the shaver and com-

pletely discharge and then recharge your shaver to

recondition the batteries (every six months at the

most, and only when necessary).

•Afull charge will give up to 50 minutes of cordless

shaving time depending on your beard growth.

However, the maximum battery capacity will only be

reached after several charging/discharging cycles.

210

7540

5493462_S.4-38.fm Seite 6 Freitag, 25. Oktober 2002 8:44 08

• Best environmental temperature range for charging

is 60°F to 95°F / 15 °C to 35 °C.

Indicator lights

The pilot light shows that the shaver is connected to the

mains.

The green charging light shows that the shaver is being

charged. When the rechargeable battery is fully charg-

ed, the charging light ﬂashes or goes off.

If later on, the charging light comes on again, this indi-

cates that the shaver is being recharged to maintain its

full capacity.

The red low-charge light ﬂashes when the battery capa-

city has dropped below 20%, provided the shaver is

switched on. The remaining capacity will then be sufﬁ-

cient for 2 to 3 shaves.

Shaving

Switch positions

0 = Off (switch is locked)

Press and push up the switch to operate the

shaver:

1 = Shaving with the pivoting head

The pivoting cutting system automatically adjusts

to every contour of your face.

2 = Shaving with the pivoting head locked at an angle

(to permit shaving in difﬁcult areas, e.g. under the

nose)

3 = The long hair trimmer is activated (for trimming

sideburns, moustache and beard).

Shaving with the cord

If the rechargeable battery is discharged, you may also

shave with the shaver connected to the mains via the

power supply cord set.

(If the shaver does not run immediately, charge it with

the switch on position «0» for approx. 1 minute.

5493462_S.4-38.fm Seite 7 Freitag, 25. Oktober 2002 8:44 08

Keeping your shaver in top shape

Automated cleaning

The Braun Clean&Charge takes care of all cleaning and

lubrication needs of your shaver. Please refer to the

separate use instructions.

Manual cleaning

For easy cleaning after each shave, switch the shaver

off. Press the release buttons to lift the shaver foil (do

not remove the foil completely). Switch on the shaver

for approx. 5-10 seconds so that the shaved stubbles

can fall out.

For a thorough cleaning (weekly), remove the shaver foil

and tap it out on a ﬂat surface. Using the brush, clean

the cutter block and the inner area of the pivoting head.

About every four weeks, clean the cutter block with

Braun cleaning agents.

If your skin is very dry and you notice a reduced opera-

tion time of the shaver apply a drop of light machine oil

onto the shaver foil.

Replacing the shaving parts

The shaver foil and cutter block are precision parts that,

in time, are subject to wear. Replace your foil and cutter

block every 18 months and get a 25 % better shave.*

(Shaver foil and cutter block: part No. 7000)

(* Overall evaluation from Braun users comparing their

shave with new parts and those used for 18 months.)

Tips for the perfect shave

• It can take 14-21 days for your beard to adjust to

the new shaving system.

•We recommend that you shave before washing,

as the skin tends to be slightly swollen after

washing.

• Hold the shaver at right angles (90°) to the skin.

• Stretch your skin and shave against the direction

of beard growth.

• Replace the shaver foil and cutter block every

18 months, or when the parts are worn, to ensure

optimum shaving performance.

oil

5493462_S.4-38.fm Seite 8 Freitag, 25. Oktober 2002 8:44 08

Accessories

Available at your dealer or Braun Service Centres:

Shaver foil and cutter block

(part No. 7000)

Environmental notice

This appliance is provided with a nickel-hydride

batteries. They do not contain any harmful heavy

metals. Nevertheless, in the interest of recycling raw

materials, please do not dispose of this appliance in the

household waste at the end of its useful life. Disposal

can take place at a Braun Service Center or appropriate

collection sites.

Subject to change without notice.

7000

Syncro

7000

5493462_S.4-38.fm Seite 9 Freitag, 25. Oktober 2002 8:44 08

B Clean&Charge

Braun Clean&Charge has been developed to automati-

cally clean and charge your shaver. It also serves as a

storage unit. For peak performance of your shaver,

clean it daily in the Clean&Charge.

During the automated cleaning process, the shaver is

switched on and off at intervals to obtain best cleaning

results. Since the specially formulated cleaning ﬂuid

also contains a small amount of oil, the cleaning proce-

dure also fulﬁlls the lubrication needs of your shaver.

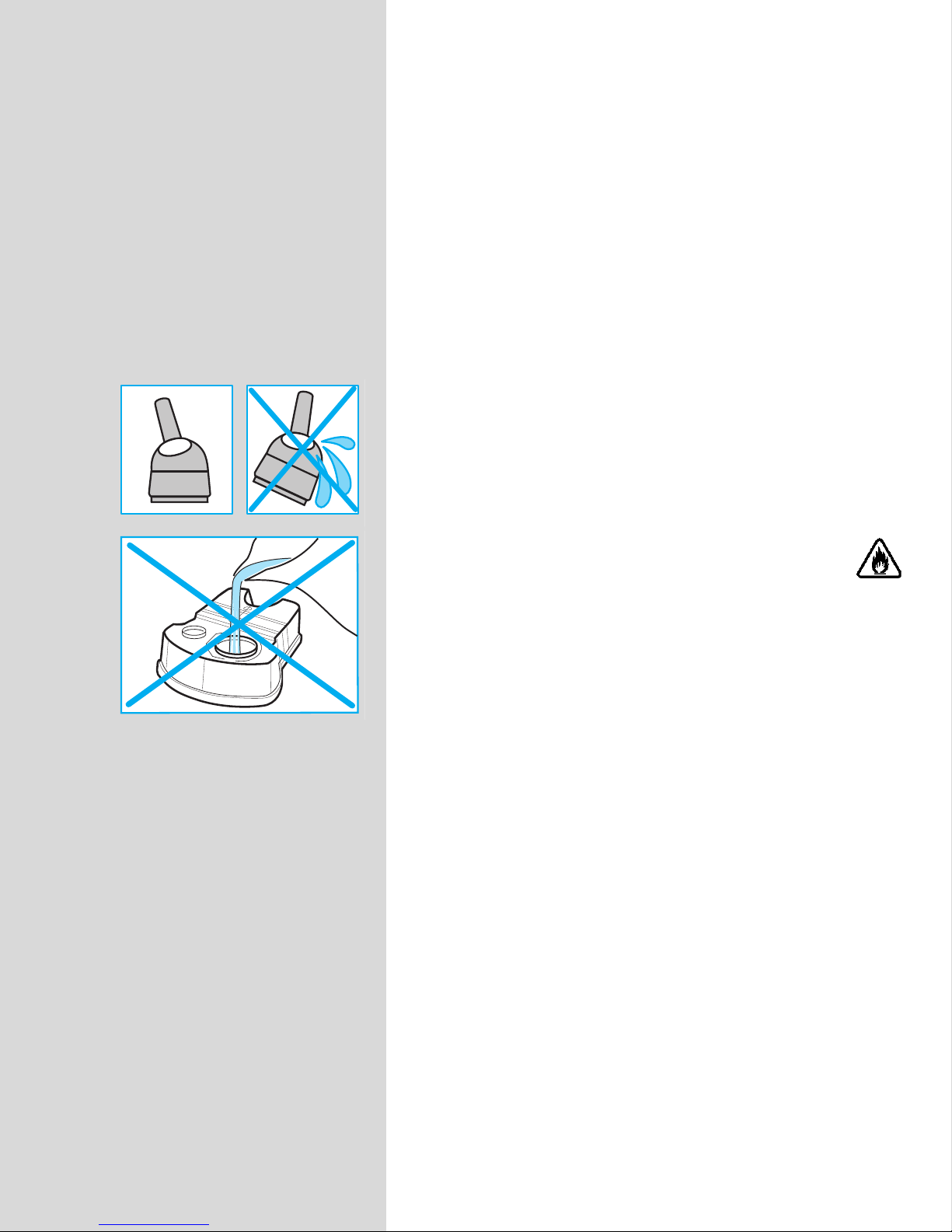

Important

• Only use the power supply cord set supplied with

the shaver.

• In order to avoid any leakage of the cleaning ﬂuid,

place the appliance on a ﬂat, stable surface. Be

careful not to tip, move suddenly or transport in any

way if a cleaning cartridge is installed.

• Do not place the appliance in a mirror cabinet, nor

store it over radiators, nor place it on polished or

laquered surfaces. Do not expose to direct sunlight.

• The appliance contains highly ﬂammable

liquid. Keep it away from sources of ignition.

No smoking. Keep out of reach of children.

Do not reﬁll cartridge. Use only original Braun reﬁll

cartridge.

• When cleaning the shaver, its protection cap should

be removed.

Description

12 Lift button for cartridge exchange

13 Release button

14 Contact bow

15 Operation mode selector

16 «clean» light: cleaning process indicator

17 «charge» light: charging process indicator

18 «cartridge» light: cartridge replacement indicator

19 Cleaning cartridge

Technical speciﬁcations

• Power consumption:

3 W when cleaning

7 W when charging

• Power supply:

100-240 V ~ / 50 or 60 Hz (automatic adaptation)

• Input voltage: 12 V

5493462_S.4-38.fm Seite 10 Freitag, 25. Oktober 2002 8:44 08

Altri manuali per 5301

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Braun Rasoio elettrico

Braun

Braun Z50 Manuale utente

Braun

Braun SERIES 3 390CC-3 Manuale utente

Braun

Braun XT5200 Manuale utente

Braun

Braun MobileShave M-60 Manuale utente

Braun

Braun Pulsonic 9595 Manuale utente

Braun

Braun BT 7420 Manuale utente

Braun

Braun 5544 Manuale utente

Braun

Braun NovoScan 3in1 Manuale utente

Braun

Braun Contour Pro Special Edition Series Manuale utente

Braun

Braun CoolTec CT2s-w Manuale utente

Braun

Braun PocketGo 370 Manuale utente

Braun

Braun SyncroPro 5492 Manuale utente

Braun

Braun BS 5897 Manuale utente

Braun

Braun 5090cc Manuale utente

Braun

Braun Silk-epil LS 5360 Manuale utente

Braun

Braun Flex XP 5612 Manuale utente

Braun

Braun Pro Wet&Dry 9470cc Manuale utente

Braun

Braun MGK 3085 Manuale utente

Braun

Braun 9 Pro Series Manuale utente

Braun

Braun Gillette 180 Manuale utente

Braun

Braun BT 5050 Manuale utente

Braun

Braun SERIES 3 390CC-3 Manuale utente

Braun

Braun Flex Integral 5525 Guida rapida

Braun

Braun Gillette Venus Bikini Precision Manuale utente

Manuali Rasoio elettrico popolari di altre marche

Philips

Philips MicroAction 4402LC Manuale utente

Philips

Philips HQ7740 Manuale utente

Philips

Philips Norelco BG2022 Bodygroom Manuale utente

Norelco

Norelco Quadra 7610X Manuale utente

Philips

Philips 7616X Manuale utente

Philips

Philips HQ802 Manuale utente

Philips

Philips HQ7363/17 Manuale utente

Philips

Philips NORELCO S7371 Manuale utente

Daga

Daga MT-400 Manuale

Philips

Philips RQ119x Manuale utente

Remington

Remington BHT100 Manuale utente

Philips

Philips Bodygroom BG2000 Manuale utente

Kompernass

Kompernass KH 5537 Manuale utente

Remington

Remington BHT6100 Manuale utente

Philips

Philips qc5365 Manuale utente

MIA

MIA Aqua Body Manuale utente

Philips

Philips NORELCO AT880 Manuale utente

Matheo

Matheo MLR 15 Manuale utente
