The Braun ThermoScan Thermometer has been

carefully developed for accurate, safe and fast

temperature measurements in the ear.

The shape of the thermometer prevents it from being

inserted too far into the ear canal to damage the

eardrum.

However, as with any thermometer, proper

technique is critical to obtaining accurate

temperatures. Therefore, read the use

instructions carefully and thoroughly.

Important

• The operating ambient temperature range for this

thermometer is 10 – 40 °C (50 – 104 °F).

• Do not expose the thermometer to temperature

extremes (below –20 °C / 4 °F or over 50 °C /

122 °F) nor excessive humidity (> 95 % RH).

• This thermometer must only be used with genuine

Braun ThermoScan Lens Filters (LF 40). Never use

this thermometer without a new, clean lens filter

attached.

• Keep lens filters out of reach of children.

• This thermometer is intended for household use

only.

• Use of this thermometer is not intended as a

substitute for consultation with your physician.

How does Braun ThermoScan work?

Braun ThermoScan measures the infrared heat

generated by the eardrum and sorrounding tissue.

To help ensure accuracy, the thermometer «scans»

by taking 8 measurements in just one second and

displaying the highest temperature.

Why measure in the ear?

The goal of thermometry is to measure core body

temperature which is the temperature of the vital

organs. Ear temperatures accurately reflect core

body temperature, since the eardrum shares blood

supply with the temperature control center in the

brain, the hypothalamus. Therefore, changes in body

temperature are reflected sooner and more accura-

tely in the ear than at other sites.

• Axillary temperatures only measure skin

temperature and therefore, are not a reliable

indicator of core body temperature.

English

6012137_neu Seite 4 Freitag, 27. Mai 2005 12:58 12

• Oral temperatures are influenced by drinking,

eating and breathing.

• Rectal temperatures lag behind changes in core

body temperature and there is a risk of cross-

contamination.

Body temperature

• Normal body temperature is a range. The fol-

lowing table shows that this normal range also

varies by site. Therefore, readings from different

sites should not be directly compared.

• As well, a person’s normal temperature range

tends to decrease with age. The following table

shows normal ThermoScan ranges by age.

• However, the range of normal also varies from

person to person and fluctuates throughout the

day. It is therefore important to determine your

and your family member’s normal temperature

ranges. This is easily done using Braun

ThermoScan. Practise taking temperatures on

yourself and healthy family members to determine

their normal temperature ranges.

Note: When consulting your physician, communicate

that the ThermoScan temperature is a temperature

measured in the ear and if possible, note the indi-

vidual’s normal ThermoScan temperature range as

additional reference.

Normal ranges by site:

Axillary: 34.7 – 37.3 °C 94.5 – 99.1 °F

Oral: 35.5 – 37.5 °C 95.9 – 99.5 °F

Rectal: 36.6 – 38.0 °C 97.9 – 100.4 °F

ThermoScan: 35.8 – 38.0 °C 96.4 – 100.4 °F

Normal ThermoScan ranges by age:

0 – 2 years 36.4 – 38.0 °C 97.5 – 100.4 °F

3 – 10 years 36.1 – 37.8 °C 97.0 – 100.0 °F

11 – 65 years 35.9 – 37.6 °C 96.6 – 99.7 °F

> 65 years 35.8 – 37.5 °C 96.4 – 99.5 °F

6012137_neu Seite 5 Freitag, 27. Mai 2005 12:58 12

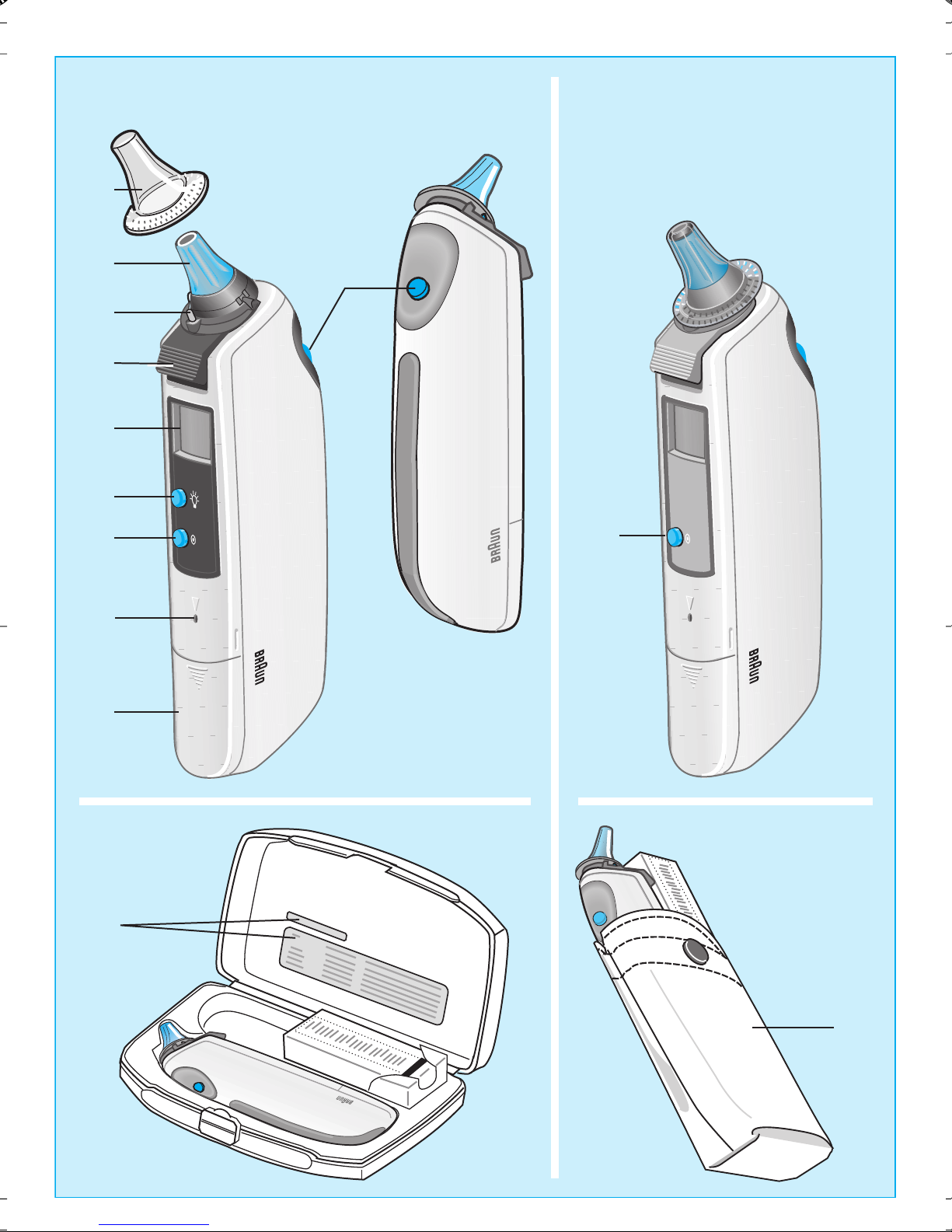

Product description

1. Lens filter

2. Probe

3. Lens filter detector

4. Lens filter ejector

5. Display (LCD)

6. LCD light button (IRT 3520 only)

7. « / mem» button (On/memory function)

8. Battery door lock

9. Battery door

10. Activation button

11. Labels

12. Storage Pouch

How to use Braun ThermoScan

1. Always make sure a new, clean lens filter is in

place to help ensure an accurate reading. The

thermometer will not function without a lens filter

attached.

2. Press the « / mem» button.

The LCD (liquid crystal display) is activated,

showing all segments.

When the ready symbol is displayed, the

thermometer is ready for use.

3. An «ear tug» straightens the ear canal to give a

clear view of the eardrum.

Children under 1 year:

Pull the ear straight back.

Children aged 1 year to adult:

Pull the ear up and back.

6012137_neu Seite 6 Freitag, 27. Mai 2005 12:58 12

4. While tugging the ear, fit the probe snugly into

the ear canal and press the activation button.

Release it, when you hear a beep. This is the

Temp Beep that confirms the end of measure-

ment.

5. Remove the thermometer from the ear canal.

The LCD displays the temperature measured.

6. Replace the lens filter after each measurement:

press the ejector button and put on a new, clean

lens filter.

7. New measurements can be taken as long as

the ready symbol is shown. If no button is

pressed within 2 minutes, the thermometer will

turn off automatically.

Temperature taking hints

• The right ear reading may differ from the reading

taken at the left ear. Therefore, always take the

temperature in the same ear.

• Sleeping on an ear may cause the temperature

to be higher than normal. Therefore, wait a few

minutes if taking temperature after sleeping.

• The ear must be free from obstructions or excess

earwax build-up to take an accurate reading.

Note: In the following situations, it is recom-

mended that you take three temperatures in the

same ear. If they differ, use the highest reading.

• Infants in the first 90 days of life.

• Children under three years of age who have

a condition such as a compromised immune

system and for whom the presence or absence

of fever is critical.

• When you are first learning to use the ear

thermometer until you are comfortable with the

technique and are obtaining consistent readings.

Important: As with any type of thermometer, slight

temperature variations (± 0.2 –0.3°C/± 0.3–0.5°F)

can occur, if consecutive measurements are taken.

6012137_neu Seite 7 Freitag, 27. Mai 2005 12:58 12

Memory mode

The last temperature taken before the thermometer

powers down is stored in memory. To enter the

memory mode, press the « / mem» button.

Even in memory mode, new temperatures can be

taken provided that the ready symbol is

shown.

IRT 3020

The stored temperature is displayed along with

the MEM symbol. To quit the memory mode, press

the « / mem» button again.

IRT 3520

This model allows you to store up to 8 temperatures.

When pressing the « / mem» button, the display

shows the memory cell number (e. g. MEM 1),

when releasing the « / mem» button, the stored

temperature is displayed.

Each further pressing of the « / mem» button

displays the remaining memory cells (up to MEM 8).

An empty memory cell shows « – – – °C». Only the

first empty memory cell will be displayed.

To quit the memory mode, press the « / mem»

button again after reaching MEM 8 or « – – – °C».

Memory clear

Press the « / mem» button for 5 seconds to clear

the temperatures stored in memory.

Release the « / mem» button to return to the ready

symbol .

LCD light

(model IRT 3520 only)

for easy night-time reading

Changing the temperature scale

This thermometer is shipped with the Celsius

temperature scale activated. If you wish to switch to

Fahrenheit (°F), proceed as follows:

6012137_neu Seite 8 Freitag, 27. Mai 2005 12:58 12

• Switch on the thermometer.

(If it is already switched on, make sure it is not in

memory mode.)

• Press the « / mem» button and keep it pressed.

Then press and release the activation button to

switch over to the «change temperature scale»

mode.

• By pressing the activation button again, the

Fahrenheit scale is activated, «°F» is displayed on

the LCD. Each further pressing of the activation

button toggles the scale between «°C» and «°F».

• Release the « / mem» button to return to the

ready symbol .

All temperatures stored in memory will automatically

be converted to the selected scale when displayed

on the LCD.

Care and cleaning

The probe tip is the most delicate part of the thermo-

meter.

It has to be clean and intact to ensure accurate

readings.

If the thermometer is ever accidentally used without

a lens filter, clean the probe tip as follows:

• Hold the appliance with the probe tip facing down

to prevent liquid from entering the probe tip area.

Very gently wipe the surface with a cotton swab or

soft cloth moistened with alcohol.

• After cleaning, allow at least 45 minutes drying

time before reattaching a new, clean lens filter and

taking a temperature.

If the probe tip is damaged, contact Braun.

Use a soft, dry cloth to clean the thermometer display

and exterior.

Do not use abrasive cleaners. Never submerge this

thermometer in water or any other liquid.

Store thermometer and lens filters in a dry location

free from dust and contamination and away from

direct sunlight. The ambient temperature at the

storage location should remain fairly constant and

within the range of 10 to 40 °C or 50 to 104 °F.

Additional lens filters (LF 40) are available at most

stores carrying Braun ThermoScan or at Braun

Service Centers.

6012137_neu Seite 9 Freitag, 27. Mai 2005 12:58 12

Trouble-shooting

Error message Situation Solution

No lens filter is attached. Attach new, clean lens filter.

No lens filter is attached and

activation button was pressed

while probe was in the ear.

Make sure probe tip is clean;

refer to section «Care and

cleaning» if necessary.

Attach new, clean lens filter to

stop error beeps.

Ambient temperature is not

within the allowed operating

range (10–40°C or 50 – 104 °F)

or changing too rapidly.

Allow the thermometer to remain

in a room for 30 minutes where the

temperature is between 10 and

40 °C or 50 and 104°F.

Temperature taken is not within

typical human temperature

range (34– 42.2 °C

or 93.2 –108 °F).

HI = too high

LO = too low

Make sure new, clean lens filter

is attached and thermometer is

properly inserted.

Then, take a new temperature.

System error

• If error persists,

• If error still persists,

Wait 2 minutes until thermometer

powers down, then switch on again.

… reset thermometer by removing the

batteries and putting them back in.

… have thermometer checked at a

Braun Customer Service Center

Battery is low, but thermometer

will still operate correctly.

(No light function on IRT 3520

model.)

Insert new batteries.

Battery is too low to take

correct temperature readings.

Insert new batteries.

Do you have any further

questions?

Call Braun Infoline.

6012137_neu Seite 10 Freitag, 27. Mai 2005 12:58 12

Altri manuali per IRT 3020

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Braun Termometro

Braun

Braun WelchAllyn ThermoScan PRO 4000 Manuale utente

Braun

Braun BNT300CA Manuale utente

Braun

Braun ThermoScan PRO 6000 Manuale dell'operatore

Braun

Braun 6026 Manuale utente

Braun

Braun WelchAllyn ThermoScan PRO 4000 Manuale utente

Braun

Braun IRT 6020 Manuale utente

Braun

Braun BNT 400 Manuale utente

Braun

Braun ThermoScan IRT 6020 Manuale utente

Braun

Braun 6012 Manuale utente

Braun

Braun ThermoScan PRO 6000 Manuale utente

Braun

Braun 6021 Manuale utente

Braun

Braun FHT 1000 Manuale utente

Braun

Braun IRT 4520 Manuale utente

Braun

Braun 6012 Manuale utente

Braun

Braun ThermoScan IRT 4520 Manuale utente

Braun

Braun ThermoScan 3 Manuale utente

Braun

Braun ThermoScan Manuale per l'uso e la cura

Braun

Braun ThermoScan IRT6520LA Manuale utente

Braun

Braun ThermoScan WelchAllyn PRO 4000 Base Station Manuale utente

Braun

Braun ThermoScan IRT 6515 Manuale utente

Braun

Braun 6026 Manuale utente

Braun

Braun BFH 125 Manuale utente

Braun

Braun ThermoScan IRT 6515 Manuale utente

Braun

Braun ThermoScan IRT 6020 Manuale utente

Manuali Termometro popolari di altre marche

Delton

Delton 981A Manuale utente

Baker

Baker MM2P Manuale utente

Tarmo

Tarmo 320281 Manuale utente

Citizen

Citizen CTD 504 Manuale utente

TFA

TFA 14.1500 Manuale utente

Vive

Vive DMD1010 Manuale utente

Gotemp

Gotemp THB4002 Manuale utente

GREISINGER

GREISINGER G 1202 Manuale utente

Amprobe

Amprobe TMD-53W Manuale utente

Trotec

Trotec BP10 Manuale utente

Radiance instruments

Radiance instruments RT616 Series Manuale utente

Eurolec

Eurolec IR151 Manuale utente

Scaneo

Scaneo TS42B Manuale utente

Sper scientific

Sper scientific 800043 Manuale utente

Microlife

Microlife NC 200 Manuale di istruzioni

Motorola

Motorola MBP69SN Guida alla configurazione

The MeatStick

The MeatStick The MeatStick Manuale utente

Hama

Hama TH35-A Manuale utente
