BRAVILOR BONAMAT SPRSO Manuale utente
Original document by manufacturer
version 1.1
Technical manual - North America (English)
TECHNICAL MANUAL
Original document by manufacturer
version 1.1
All rights reserved.
No part of this document may be copied and/or published by means of printing, photocopying, microlming or by any other means whatsoever without the prior
written consent of the manufacturer. This also applies to the included drawings and/or diagrams.
The information in this document is based on data that was available at the time the design, the material characteristics and the operating methods were published,
meaning that this document is subject to change.
The original instructions for this manual have been written in English. Other language versions of this manual are a translation of the original instructions.
For this reason, the instructions are merely a guideline for the installation, maintenance and repair of the machine displayed on the front cover.
This document applies to the standard version of this machine.
The manufacturer therefore declines all liability for any damage arising from specications that deviate from the standard version of the machine delivered to you.
This document has been compiled with the utmost care. However, the manufacturer cannot be held liable for any errors it contains or the consequences thereof.
Original document by manufacturer
version 1.1
Table of contents
1. Special functions .............................................................1
1.1 Water system calibration ..................................................... 3
1.2 Grinder calibration .......................................................... 6
2. Spare parts replacement .................................................... 10
2.1 Brand name buckle and control panel ........................................ 10
2.2 Outlet .................................................................... 11
2.3 Open right side panel....................................................... 12
2.4 Remove back panel......................................................... 13
2.5 Remove fan ............................................................... 13
2.6 Remove grinder............................................................ 14
2.7 Remove the water counter/safety switches .................................... 15
2.8 Remove I/O board.......................................................... 16
2.9 Remove power board....................................................... 16
2.10 Removeashheater........................................................ 17
2.11 Remove pump ............................................................. 18
2.12 Remove valve set .......................................................... 19
2.13 Remove brewer motor ...................................................... 20
2.14 Hose positions............................................................. 21
3. Beverageproles........................................................... 22
3.1 Selectable volume - small ......................................... 22
3.2 Selectable volume - medium ...................................... 23
3.3 Selectable volume - large ......................................... 23
4. Software update instructions................................................ 24
5. Troubleshooting ........................................................... 26
5.1 Warning messages ......................................................... 26
5.2 Error messages ............................................................ 28
5.3 Other problems............................................................ 30
1

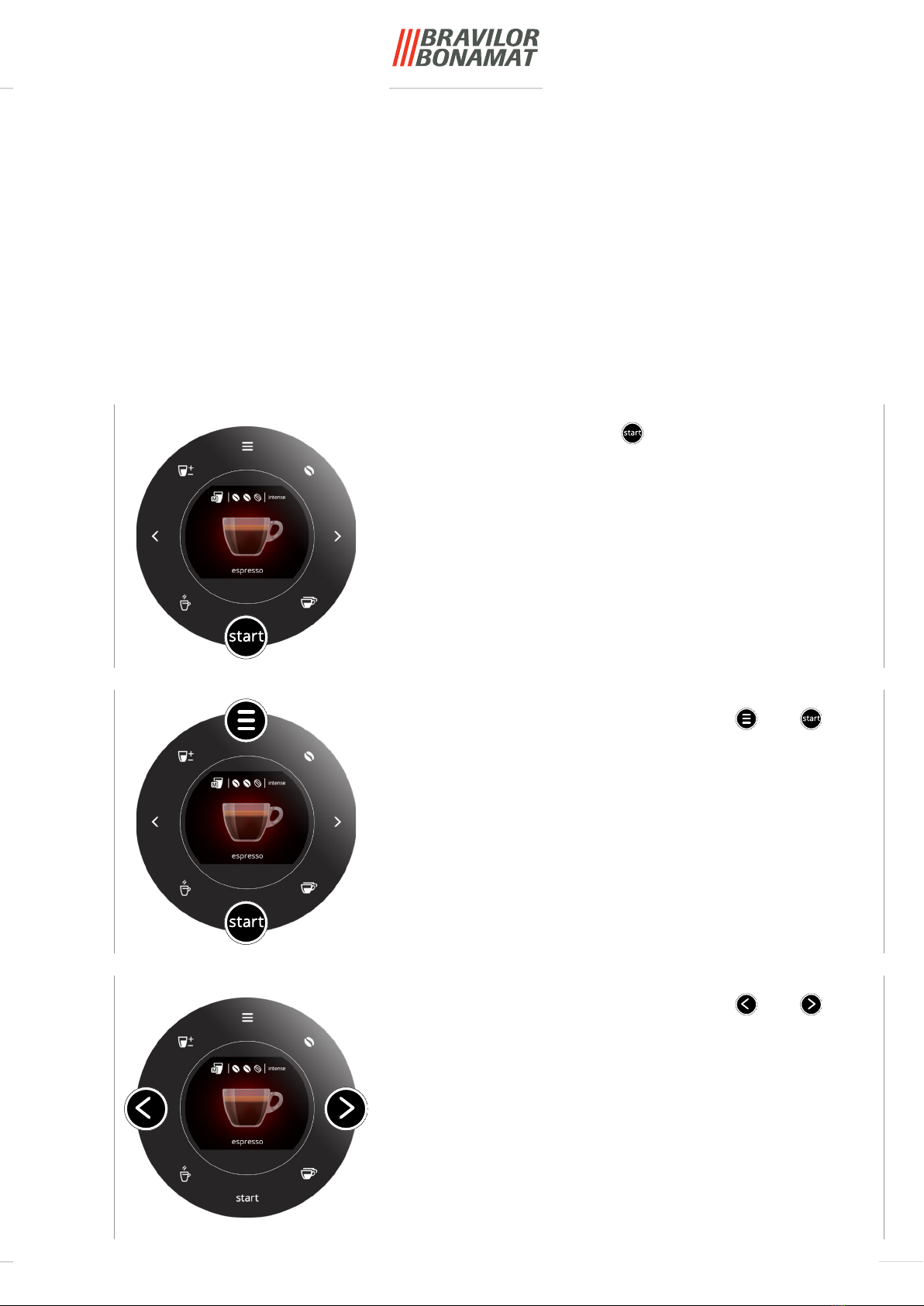

Childlockon/o:
• press and hold the button combination and for
5seconds
►This function is to lock (and unlock) all controls to
prevent accidental dosing.
Demomodeon/o:
• press and hold the button combination and for
10seconds
►The demo mode is a function which can be enabled for
marketing purposes.
►Switch o the Sprso to end the demo mode.
By using a ‘secret key combination’ special features can be activated.
1.Special functions
Standbymode:
• press and hold the button for 5 seconds
• necessaryusheswillbedone
• the“goodbye”screenisturnedoandonlythestart
buttonisashingslowly
►The standby mode is a function which can be enabled for
energy saving.
►Press the start button to end the standby mode.
1a
1b
1c
2
1d
1e
Resetthedescalingcounter:
• press and hold the button for 10 seconds in this
screen until the maintenance menu appears
►The counter that triggers the descale message is reset.
Resetthecleaningbrewercounter:
• press and hold the button for 10 seconds in this
screen until the maintenance menu appears
►The counter that triggers the clean brewer message is
reset.
3
1.1 Water system calibration

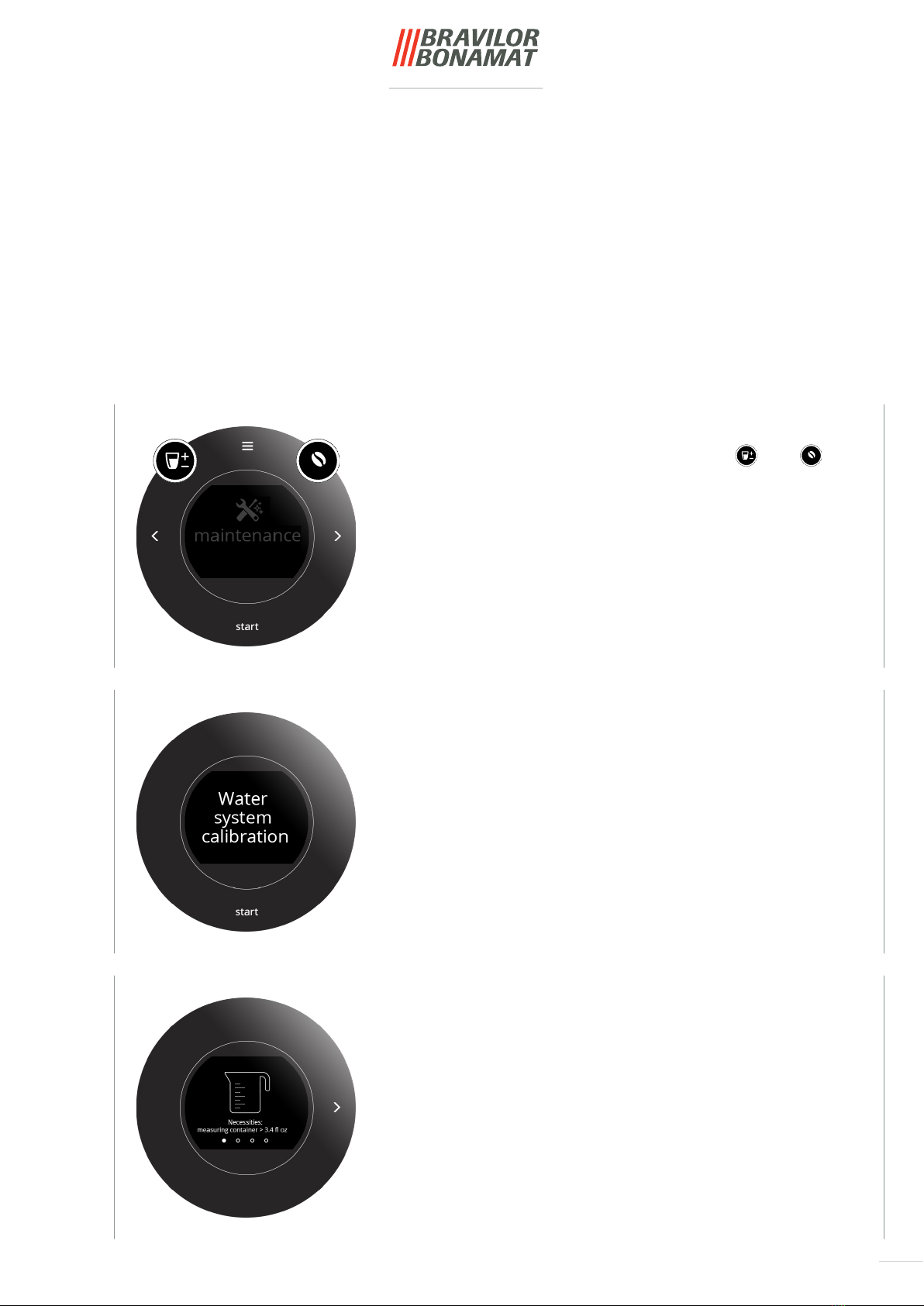

Watersystemcalibration:
• go to the program menu
• press and hold the button combination and for
5seconds
Calibrationwatersystem:
• press starttoconrm
In this menu the water system can be calibrated.
Withcalibrationthevolumeofthewaterisdeterminedforadenedowandtime.
Whennishedthemeasuredvolumemustbelledin.
►The water system calibration is used to adjust the dierences between the actual water delivery
of the Sprso and the indicated amount.
Necessities:
• measuringcontainer(withnescale)
Step1:preparation
• make sure that you have all necessities
• press >to go to the next step
1.1a
1.1b
1.1c
4
Step3:dosinghotwater
• wait for the next screen
Step4:measure
• read the dosed water
• press >to go to the next step
Step5:measure
• press <or >to enter the measured volume
• press starttoconrm
Step2:preparation
• follow the instructions on the screen
• press start to begin the calibration
1.1d
1.1e
1.1f
1.1g
5
Newwatervolumeissaved:
• wait for the next screen
• exit the menu by pressing
1.1h
6
1.2 Grinder calibration

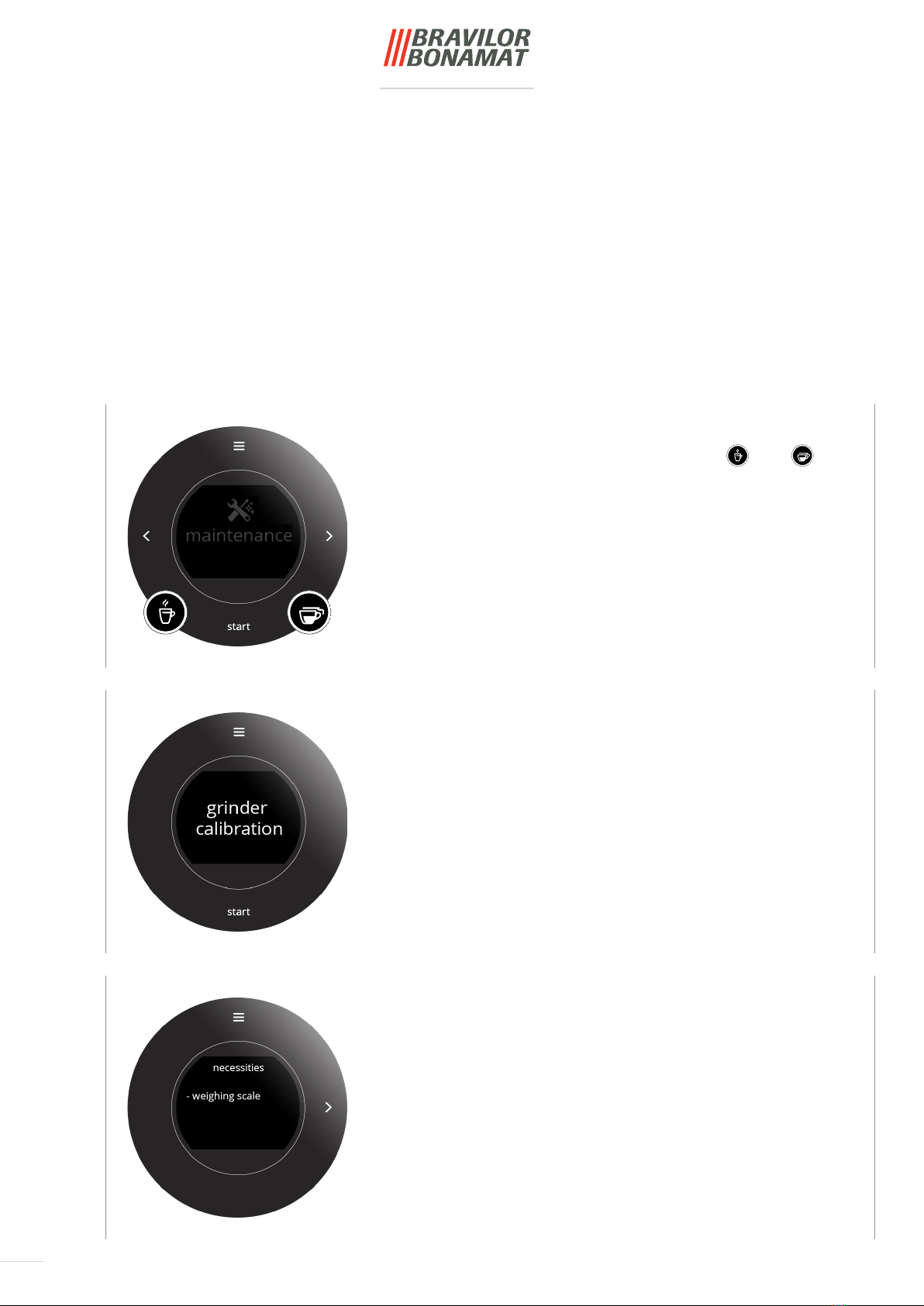

Calibrationgrinder:
• press starttoconrm
Thegrindercalibrationwillaecteverycoeerelatedbeverage.
Necessities:
• coeebeans
• digital kitchen scales
Step1:preparation
• make sure that you have all necessities
• press >to go to the next step
Grindercalibration:
• go to the program menu
• press and hold the button combination and for
5seconds
1.2a
1.2b
1.2c
