BRC DPG1K Manuale utente

BRC DPG CONTROLLER USER GUIDE

DESK CONTROL APP PLACEMENT & MOUNTING RESET DPG1B/C OPERATION DPG OPERATION PRODUCT MAP

Page 12 of 56

Desk Control™ Apps

• Up and down drive (if supported by the

connected product)

• Displays actual height

• Displays error codes and links to LINAK

website support

• Up to 4 memory positions

• Reminder notiﬁcations when to stand up

• Possibility to enable automatic drive on memory

positions (if supported by the connected product)

• Works via Bluetooth® Low Energy Technology

• Available in English, German, French, Spanish,

Italian, Korean, Chinese and Japanese

DPG1K

• Up/down drive

Products

DPG1M

• Up/down drive

• 2 memory positions

• LED diode reminder

• Bluetooth®

DPG1B

• Up/down drive

• 2 memory positions

• Light strip reminder

• Bluetooth®

DPG1C

• Up/down drive

• 4 memory positions

• Light strip reminder

• Bluetooth®

• Display

BRC DPG CONTROLLER USER GUIDE

DESK CONTROL APP PLACEMENT & MOUNTING RESET DPG1B/C OPERATION DPG OPERATION PRODUCT MAP

Page 13 of 56

Operation of the DPG series:

The Desk Panel is operated by tilting; Tilt and hold the DPG up to make the desk drive up, press and hold the

DPG down to make the desk drive down. Release the DPG when you have reached your requested position.

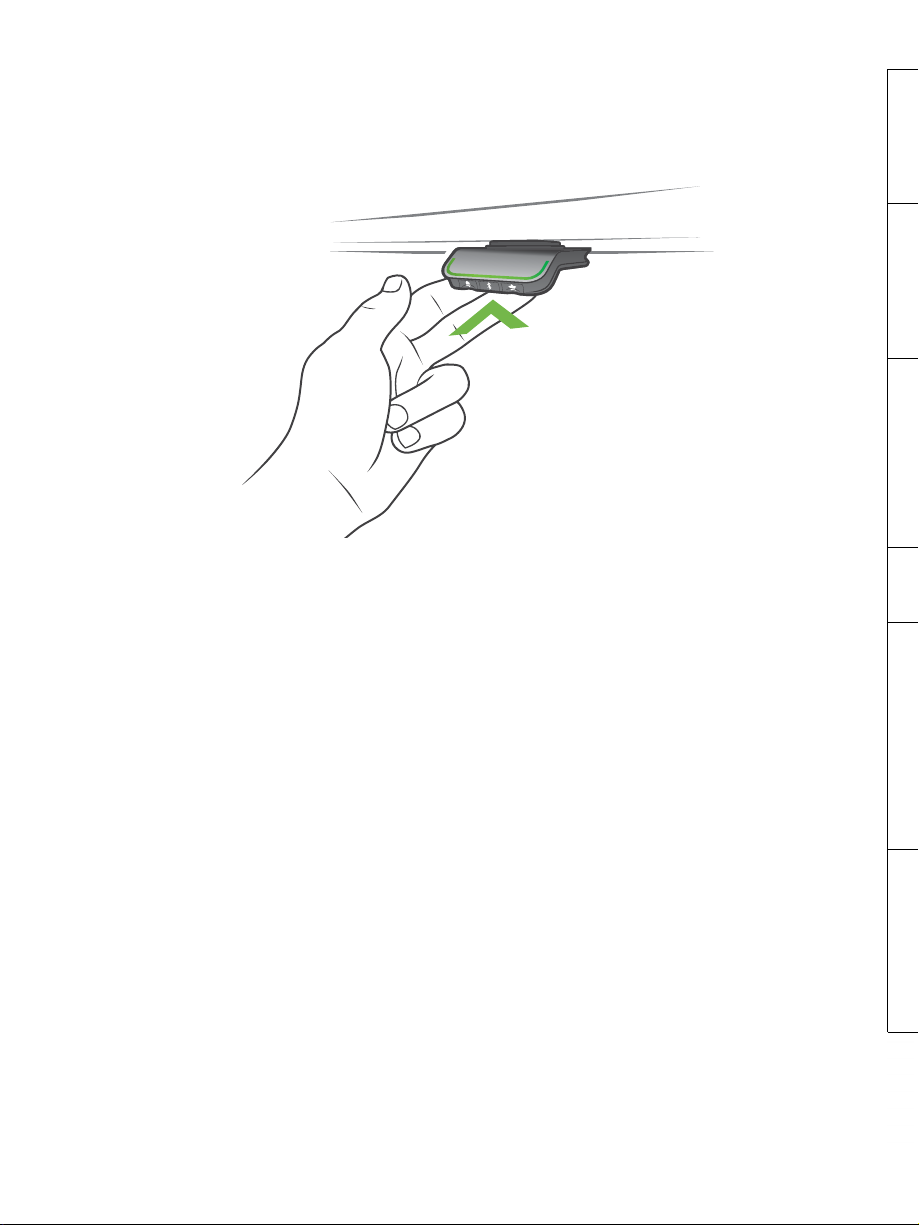

Figure 1: Tilt and hold the DPG1K to make the desk drive up

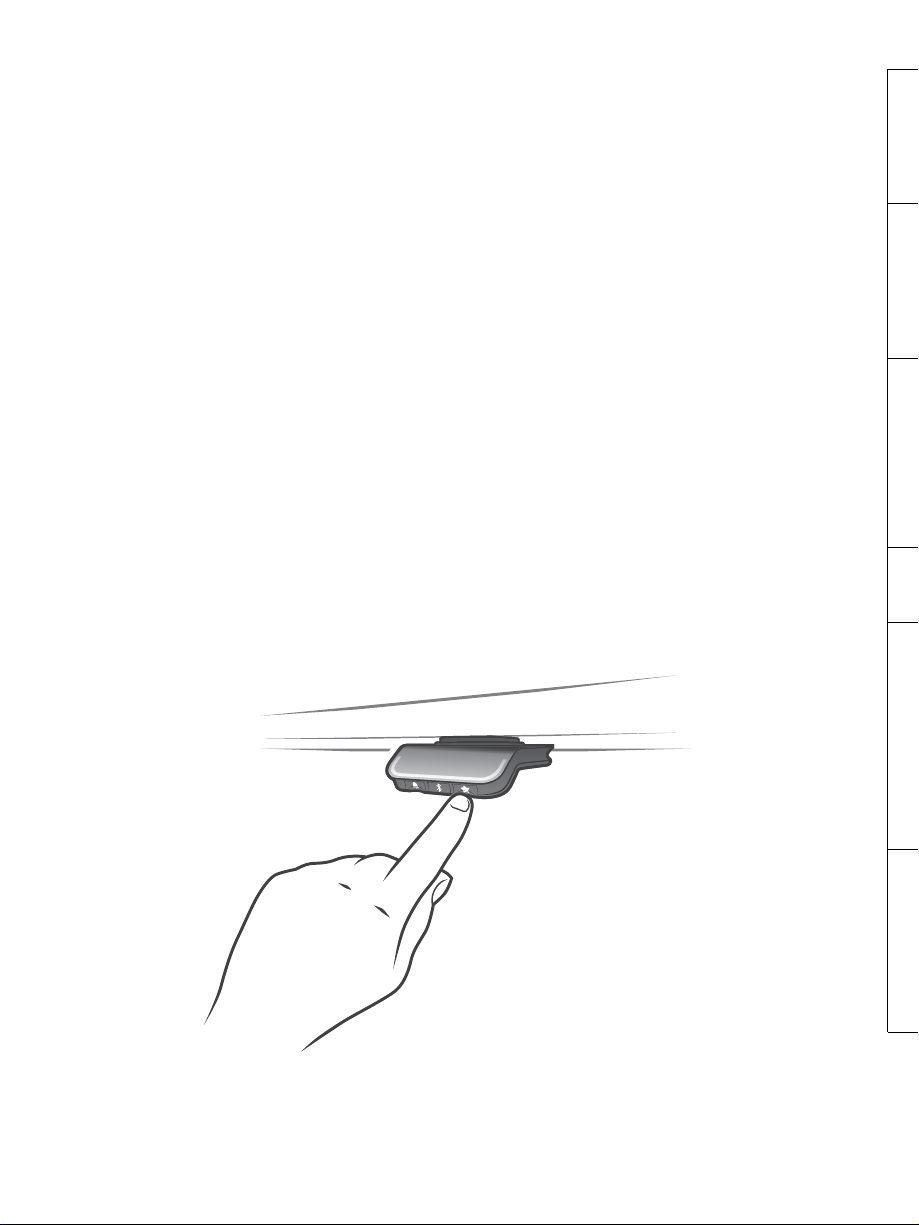

Figure 2: Press and hold the DPG1K to make the desk drive down

BRC DPG CONTROLLER USER GUIDE

DESK CONTROL APP PLACEMENT & MOUNTING RESET DPG1B/C OPERATION DPG OPERATION PRODUCT MAP

Page 19 of 56

Operation of the DPG1B/C

The Desk Panel is operated by tilting; Tilt and hold the DPG up to make the desk drive up, press and hold the

DPG down to make the desk drive down. Release the DPG, when you have reached your requested position.

Figure 1: Tilt and hold the DPG to make the desk drive up

Figure 2: Press and hold the DPG to make the desk drive down

BRC DPG CONTROLLER USER GUIDE

DESK CONTROL APP PLACEMENT & MOUNTING RESET DPG1B/C OPERATION DPG OPERATION PRODUCT MAP

Page 20 of 56

Storing the memory positions

DPG1B:

Memory positions

The DPG1B has a “store memory” button to the right symbolised with a star.

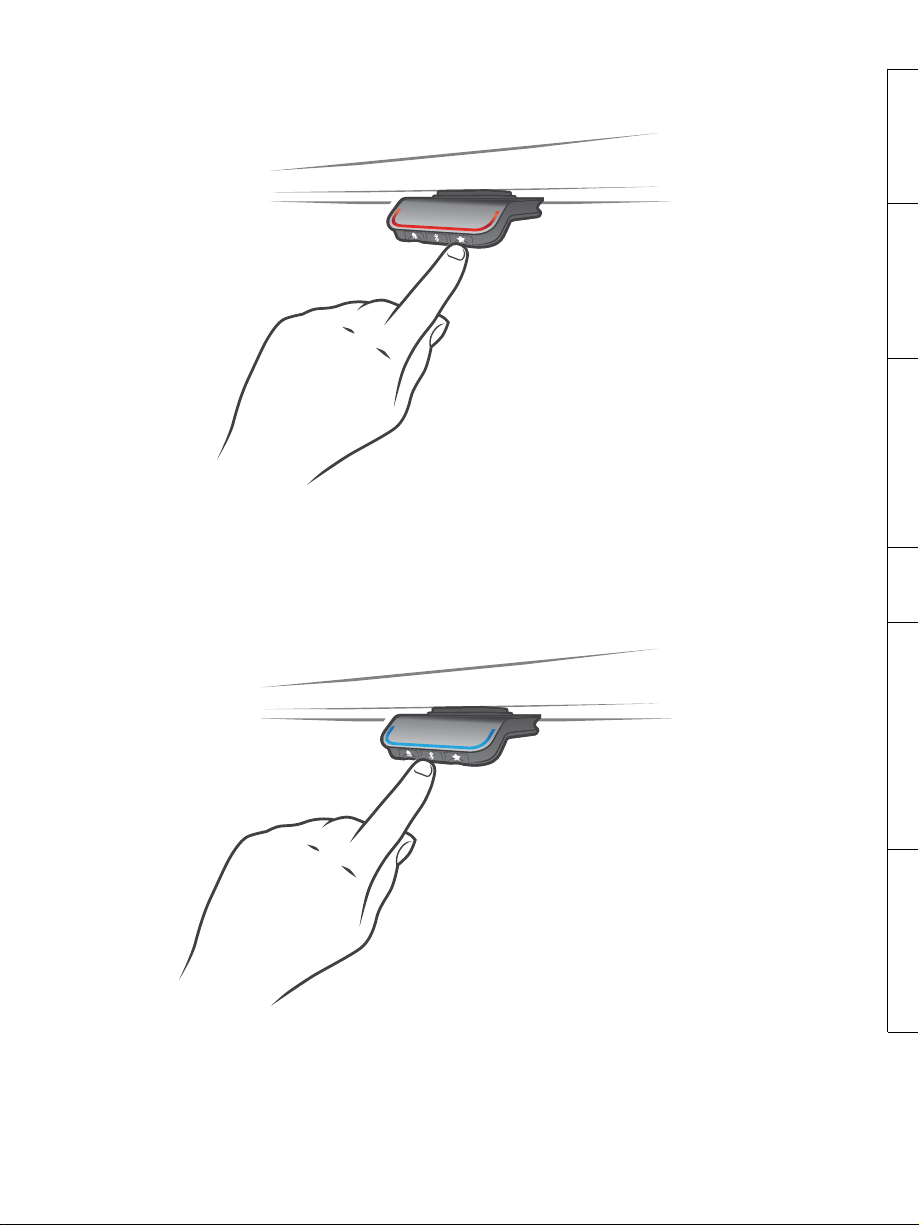

Adjust the desk to a preferred position and press the “Star”-button for 2 seconds. The light strip will now ﬂash

white two times to indicate that saving the position is in progress. When the light strip becomes static white,

the position is saved. If the user adjusts the desk to another position and saves the position, it will overwrite the

memory position closest to the current position.

DPG1C:

Memory positions 1 and 2

The DPG1C has a “store memory” button to the right symbolised with a star.

Adjust the desk to a preferred position and press the “Star”-button for 2 seconds. The light strip will now ﬂash

white two times to indicate that saving the position is in progress. When the light strip becomes static white, the

position has been saved. The display will indicate the saved position with a star and a number of the position. The

number inside the star indicates the order according to which the positions are saved; First position saved; A star

with a “1” inside. This is how to save 2 memory positions “1” and “2”. If the user adjusts the desk to another

position and saves the position, it will overwrite the memory position 1 or 2 closest to the current position.

Memory positions 3 and 4

The DPG1C features 4 memory positions. Pressing the “Star” shortly will make the display show the 4 memory

positions: A “star” with the number next to it. Now the user can toggle through these 4 memory positions in

the display and choose which one to save the current position as. E.g. a user wants to store the current position

as memory 3: Press the “star”-button and toggle to the “star” with “3” next to it. Now use the same storing

procedure as described above: Press the star for 2 seconds and the memory position is saved.

BRC DPG CONTROLLER USER GUIDE

DESK CONTROL APP PLACEMENT & MOUNTING RESET DPG1B/C OPERATION DPG OPERATION PRODUCT MAP

Page 21 of 56

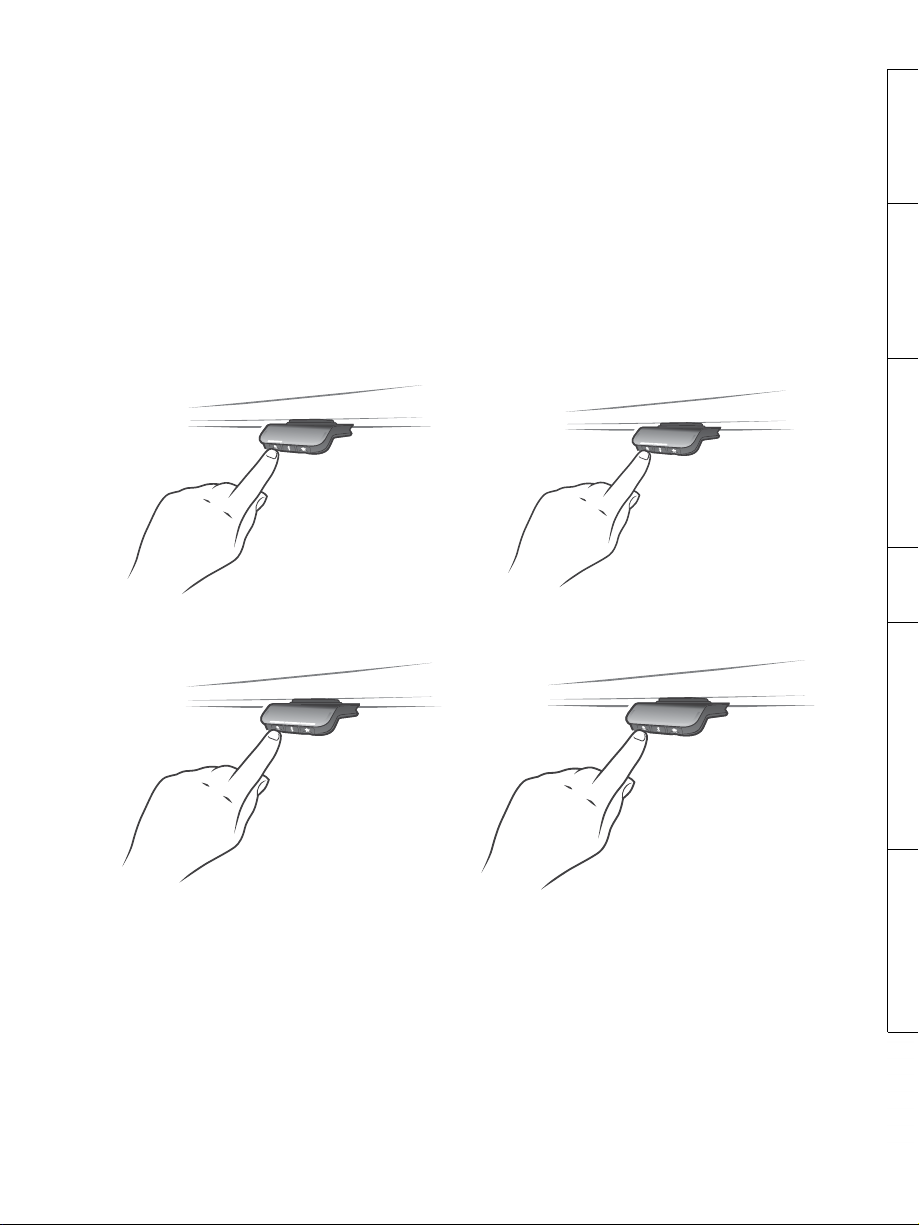

Driving to memory positions

After storing the memory positions, the positions can be reached simply by tilting the DPG. Tilt and hold - when

a stored position is reached, the desk stops. This way the user can easily change between sitting and standing

position without looking at the DPG in the meantime. While driving the display in the DPG1C will show the

height of the desk. When a position is reached, this will be indicated in the display by the star and the memory

number.

The DPG will stop at all stored memory positions, which means up to 4 different positions (in DPG1C) during the

stroke length of the desk. When the desk stops at a memory position, the user can continue to tilt the DPG for 1

second and the desk will move past the memory position and continue in the direction of the tilt. Furthermore,

when the desk stops at a memory position, the user can release the DPG and tilt again immediately to move

past a memory position.

Driving to memory positions

(Automatic drive enabled via the Desk Control™ App, only possible for “Full version”)

After storing the memory positions, the positions can be reached simply by tilting the DPG. Double tab on the

DPG to let the desk adjust automatically to the ﬁrst position in the direction of the double tap. Simply tab the

DPG again to stop the driving of the desk.

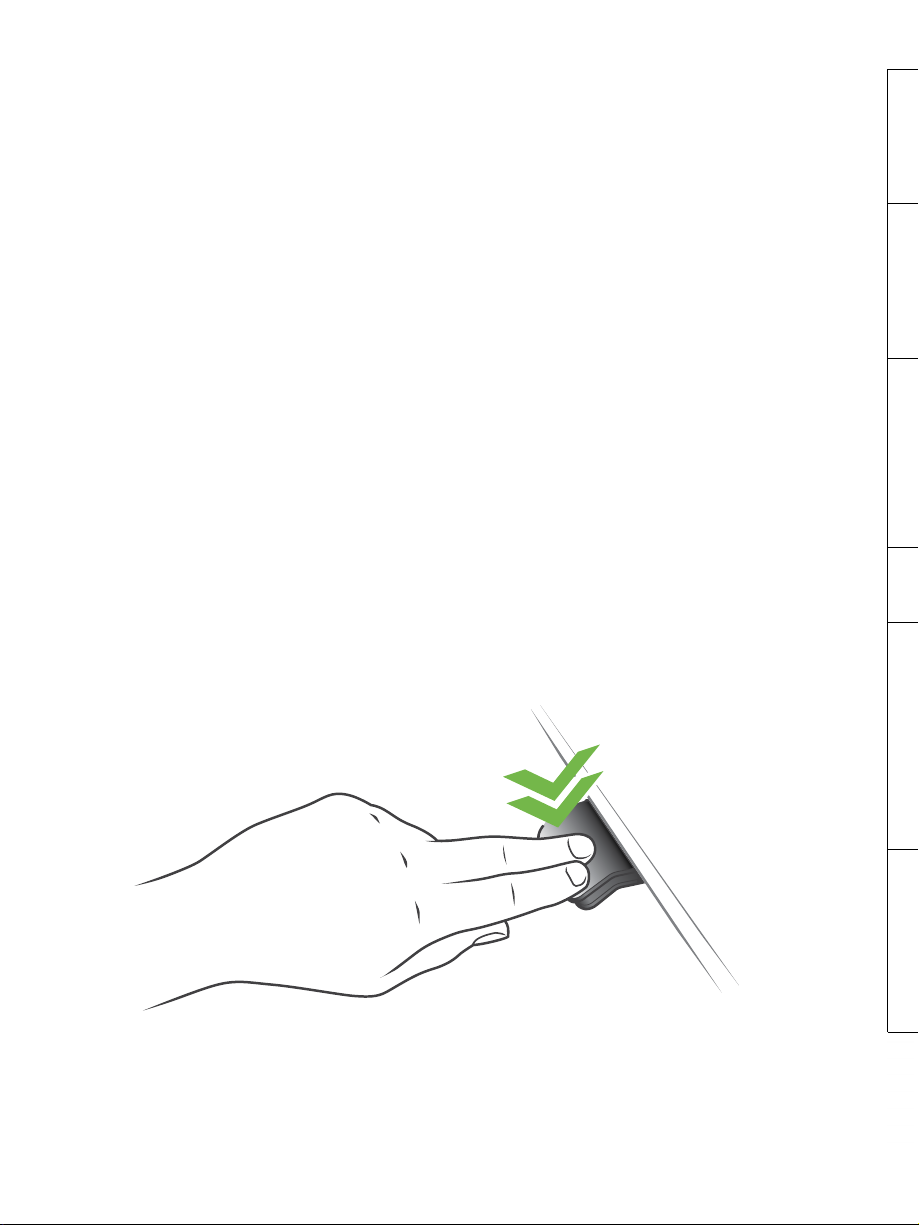

Figure 3: Double tap to adjust the desk to a memory position automatically

BRC DPG CONTROLLER USER GUIDE

DESK CONTROL APP PLACEMENT & MOUNTING RESET DPG1B/C OPERATION DPG OPERATION PRODUCT MAP

Page 22 of 56

Erase memory positions

Pressing the “Memory” button for 8 seconds will erase all saved memory positions. The light strip will blink red

to indicate when the action is completed.

Connecting Bluetooth®

Pressing the Bluetooth® button in the middle for 2 seconds will enable pairing mode.

A blue ﬂashing light in the light strip indicates this.

Download the Desk Control™ App suited for your device in App store or Google Play

and pair the app and the device. Search for Desk Control and look for the app icon:

The display on the DPG1C will inform about the Bluetooth-ID of the desk, which is “DESK” followed by a 4-digit

number – look for this ID in the list of “Desks nearby”.

BRC DPG CONTROLLER USER GUIDE

DESK CONTROL APP PLACEMENT & MOUNTING RESET DPG1B/C OPERATION DPG OPERATION PRODUCT MAP

Page 23 of 56

Reminder

Setting the reminder interval

The DPG has a “Reminder” button to the left symbolised with a bell. Pressing this button will adjust the interval

of how often to get reminders to change position. Each white block represents an interval and the 3 standards

are:

- Interval 1: Reminder after 55 minutes sitting

- Interval 2: Reminder after 50 minutes sitting

- Interval 3: Reminder after 45 minutes sitting

The default interval chosen is reminding after 55 mins, which means one white block will be lit up. Simply toggle

through the intervals by pressing the bell button. When no white blocks are lit up, the reminder is turned off.

Through the apps, it is possible to personalise the three intervals to custom values.

Interval 1: Reminder after 55 minutes sitting Interval 2: Reminder after 50 minutes sitting

Interval 3: Reminder after 45 minutes sitting Reminder off

Reminder reset

It is possible to reset the reminder to default values by pressing the “bell” symbol for 8 seconds. The light strip

will ﬂash red to indicate when the action is completed.

BRC DPG CONTROLLER USER GUIDE

DESK CONTROL APP PLACEMENT & MOUNTING RESET DPG1B/C OPERATION DPG OPERATION PRODUCT MAP

Page 24 of 56

Light strip reminder

The light strip is a thin line of LED light shining through the surface of the DPG. The light strip is intended to

indicate the status of the desk user. The status depends on the reminder interval chosen. When the user is in

position in an appropriate amount of time according to the interval, the light strip calmly pulsates green. When

the sitting interval runs out, the calm pulsating green turns into fast pulsating orange for 1 min hereafter static

orange – this is an indication to the user to adjust the desk to standing height. In standing height, the light strip

will pulsate green until a potential timeout. When the desk is adjusted back to sitting position, the light strip will

pulsate green until the reminder goes off again.

After 4 hours without any action, the light strip will time out. When the DPG is tilted, the green light will come

back on.

Please be aware; When the light strip is enabled for reminders, the DPG is no longer in ZEROTM mode as

long as the light is on/active.

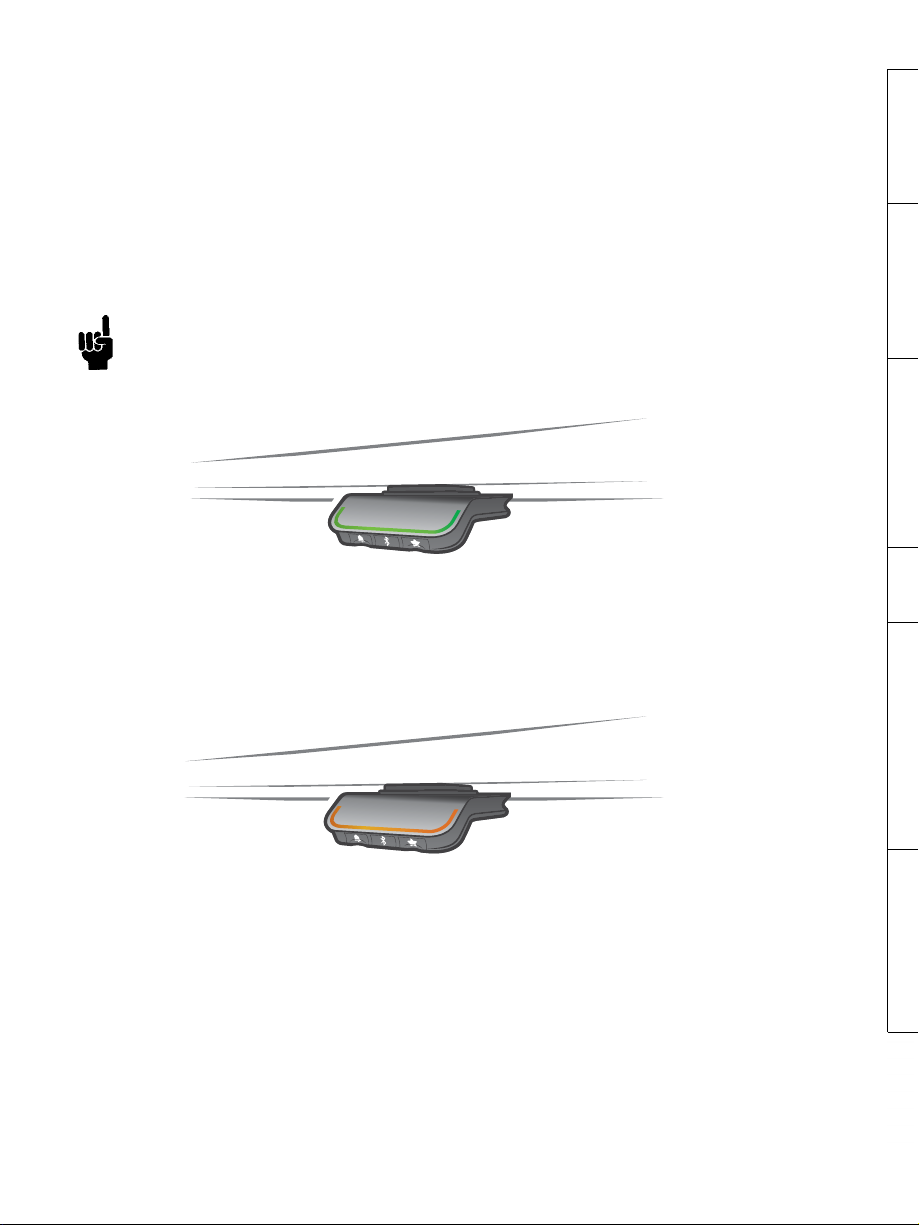

Figure 4: Pulsating green light strip indicates that everything is okay

Figure 5: Pulsating orange light strip indicates that the user needs to change position

BRC DPG CONTROLLER USER GUIDE

DESK CONTROL APP PLACEMENT & MOUNTING RESET DPG1B/C OPERATION DPG OPERATION PRODUCT MAP

Page 25 of 56

Factory reset

Pressing and holding the “Memory” and “Reminder” for 8 seconds will set the DPG to factory default. The LED

will ﬂash red 3 times. If a factory reset is performed, it sets the DPG back to the conﬁgured state. That means all

conﬁgurations made in the DPG conﬁgurator will not be reset – only the settings changed directly on the DPG or

in the App by the end-user will be deleted.

Error codes in CBD6S Cause

E53-E64 COLLISION

E41-E52 OVERLOAD

E01 INITIALISATION

DPG1C

Display

The DPG1C has an OLED display, which shows the height during drive of the desk and many other texts to guide

the user.

Adjust the initial height of the desk

If the height shown in the display is not correct the height can be adjusted. When pressing the “Reminder” and

the “Bluetooth” button on the DPG1C at the same time in 5 seconds; the height in the display starts to blink.

When tilting the DPG1C the height in the display changes without moving the desk. Tilt up to increase the

height, tilt down to decrease the shown height in the display. Pressing any button will conﬁrm the choice or wait

for 10 seconds and the conﬁrmation happens automatically.

Switching between centimetre and inch

Pressing the “Memory” and the “Bluetooth” button on the DPG1C at the same time for 5 seconds; the current

measurement unit blinks. When e.g. CM is blinking and the user wants to change to inch; Tilt the DPG once and

it now says “Inch” in the display. Pressing any button will conﬁrm the choice or wait for 10 seconds and the

conﬁrmation happens automatically.

Error codes

The DPG1C shows error codes in case of errors in the system. The most common errors loop between the error

code (EXX) and the cause, check the code below:

BRC DPG CONTROLLER USER GUIDE

DESK CONTROL APP PLACEMENT & MOUNTING RESET DPG1B/C OPERATION DPG OPERATION PRODUCT MAP

Page 26 of 56

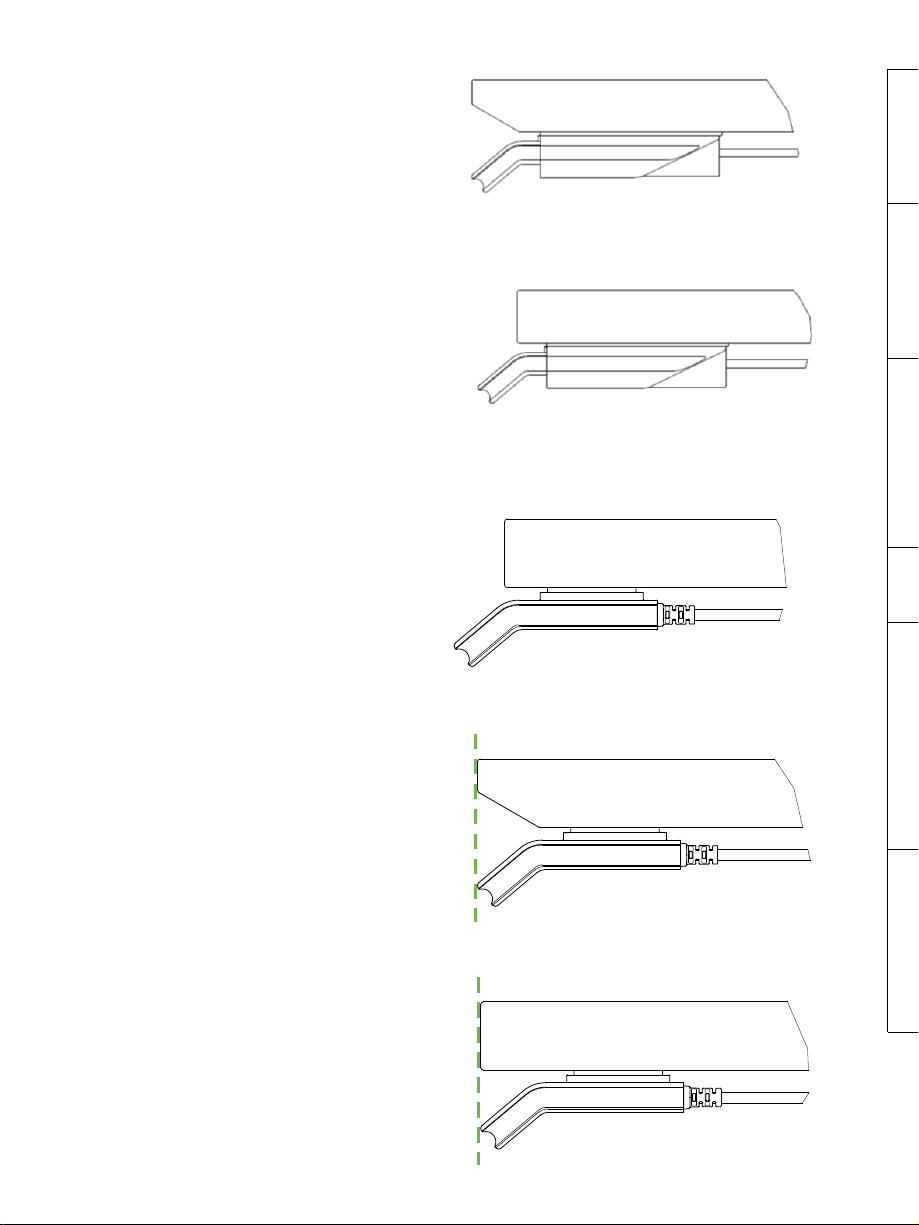

Placement of the DPG1K:

The drawings below are side views examples on

how to position the DPG1K according to the edge

of the tabletop.

Drawing No.: DRW0001

Placement of the DPG1M:

The drawings below are side views examples on

how to position the DPG1M according to the edge

of the tabletop.
