129H00

Illustrated Parts List

Model Series

129H00

TYPE NUMBERS

0005 through 0185.

TABLE OF CONTENTS

Alternator 6. . . . . . . . . . . . . . . . . . . . . . . . . .

Air Cleaner 4. . . . . . . . . . . . . . . . . . . . . . . . .

Blower Housing/Shrouds 5. . . . . . . . . . . .

Camshaft 2. . . . . . . . . . . . . . . . . . . . . . . . . . .

Carburetor 3. . . . . . . . . . . . . . . . . . . . . . . . .

Controls 4. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crankshaft 2. . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electric Starter 6. . . . . . . . . . . . . . . . . . . . . .

Electrical 6. . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine Sump 2. . . . . . . . . . . . . . . . . . . . . . .

Exhaust System 4. . . . . . . . . . . . . . . . . . . .

Flywheel 5. . . . . . . . . . . . . . . . . . . . . . . . . . .

Flywheel Brake 6. . . . . . . . . . . . . . . . . . . . .

Fuel Supply 3. . . . . . . . . . . . . . . . . . . . . . . .

Governor Spring 4. . . . . . . . . . . . . . . . . . . .

Ignition 6. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Kits/Gaskets 2 & 3. . . . . . . . . . . . . . . . . . . . . . . .

Lubrication 2. . . . . . . . . . . . . . . . . . . . . . . .

Piston Group 2. . . . . . . . . . . . . . . . . . . . . . .

Rewind Starter 5. . . . . . . . . . . . . . . . . . . . . .

Valves 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

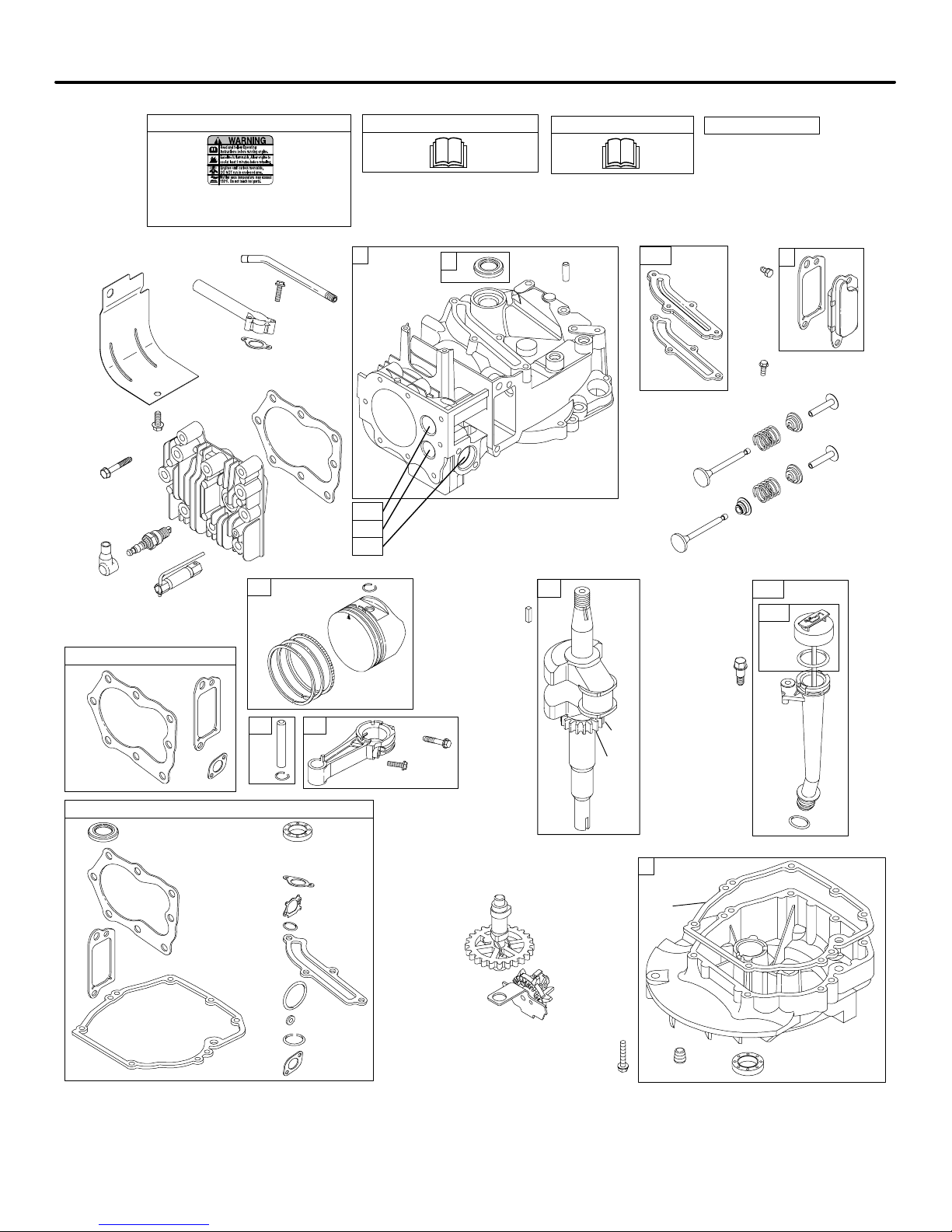

129H00

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5118−2Assemblies include all parts shown in frames. 12/07/2007

128

718

307

306

383

635

337

13 5

22 20

847

523

287

524

525

842

883

1095 VALVE GASKET SET

40 45

358 ENGINE GASKET SET

883

842

617

524

163

585

668

32A

146

741

870

869

871

684

585

584

868

1019 LABEL KIT

1330 REPAIR MANUAL

1058 OPERATOR’S MANUAL

1319 WARNING LABEL

REQUIRED when replacing parts

with warning labels affixed.

129H00

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5118−3Assemblies include all parts shown in frames. 12/07/2007

117 276

118 276

134

975

133

134

125

PRIMER SYSTEM

617

130

633

127

163

276

137

104

365

121 CARBURETOR OVERHAUL KIT

977 CARBURETOR GASKET SET

163

137 276

104

127

137

163

633

617

276

617

633

670

190

601A

601

958

187 187A

601

972B 1059

957

957B

129H00

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5118−4Assemblies include all parts shown in frames. 12/07/2007

346

677

613

883

163

529

970

159

443A

445A

967A

968B

425A

966A

976

300 676

994

616

404

615

505

562

202

188843

265

267

270

271

268

621

227

222 222D

668 668

269

209B

832

836

129H00

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5118−5Assemblies include all parts shown in frames. 12/07/2007

703

949

563

564

604

1229

304A

925

305

1036 EMISSIONS LABEL

997

592

597

456

689

459

1210

1211

608

363

23A

455

332

1005

129H00

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5118−6Assemblies include all parts shown in frames. 12/07/2007

621

922

745

923

851

334

910

474

1119

356

333

789B

1160

935

236

578

310

802

853

803

544

801

783A

651

513

785

784

783

937

742

309

545

510

853

697

783A

651

513

785

784

783

937

742

510

309A

129H00

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5118−7Assemblies include all parts shown in frames. 12/07/2007

1 697322 Cylinder Assembly

2 399269 Kit−Bushing/Seal

(Magneto Side)

3K299819S Seal−Oil

(Magneto Side)

4 493279 Sump−Engine

5 691160 Head−Cylinder

7K∅692249 Gasket−Cylinder Head

8 695250 Breather Assembly

9K∅696125 Gasket−Breather

10 691125 Screw

(Breather Assembly)

11 691781 Tube−Breather

12 K692232 Gasket−Crankcase

13 690912 Screw

(Cylinder Head)

15 691680 Plug−Oil Drain

(Square Socket)

16 691451 Crankshaft

−−−−−−− Note −−−−−

691452 Crankshaft

Used on Type No(s).

0105, 0117.

20 K399781S Seal−Oil

(PTO Side)

22 691092 Screw

(Crankcase Cover/

Sump)

23A 691992 Flywheel

Used on Type No(s).

0005, 0110, 0111,

0112, 0113.

−−−−−−− Note −−−−−

691987 Flywheel

Used on Type No(s).

0015, 0100, 0105,

0115, 0116, 0117,

0118, 0185.

24 222698S Key−Flywheel

25 795429 Piston Assembly

(Standard)

(Used After Code Date

07090300).

−−−−−−− Note −−−−−

791097 Piston

Assembly

(Standard)

(Used Before Code

Date 07090300).

795430 Piston

Assembly

(.020” Oversize)

(Used After Code Date

07090300).

791326 Piston

Assembly

(.020” Oversize)

(Used After Code Date

04102100 and Before

Code Date 07040400).

697341 Piston

Assembly

(.020” Oversize)

(Used Before Code

Date 04102200).

26 795431 Ring Set

(Standard)

(Used After Code Date

07090300).

−−−−−−− Note −−−−−

791098 Ring Set

(Standard)

(Used After Code Date

04031400 and Before

Code Date 07090400).

499425 Ring Set

(Standard)

(Used Before Code

Date 04031500).

795432 Ring Set

(.020” Oversize)

(Used After Code Date

07090300).

791324 Ring Set

(.020” Oversize)

(Used After Code Date

04102100 and Before

Code Date 07090400).

499427 Ring Set

(.020” Oversize)

(Used Before Code

Date 04102200).

27 691866 Lock−Piston Pin

28 499423 Pin−Piston

(Standard)

29 499424 Rod−Connecting

(Standard)

32 691664 Screw

(Connecting Rod)

32A 695759 Screw

(Connecting Rod)

33 262651S Valve−Exhaust

34 262652S Valve−Intake

35 691270 Spring−Valve

(Intake)

36 691270 Spring−Valve

(Exhaust)

37 694086 Guard−Flywheel

40 692194 Retainer−Valve

43 691997 Slinger−Governor/Oil

45 690548 Tappet−Valve

46 691449 Camshaft

50 497465 Manifold−Intake

51 K272199S Gasket−Intake

54 691650 Screw

(Intake Manifold)

55 691421 Housing−Rewind

Starter

58 697316 Rope−Starter

(Cut To Required

Length)

60 281434S Grip−Starter Rope

65 690837 Screw

(Rewind Starter)

78 691108 Screw

(Flywheel Guard)

81 691740 Lock−Muffler Screw

95 691636 Screw

(Throttle Valve)

97 696565 Shaft−Throttle

104 D691242 Pin−Float Hinge

KIncluded in Engine Gasket Set−Ref. No.358.

DIncluded in Carburetor Overhaul Kit−Ref. No. 121.

zIncluded in Carburetor Gasket Set−Ref. No. 977.

∅Included in Valve Gasket Set−Ref. No 1095.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

129H00

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5118−8Assemblies include all parts shown in frames. 12/07/2007

117 498978 Jet−Main

(Standard)

118 497466 Jet−Main

(High Altitude)

121 498260 Kit−Carburetor

Overhaul

125 498170 Carburetor

(Primer System)

127 D694468 Plug−Welch

130 696564 Valve−Throttle

133 398187 Float−Carburetor

134 D398188 Kit−Needle/Seat

137 Dz693981 Gasket−Float Bowl

146 690979 Key−Timing

159 691753 Bracket−Air Cleaner

Primer

163KDz272653 Gasket−Air Cleaner

187 791766 Line−Fuel

(Cut to Required

Length)

187A 791873 Line−Fuel

(Molded)

188 693399 Screw

(Control Bracket)

190 690940 Screw

(Fuel Tank)

202 691829 Link−Mechanical

Governor

209B 691291 Spring−Governor

−−−−−−− Note −−−−−

691851 Spring−

Governor

Used on Type No(s).

0185.

691292 Spring−

Governor

Used on Type No(s).

0105.

222 790143 Bracket−Control

(Remote/Manual

Friction)(Primer)

222D 692467 Bracket−Control

(Fixed Speed)

227 690783 Lever−Governor

Control

236 691826 Link−Lockout

265 690798 Clamp−Casing

267 691044 Screw

(Casing Clamp)

268 691025 Casing−Control Wire

(Cut to Required

Length)

269 691026 Wire−Control

(Cut to Required

Length)

270 691027 Nut

(Control Wire Casing)

271 691028 Lever−Control

276 Dz271716 Washer−Sealing

(Main Jet)

287 690940 Screw

(Dipstick Tube)

300 692038 Muffler

(Super Lo Tone)

304A 493294 Housing−Blower

−−−−−−− Note −−−−−

695892 Housing−

Blower

Used on Type No(s).

0015, 0100, 0105,

0115.

493293 Housing−

Blower

Used on Type No(s).

0116, 0117, 0118.

305 691108 Screw

(Blower Housing)

306 690450 Shield−Cylinder

307 690345 Screw

(Cylinder Shield)

309 695550 Motor−Starter

(Used Before Code

Date 07052900).

309A 795092 Motor−Starter

(Used After Code Date

07052800).

310 690662 Bolt

(Starter Motor)

332 690662 Nut

(Flywheel)

333 802574 Armature−Magneto

334 691061 Screw

(Magneto Armature)

337 802592S Plug−Spark

346 690661 Screw

(Spark Arrester)

356 692390 Wire−Stop

358 497316 Gasket Set−Engine

363 19069 Flywheel Puller

365 691688 Screw

(Carburetor)

383 89838S Wrench−Spark Plug

404 690272 Washer

(Governor Crank)

425A 690670 Screw

(Air Cleaner Cover)

443A 692523 Screw

(Air Cleaner Primer

Base)

445A 491588S Filter−Air Cleaner

Cartridge

455 791960 Cup−Flywheel

456 692299 Plate−Pawl Friction

459 281505S Plate−Ratchet

474 691991 Alternator

505 691251 Nut

(Governor Control

Lever)

510 795093 Drive−Starter

513 692358 Clutch−Drive

523 499621 Dipstick

524 K692296 Seal−Dipstick Tube

525 495265 Tube−Dipstick

529 691923 Grommet

544 690786 Armature−Starter

545 492919 Washer Set

(Starter Motor)

562 92613 Bolt

(Governor Control

Lever)

KIncluded in Engine Gasket Set−Ref. No.358.

DIncluded in Carburetor Overhaul Kit−Ref. No. 121.

zIncluded in Carburetor Gasket Set−Ref. No. 977.

∅Included in Valve Gasket Set−Ref. No 1095.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

129H00

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5118−9Assemblies include all parts shown in frames. 12/07/2007

563 691138 Screw

(Debris Guard Screen)

564 690664 Screw

(Control Cover)

578 398153 Wire−Assembly

584 697734 Cover−Breather

Passage

585 K691879 Gasket−Breather

Passage

592 690800 Nut

(Rewind Starter)

597 691696 Screw

(Pawl Friction Plate)

601 791850 Clamp−Hose

601A 691038 Clamp−Hose

604 691757 Cover−Control

608 497680 Starter−Rewind

613 691340 Screw

(Muffler)

615 690340 Retainer−Governor

Shaft

616 698801 Crank−Governor

617KDz270344 Seal−O Ring

(Intake Manifold)

621 692310 Switch−Stop

633 Dz691321 Seal−Choke/Throttle

Shaft

(Throttle)

635 66538S Boot−Spark Plug

651 690345 Scerw

(Starter Gear Cover)

668 K493823 Spacer

670 692294 Spacer−Fuel Tank

676 396548 Deflector−Muffler

677 690661 Screw

(Muffler Deflector)

684 690345 Screw

(Breather Passage

Cover)

689 691855 Spring−Friction

703 696309 Clip

718 690959 Pin−Locating

741 794388 Gear−Timing

(Use Without Woodruff

Key)

(Used After Code Date

07093000).

−−−−−−− Note −−−−−

790345 Gear−Timing

(Use Without Woodruff

Key)

(Used Before Code

Date 07100100).

691830 Gear−Timing

(Uses Woodruff Key)

742 93941 Retainer−E Ring

745 691648 Screw

(Brake)

783 691918 Gear−Pinion

(Starter Drive)

(19 Teeth)

783A 691269 Gear−Pinion

(12 Teeth)

784 795095 Cover−Starter Gear

785 692352 Gasket−Starter Cover

789B 696546 Harness−Wiring

−−−−−−− Note −−−−−

696547 Harness−

Wiring

Used on Type No(s).

0116, 0117, 0118.

801 690782 Cap−Drive

802 695267 Cap−End

803 695266 Housing−Starter

832 499034 Guard−Muffler

836 690664 Scerw

(Muffler Guard)

842 K691031 Seal−O Ring

(Dipstick Tube)

843 691884 Sleeve−Lever

847 692047 Dipstick/Tube

Assembly

851 493880S Terminal−Spark Plug

853 696842 Adapter−Wire

868 697338 Seal−Valve

869 691155 Seat−Valve

(Intake)

870 690380 Seat−Valve

(Exhaust)

871 262001 Bushing−Valve Guide

(Exhaust)

−−−−−−− Note −−−−−

63709 Bushing−Valve

Guide

(Intake)

883 K∅691881 Gasket−Exhaust

910 691094 Stud

(Alternator)

922 692135 Spring−Brake

−−−−−−− Note −−−−−

691831 Spring−Brake

Used on Type No(s).

0116, 0117, 0118.

923 695891 Brake

−−−−−−− Note −−−−−

691994 Brake

Used on Type No(s).

0116, 0117, 0118.

925 795403 Cover−Linkage

(Used After Code Date

07072200).

−−−−−−− Note −−−−−

690595 Cover−

Linkage

(Used Before Code

Date 07072300).

935 499421 Switch−Interlock

937 691325 Spline−Starter

949 696306 Guard−Debris Screen

957 397974S Cap−Fuel Tank

(Plastic)

957B 699985 Cap−Fuel Tank

(Plastic)

958 698183 Valve−Fuel Shut Off

(Plastic)

966A 496116 Base−Air Cleaner

Primer

967A 493537S Filter−Pre Cleaner

KIncluded in Engine Gasket Set−Ref. No.358.

DIncluded in Carburetor Overhaul Kit−Ref. No. 121.

zIncluded in Carburetor Gasket Set−Ref. No. 977.

∅Included in Valve Gasket Set−Ref. No 1095.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

129H00

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

5118−10 Assemblies include all parts shown in frames. 12/07/2007

968B 692298 Cover−Air Cleaner

970 691669 Screw

(Air Cleaner Primer

Bracket)

972B 699374 Tank−Fuel

(Plastic)

975 493640 Bowl−Float

976 694395 Primer−Carburetor

977 498261 Gasket Set−Carburetor

994 398067 Arrestor−Spark

997 696310 Shield−Debris

1005 691346 Fan−Flywheel

1019 696438 Kit−Label

1036 Label−Emissions

(Available From A

Briggs & Statton

Authorized Dealer)

1058 277039 Operator’s Manual

1059 692311 Kit−Screw/Washer

1095 498528 Gasket Set−Valve

1119 691648 Screw

(Alternator)

1160 690345 Screw

(Interlock Switch)

1210 498144 Pulley/Spring

Assembly

(Pulley)

1211 498144 Pulley/Spring

Assembly

(Spring)

1229 696308 Extension−Blower

Housing

1319 794467 Label−Warning

1330 270962 Manual−Repair

KIncluded in Engine Gasket Set−Ref. No.358.

DIncluded in Carburetor Overhaul Kit−Ref. No. 121.

zIncluded in Carburetor Gasket Set−Ref. No. 977.

∅Included in Valve Gasket Set−Ref. No 1095.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

Indice

Altri manuali Briggs & Stratton Motore

Briggs & Stratton

Briggs & Stratton Power Built Intek I/C 210000 Manuale utente

Briggs & Stratton

Briggs & Stratton 326400 Series Guida all'installazione

Briggs & Stratton

Briggs & Stratton 19E400 Istruzioni per l'installazione

Briggs & Stratton

Briggs & Stratton 210000 Series Manuale utente

Briggs & Stratton

Briggs & Stratton Vanguard 245400 Manuale utente

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Manuale utente

Briggs & Stratton

Briggs & Stratton 12D100 Series Guida all'installazione

Briggs & Stratton

Briggs & Stratton 120000 Manuale utente

Briggs & Stratton

Briggs & Stratton Vanguard 470000 Series Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton Vanguard Diesel 432447 Manuale

Briggs & Stratton

Briggs & Stratton 319700 Series Guida all'installazione

Briggs & Stratton

Briggs & Stratton Quantum Snow Manuale utente

Briggs & Stratton

Briggs & Stratton Vanguard 610000 Manuale utente

Briggs & Stratton

Briggs & Stratton 54000 Series Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton 12K300 INTEK series Manuale

Briggs & Stratton

Briggs & Stratton 351700 Series Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton 90000 series Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton 133200 Series Istruzioni per l'installazione

Briggs & Stratton

Briggs & Stratton 310000 VERTICAL SERIES Manuale utente

Briggs & Stratton

Briggs & Stratton Automobile Parts Guida all'installazione

Briggs & Stratton

Briggs & Stratton Vanguard 290000 Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton THE POWER WITHIN 625 SERIES Manuale utente

Briggs & Stratton

Briggs & Stratton 386447-0090-G1 Manuale utente

Briggs & Stratton

Briggs & Stratton VANGUARD Series Manuale di installazione e funzionamento

Manuali Motore popolari di altre marche

Rotax

Rotax 125 senior MAX evo Manuale utente

Kohler

Kohler K361 Manuale utente

MTD

MTD OHV Series Manuale utente

Kohler

Kohler COMMAND CH18-745 Manuale utente

Mercury

Mercury D4.2L D-Tronic Manuale utente

Selve

Selve SE Plus-RC Series Manuale utente

Perkins

Perkins 1206E-E66TA Manuale utente

Skov

Skov DA 174 Manuale

Rossi

Rossi TX11 Series Manuale utente

Siemens

Siemens SIMOTICS T-1FW3 Foglio di istruzioni

AL-KO

AL-KO PRO 350 Manuale utente

MTU

MTU 12 V 4000 Lx4 Manuale utente

Nanni

Nanni N3.30 Manuale di istruzioni

Nanni

Nanni N5.160 CR2 Manuale utente

KSB

KSB SuPreme Series Istruzioni per l'installazione

Hiwin

Hiwin EM1 Series Manuale utente

Rotax

Rotax 912 i series Istruzioni operative

Siemens

Siemens SIMOTICS XP 1MB1 Manuale utente
