Briggs & Stratton 44M700 Series Guida all'installazione

in any form or by any means, electronic or mechanical, including photocopying,

recording or by any information storage and retrieval system, without permission

in writing from Briggs & Stratton Corporation.

PRINTED IN U.S.A.

FORM MS3563−−04/26/2007

REPLACES FORM MS3563−02/15/2007

FILE IN SECT. 2 OF SERVICE MANUAL

44M700

Illustrated Parts List

Model Series

44M700

TYPE NUMBERS

0110 through 0121.

TABLE OF CONTENTS

Air Cleaner 6. . . . . . . . . . . . . . . . . . . . . . . . .

Alternators 8. . . . . . . . . . . . . . . . . . . . . . . . .

Blower Housing/Shrouds 6. . . . . . . . . . . .

Camshaft 3. . . . . . . . . . . . . . . . . . . . . . . . . . .

Carburetor 5. . . . . . . . . . . . . . . . . . . . . . . . . .

Controls 7. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crankshaft 3. . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder Head 4. . . . . . . . . . . . . . . . . . . . . .

Engine Sump 2. . . . . . . . . . . . . . . . . . . . . . .

Electric Starter 7. . . . . . . . . . . . . . . . . . . . . .

Exhaust System 5. . . . . . . . . . . . . . . . . . . .

Flywheel 7. . . . . . . . . . . . . . . . . . . . . . . . . . .

Gasket Set−Engine 2. . . . . . . . . . . . . . . . . .

Gasket Set −Valve 4. . . . . . . . . . . . . . . . . .

Ignition 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Kit−Carburetor Overhaul 5. . . . . . . . . . . .

Lubrication 3. . . . . . . . . . . . . . . . . . . . . . . . .

Piston, Rings, Connecting Rod 3. . . . . . .

Valves 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

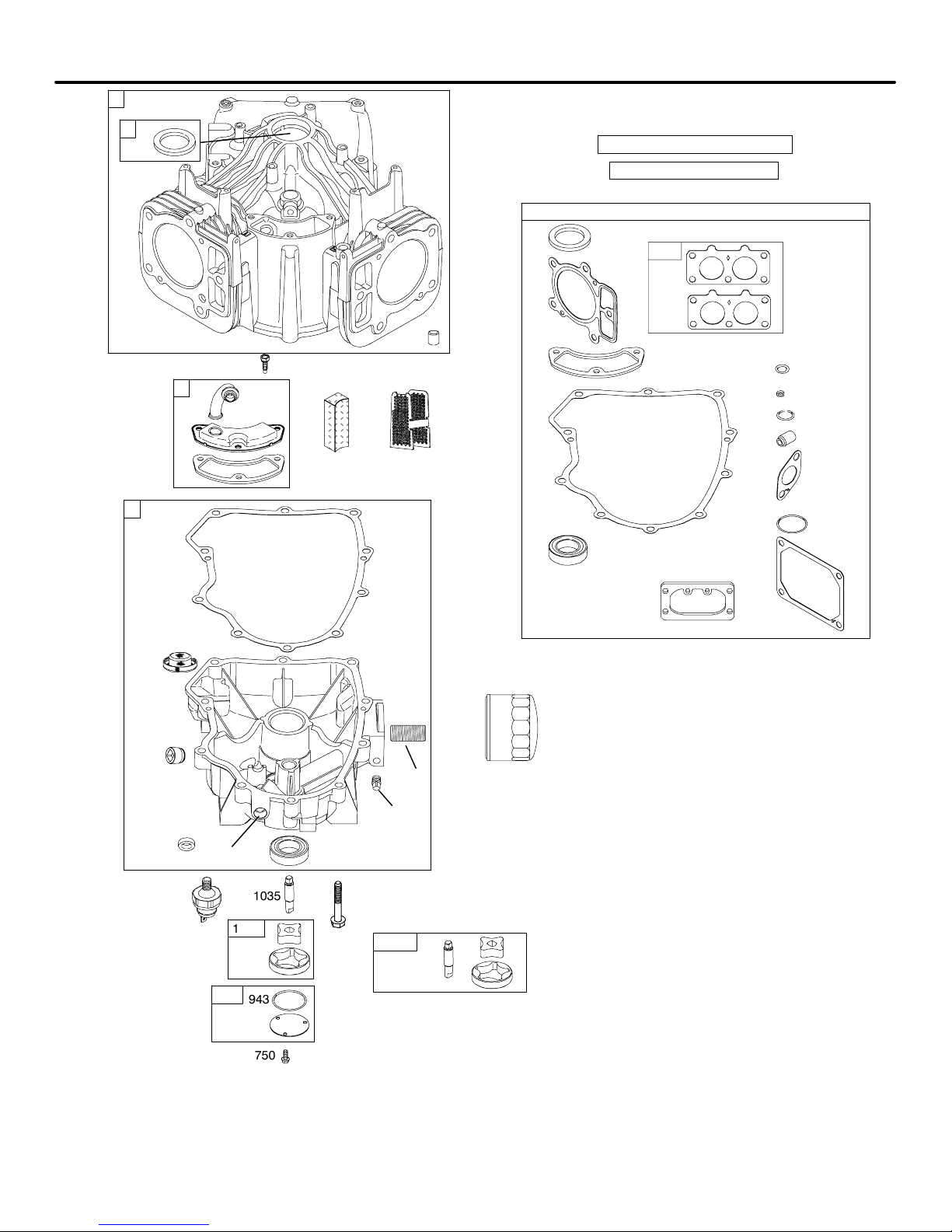

44M700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3563−2Assemblies include all parts shown in frames. 04/26/2007

415

1013

691 552

1017

252

718

31058 OPERATOR’S MANUAL

250

239 22

ÚÚ

943

750

1035

1024

965

718

1330 REPAIR MANUAL

883

943

1022

358A ENGINE GASKET SET

868

842

691

524

163

51A

1027

1024A

44M700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3563−3Assemblies include all parts shown in frames. 04/26/2007

741

146

287

842

524

523

525

847

44M700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3563−4Assemblies include all parts shown in frames. 04/26/2007

337

635

383

798

192

1022

1100

1029

868

798

883

1022

1100

1029

36 35

868

192

1023A

1023

1022

868

1095 VALVE GASKET SET

163

883

1022

1026

1026A

914

617

44M700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3563−5Assemblies include all parts shown in frames. 04/26/2007

918

387

628

788

240

385

947

141

125

131

1127

1128

1126

231

104

987

633

117

672

105

1124

137

150

142

276

135

975

1123

R −L

L −R

117A

108

130

418

929

212 617

163

883

613

133

654

121 CARBURETOR OVERHAUL KIT

104

276

1124

150

987 633

672

105

1123

137

163

601

187A

601

187E

51A

118

118A

788A

300

613A

44M700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3563−6Assemblies include all parts shown in frames. 04/26/2007

447

865

573

163

304

445B

865A

447A

865B

447A

405A

703

729

1036 EMISSIONS LABEL

305

1040

305B

467

967B

431

968

44M700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3563−7Assemblies include all parts shown in frames. 04/26/2007

363

1070

332

668

165

695

726

742

552

616

213

216

220

615

209

211 267

265

188

222

219

265

552A

404

552A

691

1090

797

311

579

802

310

801

1051

783

513

309

510

697

267

188

1005

544

803

562

505

227

278

930

267A

44M700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3563−8Assemblies include all parts shown in frames. 04/26/2007

729

1119

1054

851

334

635 333

NOTE: All stators use a No. mounting screw.

1119

NOTE: The proper flywheel part number and/or the alternator magnet size will

determine the alternator type or output. See repair instruction manual

for additional information.

501B

526B

877B

10 −16 AMP

474B 1059

578A

789A

789B

789D

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

44M700

KIncluded in Engine Gasket Set−Ref. No.358.

DIncluded in Carburetor Overhaul Kit−Ref. No. 121.

ΔIncluded in Valve Gasket Set−Ref. No 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3563−9Assemblies include all parts shown in frames. 04/26/2007

1 699753 Cylinder Assembly

2 499585 Kit−Bushing/Seal

(Magneto Side)

3K391086s Seal−Oil

(Magneto Side)

4 699747 Sump−Engine

5 792299 Head−Cylinder

(Cylinder 1)

5A 792300 Head−Cylinder

(Cylinder 2)

7KΔ693997 Gasket−Cylinder Head

8 792185 Breather Assembly

9K690937 Gasket−Breather

10 691108 Screw

(Breather Assembly)

11 792184 Tube−Breather

12 K697227 Gasket−Crankcase

13 791130 Screw

(Cylinder Head)

15 690946 Plug−Oil Drain

16 699700 Crankshaft

20 K791892 Seal−Oil

(PTO Side)

22 694966 Screw

(Crankcase

Cover/Sump)

23 691053 Flywheel

24 222698s Key−Flywheel

25 792117 Piston Assembly

(Standard)

−−−−−− Note −−−−−−

792144 Piston

Assembly

(.020” Oversize)

26 792026 Ring Set

(Standard)

−−−−−− Note −−−−−−

792073 Ring Set

(.020” Oversize)

27 690975 Lock−Piston Pin

28 690229 Pin−Piston

(Standard)

29 699699 Rod−Connecting

(Standard)

32 690976 Screw

(Connecting Rod)

33 697576 Valve−Exhaust

34 792200 Valve−Intake

35 694865 Spring−Valve

(Intake)

36 694865 Spring−Valve

(Exhaust)

42 499586 Keeper−Valve

45 690977 Tappet−Valve

46 792555 Camshaft

50 695241 Manifold−Intake

51A K791677 Gasket−Intake

53 690951 Stud

(Carburetor)

54 699816 Screw

(Intake Manifold)

73 494439 Screen−Rotating

74 698425 Screw

(Rotating Screen)

75 691056 Washer

(Flywheel)

95 690718 Screw

(Throttle Valve)

98 699721 Kit−Idle Speed

104 D694918 Pin−Float Hinge

105 D698537 Valve−Float Needle

108 699723 Valve−Choke

117 792296 Jet−Main

(Standard)

(Left)(Nikki)

117A 842627 Jet−Main

(Standard)

(Right)(Nikki)

118 699457 Jet−Main

(High Altitude)

(Left)(Nikki)

118A 699733 Jet−Main

(High Altitude)

(Right)(Nikki)

121 792455 Kit−Carburetor

Overhaul

125 792295 Carburetor

130 690993 Valve−Throttle

131 499805 Kit−Throttle Shaft

133 D699724 Float−Carburetor

135 D699729 Tube−Fuel Transfer

137 D690994 Gasket−Float Bowl

141 699722 Kit−Choke Shaft

142 D699726 Nozzle−Carburetor

146 690979 Key−Timing

150 D690995 Gasket−Nozzle

163 KΔ691001 Gasket−Air Cleaner

165 693148 Nut

(Ring Gear)

187A 791766 Line−Fuel

(Length 15”)(Cut to

Required Length)

187E 791801 Line−Fuel

(Molded)

188 691108 Screw

(Control Bracket)

192 690083 Adjuster−Rocker Arm

209 793343 Spring−Governor

(Purple)

(Used After Code Date

06081400).

Used on Type No(s).

0110.

−−−−−− Note −−−−−−

793340

Spring−Governor

(Orange)

(Used After Code Date

06081400).

Used on Type No(s).

0113.

698071

Spring−Governor

(White)

(Used Before Code

Date 06081500).

Used on Type No(s).

0110, 0113.

793343

Spring−Governor

(Purple)

Used on Type No(s).

0115, 0118, 0119,

0121.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

44M700

KIncluded in Engine Gasket Set−Ref. No.358.

DIncluded in Carburetor Overhaul Kit−Ref. No. 121.

ΔIncluded in Valve Gasket Set−Ref. No 1095.

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

3563−10 Assemblies include all parts shown in frames. 04/26/2007

211 691019 Spring−Governed Idle

212 695238 Link−Throttle

213 691021 Bracket−Choke

Control

216 691022 Link−Choke

219 793338 Gear−Governor

(Used After Code Date

06081400).

−−−−−− Note −−−−−−

698231

Gear−Governor

(Used Before Code

Date 06081500).

220 690412 Washer

(Governor Gear)

222 698761 Bracket−Control

227 792492 Lever−Governor

Control

231 690718 Screw

(Choke Valve)

239 792028 Switch−Oil Pressure

−−−−−− Note −−−−−−

697049 Switch−Oil

Pressure

Used on Type No(s).

0118.

240 695666 Filter−Fuel

250 690957 Retainer−Breather

252 690956 Collector−Oil

265 691024 Clamp−Casing

267 691044 Screw

(Casing Clamp)

267A 695134 Screw

(Casing Clamp)

Used on Type No(s).

0115, 0118, 0119.

276 KD695410 Washer−Sealing

278 792651 Washer

(Governor Control

Lever)

287 691108 Screw

(Dipstick Tube)

300 696226 Muffler

304 792301 Housing−Blower

305 691005 Screw

(Blower Housing)

(21/32” Long)

305B 790690 Screw

(Blower Housing to

Intake Elbow)

(11/16” Long)

309 499521 Motor−Starter

310 691263 Screw

(Starter Motor)

311 497608 Brush Set

332 691059 Nut

(Flywheel)

333 691060 Armature−Magneto

334 691061 Screw

(Magneto Armature)

337 491055s Plug−Spark

Used on Type No(s).

0110, 0115, 0119.

−−−−−− Note −−−−−−

793541 Plug−Spark

Used on Type No(s).

0113.

792015 Plug−Spark

Used on Type No(s).

0118.

691043 Plug−Spark

Used on Type No(s).

0121.

358A 694012 Gasket Set−Engine

363 19203 Puller−Flywheel

383 19374s Wrench−Spark Plug

Altri manuali Briggs & Stratton Motore

Briggs & Stratton

Briggs & Stratton E Series Istruzioni per l'uso e l'installazione

Briggs & Stratton

Briggs & Stratton 91200 Series Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton 202400 Series Guida all'installazione

Briggs & Stratton

Briggs & Stratton 11A600 Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton 490000 Manuale utente

Briggs & Stratton

Briggs & Stratton 90000/10000 Manuale

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Manuale utente

Briggs & Stratton

Briggs & Stratton 140000 Professional 1000 Series Manuale utente

Briggs & Stratton

Briggs & Stratton 1450 Series Manuale utente

Briggs & Stratton

Briggs & Stratton 194700 Series Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton PROFESSIONAL SERIES 110000 Manuale utente

Briggs & Stratton

Briggs & Stratton Classic 100000 Series Manuale utente

Briggs & Stratton

Briggs & Stratton 19E400 Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton 276535 Istruzioni operative

Briggs & Stratton

Briggs & Stratton 80200 Series Manuale

Briggs & Stratton

Briggs & Stratton 124T00 Series Guida all'installazione

Briggs & Stratton

Briggs & Stratton 233400 to 233499 Guida all'installazione

Briggs & Stratton

Briggs & Stratton Vanguard 470000 Series Manuale utente

Briggs & Stratton

Briggs & Stratton 95700 Series Manuale

Briggs & Stratton

Briggs & Stratton 91200 Series Istruzioni per l'installazione

Briggs & Stratton

Briggs & Stratton 090600 Manuale utente

Briggs & Stratton

Briggs & Stratton Classic 100000 Series Manuale di installazione e funzionamento

Briggs & Stratton

Briggs & Stratton 100000 650 Series Manuale utente

Briggs & Stratton

Briggs & Stratton Vanguard 290000 Manuale utente

Manuali Motore popolari di altre marche

Rotax

Rotax 125 senior MAX evo Manuale utente

Kohler

Kohler K361 Manuale utente

MTD

MTD OHV Series Manuale utente

Kohler

Kohler COMMAND CH18-745 Manuale utente

Mercury

Mercury D4.2L D-Tronic Manuale utente

Selve

Selve SE Plus-RC Series Manuale utente

Perkins

Perkins 1206E-E66TA Manuale utente

Skov

Skov DA 174 Manuale

Rossi

Rossi TX11 Series Manuale utente

Siemens

Siemens SIMOTICS T-1FW3 Foglio di istruzioni

AL-KO

AL-KO PRO 350 Manuale utente

MTU

MTU 12 V 4000 Lx4 Manuale utente

Nanni

Nanni N3.30 Manuale di istruzioni

Nanni

Nanni N5.160 CR2 Manuale utente

KSB

KSB SuPreme Series Istruzioni per l'installazione

Hiwin

Hiwin EM1 Series Manuale utente

Rotax

Rotax 912 i series Istruzioni operative

Siemens

Siemens SIMOTICS XP 1MB1 Manuale utente
