Briggs & Stratton 1933 Guida all'installazione

Manual No. 195541A

Revision B (07/06/2006)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON,WISCONSIN, U.S.A.

Model / Modèle / Modelo

PRO4000

01932

Illustrated Parts List

Questions? Help is just a

moment away!

Call: Generator Helpline -

1-800-743-4115 M-F 8-5 CT

Les Parties illustrées

Enumèrent

Vous avez des questions?

Vous n'avez pas besoin d'aller loin

pour trouver de l'aide!

Appelez: Ligne d'assistance de

Générateur - 1-800-743-4115

M-F 8-5 CT

Las Partes ilustradas

Listan

Preguntas? La ayuda es justa un

momento lejos!

Llamada: Generador Helpline -

1-800-743-4115 M-F 8-5 CT

Model may vary slightly

from that shown

BSPP Generator

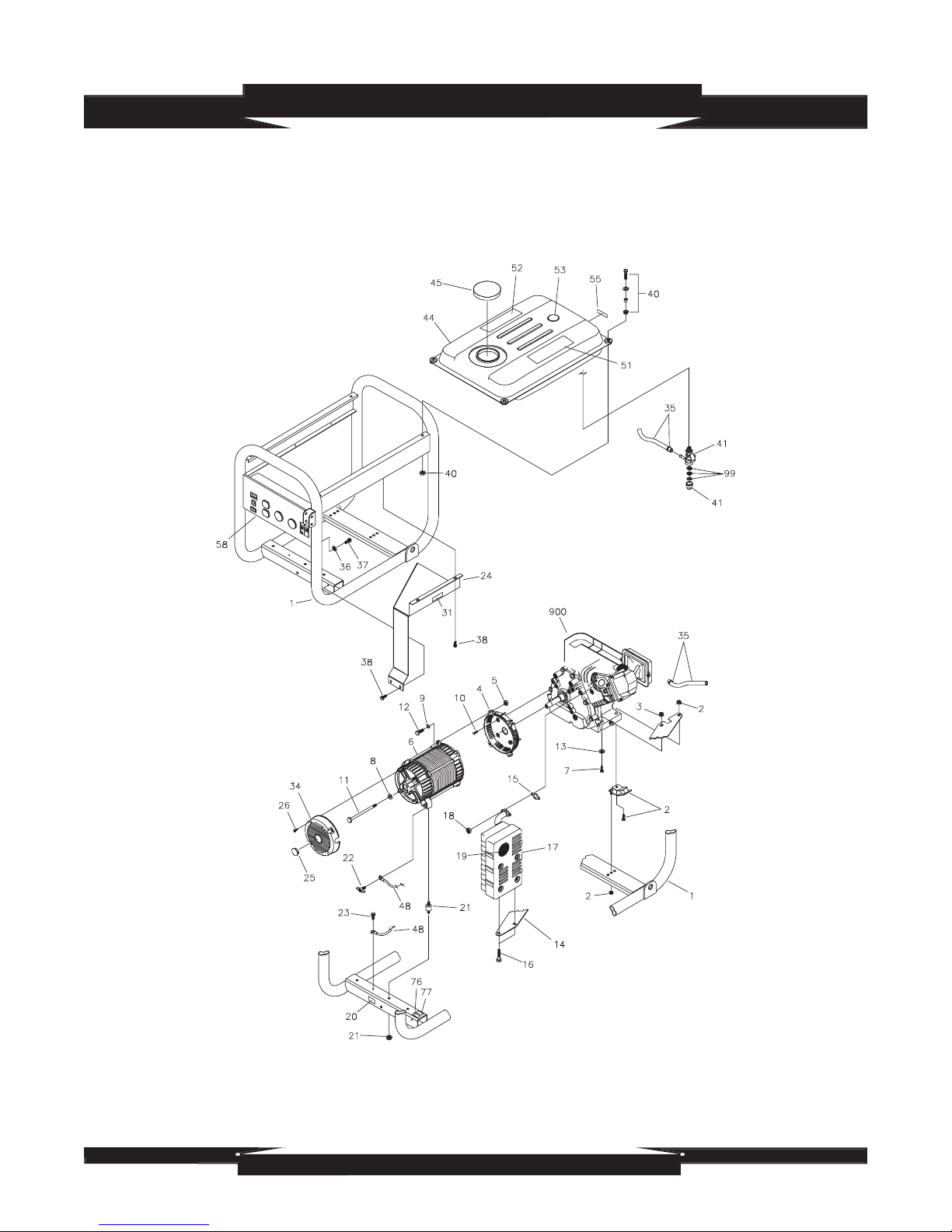

EXPLODED VIEW - MAIN UNIT

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

BSPP Generator

PARTS LIST - MAIN UNIT

Item Part # Description

1 B192658GS CRADLE

2 194150GS KIT, Mount,Vibration, 45°

3 67989GS NUT, M8 Flange Serrated

4 190220GS HOUSING, Engine Adapter

5 * NUT, Hex M8 - 1.25

6 NSP ASSY,Alternator (see page 4)

7 * TPHMS, M8 - 1.25 x 25

8 96796GS WASHER, M8 Flat

9 * WASHER, M8 5/16 Lock

10 190274DGS SCREW, 3/8-16 x 7/8

11 53122GS HHCS, 5/16-24 x 6-1/2

12 * HHCS, M8 1.25 x 25

13 * WASHER, 5/16 Flat

14 193021GS BRACKET, Muffler

15 710082 GASKET, Exhaust

16 * HHCS, M6 - 1.0 x 12

17 192898GS MUFFLER

18 710090 NUT

19 83083GS SCREEN, Spark Arrest

20 B4986GS DECAL, Ground

21 194153GS KIT,Vibration Mount

22 86494GS SCREW,Wing M6 1.0 x 16

23 86292GS SCREW, 10-16 x 3/4, Self Drill

24 J193053GS SHIELD, Heat

25 191190GS CAP

26 74908GS TAPTITE, M5-0.8 x 10

31 191436GS DECAL, Caution Hot Muffler

34 195422GS COVER, RBC, Platic with Cap

35 791745 KIT, Fuel Hose (cut to fit)

36 * WASHER, M6 - 1/4 Int. Shakeproof

37 B2153GS SCREW, #10 Self Drilling

38 192376GS SCREW, 12-24 x 1/2 THD Forming

40 194212GS KIT, Fuel Tank Hardware

Item Part # Description

41 193272GS VALVE,Tank

44 195988GS ASSY,Tank, Fuel (Includes Items 41,

51, 52 & 53)

45 189135GS CAP, Fuel,Vented

48 195373GS WIRE, Ground

51 194984GS DECAL, Danger

52 94480GS DECAL, Start Instructions

53 189136GS GAUGE, Fuel

55 197797GS DECAL, Fuel Shutoff

58 195512GS ASSY, Control Panel (see page 5)

76 195459GS DECAL, Neutral Ground

77 195940GS DECAL, Ground French

99 189759GS KIT, Fuel Repair Valve

900 § ENGINE

Parts Not Illustrated

43483GS PLUG, 250V 20A, 4 Prong

100523GS PLUG, 125V 30A, 3 Prong

65787GS CABLE, Battery Charge

BB3061GS OIL BOTTLE

MS6669 MANUAL, Engine

195541GS MANUAL, Operator’s

199383GS DECAL, Family CA, EVP

193642GS KIT, Decals Service

Optional Accessories

100031 STABILIZER, Fuel

* - Items without part numbers are common fasteners and

are available at local hardware stores.

§ - Contact engine manufacturer.

BSPP Generator

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting,Alternator

2 193034GS ROTOR (Includes Item #18)

3 193035AGS STATOR

4 186060GS RBC, with O-Ring (p/n 189197GS)

5 86308GS HHCS, M6 - 1.0 x 115 SEMS

6 66386GS ASSY, Holder, Brush

7 66849GS TAPTITE, M5 - 0.8 x 16

8 22694GS RECEPTACLE, 6 pin

9 81917GS PIN, Roll, 4mm x 10

10 193428AGS ASSY,Wire, Ground

13 193157GS HARNESS,Wire, Power

14 189769GS REGULATOR

15 65795GS RECTIFIER

16 66849AGS TAPTITE, M5 - 0.8 x 20

17 192403XGS WIRE, Ground

18 65791GS BEARING

BSPP Generator

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Item Part # Description

1 NSP PANEL, Control

2 B192835GS BOX, Control Panel

3 * WASHER, Flat, #10 - M5

4 * WASHER, Lock, M5

5 * PPHMS, M5 - 0.8 x 12

6 * WASHER, M6 - 1/4, Int. Shakeproof

7 82538GS SWITCH, Rocker

8 90418GS OUTLET, 12VDC, Snap

9 77604GS METER, Hour

10 * WASHER, Lock, M3

11 * NUT, M3 - 0.5

12 * PHMS, M3 - 0.5 x 10

13 22694GS HOUSING, Receptacle

14 87962GS BREAKER, Circuit, 12V, 10A

15 84028GS TRANSFORMER, Idle Cnt

16 64525GS STANDOFF, Hex

17 193362GS PCB, Idle Control

Item Part # Description

18 * PHTS, #6-32 x 3/8

19 B5052GS STRIP,Terminal

20 * WASHER, Lock, M4

21 * PPHMS, M4 - 0.7 x 16

22 * NUT, M4 - 0.7

23 * WASHER, Flat, M4

24 192931GS BRACKET, GFCI Breaker

25 * WASHER, Shakeproof, Int. #8

26 192828BGS BREAKER, Circuit, GFCI, 20A

27 68868GS OUTLET, 120V, 30A

28 68867GS OUTLET, 120/240V, 20A

29 68759GS OUTLET, 120V, 20A, Duplex

30 193036GS HARNESS,Wire

31 46669GS JUMPER,Terminal Block

* - Items without part numbers are common fasteners and

are available at local hardware stores.

BSPP Generator

EXPLODED VIEW AND PARTS LIST - WHEEL KIT

Item Part # Description

1 * WASHER, 5/8

2 B4966GS WHEEL

3 191267PGS AXLE, 5/8" x 22.20"

4 191265GS E-RING, 5/8

5 * HHCS, M8 1.25 x 20

6 B89595GS BRACKET, Support

7 87841GS VIBE MOUNT

8 * HHCS, 1/4 - 20 x 3/4

9 67989GS NUT, M8 Flange Serrated

10 194005GS NUT, 1/4 - 20 Flange Nylok

11 192477GS GRIP

12 B193166GS ASSY, Handle (Includes Item 11)

13 * HHCS, M8 - 1.25 x 50

14 * WASHER, Flat 5/16 - M8

15 * NUT, M8 - 1.25

16 * WASHER, 1.2 x .346 x .03 Nylon

17 B4135GS PIN, Handle Release

* - Items without part numbers are common fasteners and

are available at local hardware stores.
