Briggs & Stratton 30230 Guida all'installazione

Manual No. 197106A Rev. 3 (02/23/2006)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON,WISCONSIN, U.S.A.

PowerBOSS™ is a trademark of Briggs & Stratton Power Products.

PowerBOSS™ es una marca registrada de Briggs & Stratton Power Products.

Model / Modelo

030230

(5600W)

Illustrated Parts List

Questions? Help is just a moment away!

Preguntas? La ayuda es justa un momento lejos!

Call: Generator Helpline / Llamada: Generador Helpline

1-800-743-4115 M-F 8-5 CT

PowerBOSS™ 5600W Portable Generator EXPLODED VIEW

EXPLODED VIEW - MAIN UNIT

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

PARTS LIST 5600W Portable Generator PowerBOSS™

EXPLODED VIEW - PARTS LIST

Item Part # Description

1 B196941GS KIT, Cradle

2 194150GS KIT,Vibration Mount 45°

4 190220GS HOUSING, Engine Adapter

5 NSP ASSY,Alternator (see page 5)

6 * NUT, Hex, M8 - 1.25

8 96796GS WASHER, M8 Flat

9 * WASHER, 5/16 - M8 Lock

10 190274BGS SBHCS, 3/8-16 x 1.0 Lg.

11 47480GS HHCS, 5/16-24 x 7

12 * HHCS, M8 - 1.25 x 25

14 695400 TAB, Locking

15 697255 GASKET, Exhaust

16 695312 SCREW

17 697252 MUFFLER

18 695399 SCREW, Shoulder

19 392390 SPARK ARRESTER, with Screw

20 B4986GS DECAL, Ground, Green

21 194153GS KIT,Vibration Mount

22 86494GS SCREW,Wing M6 - 1.0 x 16

23 86292GS SCREW, 10 - 16 x 3/4" Self Drill

25 191190GS CAP

26 74908GS SCREW, M5-0.8 x 10,Taptite

31 196830GS DECAL, Hot Muffler

34 195422GS COVER, Bearing Carrier w/ Cap

35 791745 KIT, Fuel Hose (cut to fit)

37 B2153GS SCREW, 12-14 x 7/8 Self Drilling

40 194398GS KIT, Fuel Tank Hardware

41 192980GS KIT,Valve,Tank

Item Part # Description

44 194217GS ASSY,Tank, Fuel (Includes Items 41,

50, 51 & 52)

45 90878GS CAP, Fuel

48 195373GS WIRE, Ground

50 188333GS DECAL, Gas Fill

51 194799GS DECAL, Danger

52 189235GS DECAL, Start Instructions

54 194448GS KIT, Insulation w/Clip

55 197798GS DECAL, Fuel Shut-off

58 190355GS ASSY, Control Panel (see page 4)

59 * NUT, Palnut, 3/16"

60 193452GS SHIELD, Heat

900 § ENGINE

Parts Not Illustrated

BB3061GS BOTTLE, Oil

197106GS MANUAL, Operator’s

MS5242 MANUAL, Engine

199384GS DECAL, Family, CA EVP

197563GS KIT, Decals, Service

* - Items without part numbers are common fasteners and

are available at your local hardware store.

§ - Contact Engine Manufacturer

Optional Accessories

100031 STABILIZER, Fuel

PowerBOSS™ 5600W Portable Generator EXPLODED VIEW & PARTS LIST

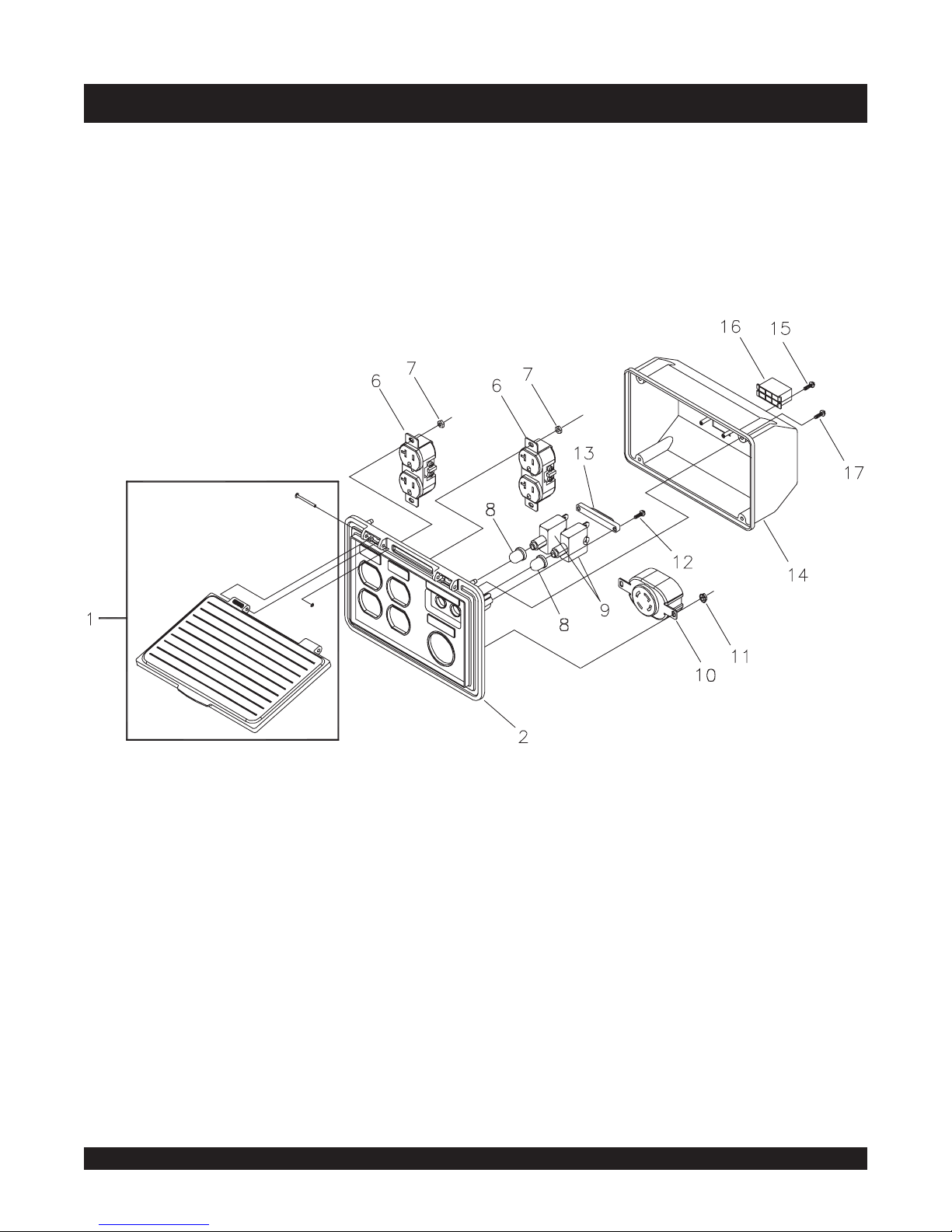

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Item Part # Description

1 195112GS KIT, Control Panel Lid

2 188889GS CONTROL PANEL, Compact

6 68759GS OUTLET, 120V, 20A, Duplex

7 * NUT, Palnut, Pushnut, 5/32

8 84198GS CAP, Breaker, Circuit

9 75207GS BREAKER, Circuit

10 43437GS OUTLET, 120/240V Locking, 30A

11 * NUT, Palnut, Pushnut, 3/16

12 * SCREW, Phillips, Head 3.5 x 18

13 93857GS BAR, Retaining

14 188890GS COVER, Back, Control Panel

15 82308GS SCREW, Self Tapping, STC 3 x 18

16 22694GS HOUSING, Receptacle

17 * SCREW, Phillips, 3.5 x 14

* - Items without part numbers are common fasteners and

are available at your local hardware store.

PowerBOSS™ 5600W Portable Generator EXPLODED VIEW & PARTS LIST

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting,Alternator

2 191043GS ROTOR

3 191042AGS STATOR

4 186060GS RBC, with O-Ring (p/n 189197GS)

5 86308CGS HHCS, M6 - 1.0 x 130 SEMS

6 91825GS ASSY, Holder, Rectifier/Brush

7 66849GS TAPTITE, M5 - 0.8 x 16

8 22694GS RECEPTACLE, 6 pin

9 81917GS PIN, Roll, 4mm x 10

10 193428AGS ASSY,Wire, Ground

11 194274GS HARNESS,Wire, Power

12 65791GS BEARING

PowerBOSS™ 5600W Portable Generator EXPLODED VIEW

EXPLODED VIEW AND PARTS LIST - WHEEL KIT

Item Part # Description

1 189715GS ASSY, Handle

2 * HHCS, M8 - 1.25 x 45

3 52858GS NUT, Locking Hex M8 - 1.25

4 * HHCS, M8 - 1.25 x 25

5 191267GGS AXLE

6 B4966GS WHEEL

7 * WASHER, Flat 5/8

8 191265GS E-RING

9 B89595GS SUPPORT, Bracket

Parts Not Illustrated

189718GS GRIP

189716GS CAP, Handle End

* - Items without part numbers are common fasteners and

are available at your local hardware store.
