Briggs & Stratton 30255 Guida all'installazione

Manual No. 198061A Rev. 0 (09/27/2005)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON,WISCONSIN, U.S.A.

Illustrated Parts List

Questions? Help is just a moment away!

Preguntas? La ayuda es justa un momento lejos!

Call: Generator Helpline / Llamada: Generador Helpline

1-800-743-4115 M-F 8-5 CT

PowerBOSS™ is a trademark of Briggs & Stratton Power Products.

PowerBOSS™ es una marca registrada de Briggs & Stratton Power Products.

Model / Modelo

030255

(5500W)

PowerBOSS™ 5500W Portable Generator EXPLODED VIEWS

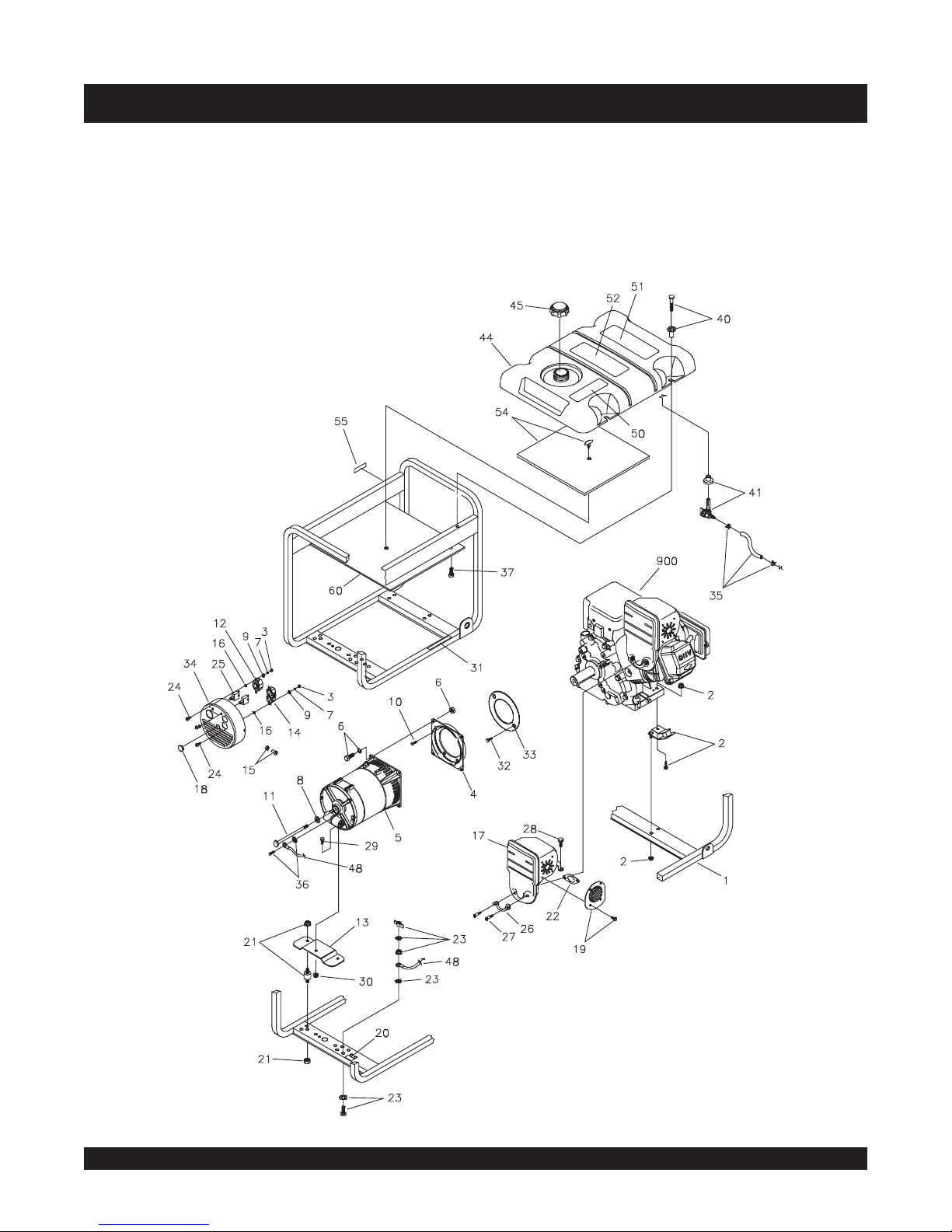

EXPLODED VIEW - MAIN UNIT

EXPLODED VIEWS 5500W Portable Generator PowerBOSS™

EXPLODED VIEW - PARTS LIST

Item Part # Description

1 B198016GS CRADLE

2 194150GS KIT, Mount,Vibration, 45°

3 * NUT, M4 - 0.7

4 194364GS ADAPTER, Engine

5 NSP ASSY,Alternator (see page 4)

6 194583GS KIT, Hardware Mounting,Alt

7 * WASHER, #8 Lock

8 96796GS WASHER, 8.4 x 22.2 x 3

9 * WASHER, M4 Flat

10 190274BGS SBHCS, 3/8-16 x 3/4 Lg.

11 194365GS STUD, Securing

12 43437GS OUTLET, 120/240V, 30A

13 B198017 SUPPORT,Alt.

14 68759GS OUTLET, 120V, 20A

15 194584GS KIT, Hardware Terminal Box

16 * WASHER, Shakeproof, Int. #8

17 697252 MUFFLER

18 194366GS CAP

19 392390 SPARK ARRESTER, w/ Screws

20 B4986GS DECAL, Ground, Green

21 194155GS KIT,Vibration

22 697255 GASKET, Exhaust

23 194154GS KIT, Grounding Hardware

24 * SCREW, PH M4 x 12

25 75207GS BREAKER, Circuit, 20A

26 695400 TAB, Locking

27 695399 SCREW, Shoulder

28 695312 SCREW

29 * HHCS, M8 - 1.25 x 20

30 67989GS NUT, M8 Flange Serrated

31 196830GS DECAL, Hot Muffler

Item Part # Description

32 * HHCS, 5/16" x 3/4" SEMS

33 B4260GS DISK,Air Blocker

34 194587GS TERMINAL BOX, with Hardware

35 194265GS KIT, Fuel Hose w/ Clamps

36 194623GS KIT, Grounding Hardware

40 194398GS KIT, Hardware Fuel Tank

41 192980GS KIT,Valve, Fuel

44 194217GS ASSY,Tank, Fuel (Includes Items 41,

50, 51 & 52)

45 90878GS CAP, Fuel

48 194622GS WIRE, Ground Mount

50 188333GS DECAL, Gas Fill

52 189235GS DECAL, Start Instructions

51 194799GS DECAL, Danger

54 194448GS KIT, Insulation with Clip

55 197798GS DECAL, Fuel Shut-off

60 193452GS SHIELD, Heat

900 § ENGINE

Parts Not Illustrated

198061GS MANUAL, User’s

MS5242 MANUAL, Engine, B&S

BB3061GS OIL BOTTLE

198386GS KIT, Decal Service

189208GS FUEL STABILIZER

188971GS CORD, Extension

* - Items without part numbers are common fasteners and

are available at your local hardware store.

§ - Contact Engine Manufacturer

PowerBOSS™ 5500W Portable Generator EXPLODED VIEWS

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 194581GS ASSY, Stator

2 194364GS FLANGE, Interchangeable

3 194586GS CAPACITOR

4 194587GS KIT,Terminal Box Lid w/ Hardware

5 194366GS CAP, Securing Stud

6 194365GS STUD, Securing

7 194584GS KIT,Terminal Lid Hardware

8 194583GS KIT, Flange Hardware

9 194580GS KIT, Connector

10 194579GS KIT, Electronics

11 194582GS KIT, Stator Hardware

12 194585GS ASSY, Rotor

EXPLODED VIEWS 5500W Portable Generator PowerBOSS™

EXPLODED VIEW AND PARTS LIST - WHEEL KIT

USE EXISTING FASTENERS

TO SECURE ITEM #2

FROM VIBRATION MOUNTS

Item Part # Description

1 189715GS ASSY, Handle (Includes Item 9)

2 B1764GS SUPPORT, Leg

3 52858GS NUT, Locking Hex M8 - 1.25

4 * HHCS, M8 - 1.25 x 45

5 192006AGS AXLE

6 197061GS WHEEL

7 192050GS E-RING

8 * WASHER, Flat 1/2"

9 189718GS GRIP

* - Items without part numbers are common fasteners and

are available at your local hardware store.

Use existing fasteners from

vibration mounts to secure #2
