Briggs & Stratton 30361 Guida all'installazione

Questions? Help is just a moment away!

Preguntas? La ayuda es justa un momento lejos!

Call: Generator Helpline

Llame: Línea Directa del Generador

1-800-743-4115 M-F 8-5 CT

BRIGGSandSTRATTON.COM

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

5000 Watt Portable Generator

Illustrated Parts List

Las Partes ilustradas Listan

030361 Manual No. 204158A Revision A (07/19/2007)

5000W Portable Generator

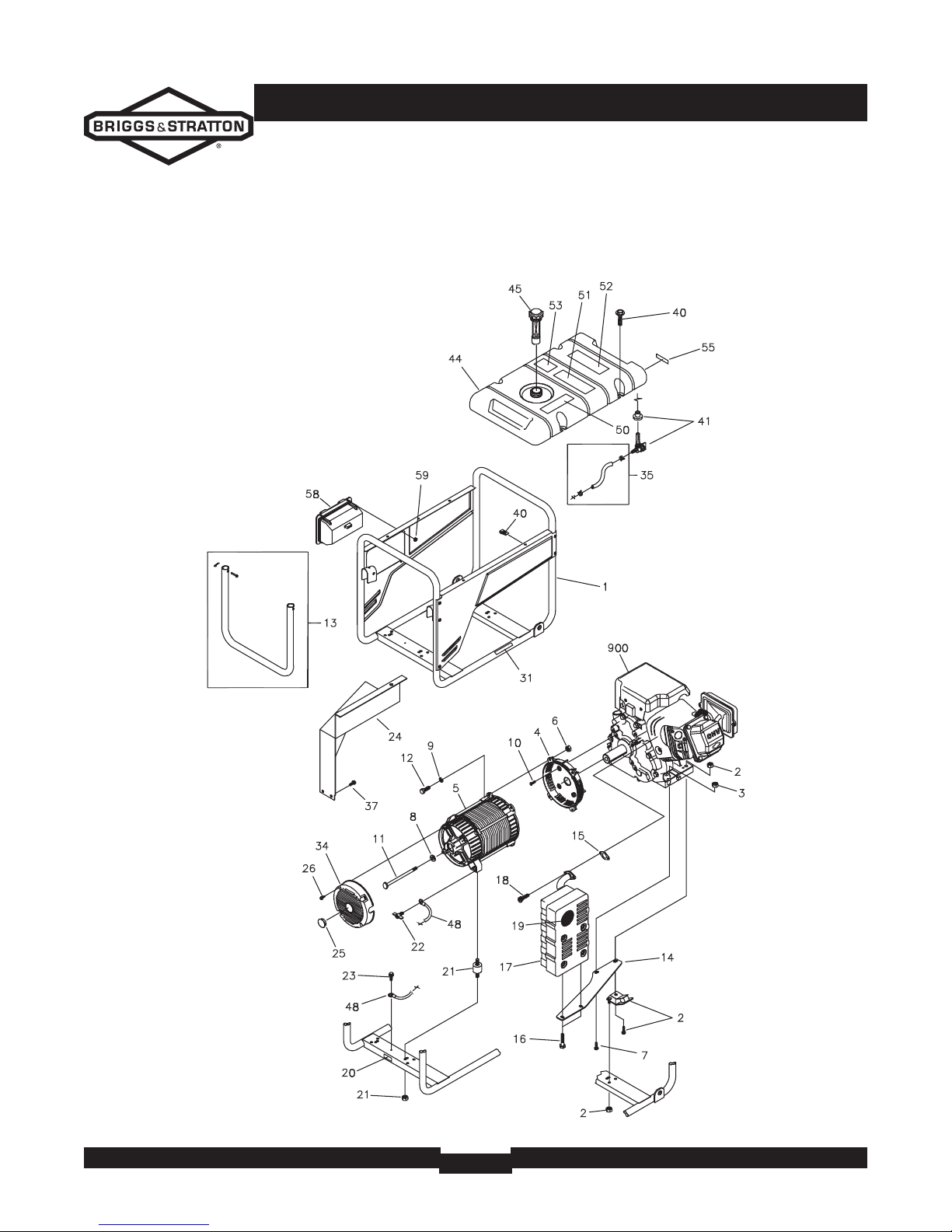

EXPLODED VIEW - MAIN UNIT

5000W Portable Generator

EXPLODED VIEW - PARTS LIST

Item Part # Description

1 198163GS ASSY, Cradle (Includes items 20 &

31)

2 194150GS KIT, Vibration, Mount, 45°

3 67989GS NUT, M8 Flange Serrated

4 190220GS HOUSING, Engine Adapter

5 NSP ASSY, Alternator (see page 4)

6 * NUT, Hex M8 - 1.25

7 195398GS TPHMS, M8 - 1.25 x 35

8 96796GS WASHER, 8.4 x 22.2 x 3

9 * WASHER, Lock 5/16 - M8

10 * SBHCS, 3/8-16 x 1.0 Lg

11 47480GS HHCS, 5/16-24 x 7

12 * HHCS, M8 - 1.25 x 25

13 198165GS KIT, Handle

14 189009GS BRACKET, Muffler

15 695398 GASKET, Exhaust

16 * HHCS, M6 - 1.0 x 12 w/LW

17 189008GS MUFFLER

18 * SCREW, 5/16 - 18 x 3/4"

19 83083GS SCREEN, Spark Arrest

20 B4986GS DECAL, Ground, Green

21 194153GS KIT, Vibration Mount

22 86494GS SCREW, Wing M6 - 1.0 x 16

23 86292GS SCREW, 10 - 16 x 3/4, Self Drill

24 197424GS SHIELD, Heat

25 191190GS CAP

26 74908GS SCREW, M5-0.8 x 10, Taptite

31 196830GS DECAL, Exhaust Warning

34 195422GS COVER, RBC, Plastic w/Cap

Item Part # Description

35 791745 KIT, Fuel Hose, w/clamps (cut to fit)

37 56893GS CRIMPTITE, 10-24 x 1/2

40 199433GS KIT, Fuel Tank Hardware w/U-Clips

199284GS U-CLIPS, (Optional Accessory)

41 192980GS KIT, Valve, Fuel Tank

44 193668GS ASSY., Tank, Fuel (Includes items

41, 50, 51, 52, 53 & 55)

45 B4363GS CAP, Fuel Gauge

48 195373GS WIRE, Ground

50 188333GS DECAL, Gas Fill

51 194799GS DECAL, Danger

52 189235GS DECAL, Start Instructions

53 202997GS DECAL, CO Warning

55 197798GS DECAL, Shut-Off, Fuel

58 204073GS ASSY, Control Panel

59 * NUT, Palnut, 3/16"

900 § ENGINE

Parts Not Illustrated

204158GS MANUAL, Operator’s

BB3061GS BOTTLE, Oil

202180GS DECAL, Family, CA EVP

203525GS KIT, Decals

§ - Contact Engine Manufacturer

* - Items without part numbers are common fasteners and

are available at your local hardware store.

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

5000W Portable Generator

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting, Alternator

2 204105GS ASSY., Rotor (Includes Item 8)

3 203936GS STATOR

4 186060GS RBC, with O-Ring (p/n 189197)

5 86308CGS HHCS, M6 - 1.0 x 130 SEMS

6 91825GS ASSY, Holder, Rectifier/Brush

7 66849GS TAPTITE, M5 - 0.8 x 16

8 65791GS BEARING

9 91551GS PIN, Groove

5000W Portable Generator

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Item Part # Description

1 201571GS PANEL, Control

2 197472GS COVER, Outlet Flip

3 201572GS COVER, Back Panel

4 197731GS OUTLET, 120V, 15/20A Dplx

5 189164GS NUT, 3/16 Pal

6 202951GS MODULE, Led

7 * SCREW, 3 x 6, Tapping

8 202030GS BREAKER, Circuit, 20A

191481GS BOOT, Breaker Circuit (not shown)

9 43437GS OUTLET, 120/240V, 30A

10 201678GS HOUSING, Rcptcl, 6 Pin

11 * PPPHS, M3 - 0.5 x 12

* - Items without part numbers are common fasteners and are

available at your local hardware store.

5000W Portable Generator

EXPLODED VIEW AND PARTS LIST - WHEEL KIT

Item Part # Description

1 196517GS WHEEL

2 B1764GS SUPPORT, Wheel Kit

3 191267HGS AXLE

4 * WASHER, 5/8"

5 191265GS E-RING

6 67989GS NUT, M8 - Flange Serrated

7 * HHCS, M8 - 1.25 x 16

* - Items without part numbers are common fasteners and are

available at your local hardware store.
