Briggs & Stratton 76001 Guida all'installazione

Home Generator Systems

Liquid-Cooled

Home Generator System

45000 Watts

Illustrated Parts List

Les Parties Illustrées Enumèrent

Las Partes Ilustradas Listan

Manual No. 205051A Rev. - (03/31/2008)

Model / Modelo / Modèle

076001

UNIT EXPLODED VIEW

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

2BRIGGSandSTRATTON.COM

UNIT PARTS LIST

Item Part # Description

1 AA204791GS BASE

2 205623GS TRAY, Battery

3 206119GS ASSY, Heater, Tank

4 205043GS KIT, Exhaust

5 204654GS SILENCER, Muffler

6 205398GS DECAL, Burn Hazard

7 * HHCS, 5/16 - 18 x 1

8 * WASHER, 5/16 - M8, Lock

9 * WASHER, 5/16 - M8, Flat

10 205396GS DECAL, Warning Hot Coolant

11 205399GS DECAL, Warning Moving Parts

12 205226GS KIT, Bottle Overflow

13 204868GS CLAMP, Air Cleaner

14 204275GS ASSY, Air Cleaner

207026GS Cartridge, Air Filter

15 204341GS ASSY, Alt

207019GS Assy, Rectifier

207020GS Regulator, Voltage

16 206120GS ASSY, Fuel Valve

17 AA204802GS COUPLER, Fuel System

18 206626GS VALVE, Ball 1/4"

19 206455GS ASSY, Hose, Fuel

20 206727GS ELBOW, Rubber

21 206650GS TUBE, Inlet, Air

22 206598GS ELBOW, Rubber

23 200409GS DECAL, Warning, Hot

24 186649GS DECAL, Oil Drain

25 205401GS DECAL, Explosion Hazard

26 206729GS TUBE, Inlet, Air

27 206539GS ELBOW, Rubber

900 § ENGINE

Parts Not Illustrated

204308GS KIT, Manual

205051GS MANUAL, Operator’s

205049GS MANUAL, Install

206992GS MANUAL, Engine, PSI

841281 SWITCH, Oil Pressure

206533GS SWITCH, Temperature

198866GS ASSY, Wall Plate

205206GS HOSE, Flex

206944GS ASSY, Oil Drain Hose

198573GS FUSE, ATO Type 15amp

203374GS PAINT, Touch-Up, Continuum

Charcoal, 1/2oz

198811GS PAINT, Touch-Up, Metallic Silver,

1/2oz

205622GS KIT, Hold Down Battery

207025GS KIT, Decals, Service

Optional Accessories

199475GS PAINT, Touchup, 12oz Spray, Silver

203417GS PAINT, Touchup, 12oz Spray,

Continuum Charcoal

* - Items without part numbers are common fasteners and

are available at your local hardware store.

§ - Contact Engine Manufacturer

Item Part # Description

1 AA204791GS BASE

2 186643GS DECAL, Fuel Inlet

3 B4986GS DECAL, Ground

4 207043GS ASSY, Roof

5 205368DGS SEAL TAPE, Vinyl

6 205368CGS SEAL TAPE, Vinyl

7 195998GS KIT, Door Latch

8 T204451GS COVER, Radiator

9 T204443GS HINGE, Plate

10 T204443GS HINGE, Plate Cover

11 205126GS DECAL, Requirements

12 207044GS ASSY, Bulkhead, Alternator

13 207045GS ASSY, Support Rail, Top

14 207046GS ASSY, Bulkhead, Engine

Item Part # Description

15 205854GS ASSY, Door

16 207030GS ASSY, Support Rail, Bottom

17 207047GS ASSY, Corner, Exhaust

18 207024GS ASSY, Baffle Exhaust

19 186049GS HANDLE, Door

20 207048GS ASSY., Support Rail

21 207032GS ASSY, Weldment Door

22 AA204460GS BRACKET

23 194828GS KEY, Door Latch

Parts Not Illustrated

205358GS SEAL, Hollow, 200 Ft Roll (Cut to Fit)

205357GS SEAL, Tape, Vinyl, 50 Ft Roll (Cut to

Fit)

ENCLOSURE EXPLODED VIEW & PARTS LIST

4BRIGGSandSTRATTON.COM

Item Part # Description

1 204008GS PANEL, Control

2 198516GS CONNECTOR, Terminal, 10-Pin

3 21217GS MOUNT, Vibration

4 201307GS PLUG, Relay

5 205028GS BLOCK, Terminal

6 205026GS RELAY

7 198549GS DECAL, Terminal Block

8 205029GS BLOCK, Terminal

9 190841GS TERMINAL, Neutral

10 204519GS INSULATOR

11 192065GS CIRCUIT BREAKER

12 186173GS BUSHING, Snap

13 192151GS FUSE HOLDER

14 205110GS FUSE

15 198550GS DECAL, Ground Neutral

16 204530GS KIT, Load Lug Conversion

17 B4986GS DECAL, Ground

18 203015GS BUSHING, Snap

Item Part # Description

19 B5082AGS DECAL, Danger High Voltage

20 205392GS DECAL, Warning, Auto Start

21 205394GS DECAL, Warning, Electrical Shock

22 193297GS DECAL, Caution

23 205395GS DECAL, Warning, Electrical Shock

24 205393GS DECAL, Warning, Outdoor Install

25 AA205058GS COVER, 10 Pin Connector

26 205030GS JUMPER, Screw

27 AA206191GS PLATE, Bottom Access

28 205588GS DIODE

29 192696GS TERMINAL, Neutral

Parts Not Illustrated

205953GS WIRE HARNESS

198573GS FUSE, ATO Type, 15amp

205115GS DECAL, Fuse

192597GS DECAL, Utility 240 VAC

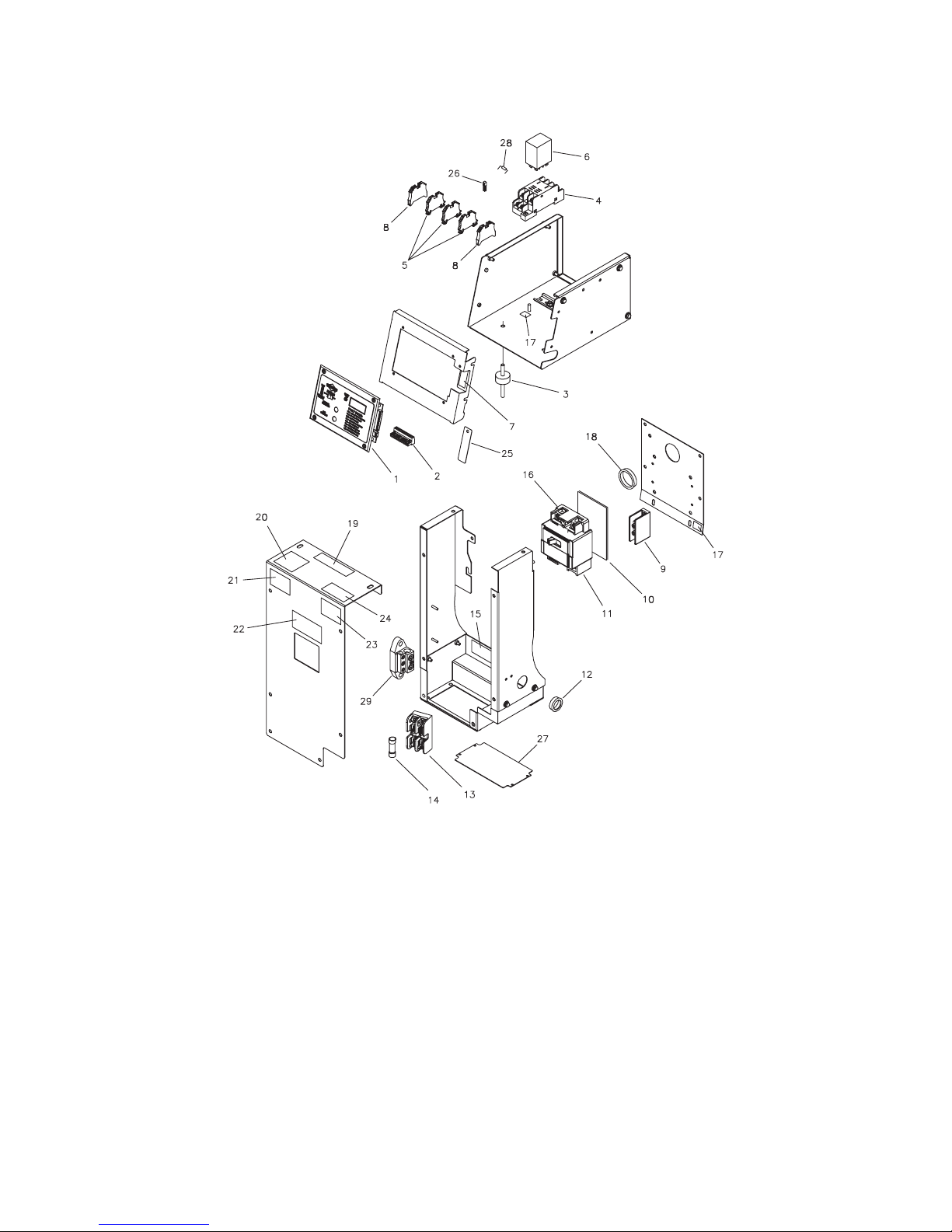

CONTROL PANEL EXPLODED VIEW & PARTS LIST
