Briggs & Stratton 020364-1 Guida all'installazione

Model No. 020364-1 (3400 PSI (234.4 BARS) Pressure Washer) Manual No. 206859A Revision - (04/14/2008)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

Questions? Help is just a moment away!

Call: Pressure Washer Helpline

1-800-743-4115 M-F 8-5 CT

Illustrated Parts List

This pressure washer is rated in accordance to the Pressure Washer Manufacture Association

(PWMA) standard PW101 (Testing and Rating Performance of Pressure Washers).

2BRIGGSandSTRATTON.COM

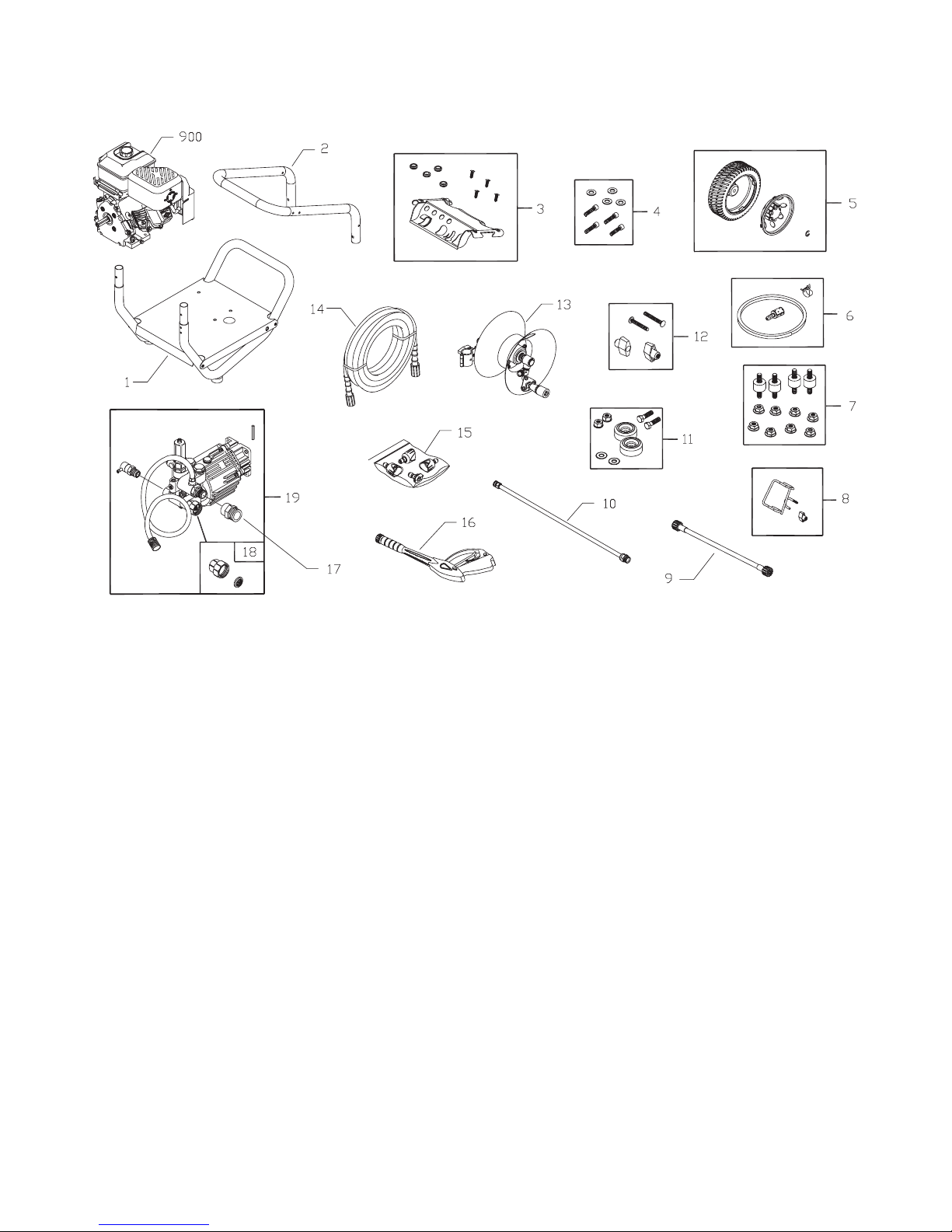

Exploded View and Parts List — Main Unit

Item Part # Description

1 202862GS ASSY, Base

2 Y201499GS HANDLE

3 202854GS KIT, Billboard/Decals, w/Clips

195964GS Clips, Tree

30809GS Grommet

4 192131GS KIT, Pump Mounting Hardware

5 203083GS KIT, Wheel

200520GS Hubcap

192050GS E-Ring

6 192796GS KIT, Chem Hose & Filter

7 192134GS KIT, Engine Mounting Hardwire

8 201661GS KIT, Gun Holder Weldment

9 202418GS HOSE, Whip

10 193814GS EXTENSION, QC

11 192553GS KIT, Vibration Mount

12 B2203GS KIT, Handle Fastening

13 202136GS ASSY, Hose Reel

203488GS Kit, Hardware, Hose Reel

14 202419GS HOSE

15 202182GS KIT, Nozzle

201580RGS Nozzle, QC, Project Pro, Yellow

201580XGS Nozzle, QC, Project Pro, Orange

201580AAGS Nozzle, QC, Project Pro, Red

198841GS Nozzle, Plastic, Soap

Item Part # Description

16 199990GS GUN

17 95457GS ADAPTER

18 194004GS KIT, Inlet, Garden Hose

19 202005GS ASSY, Pump

194298GS Valve, Thermal Relief

23139DGS Key

900 § ENGINE

Items Not Illustrated

206859GS MANUAL, Operator’s

87815GS GOGGLES

BB3061BGS OIL BOTTLE

201314GS AXLE

695755 KNOB, Throttle

202367GS KIT, Decals

194256GS KIT, Tag Warning, w/Clip

Optional Accessories

6048 KIT, O-Ring Maintenance

6039 PUMP SAVER

§ - Contact Engine Manufacturer

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

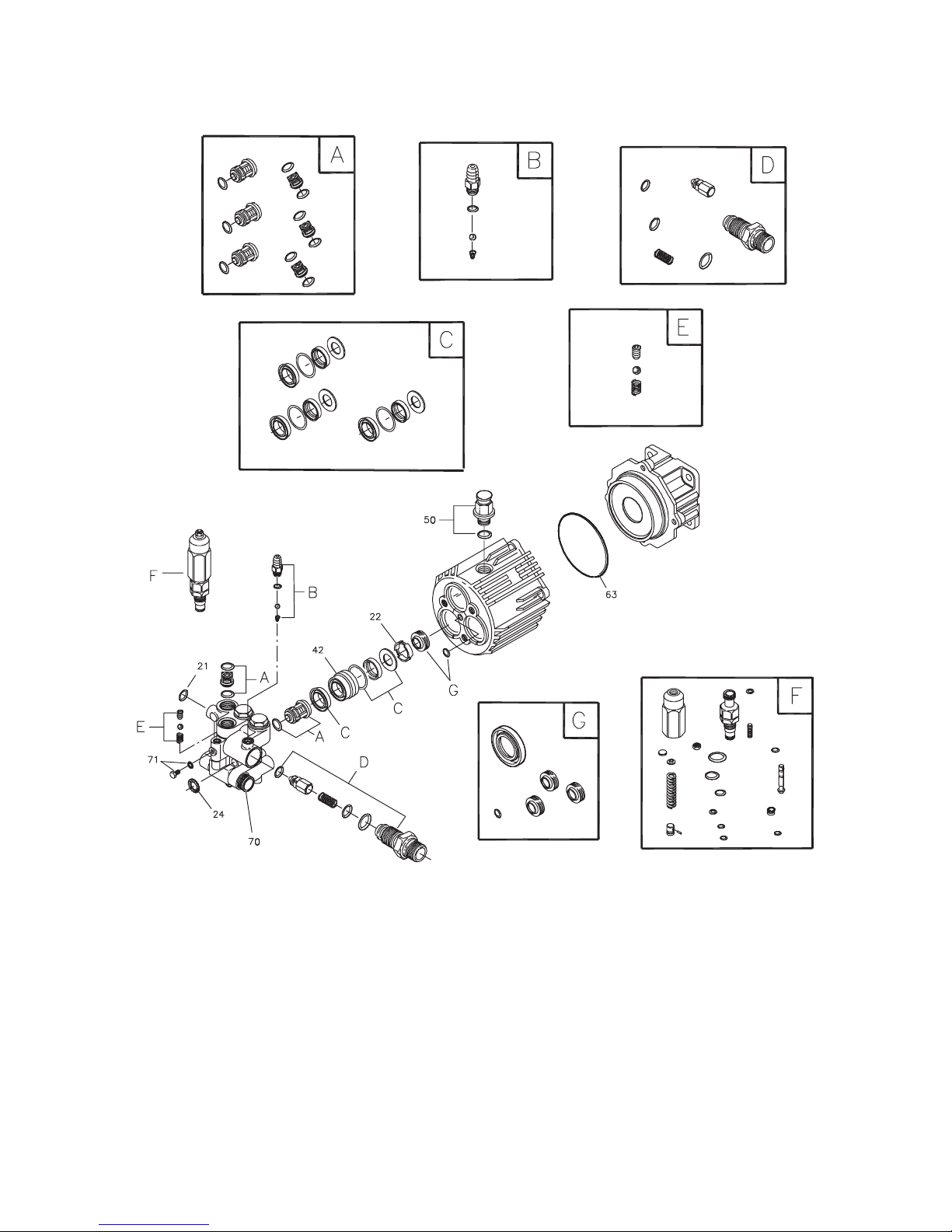

Exploded View and Parts List — Pump

Item Part # Description

21 194434GS O-RING

22 190639GS SPACER

24 190640GS WASHER

42 190646GS PISTON, Guide

50 198160GS VENT CAP, with O-Ring

63 194435GS O-RING

70 190654GS PUMP HEAD

71 190655GS GRUB SCREW & WASHER

A 190657GS KIT, CHECK VALVE

B 192914GS KIT, CHEMICAL INJECT

C 190660GS KIT, SEAL WATER

D 194426GS KIT, INJECTOR

Item Part # Description

E 194427GS KIT, BALL & SPRING

F 193126GS KIT, UNLOADER

G 194425GS KIT, SEAL OIL

Parts Not Illustrated

190656GS OIL BOTTLE

B2384GS FILTER, Inlet

NOTE: Item letters A - G are service kits and include all parts

shown within the box.
