Brocade DCX 8510-8

Backbone

QuickStart Guide

2 of 292 Brocade DCX 8510-8 Backbone QuickStart Guide

53-1002366-01

Brocade, the B-wing symbol, BigIron, DCFM, DCX, Fabric OS, FastIron, IronView, NetIron, SAN Health, ServerIron, TurboIron, and Wingspan are

registered trademarks, and Brocade Assurance, Brocade NET Health, Brocade One, Extraordinary Networks, MyBrocade, VCS, and VDX are

trademarks of Brocade Communications Systems, Inc., in the United States and/or in other countries. Other brands, products, or service names

mentioned are or may be trademarks or service marks of their respective owners.

Notice: This document is for informational purposes only and does not set forth any warranty, expressed or implied, concerning any equipment,

equipment feature, or service offered or to be offered by Brocade. Brocade reserves the right to make changes to this document at any time,

without notice, and assumes no responsibility for its use. This informational document describes features that may not be currently available.

Contact a Brocade sales office for information on feature and product availability. Export of technical data contained in this document may

require an export license from the United States government.

The authors and Brocade Communications Systems, Inc. shall have no liability or responsibility to any person or entity with respect to any loss,

cost, liability, or damages arising from the information contained in this book or the computer programs that accompany it.

The product described by this document may contain “open source” software covered by the GNU General Public License or other open source

license agreements. To find out which open source software is included in Brocade products, view the licensing terms applicable to the open

source software, and obtain a copy of the programming source code, please visit

http://www.brocade.com/support/oscd.

Brocade Communications Systems, Incorporated

Document History

Corporate and Latin American Headquarters

Brocade Communications Systems, Inc.

130 Holger Way

San Jose, CA 95134

Tel: 1-408-333-8000

Fax: 1-408-333-8101

E-mail: info@brocade.com

Asia-Pacific Headquarters

Brocade Communications Systems China HK, Ltd.

No. 1 Guanghua Road

Chao Yang District

Units 2718 and 2818

Beijing 100020, China

Tel: +8610 6588 8888

Fax: +8610 6588 9999

E-mail: china-info@brocade.com

European Headquarters

Brocade Communications Switzerland Sàrl

Centre Swissair

Tour B - 4ème étage

29, Route de l'Aéroport

Case Postale 105

CH-1215 Genève 15

Switzerland

Tel: +41 22 799 5640

Fax: +41 22 799 5641

E-mail: emea-info@brocade.com

Asia-Pacific Headquarters

Brocade Communications Systems Co., Ltd. (Shenzhen WFOE)

Citic Plaza

No. 233 Tian He Road North

Unit 1308 – 13th Floor

Guangzhou, China

Tel: +8620 3891 2000

Fax: +8620 3891 2111

E-mail: china-info@brocade.com

Document Title Publication Number Summary of Changes Publication Date

Brocade DCX 8510-8 Backbone

QuickStart Guide

53-1002179-01 New document. April 2011

Brocade DCX 8510-8 Backbone

QuickStart Guide

53-1002179-02 Several small changes, including

new graphic, genericized text, new

online link, IP address and PID

clarifications.

August 2011

Brocade DCX 8510-8 Backbone QuickStart Guide 3 of 292

53-1002366-01

In this guide

•

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

•

Safety notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

•

Danger notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

•

Caution notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

•

Brocade DCX 8510-8, port side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

•

Brocade DCX 8510-8, nonport side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

•

Time and items required for installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

•

Site planning and safety guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

•

Items included with the Brocade DCX 8510-8 . . . . . . . . . . . . . . . . . . . . . . . . 9

•

Unpacking and installing the Brocade DCX 8510-8. . . . . . . . . . . . . . . . . . . . 9

•

Providing power to the Brocade DCX 8510-8 . . . . . . . . . . . . . . . . . . . . . . . . 11

•

Managing cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

•

High density cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

•

Installing QSFP cables (optional). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

•

Possible QSFP cable configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

•

Establishing a serial connection to the Brocade DCX 8510-8 . . . . . . . . . . 16

•

Logging on to the Brocade DCX 8510-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

•

Configuring IP addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

•

Establishing an Ethernet connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

•

Customizing a switch name. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

•

Customizing a chassis name. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

•

Setting the Domain ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

•

Verifying the PID mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

•

Installing transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

•

Confirming software licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

•

Backing up the configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Introduction

This guide provides instructions for unpacking, installing, and setting up a Brocade DCX 8510-8 as a standalone unit

quickly. Note the following additional documentation:

•

For detailed installation and configuration instructions, refer to the Brocade DCX 8510-8 Backbone Hardware

Reference Manual.

•

For rack-specific installation instructions, refer to the 14U Rack Mount Kit Installation Procedure.

The Brocade DCX 8510-8 can be installed in the following ways:

•

As a standalone unit on a flat surface.

•

In a 19-inch Electronic Industries Association (EIA) cabinet, using the 14U rack mount kit (provided).

4 of 292 Brocade DCX 8510-8 Backbone QuickStart Guide

53-1002366-01

The basic configuration steps required to set up the Brocade DCX 8510-8 are listed in this guide. Additional

configuration information is provided in the Brocade DCX 8510-8 Backbone Hardware Reference Manual and the

Fabric OS Administrator’s Guide.

Safety notices

When using this product, observe the danger, caution, and attention notices in this manual. The notices are

accompanied by symbols that represent the severity of the safety condition.

NOTE

Translated safety notices are in the Brocade Product Safety Notices publication, which is on the CD-ROM that

accompanies this product.

The danger and caution notices are listed in numerical order based on their IDs, which are displayed in parentheses,

for example (D004), at the end of each notice. Use this ID to locate the translations of these danger and caution

notices in the Brocade Product Safety Notices.

Danger notices

A danger notice calls attention to a situation that is potentially lethal or extremely hazardous to people. A

lightning bolt symbol accompanies a danger notice to represent a dangerous electrical condition. Read and

comply with the following danger notice before installing or servicing this device.

DANGER

Use the supplied power cords. Ensure the facility power receptacle is the correct type, supplies the

required voltage, and is properly grounded. (D004)

Caution notices

A caution notice calls attention to a situation that is potentially hazardous to people because of some existing

condition. Read and comply with the following caution notice before installing or servicing this device.

CAUTION

Use safe lifting practices when moving the product. (C015)

Brocade DCX 8510-8, port side

The following figure shows a sample configuration of the port side of the Brocade DCX 8510-8.

Brocade DCX 8510-8 Backbone QuickStart Guide 5 of 292

53-1002366-01

NOTE

Airflow for the Brocade DCX 8510-8 is from the nonport (non-cable) side to the port (cable) side and out the exhaust

vent.

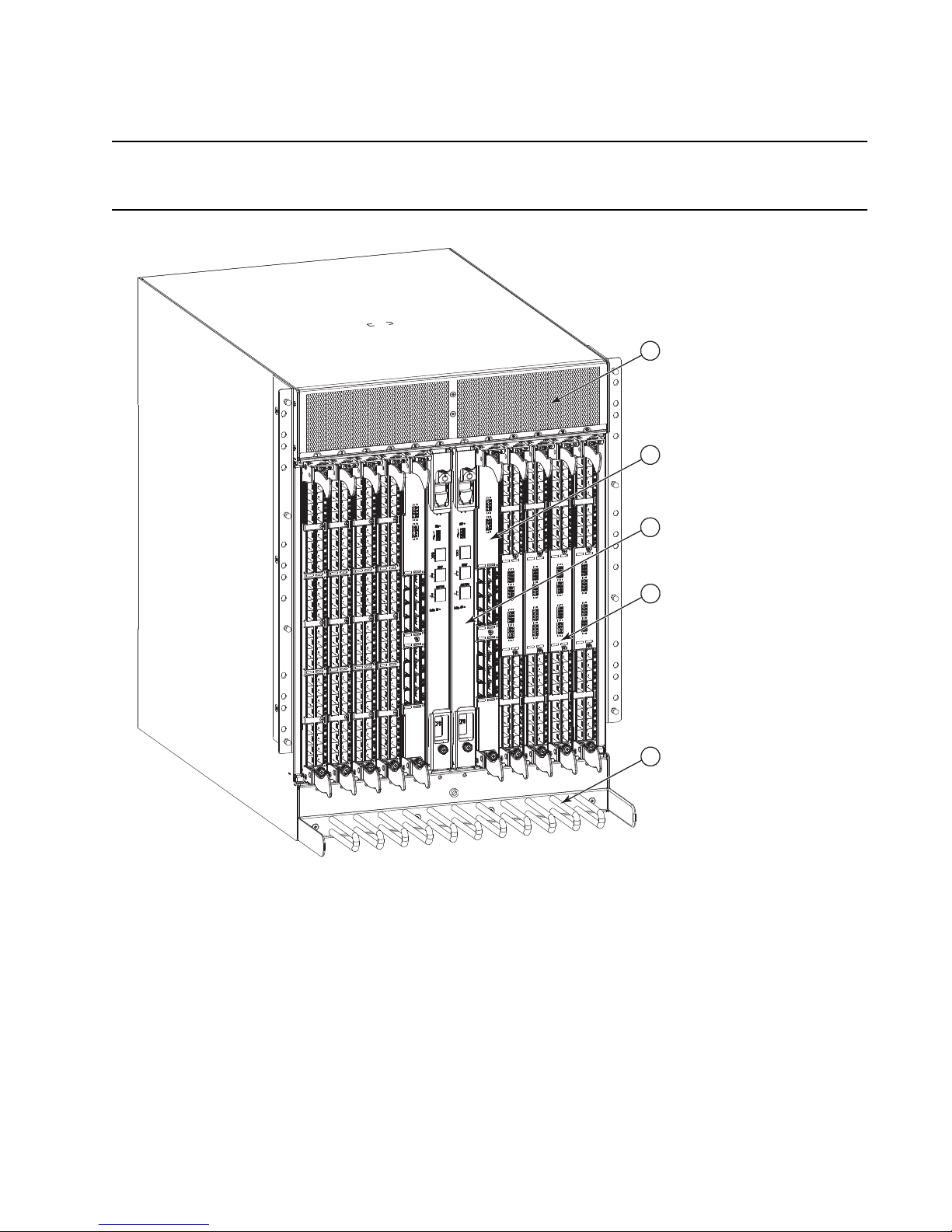

FIGURE 1

Port side of the Brocade DCX 8510-8 (sample configuration)

1 Exhaust Vent 4 FC16-32 port blade

2 Core switch blade (CR16-8) 5 Cable management comb

3 Control processor blade (CP8)

6 of 292 Brocade DCX 8510-8 Backbone QuickStart Guide

53-1002366-01

Brocade DCX 8510-8, nonport side

The following figure shows a sample configuration of the nonport side view of the Brocade DCX 8510-8.

FIGURE 2

Nonport side of the Brocade DCX 8510-8 (sample configuration)

Time and items required for installation

You can set up and install the Brocade DCX 8510-8 in the following ways:

•

As a standalone unit on a flat surface.

•

In a 19-inch Electronic Industries Association (EIA) cabinet, using the 14U Rack Mount Kit (provided).

1 WWN bezel (logo plate - WWN card behind with serial

number on the card)

3 Blower assembly

2 Power supply

Brocade DCX 8510-8 Backbone QuickStart Guide 7 of 292

53-1002366-01

•

In a mid-mount telecommunications (Telco) rack, using the Mid-Mount Rack Kit available from your Brocade DCX

8510-8 supplier.

This chapter describes how to set up the Brocade DCX 8510-8 as a standalone unit. For rack-mount installation

instructions, refer to the appropriate manual as described in the following table.

The following table describes the main installation and setup tasks, the estimated time required for each, and the

items required to complete the task based on a fully populated Brocade DCX 8510-8 (384 Fibre Channel ports using

the FC16-48 port blades). Configurations with fewer ports require less time. These time estimates assume a

prepared installation site and appropriate power and network connectivity.

TABLE 1

Installation tasks, time, and items required

Installation task Time estimate Items required

Site preparation and unpacking Brocade

DCX 8510-8

30 minutes 1/2-in. socket wrench (to remove pallet bolts).

#2 Phillips screwdriver

(for cable management comb).

Pallet jack.

Hydraulic lift or assisted lift, able to raise to a

minimum of 140 cm (55 in.), with a minimum

capacity of 113 kg (250 lb). The Brocade DCX

8510-8 weighs 159.2 kg (351 lb) with eight

FC16-48 port blades installed (384 ports).

Installing rack mount kit 30 minutes Refer to the 14U Rack Mount Kit Installation

Procedure or the Mid-Mount Rack Kit

Installation Procedure.

Mounting and securing Brocade DCX

8510-8 in rack

30 minutes

Installing power cables and powering on

the Brocade DCX 8510-8

20 minutes Power cables (provided in the Brocade DCX

8510-8 accessory kit).

Establishing serial connection, logging on

to Brocade DCX 8510-8, and configuring IP

addresses

20 minutes Serial cable (provided in the accessory kit).

Workstation computer with a serial port or

terminal server port and a terminal emulator

application (such as HyperTerminal).

Ethernet IP addresses for the Brocade DCX

8510-8 chassis and for both control processor

blades: total three addresses.

Installing an Ethernet cable, opening a

Telnet session, and configuring the

Brocade DCX 8510-8 domain ID, date and

time, and additional system parameters.

Verify and back up configuration.

20 minutes Ethernet cabling (optional) for Telnet access.

Refer to the Fabric OS Administrator’s Guide.

Installing transceivers as needed 30 minutes (longer

if using high-density

port blades)

SFP+, mSFP, and QSFP optical transceivers as

needed.

Attaching fiber optic cables, cable ties, and

cable guides

2-3 hours Fiber optic cables, cable ties, and cable comb.

8 of 292 Brocade DCX 8510-8 Backbone QuickStart Guide

53-1002366-01

Site planning and safety guidelines

NOTE

Read the safety notices before installation (“Safety notices”).

Read “Power specifications” in the Brocade DCX 8510-8 Hardware Reference Manual appendix to plan for meeting

power supply standards before installing the chassis.

Read “Managing cables” to plan for cable management.

The following steps are required to ensure correct installation and operation.

1. Provide a space that is 14 rack units (14U) high, 61.29 cm (24.09 in.) deep, and 43.74 cm (17.22 in.) wide. 1U

is equal to 4.45 cm (1.75 in.).

Plan to install the Brocade DCX 8510-8 with the nonport side facing the air-intake aisle. The Brocade DCX

8510-8 can be installed facing either direction, if serviceability and cooling requirements are met.

2. Ensure that dedicated electrical branch circuits with the following characteristics are available:

NOTE

See “Power specifications” in the “Specifications” appendix for specific requirements depending on your

chassis configuration.

•

200 – 240 VAC, 50–60 Hz (two branch circuits) - recommended for high availability and maximum blade

usage when configured with 192 16 Gbps ports (four circuits required for high availability if configured with

384 16 Gbps ports)

•

110 - 120 VAC, 50-60 Hz (four branch circuits highly recommended)

•

Two or four cables for 200 - 240 VAC service; up to four cables for 110 - 120 VAC service

•

Protected by a circuit breaker in accordance with local electrical codes

•

Supply circuit, line fusing, and wire size adequate to the electrical rating on the chassis nameplate

•

Location close to the chassis and easily accessible

•

Grounded outlets installed by a licensed electrician and compatible with the power cords

ATTENTION

To maximize fault tolerance, connect each power cord to a separate power source.

3. Plan for cable management before installing the chassis.

Cables can be managed in a variety of ways, such as by routing cables below the chassis, to either side of the

chassis, through cable channels on the sides of the cabinet, or by using patch panels.

4. Ensure that the following is available for configuration of the Brocade DCX 8510-8:

•

Workstation with an installed terminal emulator, such as HyperTerminal

•

Serial cable (provided)

•

Three Ethernet cables (including one spare)

•

Access to an FTP server for backing up the switch configuration or collecting supportsave output data

(optional)

•

A Brocade USB stick for collecting supportsave output data (optional)

•

Transceivers (copper and optical) and compatible cables

5. Ensure that the air intake and exhaust vents have a minimum of two (2) inches of airspace.

Brocade DCX 8510-8 Backbone QuickStart Guide 9 of 292

53-1002366-01

6. Ensure that the air temperature on the air intake side is less than 40 degrees Celsius (104 degrees Fahrenheit)

during operation.

Items included with the Brocade DCX 8510-8

The Brocade DCX 8510-8 ships with the following:

•

Brocade DCX 8510-8 chassis, populated with:

Control processor blades (CP8)

Core switch blades (CR16-8)

Port blades, application blades, and encryption blades (included based on customer specification)

Blade slot filler panels (for slots not filled by blades)

WWN cards

WWN bezel (logo plate)

Power supplies

Power supply filler panel (included if there are fewer than four power supplies)

Blower assemblies

Cable management comb

Chassis door

•

Accessory kit containing the following items:

Brocade DCX 8510-8 Backbone QuickStart Guide

Brocade Documentation CD (contains documents related to the Brocade DCX 8510-8)

ESD grounding strap

USB device

RS-232 serial cable. The RS-232 cable has an adapter at one end that can be removed to provide an

RJ-45-style connector.

•

14U Rack Mount Kit with instructions (includes rear brackets and bottom support rails)

Order the Brocade-branded optical transceivers (SFP+, mSFP, and QSFP). The Brocade DCX 8510-8 supports SWL,

LWL, and ELWL transceivers. The mSFPs and QSFPs are SWL transceivers only.

NOTE

For information about the SFP+, mSFP, and QSFP transceivers that are qualified for the Brocade DCX 8510-8, go to

http://www.brocade.com/downloads/documents/matrices/Brocade_Compatibility_Matrix.pdf.

Unpacking and installing the Brocade DCX 8510-8

Use the following procedure to unpack and install your Brocade DCX 8510-8.

10 of 292 Brocade DCX 8510-8 Backbone QuickStart Guide

53-1002366-01

CAUTION

Use safe lifting practices when moving the product. (C015)

NOTE

A fully populated Brocade DCX 8510-8 (eight FC16-48 port cards, 384 ports) weighs approximately 159.2 kg (351 lbs)

and requires a hydraulic or assisted lift to install it.

1. Unpack the Brocade DCX 8510-8.

a. Cut the bands that encircle the packaging.

b. Remove the lid and the kits and foam from the top of the chassis.

c. Lift the cardboard box off the chassis and remove the plastic bag from around the chassis.

Save the packing materials for use when returning the old chassis.

d. Leave the chassis on top of the plastic shipping tray if the chassis must be transported to the installation

location.

NOTE

The Brocade DCX 8510-8 packaging does not incorporate a wood pallet and pallet brackets. The chassis sits on

top of a plastic shipping tray.

2. Use a pallet jack or other assisted lift to transport the new chassis to the installation area. Doorways must be

wider than 36 in. (91 cm) to accommodate the chassis.

3. Remove the 14U rack mount kit, accessory kit, packing foam, and antistatic plastic from the chassis and set

aside.

4. Remove the chassis door from the Brocade DCX 8510-8.

5. Remove the cable management comb.

6. Use a lift to raise the chassis to the correct level. If installing the chassis in a cabinet, follow the instructions

provided by the rack kit manufacturer.

7. If applicable, lock the wheels of the lift.

8. Gently slide the chassis onto the final installation surface, ensuring that it remains supported during the

transfer.

9. Ensure that the chassis is oriented so that the nonport side has access to intake air (cool).

10. Reinstall the cable management comb.

11. Reinstall the door. The door must be installed to meet EMI compliance.

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Brocade Communications Systems Interruttore
