RF WIRELESS HEADPHONE SYSTEM

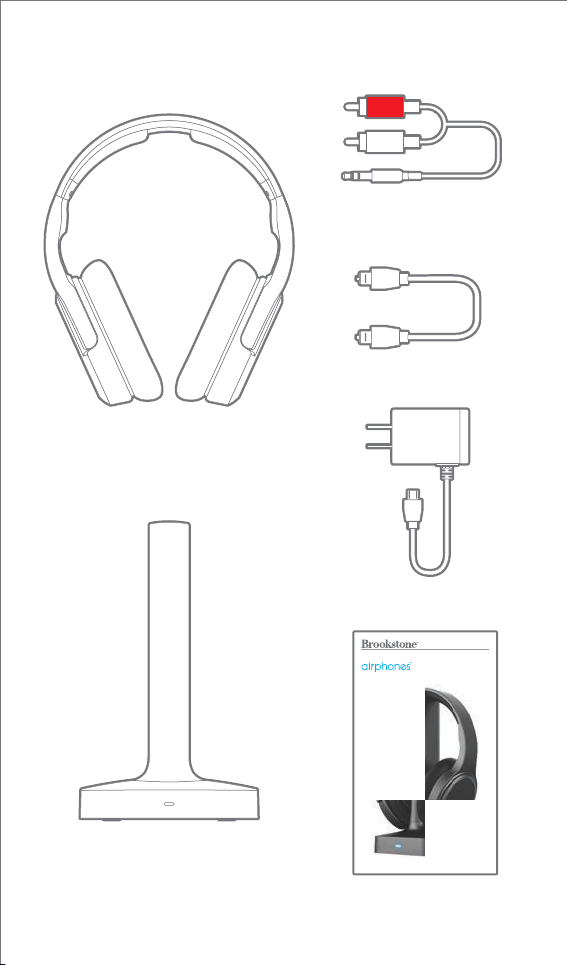

IN THE BOX
RF WIRELESS HEADPHONE SYSTEM
User Guide
Optical Cable
RCA/3.5mm Audio
Cable
RF Wireless Headphones
Charging Base
USB Charger
1

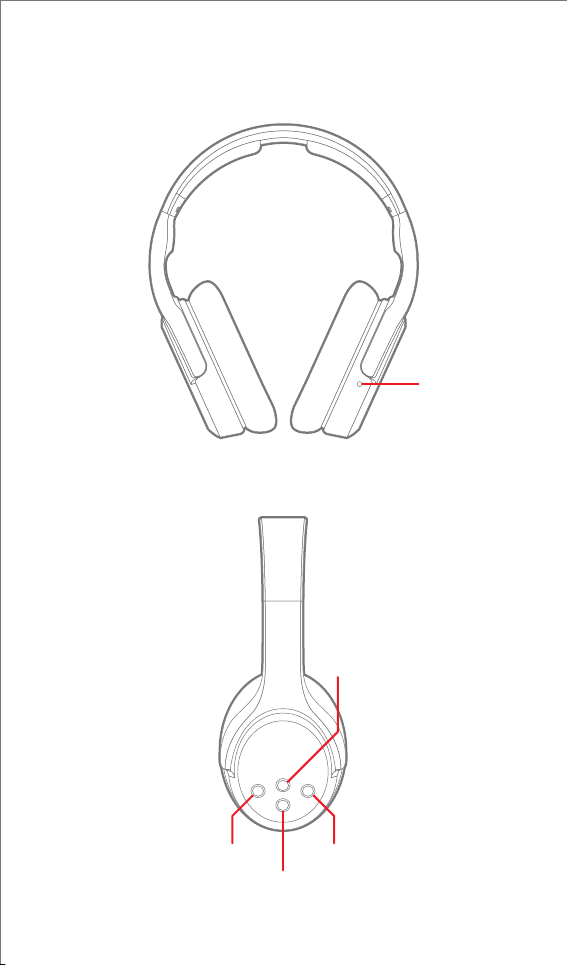

LOCATION OF CONTROLS HEADPHONES
FRONT
LED Indicator
SIDE
Mute
Volume – Volume +
Power
2

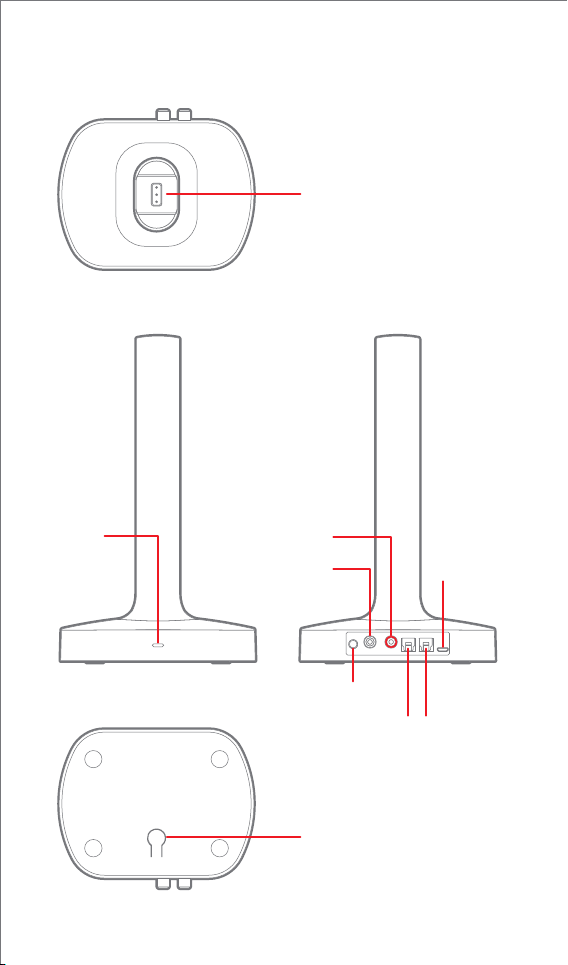

LOCATION OF CONTROLS CHARGING BASE
Heaphones
Charging
Connector
TOP
FRONT BACK
BOTTOM
Stereo IN
RCA (R) Power
(Micro USB port,
5V/1000mA)
RCA (L)
LED
Indicator
Optical IN
(S/PDIF)
Optical OUT
(S/PDIF)
Pairing
Button
3

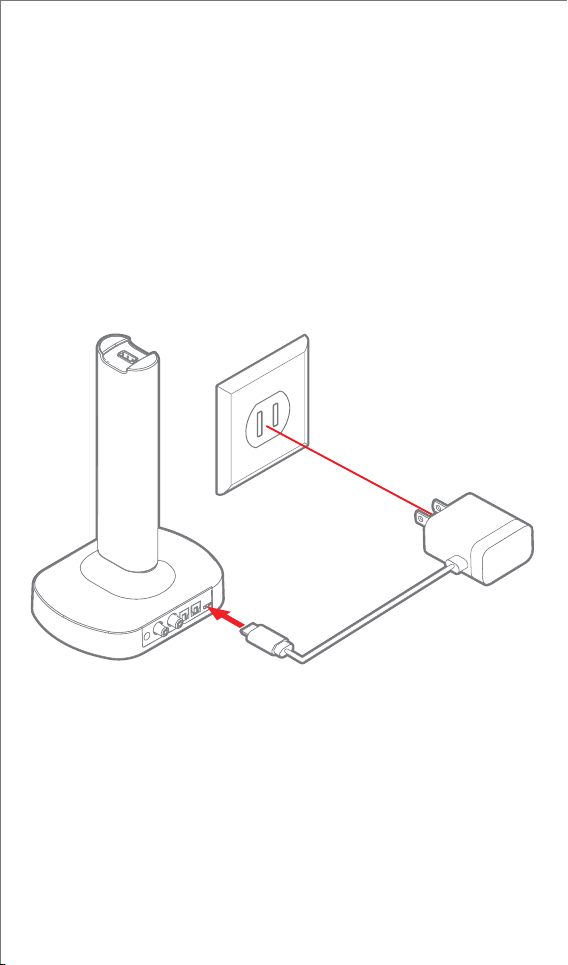

1. Connect the supplied USB charger to the Charging Base’s USB port.
CHARGING
Charging Base
USB Charging Cable
Wall outlet
4
2. Place the headphones on the Charging Base, the headphones
and Charging Base LED indicators will light red. Once the
headphones are fully charged, both the headphones and the
Charging Base’s LED indicators will turn off.
Note:
• Loss of sound quality is an indication that your headphones
require charging
• The headphones will automatically power off after 5 minutes of
inactivity
5
Using the RCA/3.5mm Audio Cable
1. Connect the white and red plugs of the supplied RCA/3.5mm
Audio Cable to the (L) and (R) audio out on your television's
connection panel.
Note: Ensure the cables are NOT plugged into the TV’s audio input.
2. Connect the 3.5mm stereo plug to the Charging Base's Stereo
In 3.5mm audio jack as shown below.
Note: You can also use a 3.5mm/3.5mm audio cable (not included)
to connect from a TV’s 3.5mm output to the Charging Base’s 3.5mm
stereo input.

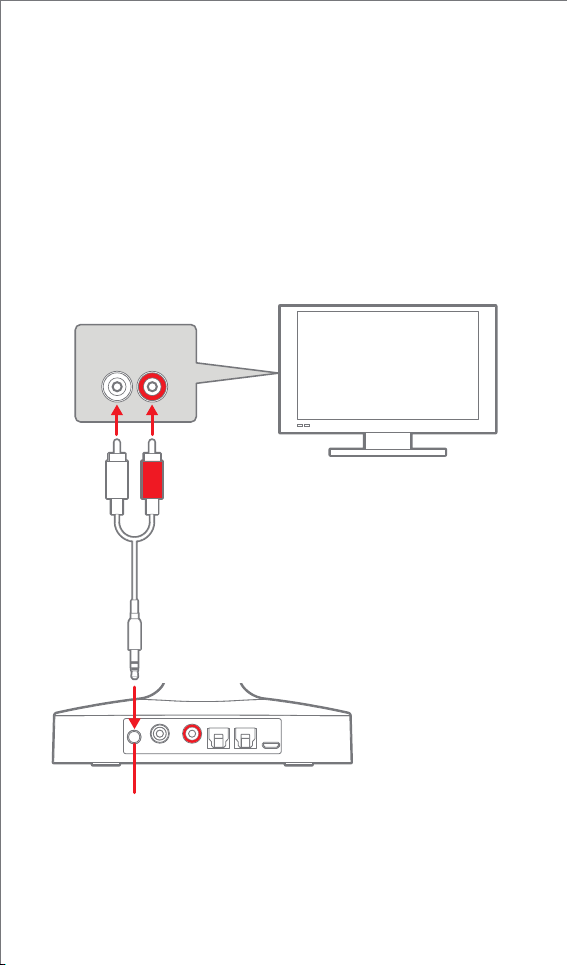

CONNECTING THE CHARGING BASE TO A TV
L R
RCA/3.5mm Audio Cable
Stereo In
(3.5mm audio jack)
Charging Base
RCA AUDIO OUT
TV
6
Passthrough
After connecting your TV to the Charging Base’s 3.5mm stereo
input, you can passthrough the sound to your soundbar or other
audio device as shown below.
Soundbar or
other audio equipment
RCA/RCA Audio Cable
(not included)
(L) IN/OUT (R) IN/OUT
RCA/3.5mm
Audio Cable
Charging Base
L R
RCA AUDIO IN
TV
7
Using the S/PDIF optical cable for digital audio
For televisions equipped with an S/PDIF optical output, you may
connect the included Optical Cable to the TV’s connection panel.
Connect the other end of the Optical Cable into the Charging
Base's "Optical IN" port (supports 96kHz/24bit).
Charging Base
Optical IN Optical OUT
Optical Cable
TV
Soundbar or
other audio equipment
OPTICAL IN
OPTICAL OUT
8
If you have a sound bar or other audio equipment already
connected to your television, you can use the Charging Base's
audio passthrough connection labeled "Optical OUT" to connect
to your other audio equipment.
When an audio source is connected to the Charging Base’s “STEREO
IN”, the optical ports will not function.
Note: If you connect the Charging Base to your TV using the Optical
Cable and you notice that there is either no sound or no sound on
certain content, please follow the steps below.
1. Make sure your home theater or stereo system is set to the
appropriate audio output for the optical connection and that the
Optical Cable is securely connected to the TV and Charging Base.
2. Go into the “SOUND”, or “SPEAKERS” menu of the TV, and select
“EXTERNAL SPEAKERS” or “AUDIO SYSTEM”.
Some TVs require that the internal speakers be turned off before outputting the audio
signal to another device.
3. Set the “DIGITAL AUDIO OUT” setting on the TV to “PCM”.
Dolby Digital
DTS
DTS Neo 2:5
PCM
TV Audio Settings
9
