Start Here

Quick Setup Guide

USA/CAN Version 0

MFC-J450DW

MFC-J470DW

MFC-J475DW

Thank you for choosing Brother, your support is important to us and we value your business. Your Brother product

is engineered and manufactured to the highest standards to deliver reliable performance, day-in and day-out.

Please read the Product Safety Guide first before you set up your machine. Then, please read this Quick Setup

Guide for the correct setup and installation.

Manuals in Spanish for this model are available on the enclosed CD-ROM.

Manuales en Español para este modelo están disponibles en el CD-ROM incluido.

Unpack the machine and check the components

Most of the illustrations in this Quick Setup Guide show the MFC-J470DW.

The components included in the box may differ depending on your country.

1If your computer does not have a CD-ROM drive, you can download the drivers from your model’s download page at

http://solutions.brother.com/. For more information, see page 13.

WARNING

Plastic bags are used in the packing of your machine. Plastic bags are not toys. To avoid the danger

of suffocation, keep these bags away from babies and children and dispose of them correctly.

WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death

or serious injuries.

CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor

or moderate injuries.

IMPORTANT IMPORTANT indicates a potentially hazardous situation which, if not avoided, may result in

damage to property or loss of product functionality.

NOTE Notes tell you how to respond to a situation that may arise or give tips about how the operation

works with other features.

Starter Ink

Cartridges

Black

Yellow

Cyan

Magenta Quick Setup Guide

CD-ROM 1

Basic User’s Guide Product Safety Guide Telephone Line Cord

NOTE

Save all packing materials and the box in case for any reason you must ship your machine.

USB cable

You need to purchase the correct USB cable.

We recommend using a USB 2.0 cable (Type A/B) that is no more than six feet (two meters) long.

aRemove the protective tape and film covering

the machine, and also from the LCD.

Remove

the plastic bag acontaining the ink

cartridges from on top of the paper tray.

cMake sure you have all the components.

Connect the power cord

and telephone line

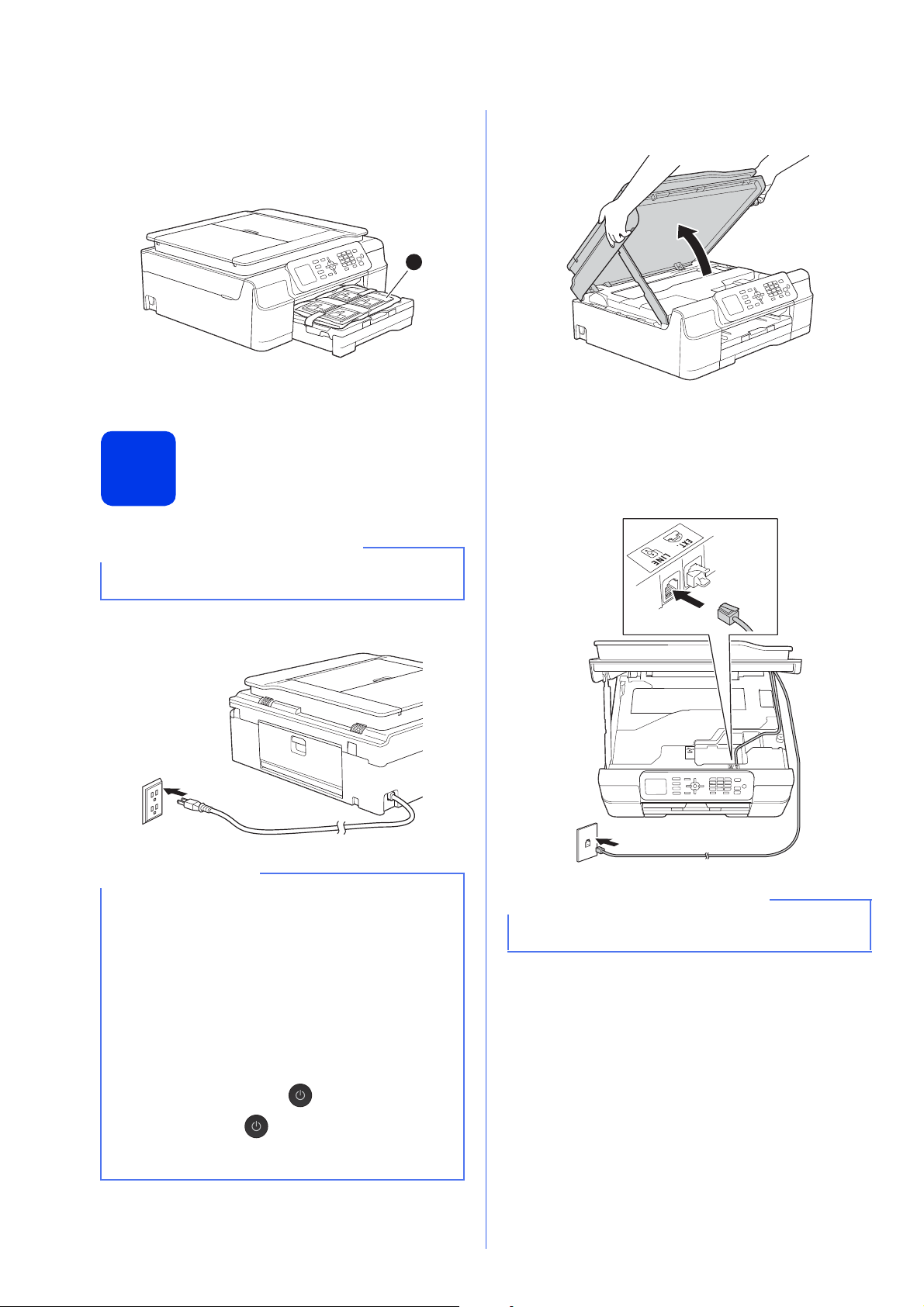

aConnect the power cord.

bLift the scanner cover until it locks securely into

the open position.

cConnect the telephone line cord.

Connect one end of the telephone line cord to

the jack marked LINE on the machine.

Carefully guide the telephone line cord into the

cable channel and out the back of the machine.

Connect the other end to a modular wall jack.

IMPORTANT

DO NOT connect the USB cable yet (if you are

using a USB cable).

NOTE

• If you do not plan to use the fax feature on this

machine, go to step 3on page 4.

• To prolong the life of the print head, provide the

best ink cartridge economy and maintain print

quality, we do not recommend unplugging the

machine frequently and/or leaving the machine

unplugged for extended periods of time. Each

time you plug the machine in, it automatically

cleans the print heads, which uses some of

your ink.

We recommend using to power down the

machine. Using allows minimal power to

the machine, resulting in periodic, but less

frequent, cleaning of the print heads.

IMPORTANT

The telephone line cord MUST be connected to

the jack marked LINE on the machine.

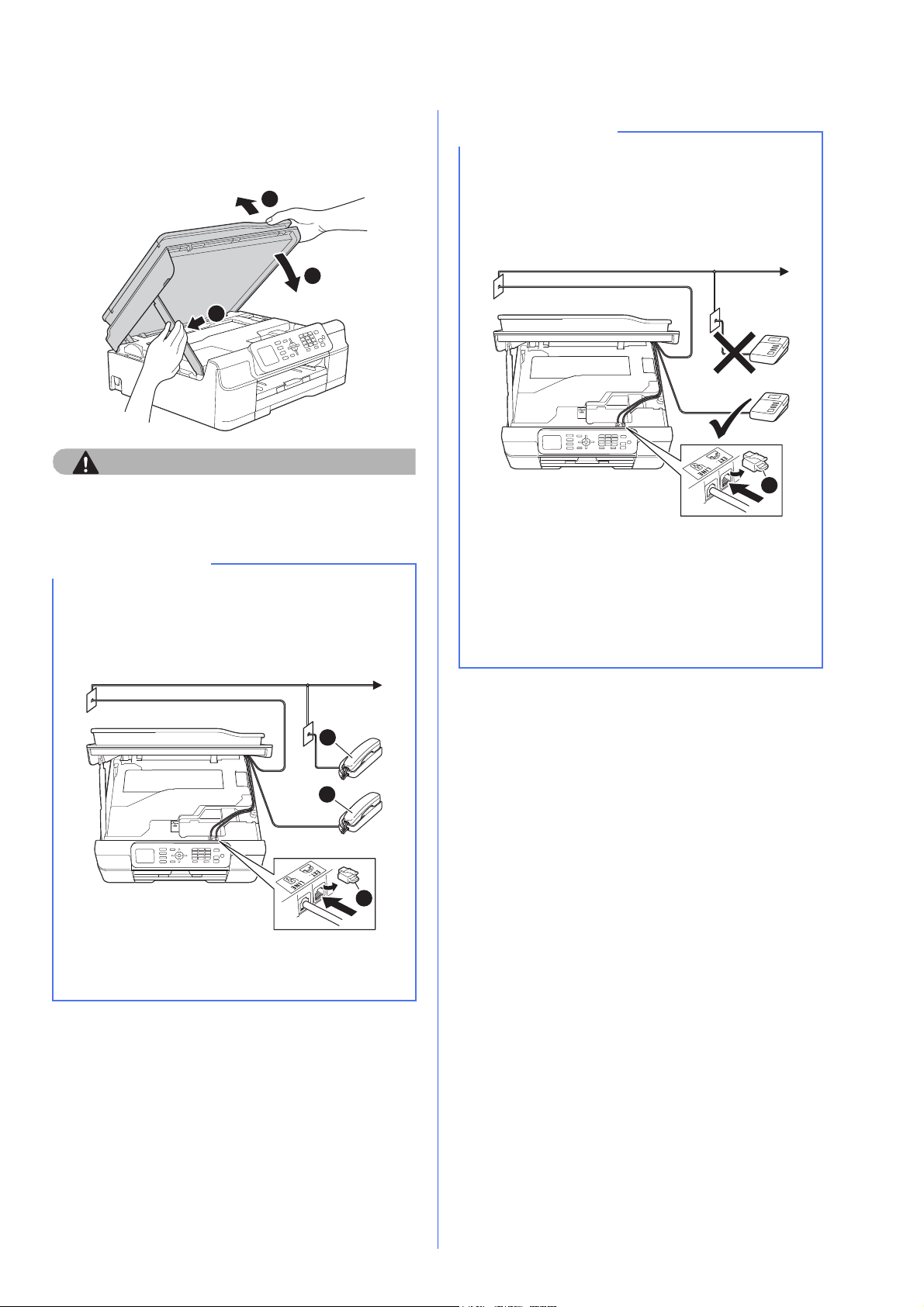

dLift the scanner cover to release the lock a.

Gently push the scanner cover support

down band close the scanner cover cusing

both hands.

CAUTION

Be careful not to pinch your fingers when the

scanner cover closes.

NOTE

If you are sharing one telephone line with an

external telephone, connect it as shown below.

Before you connect the external telephone,

remove the white protective cap cfrom the EXT.

jack on the machine.

aExtension telephone

bExternal telephone

cProtective cap

NOTE

If you are sharing one telephone line with an

external telephone answering machine, connect it

as shown below.

Before you connect the external telephone

answering machine, remove the white protective

cap afrom the EXT. jack on the machine.

aProtective cap

Set the receive mode to External TAD if you

have an external answering machine. See

Choose the correct Receive Mode on page 10.

For additional details, see Connecting an external

TAD (telephone answering device) in chapter 6 of

the Basic User’s Guide.

Install the ink cartridges

CAUTION

If ink gets in your eyes, wash it out with water at

once and call a doctor if you are concerned.

aMake sure that the power is turned on.

The LCD will show No Ink Cartridge.

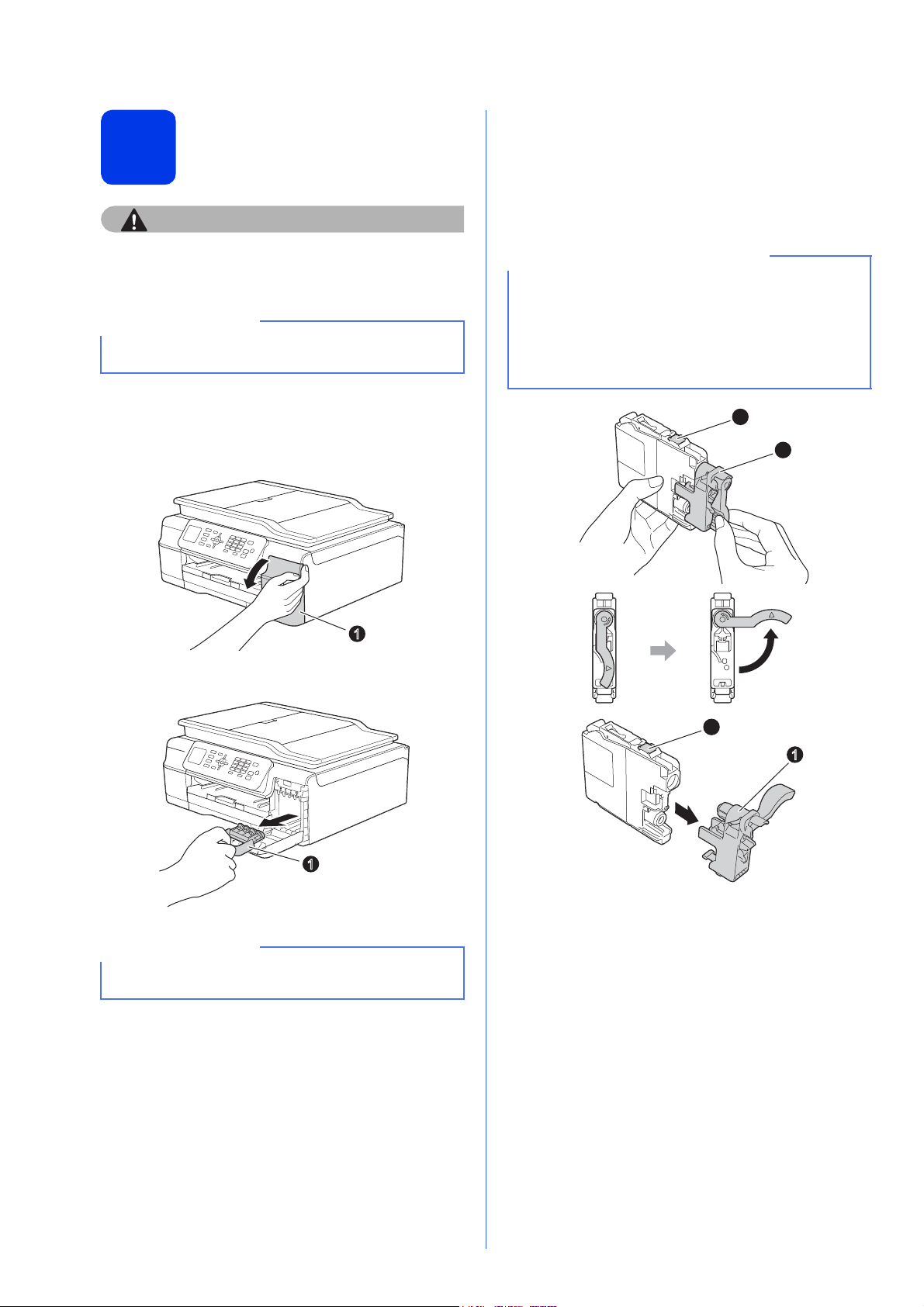

bOpen the ink cartridge cover a.

cRemove the orange protective part a.

dUnpack the ink cartridge.

Turn the green release lever on the orange

protective packing acounterclockwise until it

clicks to release the vacuum seal. Then

remove the orange protective packing aas

shown.

NOTE

Make sure you install the Starter Ink Cartridges

included with your machine first.

NOTE

Do not throw away the orange protective part.

You will need it if you transport the machine.

IMPORTANT

• DO NOT shake the ink cartridges. If ink stains

your skin or clothing, wash with soap or

detergent at once.

• DO NOT touch the cartridge in the area

indicated b, as this can cause the machine not

to function with the cartridge.

eTake care to match the sticker color awith the

cartridge color bas shown in the diagram

below.

Install each ink cartridge in the direction of the

arrow on the label.

fGently push the back of the ink cartridge

marked “PUSH” until it latches. After all the ink

cartridges are installed, close the ink cartridge

cover.

NOTE

The machine will prepare the ink tube system for

printing. This process will take approximately four

minutes. Do not turn off the machine. We

recommend you perform the next step while

waiting.

IMPORTANT

• DO NOT take out ink cartridges if you do not

need to replace them. If you do so, it may

reduce the ink quantity and the machine will not

know the quantity of ink left in the cartridge.

• DO NOT repeatedly insert and remove the

cartridges. If you do so, ink may seep out of the

cartridge.

• Once you open an ink cartridge, install it in the

machine and use it up within six months of

installation. Use unopened ink cartridges by

the expiration date written on the cartridge

package.

• DO NOT dismantle or tamper with the ink

cartridge, this can cause the ink to leak out of

the cartridge.

• Brother strongly recommends that you do not

refill the ink cartridges provided with your

machine. We also strongly recommend that

you continue to use only Genuine Brother

Brand replacement ink cartridges. Use or

attempted use of potentially incompatible ink

and/or cartridges in the Brother machine may

cause damage to the machine and/or may

result in unsatisfactory print quality. Our

warranty coverage does not apply to any

problem that is caused by the use of

unauthorized third party ink and/or cartridges.

To protect your investment and obtain premium

performance from the Brother machine, we

strongly recommend the use of Genuine

Brother Supplies.

Load plain Letter/A4

paper

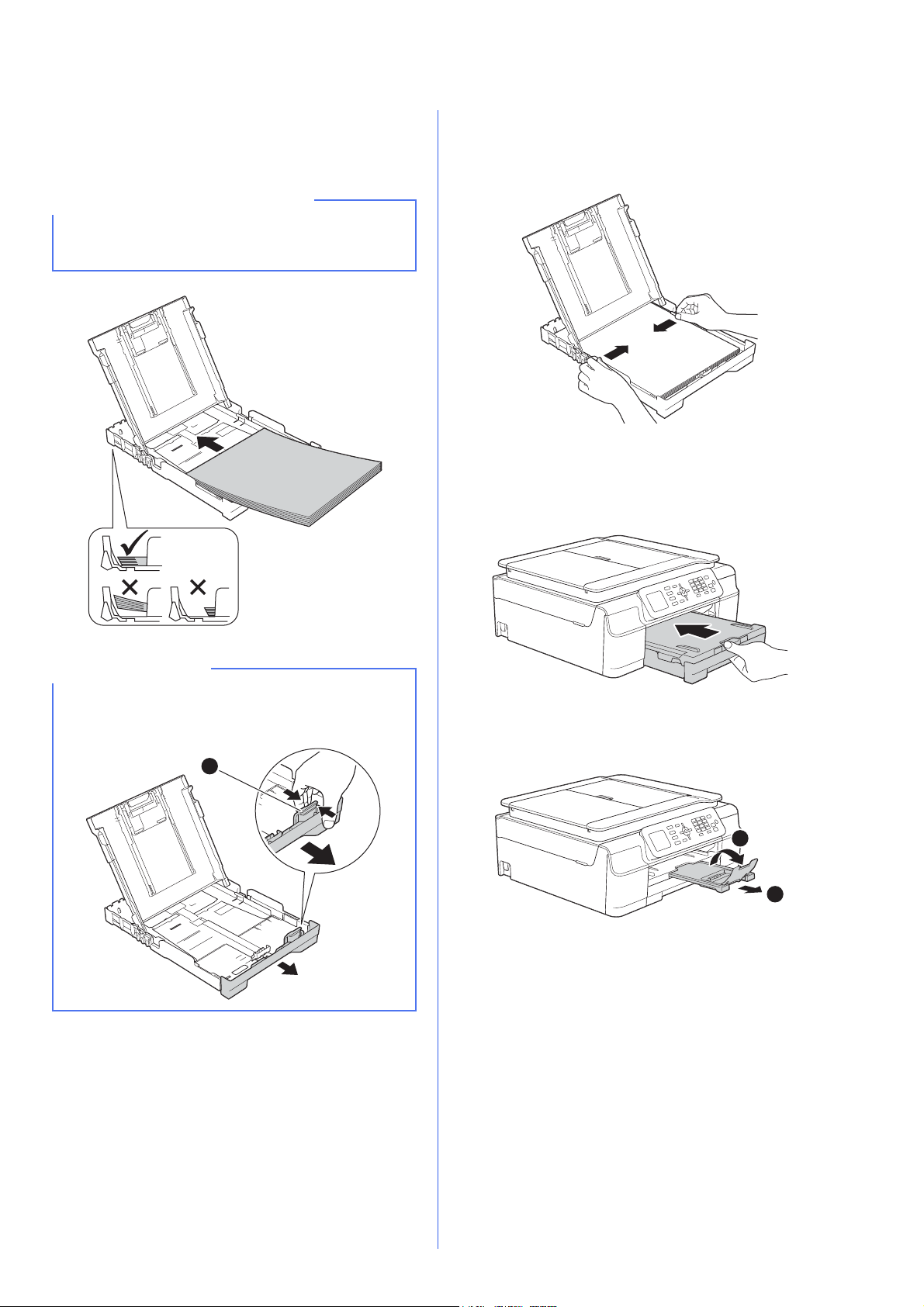

aPull the paper tray acompletely out of the

machine.

bOpen the output paper tray cover a.

cGently press and slide the paper width

guides aand then the paper length guide bto

fit the paper size.

Make sure that the triangular marks con the

paper width guides aand paper length

guide bline up with the mark for the paper size

you are using.

dFan the stack of paper well to avoid paper jams

and misfeeds.

NOTE

Make sure the first printed page is Letter/A4 size.

NOTE

Always make sure that the paper is not curled or

wrinkled.

eGently put the paper into the paper tray print

side down and top edge first. Check that the

paper is flat in the tray.

fGently adjust the paper width guides to the

paper with both hands. Make sure that the

paper width guides touch the edges of the

paper.

gClose the output paper tray cover.

hSlowly push the paper tray completely into the

machine.

iWhile holding the paper tray in place, pull out

the paper support auntil it clicks, and then

unfold the paper support flap b.

IMPORTANT

Be careful that you do not push the paper in too

far; it may lift at the back of the tray and cause

paper feed problems.

NOTE

When you use Legal size paper, press and hold

the universal guide release button aas you slide

out the front of the paper tray.

Check the print quality

aWhen the preparation process has finished, the

LCD shows Load Paper and Press Color

Start.

Press Color Start.

bCheck the quality of the four color blocks on the

sheet. (black/yellow/cyan/magenta)

cIf all lines are clear and visible, press 1(Yes) to

finish the quality check and go to the next step.

If lines are missing, press 2(No) and follow the

steps on the LCD.

Set the date and time

The LCD displays the date and time. You can also

add the current date and time to each fax you send by

setting your Station ID (see step 10).

aEnter the last two digits of the year on the dial

pad, and then press OK.

bEnter the two digits for the month on the dial

pad, and then press OK.

cEnter the two digits for the day on the dial pad,

and then press OK.

dPress aor bto choose 12h Clock or 24h

Clock, and then press OK.

eEnter the time on the dial pad, and then press

OK.

f(12h Clock only)

Press aor bto choose AM or PM, and then

press OK.

Poor

(e.g. Enter 13for 2013.)

NOTE

You can change date, time, or clock type (12h or

24h) at any time. For more information, see

Setting the date and time in the Basic User’s

Guide.

Wireless setup

(if needed)

When the Wi-Fi setup will start. message

appears on the LCD, read the message, and then

press OK to continue.

For wireless setup using a mobile device, go to a.

For Windows®and Macintosh users, go to b.

aPress aor bto choose Yes.

Press OK.

Go to step 16 on page 20 to continue with the

wireless setup.

After finishing the wireless setup, return to

step 8to finish the machine setup.

bPress aor bto choose No.

Press OK.

Go to step 8and continue with the machine

setup.

Wireless setup instructions for Windows®and

Macintosh users will be covered later, starting

on page 20.

Choose your language

(if needed)

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Local Language.

Press OK.

dPress aor bto choose your language.

Press OK.

ePress Stop/Exit.

NOTE

If you want to configure any of the options in

steps 8-14, you can choose No in step a, and

then go to step 8.

You will be able to configure the wireless settings

later.

NOTE

If a prompt message appears on the LCD, read it

and press OK to continue.

Choose the correct Receive Mode

The correct Receive Mode is determined by the external devices and telephone subscriber services (Voice Mail,

Distinctive Ring, etc.) you have (or will be using) on the same line as the Brother machine.

For more information, see Using Receive Modes in chapter 5 of the Basic User’s Guide.

If you are not using this machine for faxing, go to the next step.

aPress Menu.

bPress aor bto choose Fax. Press OK.

cPress aor bto choose Setup Receive. Press OK.

dPress aor bto choose Receive Mode. Press OK.

ePress your preferred receive mode. Press OK.

fPress Stop/Exit.

Will you be using a Distinctive Ring number for receiving faxes?

Brother uses the term “Distinctive Ring” but telephone companies may have other names for this service such

as Custom Ringing, RingMaster, Personalized Ring, Teen Ring, Ident-A-Call, and Smart Ring. See Distinctive

Ring in chapter 6 of the Basic User’s Guide for instruction on setting up your machine using this feature.

Will you be using Voicemail on the same telephone line as your Brother machine?

If you have Voice Mail on the same telephone line as your Brother machine, there is a strong possibility that

Voice Mail and the Brother machine will conflict with each other when receiving incoming calls. See Voice Mail

in chapter 6 of the Basic User’s Guide for instructions on setting up your machine using this service.

Will you be using a Telephone Answering Device on the same telephone line as your Brother machine?

Your external telephone answering device (TAD) will automatically answer every call. Voice messages are

stored on the external TAD and fax messages are printed. Choose External TAD as your receive mode. See

the instructions below. For additional details, see Connecting an external TAD (telephone answering device) in

chapter 6 of the Basic User’s Guide.

Will you be using your Brother machine on a dedicated fax line?

Your machine automatically answers every call as a fax. Choose

Fax Only

as your receive mode. See the

instructions below.

Will you be using your Brother machine on the same line as your telephone?

Do you want to receive voice calls and faxes automatically?

The Fax/Tel receive mode is used when sharing the Brother machine and your telephone on the same

line. Choose Fax/Tel as your receive mode. See the instructions below. For additional information see

Fax/Tel in chapter 5 of the Basic User’s Guide for instructions on setting up and using this receive mode.

Important Note: You cannot receive voice messages on either Voice Mail or an answering machine

when choosing the Fax/Tel mode.

Do you expect to receive very few faxes?

Choose Manual as your receive mode. You control the phone line and must answer every call yourself.

See the instructions below.

NOTE

If the Receive Mode option is not displayed, make sure the Distinctive Ring feature is set to Off. (See Turning

off Distinctive Ring in chapter 6 of the Basic User’s Guide.)

Altri manuali per Work Smart MFC-J450dw

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Brother Stampante tutto in uno

Brother

Brother DCP-6690CW Manuale utente

Brother

Brother MFC-8460N Manuale utente

Brother

Brother DCP-J1200W Manuale utente

Brother

Brother FAX1 570MC Manuale utente

Brother

Brother MFC-J200 Manuale utente

Brother

Brother MFC 495CW - Color Inkjet - All-in-One Manuale utente

Brother

Brother MFC MFC-5440CN Manuale utente

Brother

Brother MFC-J2330DW Manuale utente

Brother

Brother MFC-L2685DW Manuale operativo e di manutenzione

Brother

Brother DCP-J925DW Manuale operativo e di manutenzione

Brother

Brother DCP-193C Manuale utente

Brother

Brother DCP-J125 Manuale utente

Brother

Brother MFC-7240 Manuale utente

Brother

Brother DCP 540CN - Color Inkjet - All-in-One Manuale di installazione e funzionamento

Brother

Brother MFC-J4410DW Guida di sicurezza

Brother

Brother Business Smart MFC-J4510dw Manuale operativo e di manutenzione

Brother

Brother MFC-J430w Manuale operativo e di manutenzione

Brother

Brother MFC-J6925DW Manuale operativo e di manutenzione

Brother

Brother MFC-7360N Istruzioni per il montaggio

Brother

Brother MFC-295CN Manuale utente

Brother

Brother MFC 7345N - Laser Multifunction Center Guida utente

Brother

Brother MFC-9420CN Manuale utente

Brother

Brother DCP-1510 Manuale utente

Brother

Brother MFC-440CN Manuale utente

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente

Oce

Oce VarioLink 5022 Manuale utente

Copystar

Copystar CS 4551ci Manuale utente

Konica Minolta

Konica Minolta Magicolor 4650EN Manuale utente
