Start Here MFC-J470DW

MFC-J475DW

Quick Setup Guide

ARL/ASA/NZ Version 0

Please read the Product Safety Guide first before you set up your machine. Then, please read this Quick Setup

Guide for the correct setup and installation.

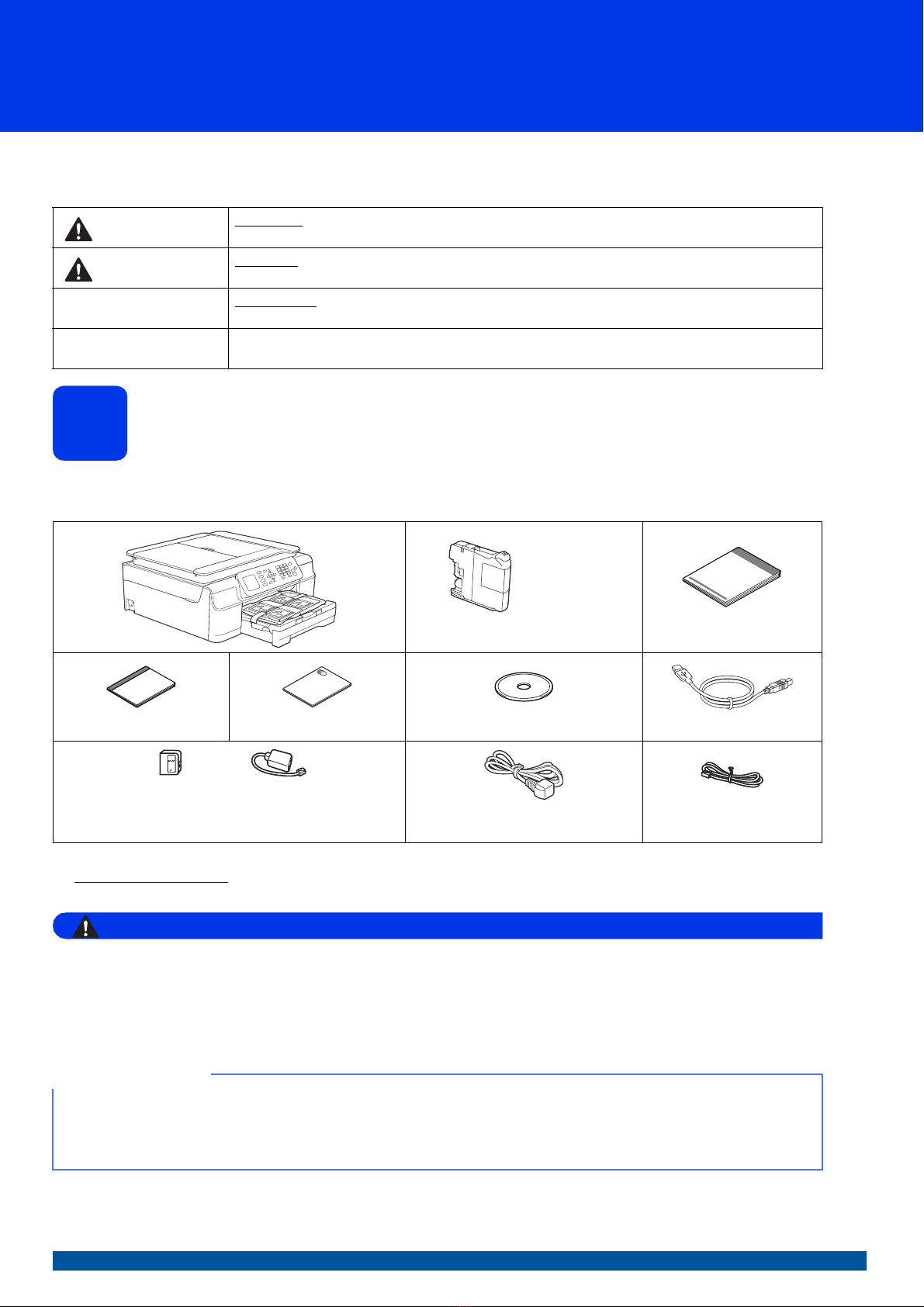

Unpack the machine and check the components

Most of the illustrations in this Quick Setup Guide show the MFC-J470DW.

The components included in the box may differ depending on your country.

1If your computer does not have a CD-ROM drive, you can download the drivers from your model’s download page at

http://solutions.brother.com/. For more information, see page 11.

WARNING

• Plastic bags are used in the packing of your machine. To avoid the danger of suffocation, keep these

plastic bags away from babies and children. Plastic bags are not toys.

• To ensure safe operation the supplied plug must be inserted only into a standard power outlet that is

properly grounded through the standard electrical wiring. Non grounded equipment may cause an

electrical shock hazard, and may cause excessive electrical noise radiation.

WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death

or serious injuries.

CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor

or moderate injuries.

IMPORTANT IMPORTANT indicates a potentially hazardous situation which, if not avoided, may result in

damage to property or loss of product functionality.

NOTE Notes tell you how to respond to a situation that may arise or give tips about how the operation

works with other features.

Starter Ink Cartridges

Black

Yellow

Cyan

Magenta

Quick Setup Guide

Basic User’s Guide Product Safety Guide CD-ROM 1USB Interface Cable

Telephone Line Cord Adapter Power Cord

Cables vary depending on countries.

Telephone Line Cord

NOTE

Save all packing materials and the box in case for any reason you must ship your machine.

USB cable

Please use the supplied USB cable for a USB connection.

We recommend using a USB 2.0 cable (Type A/B) that is no more than two metres long.

(Australia only) (Hong Kong only)

aRemove the protective tape and film covering

the machine, and also from the LCD.

Remove

the plastic bag acontaining the ink

cartridges from on top of the paper tray.

cMake sure you have all the components.

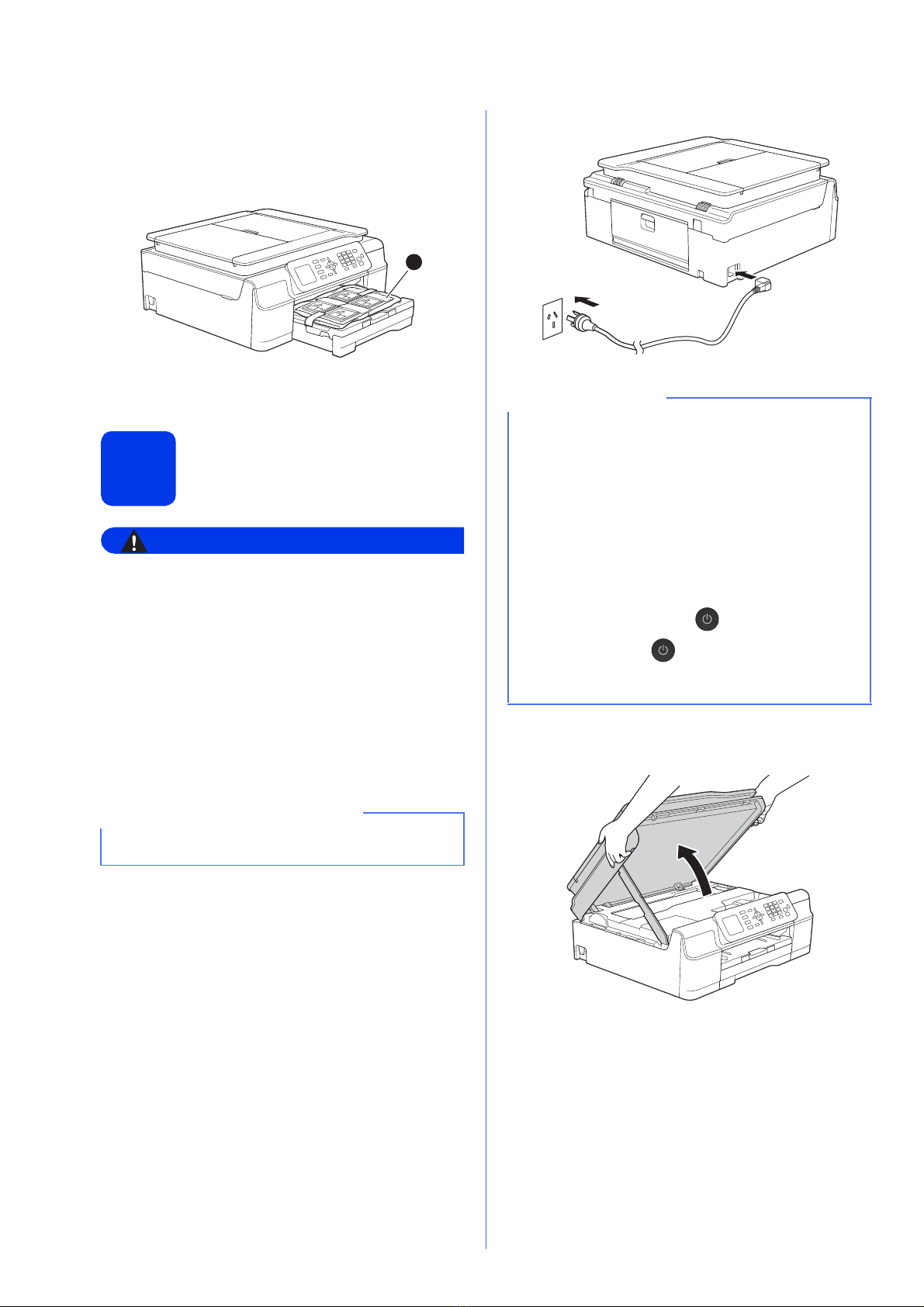

Connect the power cord

and telephone line

WARNING

• The machine must be fitted with an earthed

plug.

• Since the machine is grounded through the

power outlet, you can protect yourself from

potentially hazardous electrical conditions on

the telephone network by keeping the power

cord connected to your machine when you

connect it to a telephone line. Similarly, you

can protect yourself when you want to move

your machine by disconnecting the telephone

line first and then the power cord.

aConnect the power cord.

bLift the scanner cover until it locks securely into

the open position.

IMPORTANT

DO NOT connect the USB cable yet (if you are

using a USB cable).

NOTE

• If you do not plan to use the fax feature on this

machine, go to the next step.

• To prolong the life of the print head, provide the

best ink cartridge economy and maintain print

quality, we do not recommend unplugging the

machine frequently and/or leaving the machine

unplugged for extended periods of time. Each

time you plug the machine in, it automatically

cleans the print heads, which uses some of

your ink.

We recommend using to power down the

machine. Using allows minimal power to

the machine, resulting in periodic, but less

frequent, cleaning of the print heads.

(Example for Australia)

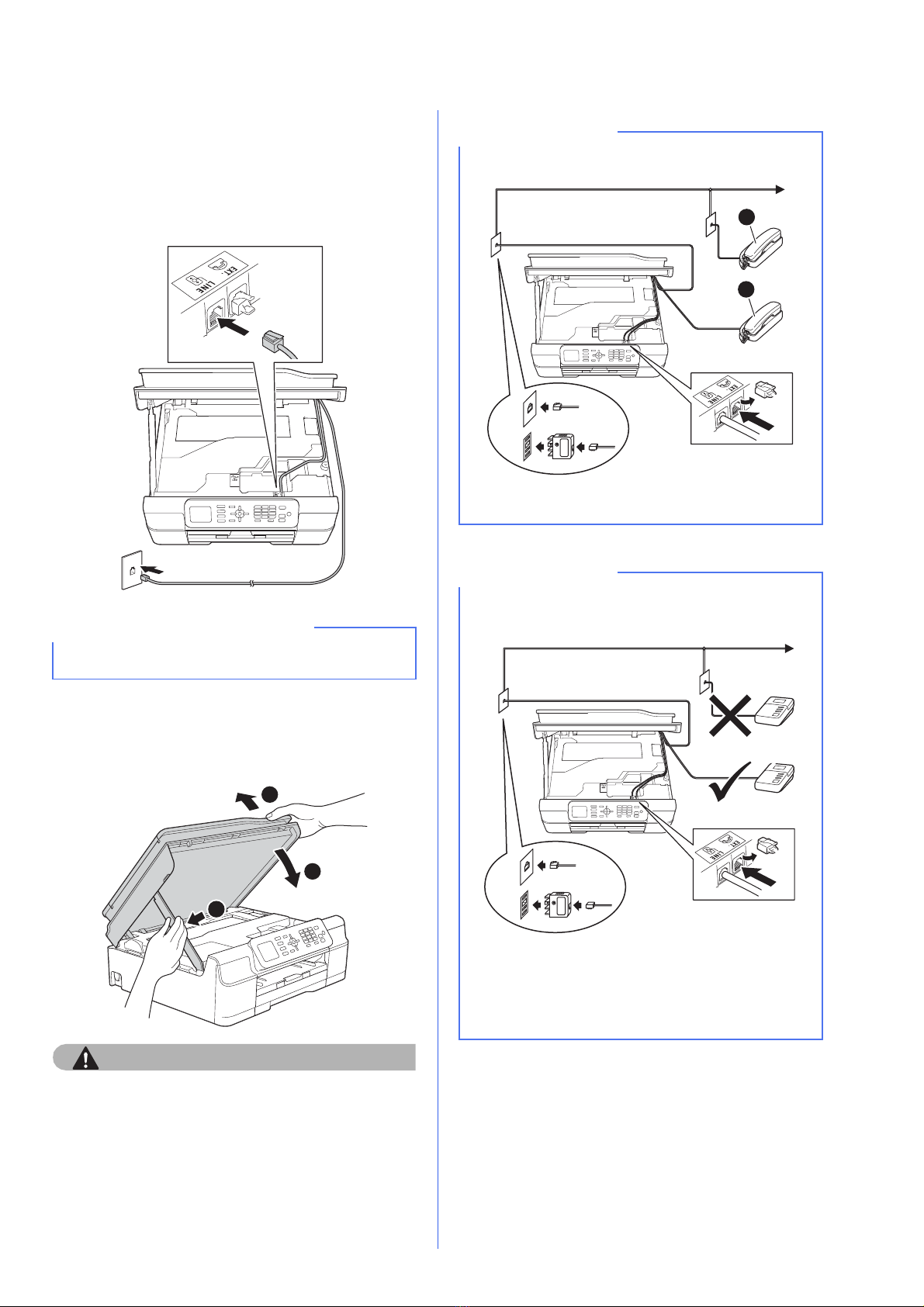

cConnect the telephone line cord.

Connect one end of the telephone line cord to

the socket marked LINE on the machine.

Carefully guide the telephone line cord into the

cable channel and out the back of the machine.

Connect the other end to a modular wall

socket.

dLift the scanner cover to release the lock a.

Gently push the scanner cover support

down band close the scanner cover cusing

both hands.

CAUTION

Be careful not to pinch your fingers when the

scanner cover closes.

IMPORTANT

The telephone line cord MUST be connected to

the socket marked LINE on the machine.

NOTE

If you are sharing one telephone line with an

external telephone, connect it as shown below.

aExtension telephone

bExternal telephone

NOTE

If you are sharing one telephone line with an

external telephone answering machine, connect it

as shown below.

Set the receive mode to External TAD if you

have an external answering machine. See

Choose a Receive Mode on page 9. Detailed

information uuBasic User’s Guide: Connecting

an external TAD (telephone answering device)

(Example for Australia)

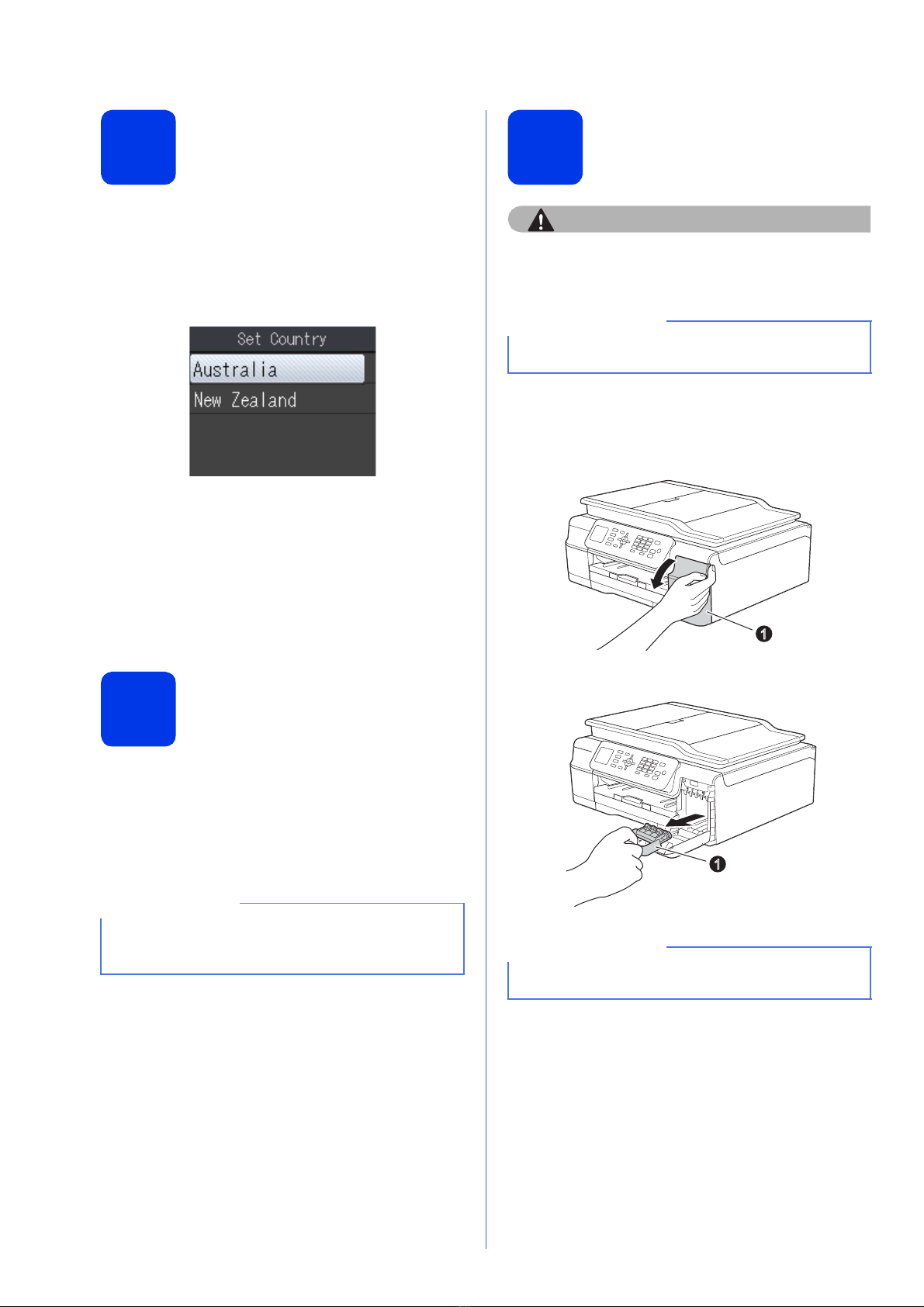

Set your country

(Australia and New

Zealand only)

You must set your country so that the machine works

correctly on local telecommunication lines in each

country.

aAfter connecting the power cord, the LCD

shows:

Press aor bto choose your country.

Press OK.

bPress aor bto choose Yes or No.

Press OK.

cAfter the LCD shows Accepted for a few

seconds, the machine will restart automatically.

Choose your language

(Hong Kong only)

aPress the desired language.

Press OK.

bPress aor bto choose Yes or No.

Press OK.

Install the ink cartridges

CAUTION

If ink gets in your eyes, wash it out with water at

once and call a doctor if you are concerned.

aMake sure that the power is turned on.

The LCD will show No Ink Cartridge.

bOpen the ink cartridge cover a.

cRemove the orange protective part a.

NOTE

If you set the wrong language, you can change it

later. See Choose your language (if needed)

(Hong Kong only) on page 8.

NOTE

Make sure you install the Starter Ink Cartridges

included with your machine first.

NOTE

Do not throw away the orange protective part.

You will need it if you transport the machine.

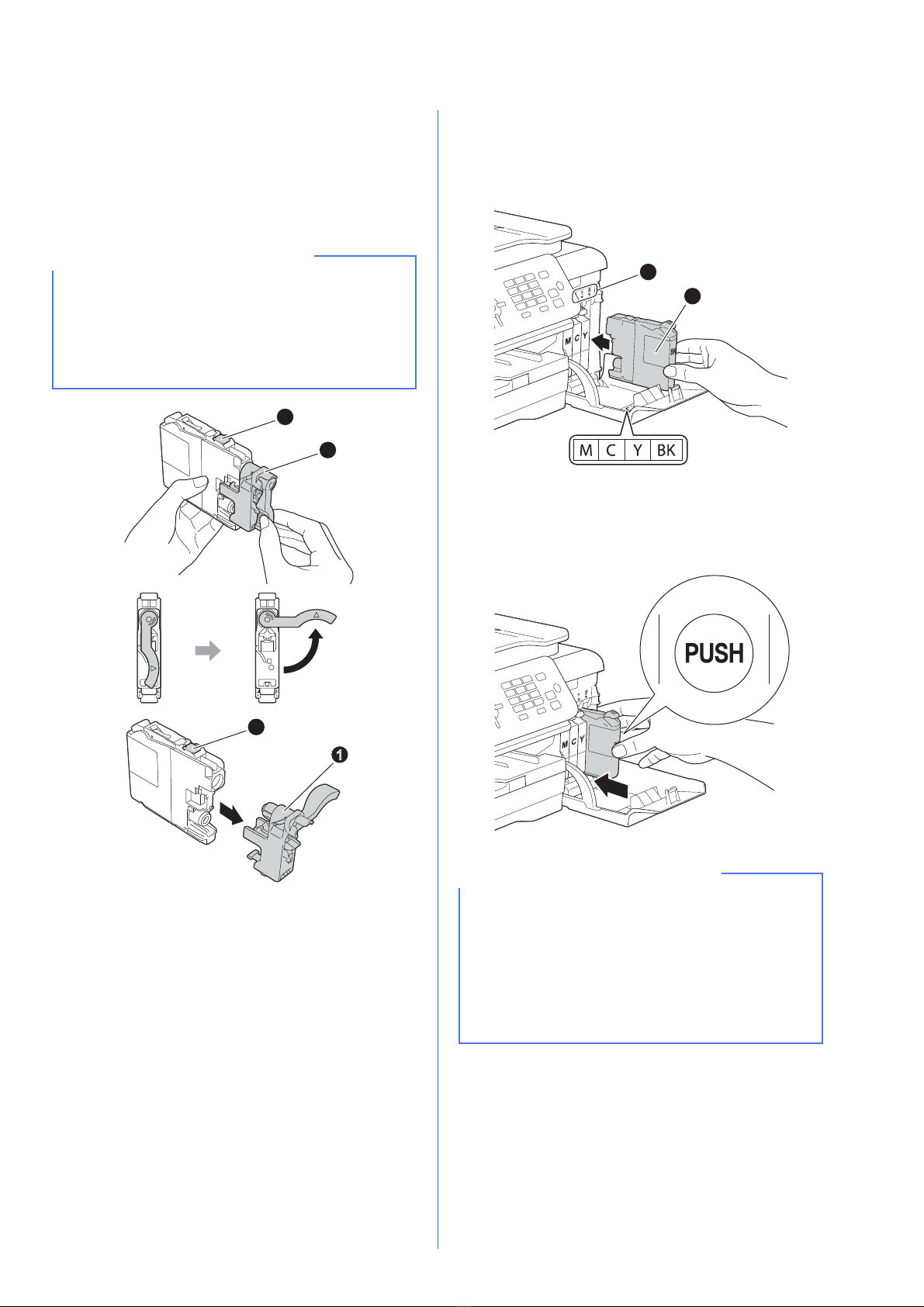

dUnpack the ink cartridge.

Turn the green release lever on the orange

protective packing acounterclockwise until it

clicks to release the vacuum seal. Then

remove the orange protective packing aas

shown.

eTake care to match the sticker colour awith

the cartridge colour bas shown in the diagram

below.

Install each ink cartridge in the direction of the

arrow on the label.

fGently push the back of the ink cartridge

marked “PUSH” until the cartridge lever lifts.

After all the ink cartridges are installed, close

the ink cartridge cover.

IMPORTANT

• DO NOT shake the ink cartridges. If ink stains

your skin or clothing, wash with soap or

detergent at once.

• DO NOT touch the cartridge in the area

indicated b, as this can cause the machine not

to function with the cartridge.

IMPORTANT

After initial installation of the ink cartridges, the

machine will start cleaning the ink tube system.

This cleaning process will last approximately four

minutes.

DO NOT unplug the machine from the power

outlet or attempt to stop the cleaning process.

Interruption of cleaning process may cause

undesired print quality problems.

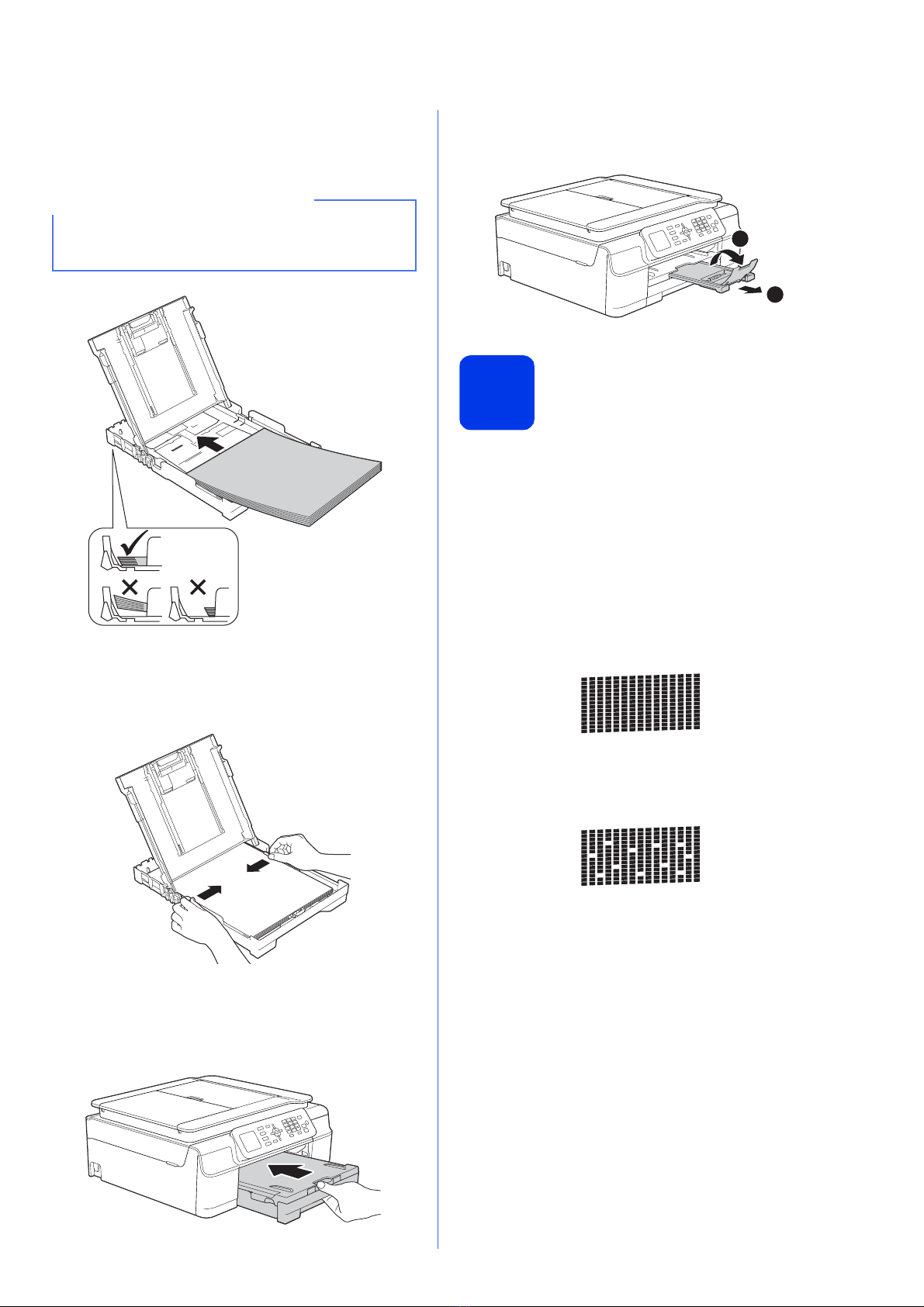

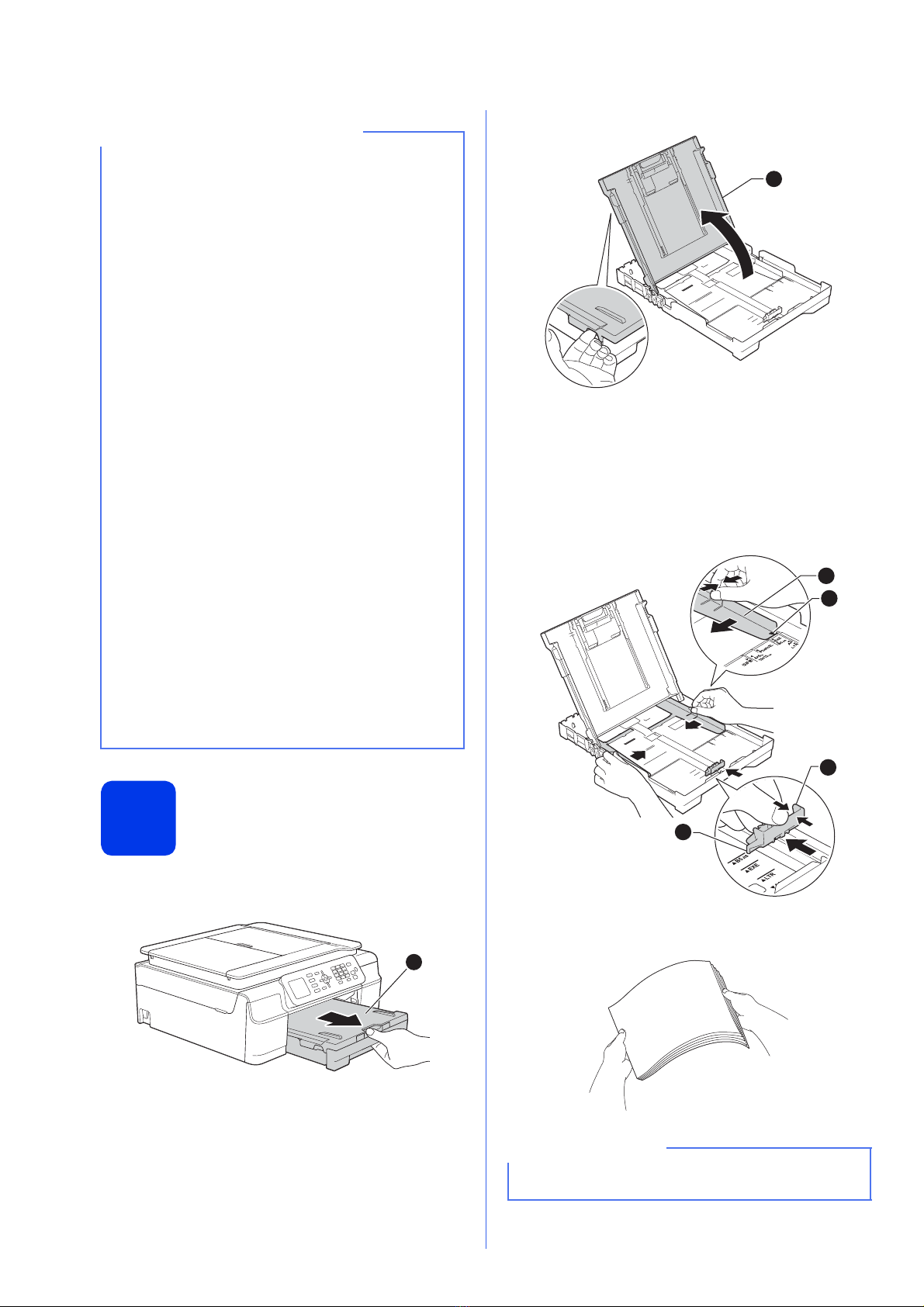

Load plain A4 paper

aPull the paper tray acompletely out of the

machine.

bOpen the output paper tray cover a.

cGently press and slide the paper width

guides aand then the paper length guide bto

fit the paper size.

Make sure that the triangular marks con the

paper width guides aand paper length

guide bline up with the mark for the paper size

you are using.

dFan the stack of paper well to avoid paper jams

and misfeeds.

IMPORTANT

• DO NOT take out ink cartridges if you do not

need to replace them. If you do so, it may

reduce the ink quantity and the machine will not

know the quantity of ink left in the cartridge.

• DO NOT repeatedly insert and remove the

cartridges. If you do so, ink may seep out of the

cartridge.

• Once you open an ink cartridge, install it in the

machine and use it up within six months of

installation. Use unopened ink cartridges by

the expiration date written on the cartridge

package.

• DO NOT dismantle or tamper with the ink

cartridge, this can cause the ink to leak out of

the cartridge.

• Brother multifunction machines are designed to

work with ink of a particular specification and

will work to a level of optimum performance

when used with genuine Brother branded ink

cartridges. Brother cannot guarantee this

optimum performance if ink or ink cartridges of

other specifications are used. Brother does not

therefore recommend the use of cartridges

other than genuine Brother branded cartridges

with this machine or the refilling of empty

cartridges with ink from other sources. If

damage is caused to the print head or other

parts of this machine as a result of using

incompatible products with this machine, any

repairs required as a result may not be covered

by the warranty.

NOTE

Always make sure that the paper is not curled or

wrinkled.

eGently put the paper into the paper tray print

side down and top edge first. Check that the

paper is flat in the tray.

fGently adjust the paper width guides to the

paper with both hands. Make sure that the

paper width guides touch the edges of the

paper.

gClose the output paper tray cover.

hSlowly push the paper tray completely into the

machine.

iWhile holding the paper tray in place, pull out

the paper support auntil it clicks, and then

unfold the paper support flap b.

Check the print quality

aWhen the preparation process has finished, the

LCD shows Load Paper and Press

Colour Start.

Press Colour Start.

bCheck the quality of the four colour blocks on

the sheet. (black/yellow/cyan/magenta)

cIf all lines are clear and visible, press 1(Yes) to

finish the quality check and go to the next step.

If lines are missing, press 2(No) and follow the

steps on the LCD.

IMPORTANT

Be careful that you do not push the paper in too

far; it may lift at the back of the tray and cause

paper feed problems.

Poor

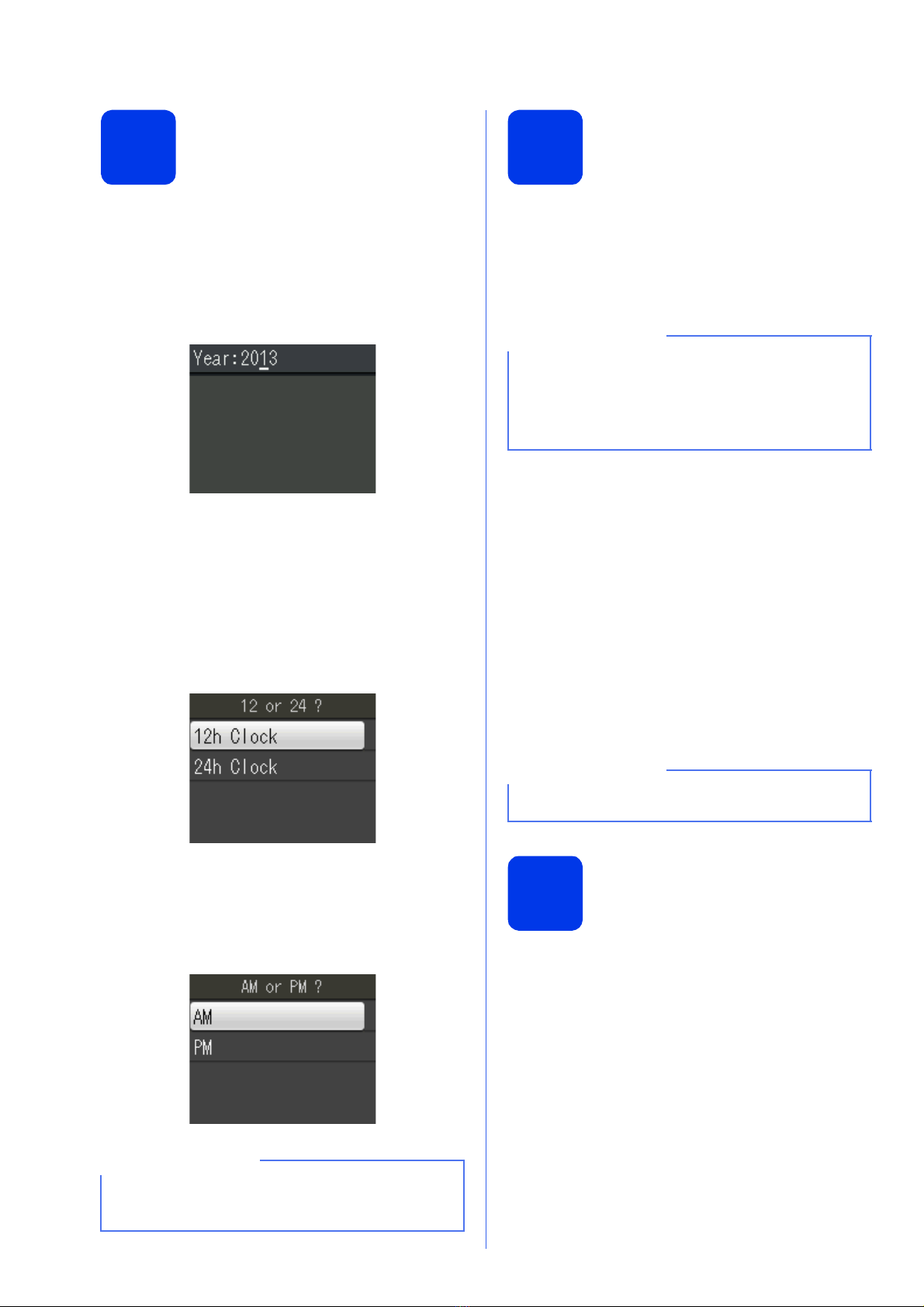

Set the date and time

The LCD displays the date and time. You can also

add the current date and time to each fax you send by

setting your Station ID (see step 12).

aEnter the last two digits of the year on the dial

pad, and then press OK.

bEnter the two digits for the month on the dial

pad, and then press OK.

cEnter the two digits for the day on the dial pad,

and then press OK.

dPress aor bto choose 12h Clock or 24h

Clock, and then press OK.

eEnter the time on the dial pad, and then press

OK.

f(12h Clock only)

Press aor bto choose AM or PM, and then

press OK.

Wireless setup

(if needed)

When the Wi-Fi setup will start. message

appears on the LCD, read the message, and then

press OK to continue.

For wireless setup using a mobile device, go to a.

For Windows®and Macintosh users, go to b.

aPress aor bto choose Yes.

Press OK.

Go to step 17 on page 18 to continue with the

wireless setup.

After finishing the wireless setup, return to

step 10 to finish the machine setup.

bPress aor bto choose No.

Press OK.

Go to step 10 and continue with the machine

setup.

Wireless setup instructions for Windows®and

Macintosh users will be covered later, starting

on page 18.

Choose your language

(if needed) (Hong Kong

only)

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Local Language.

Press OK.

dPress aor bto choose your language.

Press OK.

ePress Stop/Exit.

(e.g. Enter 13for 2013.)

NOTE

You can change date, time, or clock type (12h or

24h) at any time. For more information uuBasic

User’s Guide: Setting the date and time

NOTE

If you want to configure any of the options in

steps 10-15, you can choose No in step a, and

then go to step 10.

You will be able to configure the wireless settings

later.

NOTE

If a prompt message appears on the LCD, read it

and press OK to continue.

Choose a Receive Mode

There are four possible receive modes: Fax Only,

Fax/Tel, Manual and External TAD.

uuBasic User’s Guide: Using Receive Modes

If you are not using this machine for faxing, go to the

next step.

aPress Menu.

bPress aor bto choose Fax.

Press OK.

cPress aor bto choose Setup Receive.

Press OK.

dPress aor bto choose Receive Mode.

Press OK.

ePress your preferred receive mode.

Press OK.

fPress Stop/Exit.

Enter personal

information (Station ID)

Set your machine’s Station ID so that the date and

time appear on each fax you send.

If you are not using this machine for faxing, go to the

next step.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Station ID.

Press OK.

dEnter your fax number (up to 20 digits) on the

dial pad, and then press OK. To enter a “+” for

international codes, press l.

eEnter your name (up to 20 characters) using

the dial pad, and then press OK.

fPress Stop/Exit.

Yes

Do you want to use the telephone features of your

machine (if available), an external telephone or

external telephone answering device connected on the

same line as the machine?

Do you want the machine to

answer fax and telephone calls

automatically?

Are you using the voice message

function of an external telephone

answering device?

Manual

Fax Only

Fax/Tel

External TAD

You control the telephone

line and must answer every

call yourself.

Your external telephone

answering device (TAD)

automatically answers every

call. Voice messages are

stored on the external TAD.

Fax messages are printed.

Your machine controls the

line and automatically

answers every call. If the

call is not a fax, the

telephone will ring for you

to pick up the call.

Your machine automatically

answers every call as a fax.

NOTE

• See the following chart for entering your name.

• If you need to enter a character that is on the

same key as the character before, press cto

move the cursor to the right.

• If you entered a character incorrectly and want

to change it, press dor cto move the cursor to

the incorrect character, and then press Clear.

• For more information uuBasic User’s Guide:

Entering Text

Press

key

One

time

Two

times

Three

times

Four

times

Five

times

2ABC2A

3DEF 3D

4GH I 4G

5JKL5J

6MNO6M

7PQRS 7

8TUV8T

9WX Y Z 9

NOTE

If you make a mistake and want to start again,

press Stop/Exit and go back to a.

Transmission

Verification Report

Your Brother machine is equipped with a

Transmission Verification Report that can be used as

confirmation that you sent a fax. This report lists the

name or fax number of the receiving party, the date,

time, and duration of the transmission, the number of

pages transmitted, and whether or not the

transmission was successful.

Instructions on using this feature uuBasic User’s

Guide: Transmission Verification Report

Set Tone or Pulse dialling

mode (Not available in

New Zealand)

Your machine comes set for a Tone dialling service. If

you have a Pulse dialling (rotary) service, you need to

change the dialling mode.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Tone/Pulse.

Press OK.

dPress aor bto choose Pulse (or Tone).

Press OK.

ePress Stop/Exit.

Set the telephone line

compatibility (VoIP)

If you are connecting the machine to a VoIP service

(over the Internet) we recommend that you change

the modem speed to minimize errors in fax

operations.

aPress Menu.

bPress aor bto choose Initial Setup.

Press OK.

cPress aor bto choose Compatibility.

Press OK.

dPress aor bto choose Basic(for VoIP).

Press OK.

ePress Stop/Exit.

NOTE

If you are using an analogue telephone line, you

can skip this step.

Altri manuali per Work Smart MFC-J470dw

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Brother Stampante tutto in uno

Brother

Brother MFC-9*970CDW Manuale operativo e di manutenzione

Brother

Brother Laser MFC-4800 Manuale utente

Brother

Brother HL-L2380DW Manuale utente

Brother

Brother Inkjet MFC-J4710DW Manuale utente

Brother

Brother DCP 8085DN Manuale utente

Brother

Brother MFC-9120CN Manuale utente

Brother

Brother MFC 3100C - Inkjet Multifunction Manuale utente

Brother

Brother MFC-5895CW Guida rapida

Brother

Brother MFC-8460N Manuale utente

Brother

Brother DCP-1400 Manuale utente

Brother

Brother MFC-6890CDW - Color Inkjet - All-in-One Manuale utente

Brother

Brother MFC 6890CDW Manuale utente

Brother

Brother Operating Instructions Manuale operativo e di manutenzione

Brother

Brother MFC-J6920DW Istruzioni per il montaggio

Brother

Brother intelliFAX-800c Istruzioni per l'installazione

Brother

Brother MFC 3240C - Color Inkjet - All-in-One Manuale utente

Brother

Brother MFC-J220 Manuale utente

Brother

Brother MFC-9460CDN Manuale utente

Brother

Brother MFC-9420CN Manuale utente

Brother

Brother MFC-J5910DW Manuale utente

Brother

Brother DCP-T225 Manuale operativo

Brother

Brother MFC-J6510DW Manuale operativo e di manutenzione

Brother

Brother MFC-6800 Manuale utente

Brother

Brother MFC 3420C - Color Inkjet - All-in-One Manuale utente

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente

Oce

Oce VarioLink 5022 Manuale utente

Copystar

Copystar CS 4551ci Manuale utente

Konica Minolta

Konica Minolta Magicolor 4650EN Manuale utente
