Brother SF-4000 Manuale tecnico

Stapler Finisher Online User’s Guide

Online User’s Guide

SF-4000

Definitions of Notes

We use the following symbol throughout this User's Guide:

Tips icons indicate helpful hints and supplementary information.

Trademarks

BROTHER is either a trademark or a registered trademark of Brother Industries, Ltd.

Any trade names and product names of companies appearing on Brother products, related documents

and any other materials are all trademarks or registered trademarks of those respective companies.

Table of Contents

1. Introduction .......................................................................................................................................... 1

1.1 Overview .......................................................................................................................................................... 1

1.2 Configure the Stapler Finisher ......................................................................................................................... 2

1.3 Prioritize Printing Using the SF Continue Mode............................................................................................... 4

1.4 Print Media Specifications................................................................................................................................ 4

2. Supplies ................................................................................................................................................ 5

2.1 Staple Cartridge ............................................................................................................................................... 5

2.2 Replace the Staple Cartridge ........................................................................................................................... 6

3. Troubleshooting................................................................................................................................... 8

3.1 Paper and Staple Jams.................................................................................................................................... 8

3.2 Error and Maintenance Messages ................................................................................................................. 11

1. Introduction

1.1 Overview

The Stapler Finisher (SF) unit adds new paper output functions to your Brother machine, such as stapling,

offsetting, and stacking. You can select these functions in the printer driver, from your Brother machine’s LCD,

or using the machine's Web Based Management.

- Staple:Staples print jobs and ejects the pages onto the SF Output Tray. Available only when you select the

SF Output Tray as the output tray.

- Offset:Shifts print jobs ejected onto the SF Output Tray for easier collating. Available only when you select

the SF Output Tray as the output tray.

- Stack:When the Standard Output Tray becomes full, the printer automatically ejects the pages onto the SF

Output Tray.

To use these SF functions, configure them in your printer driver.

・You can use the Staple and Offset functions at the same time.

・To use the Staple and Offset functions, set the SF Output Tray in the printer driver or from your

machine’s LCD.

・Before using the Stapler Finisher, see installation instructions in the How to Set Up the Stapler

Finisher guide included with the product or at support.brother.com/manuals.

SF Output Tray

- Collects stapled print jobs

- Collects offset print jobs

When the Standard Output Tray

is full, overflow pages are

ejected here.

Staple Cover

Contains the Staple Cartridge

Standard Output Tray

Collects standard, non-stapled

print jobs

1.2 Configure the Stapler Finisher

To use the Stapler Finisher, configure the paper tray and the SF function you want to use in the printer driver.

If you do not use the standard printer driver, select the paper tray and the SF function from the machine's LCD.

1. Select the Paper Tray.

From the printer driver:

a) Open the printer driver dialog box.

b) Click the Advanced tab.

c) Click the Output Tray drop-down list and select either SF Output Tray or SF Stacker.

d) Click OK.

From the machine's LCD:

a) On the machine’s LCD, press [Settings] > [Paper Tray] > [Output Tray].

b) Press [SF] or [SF Stacker].

For non-standard printer drivers only. Not required for the users of the standard Brother printer driver.

2. Select the SF Function.

From the printer driver:

a) Open the printer driver dialog box.

b) Click the Advanced tab.

c) Do one of the following:

- Select the Staple or Offset check box

- Select both the Staple and Offset check boxes

d) Click OK.

・If you do not see the Staple and Offset check boxes, make sure you have installed the correct

printer driver.

・You can activate the Staple and Offset functions at the same time.

From the machine's LCD:

a) On the machine’s LCD, press [Settings] > [Paper Tray] > [Staple] or [Offset].

b) Press [On] or [Off].

For non-standard printer drivers only. Not required for the users of the standard Brother printer driver.

1.3 Prioritize Printing Using the SF Continue Mode

The SF Continue Mode allows you to continue printing when the selected paper size or media type is not

supported by the Stapler Finisher.

By default, the SF Continue Mode is on.

To turn it off, press [Settings] > [Paper Tray] >[SF Continue] > [Off].

1.4 Print Media Specifications

This section lists the paper sizes and types compatible with the SF Output Tray.

Setting Description

On The machine continues to print without stapling or offsetting, or prints out to the Standard

Output Tray.

Off The machine stops printing and allows you to select from the machine's LCD whether to

continue to print without stapling or offsetting. Always load the correct paper size and

type, and select it in the printer driver. Some printer drivers may not be able to display

media mismatch errors.

Paper Size Without stapling or

offsetting

A4, Letter, Legal, Folio, JIS B5, ISO B5,

Executive, A5, A5 (Long Edge), A6, JIS B6, 16K

(195x270), Mexico Legal, India Legal

Staple A4, Letter, Legal, Folio, JIS B5, ISO B5,

Executive, 16K (195x270), Mexico Legal, India

Legal

Offset A4, Letter, Legal, Folio, JIS B5, ISO B5,

Executive, A5 (Long Edge), 16K (195x270),

Mexico Legal, India Legal

Paper Type Without stapling or

offsetting

Thin Paper, Plain Paper, Thick Paper, Thicker

Paper, Recycled Paper

Staple Thin Paper, Plain Paper, Recycled Paper

Offset Thin Paper, Plain Paper, Thick Paper, Thicker

Paper, Recycled Paper

Some paper sizes and paper types may not be available in all countries. For more information, see

your machine's print media specifications.

2. Supplies

2.1 Staple Cartridge

When staples need to be replaced, an error message appears on the machine’s LCD or in the Status Monitor.

We recommend purchasing the following Staple Cartridge:

Name

Order No.

Staple Cartridge

SR100

For more information about the staples, visit www.brother.com/original or contact your local Brother dealer.

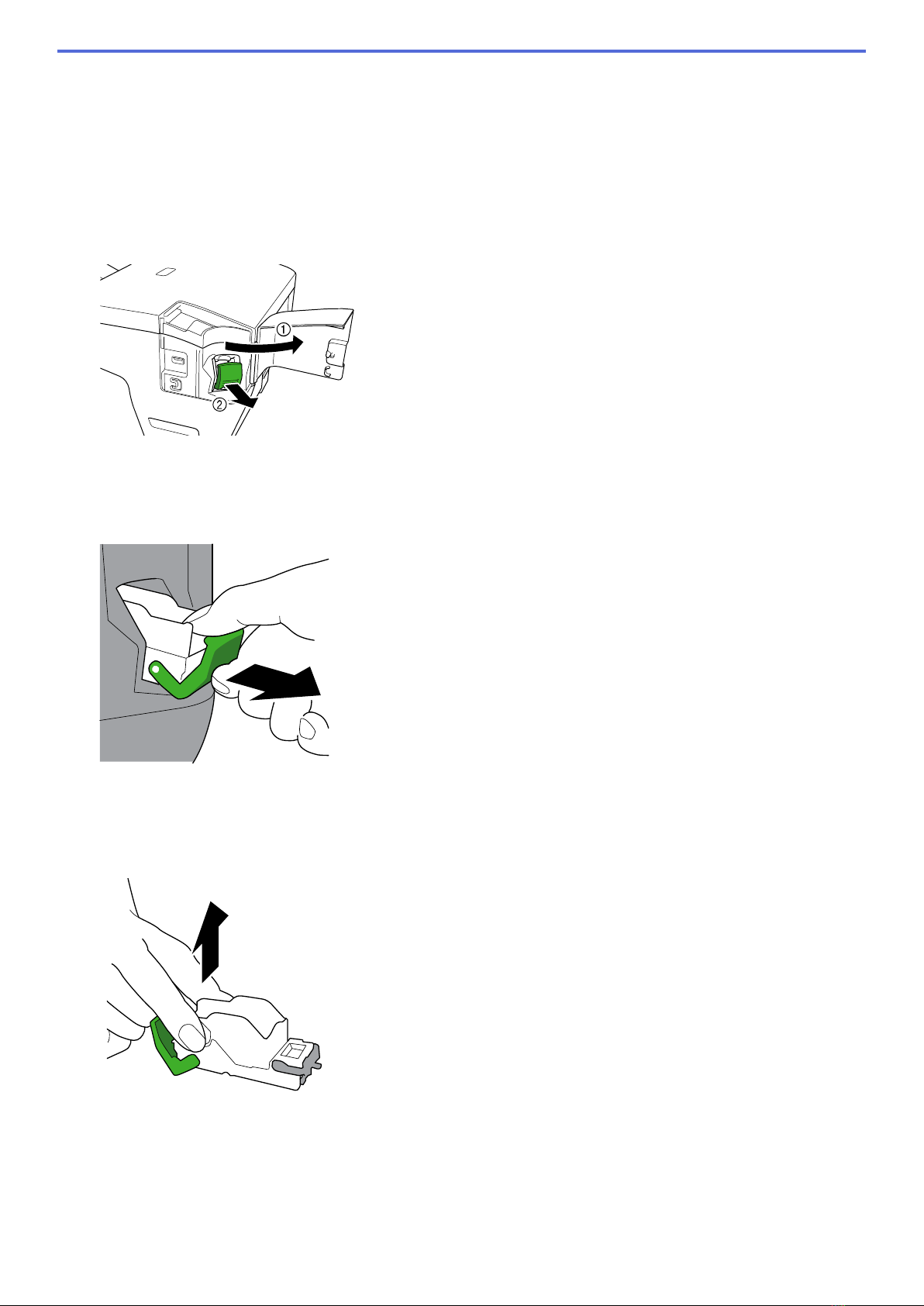

2.2 Replace the Staple Cartridge

When the message “Add Staples” appears on the machine’s LCD, there are fewer than 20 staples remaining

and you must replace the Staple Cartridge:

1. Open the Staple Cover.

2. Remove the Staple Cartridge.

3. Remove the empty Staple Cartridge Case.

4. Unpack a new Staple Cartridge Case.

5. Attach the new Staple Cartridge Case onto the Staple Cartridge.

6. Insert the Staple Cartridge into the Stapler Finisher.

7. Close the Staple Cover.
