LASER PRINTER

PARTS REFERENCE LIST

HL-1660e

NOTE FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q'ty

(3) Description

(4) Symbol ( PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

< Example >

REF.NO. CODE Q’TY DESCRIPTION SYMBOL REMARK

Revision No.: marked on the printed circuit board.

B48K056 - 201A

2. Design-changed parts :

If the parts are changed, any one of the following symbols is indicated in the REMARKS

column.

#A : compatible between old and new

#B : replaceable from old to new

#D : incompatible

# : newly established

3. The original of this list was made based on the information available in November, 1997.

4. Parts are subject to change in design without prior notice.

(1) (4)

(3)

(2)

Design change indication

Specification No .

Pattern alteration No.

Circuit board No.

CONTENTS

1. POWER CORDS & HARNESSES........................................................1

2. PAPER FEEDER PCB..........................................................................1

3. CONTROL PANEL................................................................................3

4. PCB ATTACHMENTS...........................................................................3

5. MAIN PCB.............................................................................................5

6. HIGH-VOLTAGE POWER SUPPLY.....................................................7

7. LOW-VOLTAGE POWER SUPPLY......................................................7

8. COVERS...............................................................................................9

9. CHASSIS..............................................................................................9

10.TRANSFER.........................................................................................11

11.PAPER TRAY.....................................................................................11

12.PAPER FEEDER.................................................................................13

13.SCANNER...........................................................................................15

14.FIXING UNIT, 120V/230V...................................................................15

15.DOCUMENTS.....................................................................................17

16.PACKING MATERIALS.......................................................................19

17.OPTIONAL PARTS SET.....................................................................19

18.ADJUSTING TOOL KIT.......................................................................21

1 .POWER CORDS & HARNESSES

MODEL HL-1660e

54T-U03-050/070

2 .PAPER FEEDER PCB

MODEL HL-1660e 54T-U03-090

B48K139-2

95 96

(MP SOL) JW18

JW13

JW2

JW3

20 P5 (ENGINE)

R1 RH1

JW12

R6R7

R8 C6

JW4

RH2

JW17

JW21

JW20

JW19

R12

JW26

P2 1

JW14

JW23

JW24

R10

R11

R15

R16

R13

R14

PH4

JW7

JW6

JW5

JW1

JW9

JW8

JW11

JW10

PH3

JW15

JW22

JW25

JW16

P1 (FEED MOTOR)

P3 (CASOL)

PH5

95 96

B48K140-2

SW1

SW2

SW3

SW4

JW27

1. POWER CORDS & HARNESSES

REF.NO. CODE Q'TY DESCRIPTION REMARK

1A UH1052001 1AC CORD, VDE

1B UH1053001 1AC CORD, SEV

1C UH1055001 1AC CORD, SAA

1D UH1054001 1AC CORD, BS

1E UH1051001 1AC CORD, UL/CSA

1F U34320001 1AC CORD #4, BS WO/PLUG

1G UK4094001 1AC CORD #5, DEMKO

1H U34322001 1AC CORD #6, ISRAEL

1I U34342001 1AC CORD #8, BS/SINGAPORE

2UK2502001 1HV HARNESS 16P

3UK2505000 1FEED FLAT CABLE 20P

4UK2506001 1LV HARNESS 8P

5UK2507001 1FUSER HARNESS 4P

6UK2508001 1DC MOTOR HARNESS 4P

MODEL HL-1660e 54T-U03-050/070

T/I NO. PR98046

2. PAPER FEEDER PCB

REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK

1UK2701001 1P FEED/SIZE-SW PCB ASSY (SP) B48K139/140-

200B/200B

2UH2410000 1SIZE SWITCH SPRING

3087320616 2TAPTITE, CUP S M3X6

MODEL HL-1660e 54T-U03-090

3 .CONTROL PANEL

MODEL HL-1660e54T-U03-150

4PCB ATTACHMENTS

54T-U03-450

READY

DATA

ALARM

ON LINE

SEL MODE FONT FORM FEED SET CONTINUE

EMULATION ECONOMY FEEDER COPY SHIFT RESET TEST

COPY PAGES

FEEDER

ORIENTATION

DUPLEX

1-2

MODEL HL-1660e

T/I NO. PR98309

3. CONTROL PANEL

REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK

1-2 UK3024001 1CONTROL PANEL UNIT (SP) (B48K143-200B)

1UK2500000 1SWITCH FLAT CABLE 21P

2UH2011001 1PANEL STOPPER, GRAY1227

3UH1451001 1PANEL SHEET, HL-1660e

MODEL HL-1660e 54T-U03-150

4. PCB ATTACHMENTS

REF.NO. CODE Q'TY DESCRIPTION REMARK

1UH2121001 1REMOTE SWITCH

2UH2122000 1PS SWITCH WIRE

3UH2124001 1DC FAN MOTOR

4083313515 2TAPTITE, PAN B M3X35

5UH2144001 1HOLDER SPACER

6UK2826001 1CORE:RI-12-15-8.5

7UK3213000 1CORE:FPC-16-12

8UK3214000 1CORE:ZCAT1518

9UK3215000 1CABLE CLAMP

10 UH2123001 1SWITCH ATTACHMENT

MODEL HL-1660e 54T-U03-450

T/I NO. PR98309

5 .MAIN PCB

MODEL HL-1660e 54T-U03-103

1-2

5. MAIN PCB

REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK

1-2 UK3799001 1MAIN PCB ASSY (SP), HL1660e B48K294-100E

1UK4280000 1MROM23C32000-01 #26

2UK4281000 1MROM23C32000-02 #14

3UK3785001 1MIO CONNECTOR PCB ASSY B48K295-100

4087320616 7TAPTITE, CUP S M3X6

5087320616 1TAPTITE, CUP S M3X6

6UK2466000 1EPROM:27C8000DZ(BLANK EPROM)(SP)(#1)

MODEL HL-1660e 54T-U03-103

T/I NO. PR98017 / PR98055 / PR98278

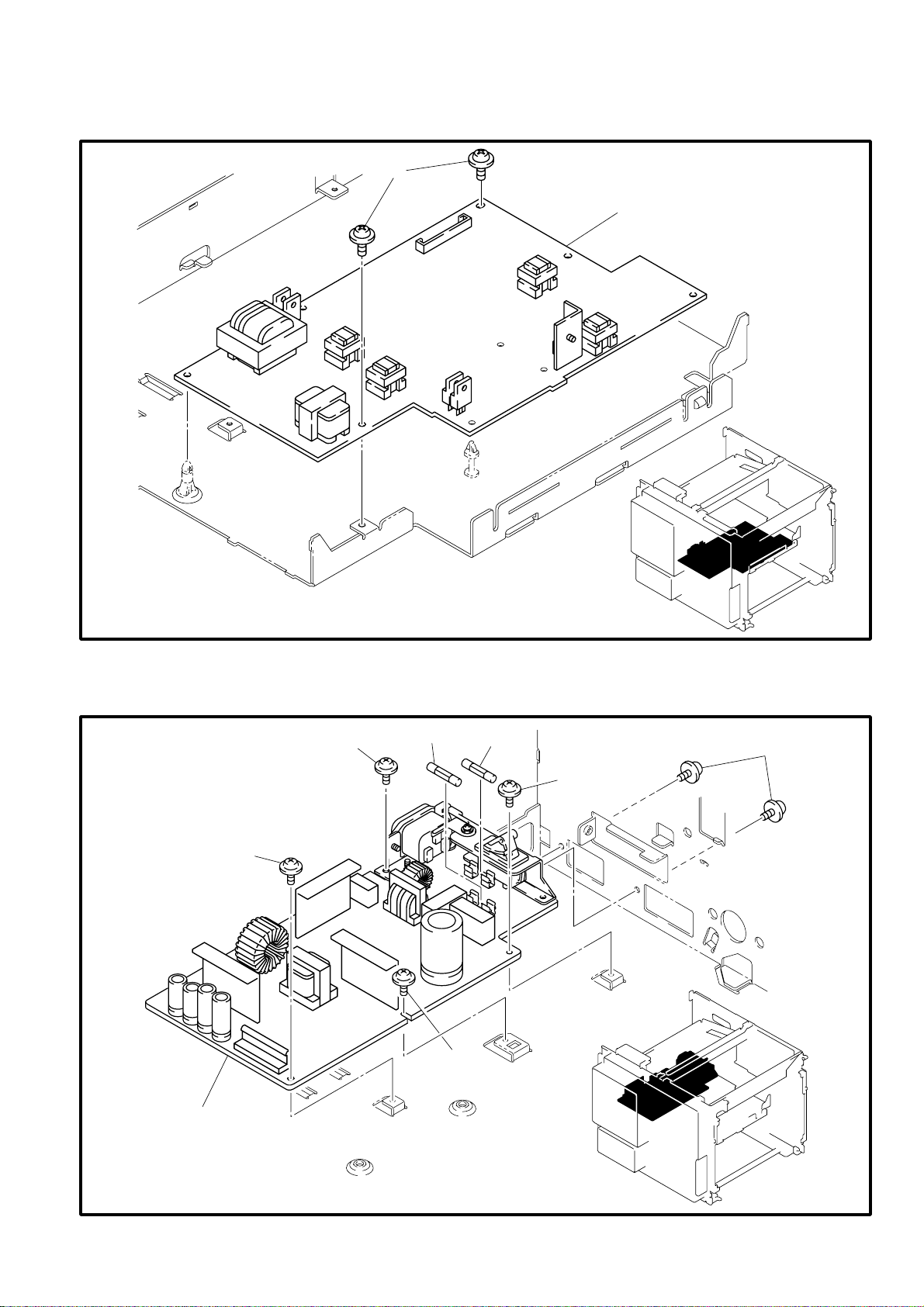

6 .HIGH-VOLTAGE POWER SUPPLY

MODEL HL-1660e 54T-U03-200

7 .LOW-VOLTAGE POWER SUPPLY

54T-U03-300

1-2

MODEL HL-1660e
