MODEL HL-2460 84T-U05-500

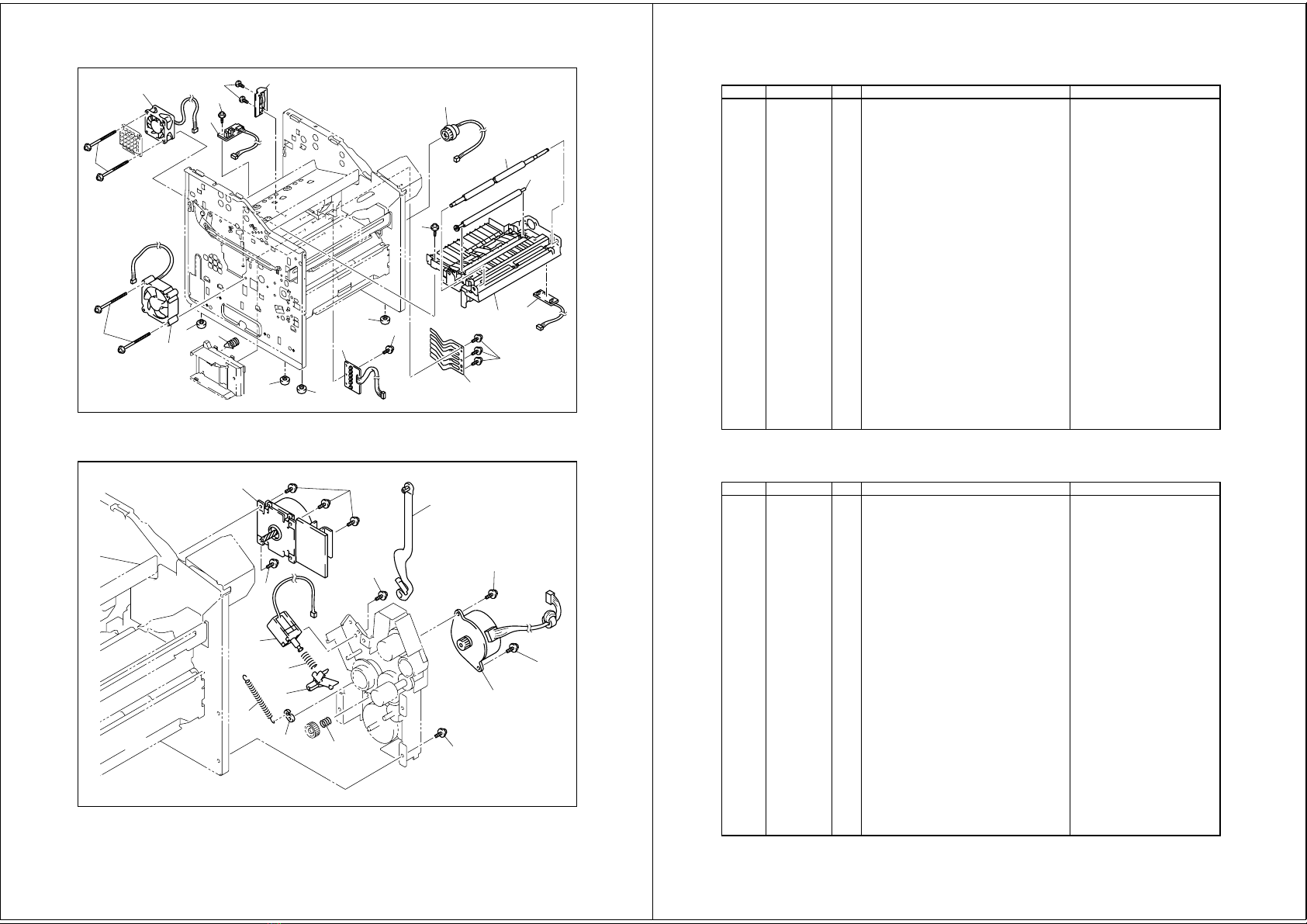

1. FRAME

2. DRIVE

- 1 -

MODEL HL-2460 84T-U05-550

33-1

11 10

T/I NO. PR2001044

1. FRAME

REF.NO.

CODE Q'TY DESCRIPTION

1 LJ8530001 1 EJECT SENSOR PCB ASSY

2 LJ0893001 1 TRANSFER ROLLER 52 ASSY

3 LJ0149001 1 TRANSFER BASE ASSY

3-1 LJ8534001 1 SENSOR RELAY PCB R ASSY

4 LJ0173001 1 REGIST ROLLER ASSY

5 LJ0175001 1 ELECTROMAGNETIC CLUTCH REGIST

6 LJ8538001 1 SIZE SW PCB ASSY

7 LJ0193001 1 SIZE SWITCH SPRING

8 LJ0364001 1 GUIDE PLATE SPRING

9 UH2208001 4 RUBBER FOOT

10 LJ0214001 1 FAN MOTOR 80

11 LJ0259001 1 FAN MOTOR 60

12 LJ0551001 1 CF SLOT

13 LJ0670001 2 TAPTITE, PAN B M3X35

14 087323016 2 TAPTITE, CUP S M3X30

15 087320616 3 TAPTITE, CUP S M3X6

16 085320616 2 TAPTITE, BIND B M3X6

17 LJ0822001 3 TAPTITE, CUP S M3X4

MODEL HL-2460 84T-U05-500

T/I NO. PR2001044

2. DRIVE

REF.NO.

CODE Q'TY DESCRIPTION

1 LJ0227001 1 MAIN MOTOR ASSY

2 LJ0232001 1 DRUM GEAR LINK

3 LJ0244001 1 SOLENOID LEVER

4 UH2378000 1 SPRING HOOK

5 LJ0247001 1 SECTOR GEAR 35 SPRING

6 LJ0264001 1 FRICTION SPRING

7 LJ0265001 1 SOLENOID ASSY

8 LJ0309001 1 SOLENOID SPRING MP

9 LJ0267001 1 FEEDING MOTOR ASSY

10 087320616 7 TAPTITE, CUP S M3X6

11 U11776001 1 SCREW, FLANGED M3X3.5

MODEL HL-2460 84T-U05-550

T/I NO. PR2001044

REMARK

- 2 -

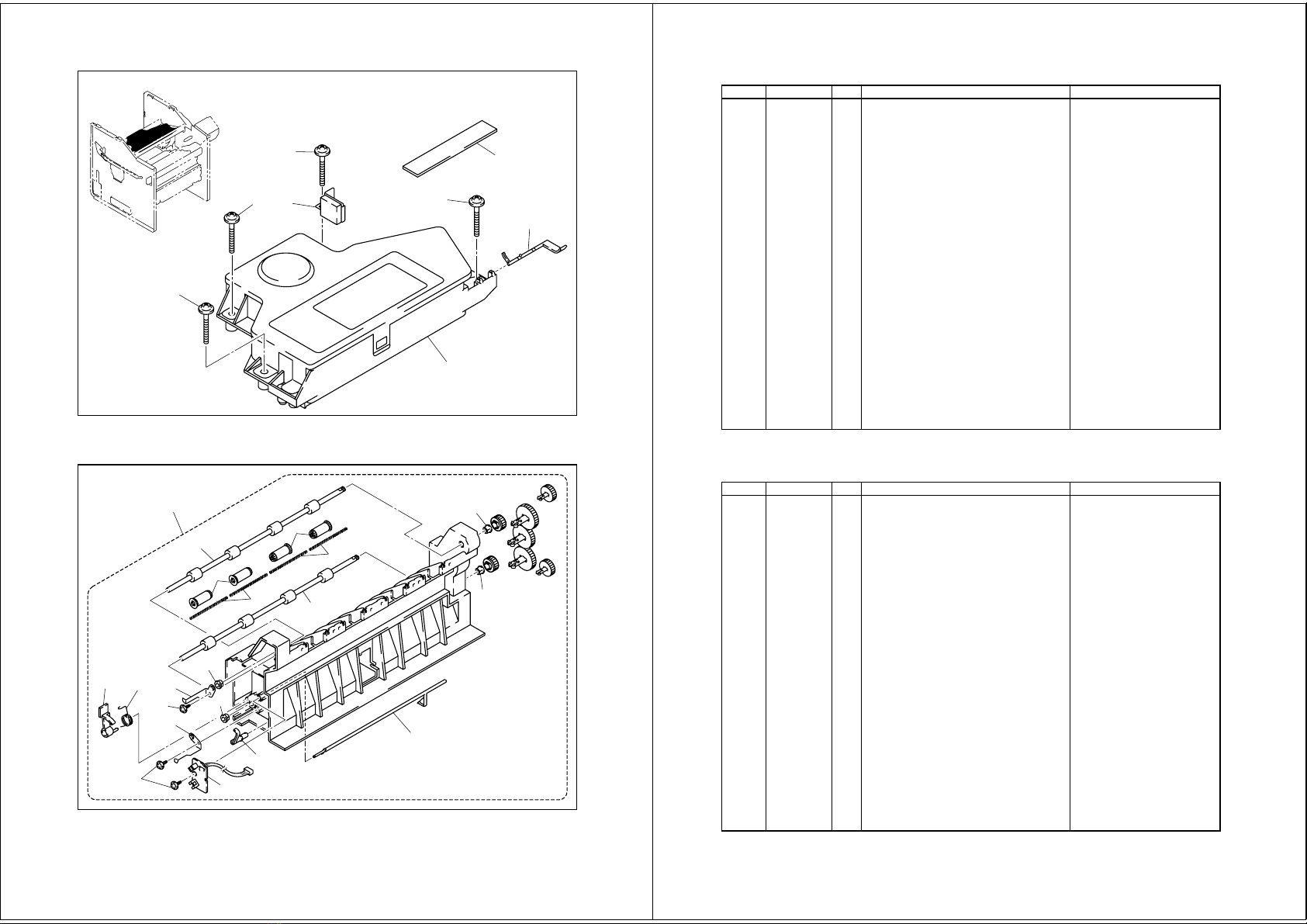

MODEL HL-2460 84T-U05-700

3. LASER UNIT

4. PAPER EJECT

- 3 -

MODEL HL-2460 84T-U05-420

1-1

1-3

1-7

1-10

1-9

1-6

1-11

1-8

1-5

1-3

1-4

1-5

1-1

1-2

1-5

1-11

3. LASER UNIT

REF.NO.

CODE Q'TY DESCRIPTION

1 LJ0935001 1 SCANNER UNIT (SP)

2 LJ0743001 1 DUST GUARD PLATE ASSY

3 LJ0397001 1 SHUTTER LINK

4 LJ0914001 1 PLATE

5 087322015 4 TAPTITE, CUP S M3X20

MODEL HL-2460 84TU-05-700

4. PAPER EJECT

REF.NO.

CODE Q'TY DESCRIPTION

1 LJ0105001 1 PAPER EJECT UNIT

1-1 UH3323001 4 EJECT PINCH ROLLER ASSY

1-2 UH3948001 4 PINCH SPRING

1-3 LJ0668001 2 EJECT ROLLER ASSY

1-4 LJ0657001 2 EJECT ROLLER GROUND PLATE

1-5 LJ0477001 4 BEARING 6

1-6 LJ0718001 1 REAR ACTUATOR 4

1-7 LJ0665001 1 REAR TRAY PCB ASSY

1-8 LJ0110001 1 REAR ACTUATOR 3

1-9 LJ0111001 1 REAR TRAY ACTUATOR

1-10 LJ0112001 1 REAR TRAY ACTUATOR SPRING

1-11 087310815 3 SCREW, CUP B TITE 3X8

MODEL HL-2460 84T-U05-420

REMARK

- 4 -

MODEL HL-2460 84T-U05-600

5. PAPER FEED

6. MP TRA

- 5 -

MODEL HL-2460 84T-U05-630

10-1

8-2

8-1

8-3

5. PAPER FEED

REF.NO.

CODE Q'TY DESCRIPTION

1 LJ0270001 1 PAPER FEED ROLLER ASSY 45 *1

2 LJ0273001 1 PE SENSOR ACTUATOR

3 LJ8542001 1 TRAY PE SENSOR PCB ASSY

4 LJ0277001 2 PAPER FEED ROLLER ASSY

5 LJ0279001 6 BEARING

6 LJ0717001 1 ONEWAY CLUTCH

7 LJ0284001 4 PAPER FEED ROLLER BEARING

MODEL HL-2460 84TU-05-600

6. MP TRAY

REF.NO.

CODE Q'TY DESCRIPTION

1 LJ0295001 1 SEPARATION PLATE ASSY MP

2 LJ0298001 1 SEPARATION PAD SPRING MP

3 LJ0299001 1 PLATE ASSY MP

4 LJ0305001 2 PLATE SPRING MP

5 LJ0307001 1 SOLENOID ASSY MP

6 LJ0309001 1 SOLENOID SPRING MP

7 LJ0311001 1 PAPER FEED ROLLER ASSY MP

8 LJ0326001 1 ROLLER COVER ASSY MP

8-1 LJ8545001 1 MP PE SENSOR PCB ASSY

8-2 LJ0328001 1 PE SENSOR ACTUATOR MP

8-3 LJ0329001 1 PE SENSOR ACTUATOR 2 MP

9 LJ0330001 1 TRAY ASSY MP

10 LJ0334001 1 TRAY COVER ASSY MP

10-1 LJ0337001 2 TRAY COVER ROCK SPRING

11 085310815 2 TAPTITE, BIND B M3X8

12 085320816 1 TAPTITE, BIND S M3X8

MODEL HL-2460 84T-U05-630

*1 A component part of the

PAPER FEEDING KIT.

Refer to "18. PERIODICAL

MAINTENCE PARTS".

REMARK

- 6 -

7. PAPER TRA

- 7 -

MODEL HL-2460 84T-U05-650

1-1

1-2

1-26

1-3 1-4

1-14

1-15

1-16

1-17

1-18

1-5 1-6

1-28

1-7

1-8

1-9

1-19

1-21

1-11

1-12

1-13

1-9

1-10

1-8

1-27

1-23

1-22

1-24

1-27

1-21

1-25

T/I NO. PR2001044

7. PAPER TRAY

REF.NO.

CODE Q'TY DESCRIPTION REMARK

1 LJ0944001 1 PAPER TRAY UNIT (SP)

1-1 LJ0340001 1 BASE TRAY

1-2 LJ0228001 1 PAPER TRAY COVER

1-3 LJ0341001 1 SIDE GUIDE L

1-4 LJ0729001 1 SIDE GUIDE R ASSY *3

1-5 LJ0819001 2 SIDE GUIDE RACK 2

1-6 UL9081001 1 SIDE GUIDE GEAR

1-7 LJ0664001 1 REAR GUIDE ASSY

1-8 LJ0347001 2 SUPPORTER STOPPER SPRING

1-9 LJ0348001 2 SUPPORTER STOPPER L

1-10 LJ0350001 1 PAPER INDICATOR

1-11 LJ0351001 1 EX REAR TRAY

1-12 LJ0357001 1 SIZE DETECTION LINK

1-13 LJ0358001 1 SIZE DETECTION LINK SPRNG

1-14 LJ0359001 1 SIZE DETECTION CAM *3

1-15 LJ0360001 1 TRAY 1D DETECTION CAM

1-16 LJ0361001 1 LTR/LGL DETECTION CAM

1-17 LJ0362001 1 LTR/LGL DETECTION CAM SPRING

1-18 LJ0818001 1 PLATE UNIT

1-19 LJ0370001 2 PLATE SPRING CHANGEOVER KNOB

1-20 LJ0722001 2 PLATE SPRING

1-21 LJ0371001 2 PLATE SPRING A

1-22 LJ0372001 1 PLATE SPRING C

1-23 LJ0373001 1 PLATE SPRING D

1-24 LJ0374001 1 SEPARATION PAD ASSY *2

1-25 LJ0377001 1 SEPARATION PAD SPRING

1-26 LJ0809001 1 PAPER TRAY LABEL

1-27 085411015 6 TAPTITE, BIND B M4X10

1-28 UU0552001 1 TAPTITE, CUP B 3X8

MODEL HL-2460 84T-U05-650

T/I NO. PR2001044 / PR2001055

*2 A component part of the

PAPER FEEDING KIT.

Refer to "18. PERIODICAL

MAINTENCE PARTS".

*3 When either of the SIDE

GUIDE R ASSY

(LJ0729001) or the SIZE

DETECTION CAM

(LJ0359001) needs to be

replaced, be sure to

replace the both part

at the same time.

- 8 -

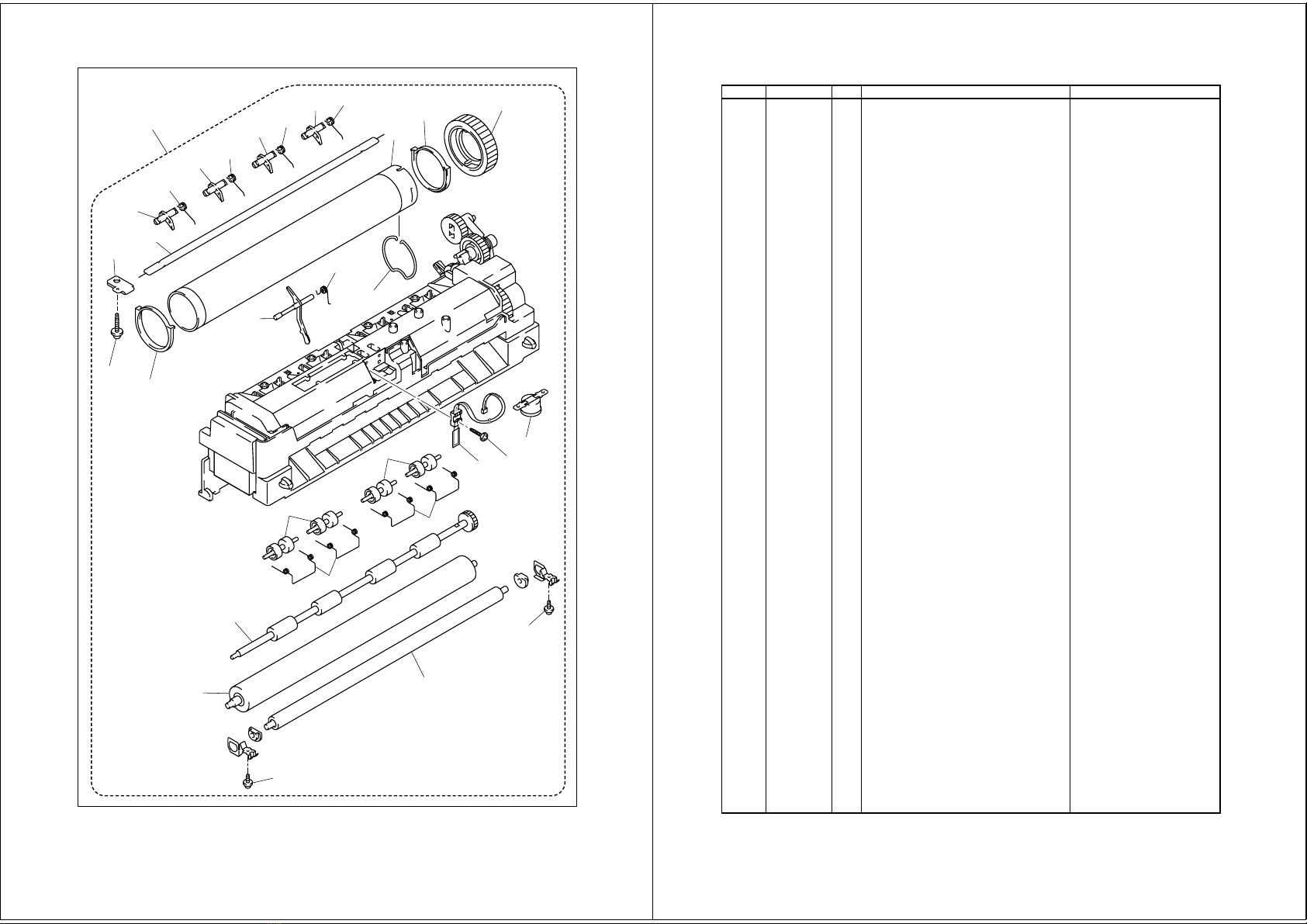

8. FIXING UNIT

- 9 -

MODEL HL-2460 84T-U05-770

1-9

1-10

1-2

1-15

1-17

1-16

1-18

1-4

1-17

1-4

1-3

1-5

1-14

1-13

1-6

1-7

1-8

1-11

1-11 1-12

1-12

1-1 1-17

T/I NO. PR2001044

8. FIXING UNIT

REF.NO.

CODE Q'TY DESCRIPTION REMARK

1 LJ0959001 1 FIXING UNIT, 115V (SP)

1 LJ0963001 1 FIXING UNIT, 230V (SP)

1-1 LJ0994001 1 THERMISTOR ASSY B

1-2 LJ0402001 1 THERMOSTAT

1-3 LJ0965001 1 HEAT ROLLER 34 (SP)

1-4 LJ0411001 2 H/R BEARING 34

1-5 LJ0412001 1 HEAT ROLLER STOP RING

1-6 LJ0413001 1 H/R GEAR 30

1-7 LJ0966001 1 FIXING HEATER 115 ASSY (SP)

1-7 LJ0967001 1 FIXING HEATER 230 ASSY (SP)

1-8 LJ0415001 1 POWER FEED PLATE

1-9 LJ0772001 4 EJECT PRESSURE ROLLER F

1-10 LJ0424001 4 PRESSURE SPRING

1-11 LJ0427001 4 SEPARATE PAWL

1-12 LJ0428001 4 SEPARATE PAWL SPRING

1-13 LJ0429001 1 FU ACTUATOR

1-14 LJ0430001 1 FU ACTUATOR SPRING

1-15 LJ0773001 1 CLEANER ROLLER ASSY

1-16 LJ0109001 1 EJECT ROLLER ASSY

1-17 087311415 2 TAPTITE, CUP B M3X14

1-18 LJ0435001 1 PRESSURE ROLLER

MODEL HL-2460 84T-U05-770

T/I NO. PR2001044 / PR2001059

- 10 -

9. COVERS / LABELS

- 11 -

MODEL HL-2460 84T-U05-400/670

23-1

9. COVERS / LABELS

REF.NO.

CODE Q'TY DESCRIPTION REMARK

1 LJ0062001 1 TOP COVER

2 LJ0063001 1 PAPER ACTUATOR

3 LJ0064001 1 ACTUATOR PLATE

4 LJ0830001 1 ACTUATOR PLATE FILM

5 LJ0065001 1 EJECT DISCHARGING BRUSH

6 LJ8522001 1 FULL SENSOR PCB ASSY

7 LJ0066001 1 SWING PAPER TRAY

8 LJ0067001 2 SWING PAPER TRAY SPRING

9 LJ0068001 1 MX CAP B

10 LJ0069001 1 MX CAP C

11 LJ0070001 1 MX CAP A

12 LJ0071001 1 OPEN COVER

13 UH1540001 1 PAPER STOPPER

14 UH1541002 1 PAPER STOPPER GUIDE

15 LJ0072001 1 FRONT COVER 1

16 LJ0073001 1 FRONT COVER 2

17 LJ0074001 1 SIDE COVER L

18 LJ0075001 1 SIDE COVER R 1

19 087320816 16 TAPTITE, CUP S M3X8

20 LJ0076001 1 SIDE COVER R 2

21 LJ0077001 1 REAR COVER ASSY

22 LJ0913001 1 REAR FILM

23 LJ0085001 1 REAR TRAY ASSY

23-1 LJ0093001 1 ROCK SPRING

24 LJ0094001 1 FLAP

25 LJ0095001 1 FLAP SPRING L

26 LJ0096001 1 FLAP SPRING R

27 LJ0804001 1 FU PROTECTION COVER UPPER

28 LJ0805001 1 FU PROTECTION COVER LOWER

29 LJ0806001 1 FU PROTECTION COVER SPRING L

30 LJ0807001 1 FU PROTECTION COVER SPRING R

31 LJ5030001 1 BROTHER EMBLELM

32 UH0905001 1 PATENT LABEL

32 LJ4421001 1 MARKING LABEL N/S

32 LJ4541001 1 HOT LINE LABEL

32 UH3297001 1 C-TICK MARK

33 087321015 2 TAPTITE, CUP S M3X10

MODEL HL-2460 84T-U05-400/670

- 12 -

MODEL HL-2460 84T-U05-410

10. SWITCH PANEL

11. MAIN PCB

- 13 -

MODEL HL-2460 84T-U05-103

1-2

1-13

1-12

1-1

1-3

1-4

1-5

1-6

1-7

1-8

1-13

1-9

1-10

1-11

10. SWITCH PANEL

REF.NO.

CODE Q'TY DESCRIPTION

1 LJ0098001 1 SW PANEL UNIT

1 LJ0982001 1 SW PANEL UNIT NB

1-1 LJ0849001 1 PRINTED PANEL COVER

1-2 LJ0100001 1 LCD HOLDER

1-3 LJ0456001 1 DIFFUSION FILM

1-4 LJ5296001 1 PANEL LIGHT GUIDE

1-5 LJ5297001 1 KEY

1-6 LJ5298001 1 KEY TOP A

1-7 LJ5299001 1 KEY TOP B

1-8 LJ0103001 1 PANEL REAR COVER

1-9 LJ8525001 1 PANEL PCB ASSY

1-10 LJ8529001 1 LCD:LMG16D2

1-11 LJ8362001 1 BACK LIGHT PCB ASSY

1-12 LJ0730001 1 CLEAR PANEL ASSY

1-12 LJ0983001 1 CLEAR PANEL ASSY NB

1-13 087310816 5 TAPTITE, CUP B M3X8

MODEL HL-2460 84T-U05-410

T/I NO. PR2001056

11. MAIN PCB

REF.NO.

CODE Q'TY DESCRIPTION SYMBOL REMARK

1 LJ0048001 1 MAIN PCB ASSY, HL-2460 B512120-200J

MODEL HL-2460 84T-U05-103

T/I NO. PR2001057

REMARK

- 14 -

MODEL HL-2460 84T-U05-104

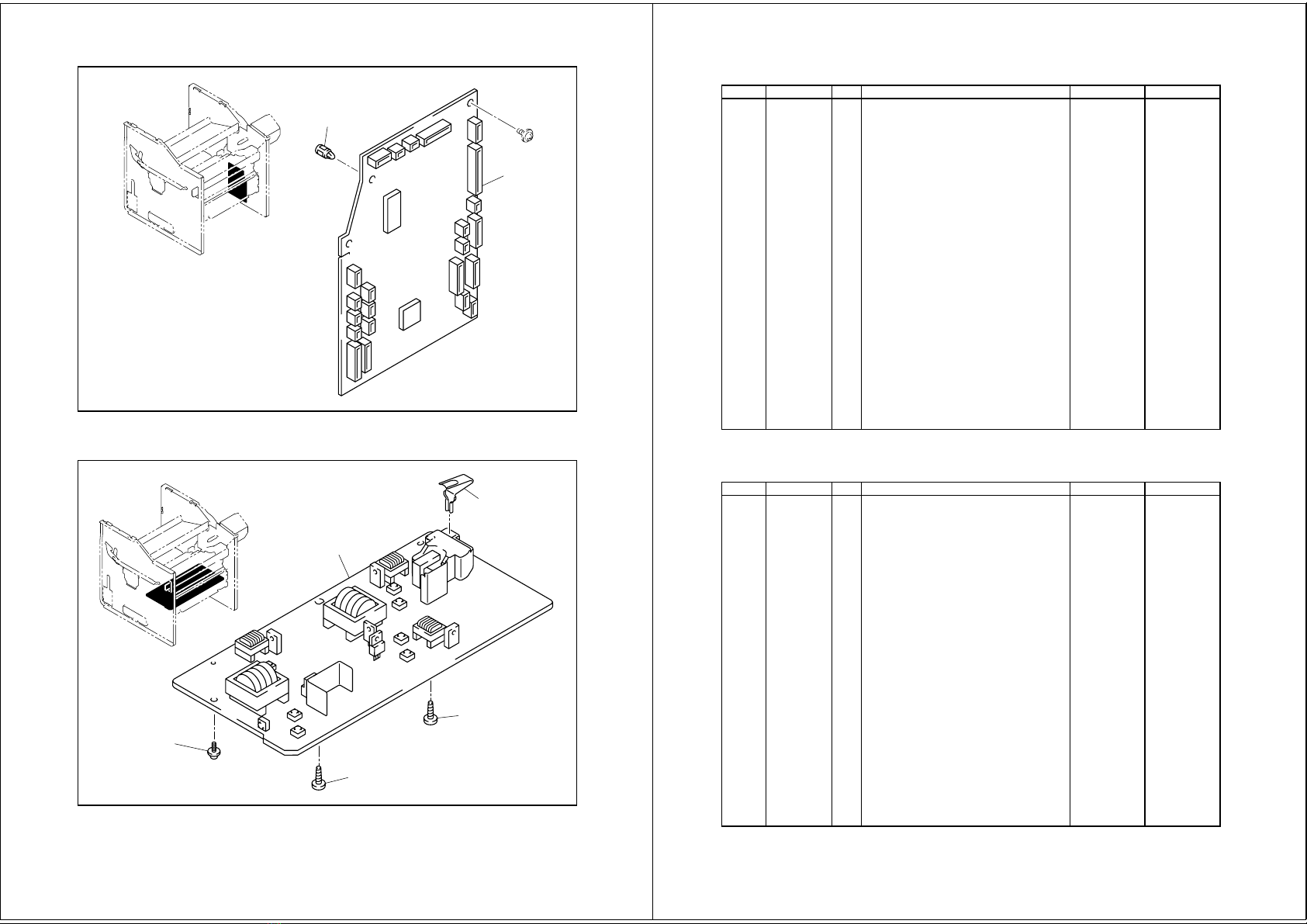

12. ENGINE PCB

13. HIGH-VOLTAGE POWER SUPPL PCB

- 15 -

MODEL HL-2460 84T-U05-200

12. ENGINE PCB

REF.NO.

CODE Q'TY DESCRIPTION SYMBOL REMARK

1 LJ8501001 1 ENGINE PCB ASSY, 2460 B512088-200J

2 LJ0821001 1 ENGINE PCB SUPPORT

MODEL HL-2460 84T-U05-104

T/I NO. PR2001057

13. HIGH-VOLTAGE POWER SUPPLY PCB

REF.NO.

CODE Q'TY DESCRIPTION SYMBOL REMARK

1 LJ8519001 1 HVPS PCB ASSY, 2460

2 LJ0051001 1 TRANSFER PLATE

3 087320616 1 TAPTITE, CUP S M3X6

4 085411015 2 TAPTITE, BIND B M4X10

MODEL HL-2460 84T-U05-200

- 16 -

Altri manuali per HL-2460 Series

Indice

Altri manuali Brother Stampante

Brother

Brother GT-3 Series Manuale utente

Brother

Brother HL-2400Ce Series Manuale utente

Brother

Brother GT-3 Series Manuale utente

Brother

Brother HL-3040CN Manuale utente

Brother

Brother DCP-J1200W Manuale utente

Brother

Brother HL-1435 Manuale utente

Brother

Brother HL-3075CW Manuale utente

Brother

Brother RJ4040-K RuggedJet w/WiFi Battery Manuale utente

Brother

Brother MPrint MW-140BT Manuale utente

Brother

Brother HL-3260N Manuale utente

Brother

Brother TD-2020 Manuale dell'operatore

Brother

Brother LASER PRINTER HL-2140 Manuale utente

Brother

Brother HL-6180DW Manuale utente

Brother

Brother MFC-J5845DW Manuale utente

Brother

Brother HL-2220 Manuale utente

Brother

Brother HL-6050 Manuale utente

Brother

Brother HL-5030 Manuale utente

Brother

Brother MFC-9140CDN Manuale operativo e di manutenzione

Brother

Brother HL-4040CN Manuale del proprietario

Brother

Brother PJ-722 Manuale operativo

Brother

Brother HL-L3230CDN Manuale utente

Brother

Brother QL 570 - P-Touch B/W Direct Thermal Printer Manuale di istruzioni

Brother

Brother TD-4520DN Manuale utente

Brother

Brother QL-570VM - B/W Direct Thermal Printer Manuale utente

Manuali Stampante popolari di altre marche

Lexmark

Lexmark 1400 Series Manuale

Canon

Canon i70 Series Manuale utente

Evolis

Evolis Elypso Manuale utente

Kyocera

Kyocera FS-9530DN Manuale utente

Canon

Canon LASER SHOT LBP-1210 Manuale utente

Samsung

Samsung BIXOLON SRP-350plusF Manuale utente

Canon

Canon PIXMA PRO-1 Series Manuale utente

Canon

Canon PIXMA G3560 Guida all'installazione

Dell

Dell Color Laser Printer 2130cn Manuale utente

Tektronix

Tektronix Phaser 840 Manuale utente

Epson

Epson ET-7750 Istruzioni operative

Canon

Canon CLBR 460ps Manuale utente

Eltron

Eltron P210 Guide Manuale utente

Ricoh

Ricoh MD-P1 Manuale utente

Epson

Epson SC-F7100 series Manuale utente

Epson

Epson Stylus C40UX Manuale utente

Canon

Canon imagePASS-A2 Manuale utente

Canon

Canon S820D Manuale utente
