Brother MFC-J497DW Manuale utente
Reference Guide
Brief explanations for routine operations
DCP-J572DW
MFC-J491DW
MFC-J497DW
Brother recommends keeping this guide next to your Brother machine for quick reference.
Online User's Guide
For more advanced instructions, information, and
product specifications, see the Online User's
Guide at support.brother.com/manuals
User's Guides and Where to Find Them
Which Guide? What's in It? Where Is It?
Product Safety Guide Read this guide first. Please read the Safety
Instructions before you set up your machine.
See this guide for trademarks and legal
limitations.
Printed / In the box
Quick Setup Guide Follow the instructions for setting up your
machine, and installing the Full Driver &
Software Package for the operating system
and connection type you are using.
Printed / In the box
Reference Guide Learn the basic PC-Print, PhotoCapture
Center, Scan, Copy and Fax operations and
basic machine maintenance. See
troubleshooting tips.
Printed or on Brother
Installation Disc / In
the Box
Online User's Guide This guide includes the additional contents of
the Reference Guide.
In addition to information about the PC-Print,
PhotoCapture Center, Scan, Copy, Fax,
Internet services, Mobile Functions and
Brother ControlCenter operations, useful
information is included about using the
machine on a network.
Brother Solutions
Center 1
1Visit support.brother.com/manuals.
For the Latest Driver Updates
Go to your model's Downloads page on the Brother Solutions Center at support.brother.com to
download drivers. To keep your machine’s performance up-to-date, check there for the latest
firmware upgrades.
©2018 Brother Industries, Ltd. All rights reserved.
1
Questions or Problems? Take a Look at our FAQs,
Solutions, and Videos Online.
Go to your model's FAQs & Troubleshooting page on the Brother Solutions Center at
support.brother.com.
•Provides several ways to search
•Displays related questions for more information
•Receives regular updates based on customer feedback
Important Note
• This documentation is for both MFC and DCP models. Where it says 'MFC' in this User's
Guide, read 'MFC-xxxx' as 'DCP-xxxx'. DCP models are not equipped with a fax function.
2
Control Panel Overview
MFC-J491DW/MFC-J497DW
32
154
7
86
1. 1.8"(44.9 mm) Liquid Crystal Display
(LCD)
Displays messages to help you set up and
use the machine.
2. Mode buttons
FAX
Press to switch the machine to Fax
mode.
SCAN
Press to switch the machine to Scan
mode.
COPY
Press to switch the machine to Copy
mode.
WEB
Press to switch the machine to Web
mode.
3. Settings buttons
Clear/Back
Press to go back to the previous menu
level.
Settings
Press to access the main menu.
OK
Press to select a setting.
d or c
Press to adjust the ring volume while
the machine is idle.
• Press to store Speed Dial and Group
numbers in the machine's memory.
• Press to look up and dial numbers
that are stored in the machine's
memory.
1General Information
1General Information
3
Press to configure the wireless settings
while the machine is idle.
a or b
Press to scroll through the menus and
options.
d or c
• Press to move the cursor left or right
on the LCD.
• Press to either confirm or cancel a
procedure which is in progress.
4. Telephone buttons
Tel/R
If the machine is in Fax/Tel (F/T) mode
and you pick up the handset of an
external telephone during the F/T ring
(pseudo/double-ring), press Tel/R to
talk.
When connected to a PBX, press to
gain access to an outside line or to
transfer a call to another extension.
Redial/Pause
• Press to redial the last number you
called.
• Press to select and redial the
numbers from the Outgoing Call
history or Caller ID history.
• Press to insert a pause when dialling
numbers.
5. Dial Pad
• Use to dial fax and telephone numbers.
• Use as a keyboard to enter text or
characters.
6. Stop/Exit
• Press to stop an operation.
• Press to exit from a menu.
7. Start buttons
Mono Start
• Press to start sending faxes in
monochrome.
• Press to start making copies in
monochrome.
• Press to start scanning documents
(in colour or monochrome depending
on the scan setting).
Colour Start
• Press to start sending faxes in full
colour.
• Press to start making copies in full
colour.
• Press to start scanning documents
(in colour or monochrome depending
on the scan setting).
8. Power On/Off
Press to turn the machine on.
Press and hold down to turn the
machine off. The LCD displays
[Shutting Down] and stays on for a
few seconds before turning itself off. If you
have connected an external telephone or
TAD, it is always available.
If you turn the machine off using , it
will still clean the print head periodically to
maintain print quality. To prolong print
head life, provide better ink efficiency, and
maintain print quality, keep your machine
connected to a power source at all times.
4

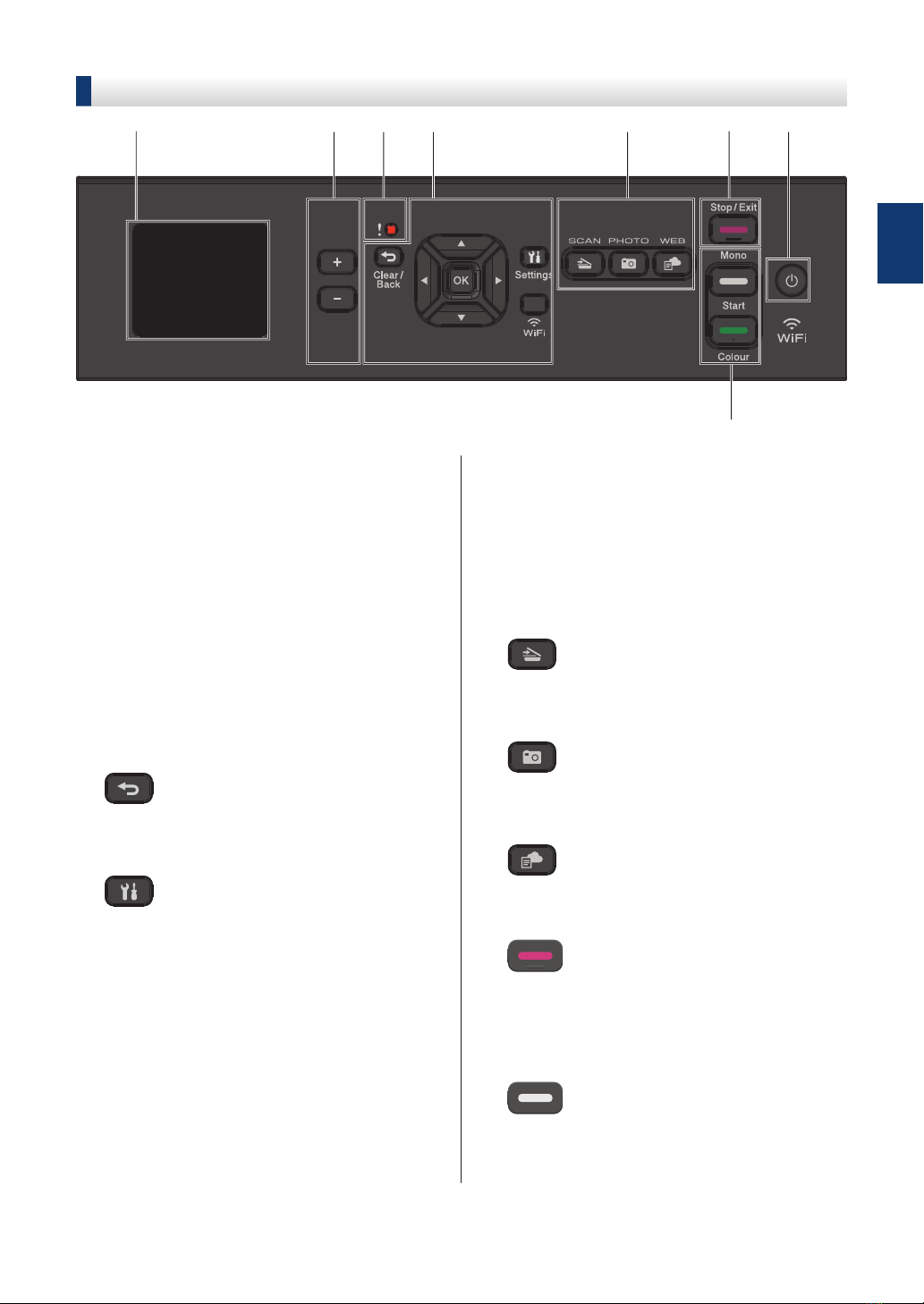

DCP-J572DW
42
135
7
86
1. 1.8"(44.9 mm) Liquid Crystal Display
(LCD)
Displays messages to help you set up and
use the machine.
2. Number of Copies
Press + to increase or - to decrease the
number of copies.
3. Warning icon
The warning icon lights up when there is
an error or maintenance message.
4. Settings buttons
Clear/Back
Press to go back to the previous menu
level.
Settings
Press to access the main menu.
OK
Press to select a setting.
WiFi
Press to configure the wireless settings
while the machine is idle.
a or b
Press to scroll through the menus and
options.
d or c
• Press to move the cursor left or right
on the LCD.
• Press to either confirm or cancel a
procedure which is in progress.
5. Mode buttons
SCAN
Press to switch the machine to Scan
mode.
Press to switch the machine to Photo
mode.
WEB
Press to switch the machine to Web
mode.
6. Stop/Exit
• Press to stop an operation.
• Press to exit from a menu.
7. Start buttons
Mono Start
• Press to start making copies in
monochrome.
1General Information
5
• Press to start scanning documents
(in colour or monochrome depending
on the scan setting).
Colour Start
• Press to start making copies in full
colour.
• Press to start scanning documents
(in colour or monochrome depending
on the scan setting).
8. Power On/Off
Press to turn the machine on.
Press and hold down to turn the
machine off. The LCD displays
[Shutting Down] and stays on for a
few seconds before turning itself off.
If you turn the machine off using , it
will still clean the print head periodically to
maintain print quality. To prolong print
head life, provide better ink efficiency, and
maintain print quality, keep your machine
connected to a power source at all times.
6

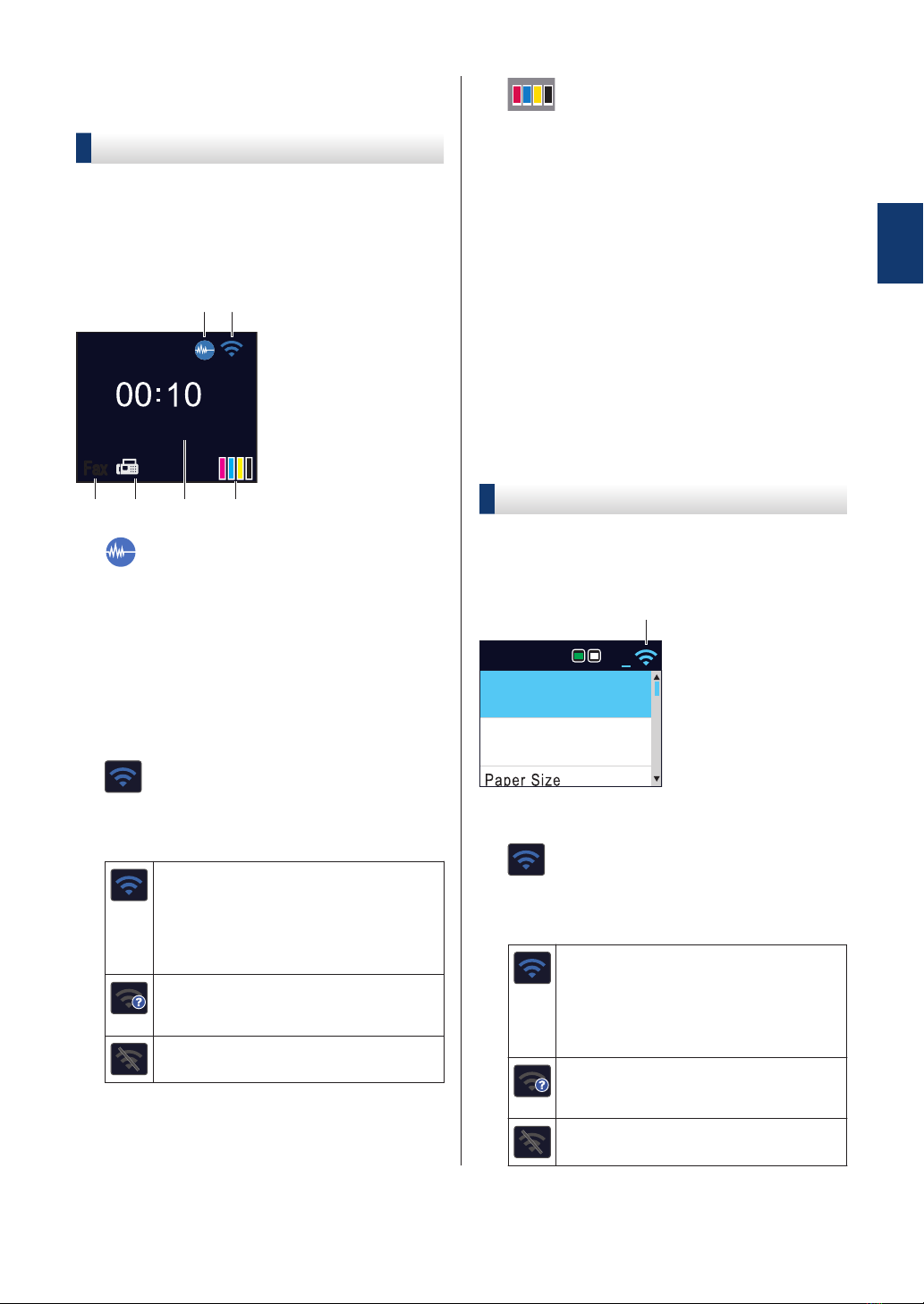

LCD Overview
MFC-J491DW/MFC-J497DW
This screen shows the machine’s status when
the machine is idle. When displayed, this
indicates that your machine is ready for the
next command.
Home Screen
0101
01. 01. 2018
FaxFax
12
3
46 5
1. Quiet Mode
This icon appears when the [Quiet
Mode] setting is set to [On].
The Quiet Mode setting can reduce
printing noise. When Quiet Mode is turned
on, the print speed becomes slower.
For more detailed information, see the
Online User's Guide.
2. Wireless Status
Each icon in the following table shows the
wireless network status:
The wireless network is connected.
A three-level indicator in the Home
screen displays the current
wireless signal strength.
The wireless access point cannot
be detected.
The wireless setting is disabled.
3. [Ink]
Displays the approximate available ink
volume.
When an ink cartridge is near the end of
its life or having a problem, an error icon is
displayed on the ink colour.
4. Date and Time
Displays the date and time set on the
machine.
5. Faxes in Memory
Displays how many received faxes are in
the machine's memory.
6. Receive Mode
Displays the current Receive Mode.
DCP-J572DW
The LCD shows the machine’s status when
the machine is idle.
Home Screen
Press Start
Normal
Quality
Plain Paper
Paper Type
01
1
1. Wireless Status
Each icon in the following table shows the
wireless network status:
The wireless network is connected.
A three-level indicator in each of
the Home screens displays the
current wireless signal strength.
The wireless access point cannot
be detected.
The wireless setting is disabled.
1General Information
7
You can configure wireless settings by
pressing WiFi on the control panel.
8
Load Paper
1Load the paper in the paper tray as follows.
Fan the stack of paper well.
Tray #1 How to Load Paper
A4/Letter
Executive
A5/A6
Photo 2L
Index card
Envelopes
Adjust the paper
guides.
Printing surface: Face down
Adjust the paper
guides.
Printing surface: Face down
Photo Paper
Tray
(DCP-J572DW)
How to Load Paper
Photo L
Slide the whole output
paper tray cover. Printing surface: Face
down
2Paper Handling
2Paper Handling
9
