Brother BAS-364E Manuale utente

BAS-364, 366, 370, 375 1/10

2000.7

BAS−364

366

BAS−370

375

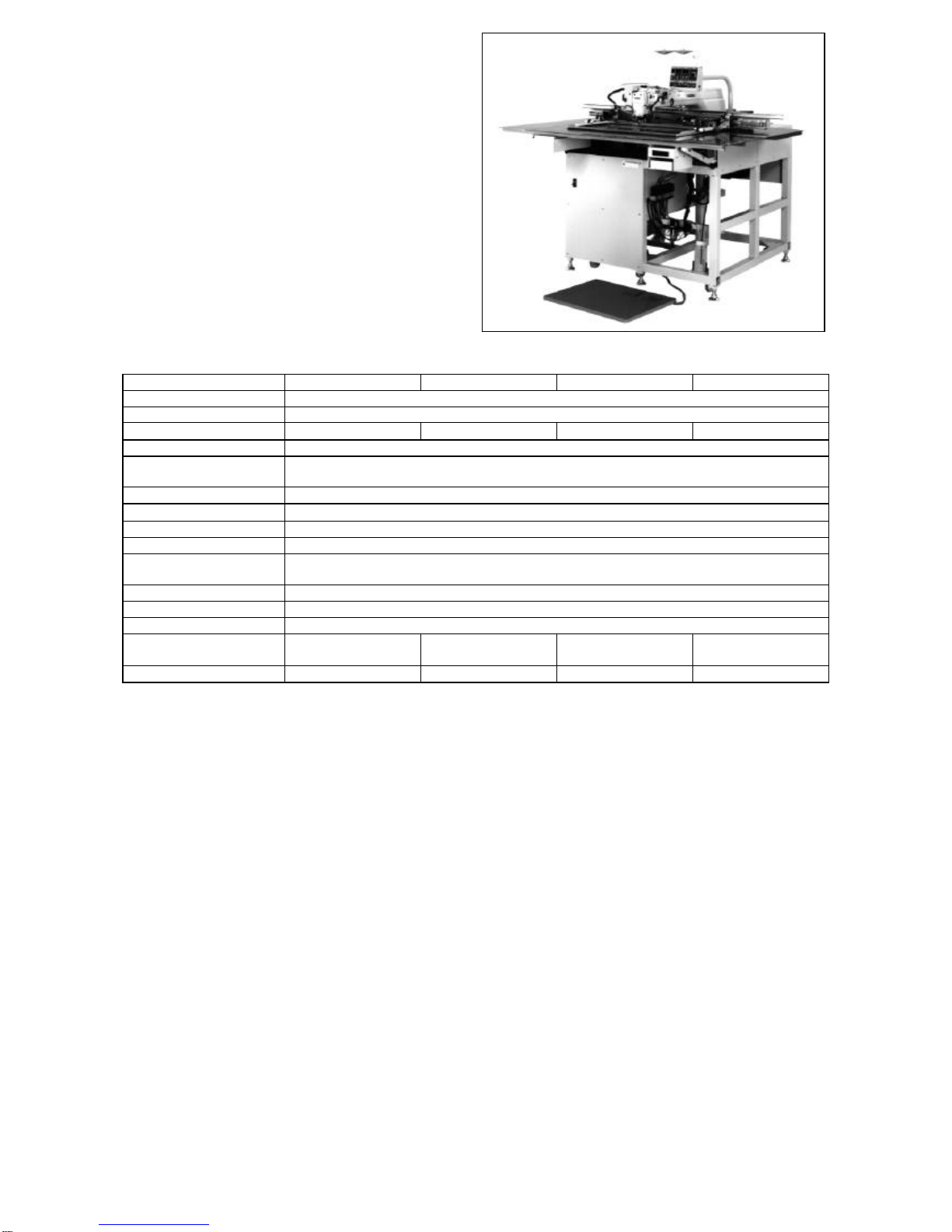

Programmable Electronic Pattern Sewer

Specifications BAS-364 BAS-366 BAS-370 BAS-375

Machinehead Lock stitch double rotary hook long arm machine

Application Light,heavymaterials

SewingareaX-Y 420 ×400mm 650 ×400mm 800 ×400mm 1,200 ×400mm

Feedmechanism AC servo motor 400 W (X-Y feeding)

Height of

work clamp 50mm(Stepping PresserFoot: 16mm)

No.ofstitches 20,000 / 1pattern (Max. 10 patterns)

Needle 1(DP ×17 Max. #25)

Rotary hook Double

Test function Operationtestfunctionprovided for use with low speeddrive

Safety device Automaticstop functionforactivation intheevent ofmisoperationrealizedwithintermediatestop

functionand safetycircuits.

Machinemotor AC servo motor (330 W)

Air pressure 0.5 Mpa

Powersupply Three Phase 220 V, 380 V, 415 V (1,000 VA)

Machinedimensions (mm)

(W ×D×H) 1,100 ×1,625 ×1,868 1,557 ×1,625 ×1,868 1,820 ×1,625 ×1,868 2,620 ×1,625 ×1,868

Weight 390kg 400kg 600kg 620kg

BAS-364, 366, 370, 375 2/10 2000.7

BAS-364

BAS-366

BAS-370

BAS-375

*A different work clamp is used when sewing air bags, Furthermore, an stepping presser foot controller, beam sensor-type

thread breakage detector and two-stage thread tensioner are included as standard equipment.

Application

0Standard

1Airbag

(OnlyBAS-364)

Materials

1Heavy

2Thin

Powersource

01 ForJapan AC200V

02 Threephase 220VAC

03 Threephase 380VAC

04 Threephase 415VAC

Programmer

3¡

BAS-364, 366, 370, 375 3/10

2000.7

Option parts [BAS-364, 366, 370, 375]

Presserfoot,A

152283-101(φ2.5) S40214−001(φ2.5) Presserfoot,B

152636-001(φ4) Presserfoot,C

152637-001(φ2) Presserfoot,D

154069-001(φ3)

Presserfoot,E

154089-001(φ1.6) Presserfoot,F

157237-001(φ2) Presserfoot,G

158592-001(φ2) Presserfoot,J

S13815-001(φ2.5)

Needlehole plate,A

156149-001(φ1.6) Needleholeplate,E

156153-001(φ2.6) Needlehole plate,F

156154-001(φ2.2) Needleholeplate,L

S25110-001(φ3.3) Needleholeplate,3

S40215−001

Bottomplunger,A

157795-101(φ2.5) Bottomplunger,B

157796−101(φ1.6) Bottomplunger,C

S05137−101(φ4)

Option parts [BAS-364, 366]

Workclampassy,S

A=500 B=410

S37380-001

Workclampassy,L

A=730 B=410

S37836-001

Cassetteplateassy,S

A=440 B=410

S37378-001

Cassetteplateassy,L

A=670 B=410

S37837-001

BAS-364, 366, 370, 375 4/10 2000.7

Option parts [BAS-370, 375]

Workclampassy,S

S16868-001 Workclampassy,L

S16869-001

Cassetteplateassy,S

S16789-001 Cassetteplateassy,L

S16746-001

Clampplatelower,S1/S16818-000[T=1]

Clampplateupper,S1/S16819-000[T=1]

Clampplatelower,S2/S29693-000[T=2]

Clampplateupper,S2/S29694-000[T=2]

Clampplatelower,L1/S16750-000[T=1]

Clampplateupper,L1/S16751-000[T=1]

Clampplatelower,L2/S29691-000[T=2]

Clampplateupper,L2/S29692-000[T=2]

1.Clothclamplever/S16763-009

2.Bolt 5×14/018501-436

3.Sub-presser(R)/S16934-001

4.Sub-presser(L)/S16933-001

5.Bolt5×12/018501-236

6.Springwasher2-5/028050-246

7.Plainwasher5/025050-236

BAS-364, 366, 370, 375 5/10

2000.7

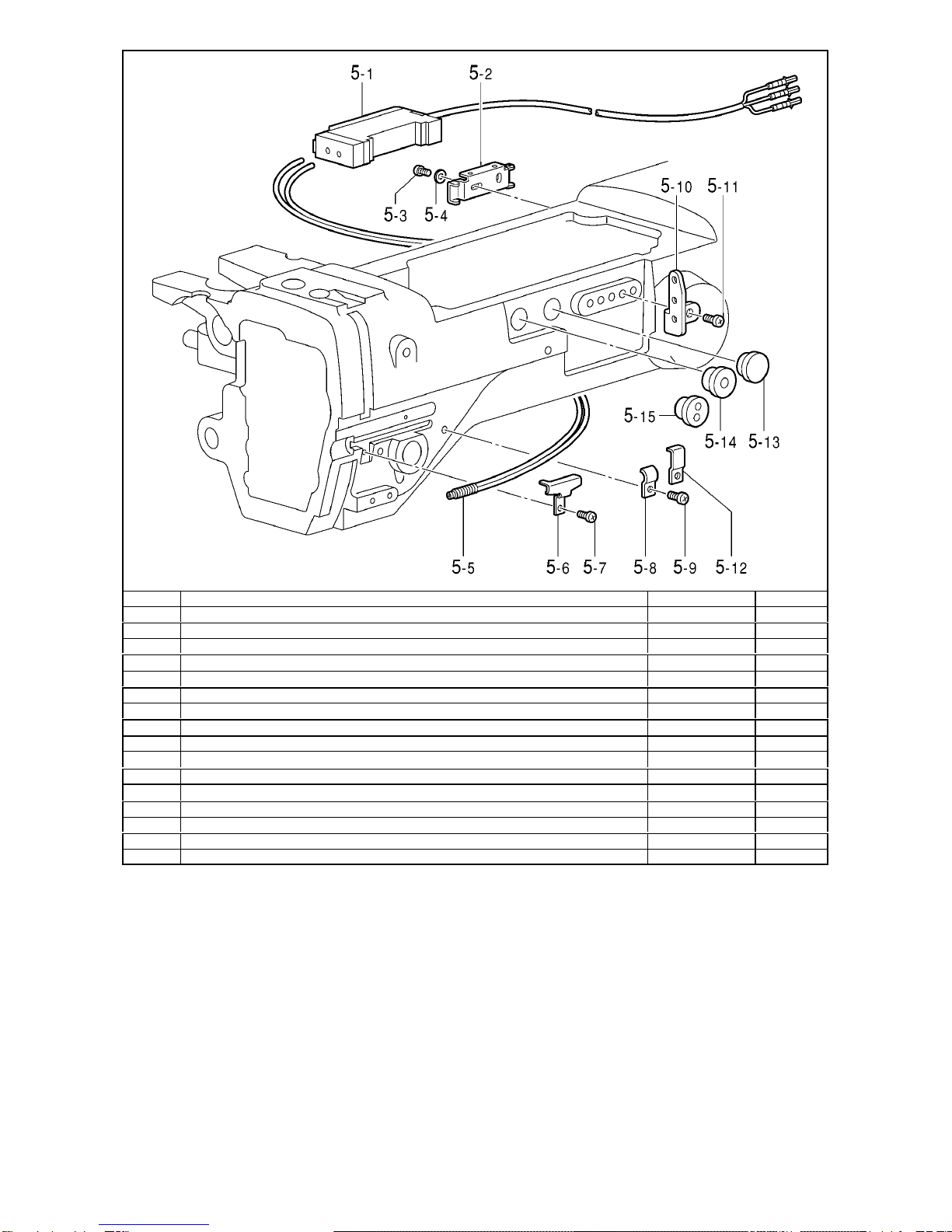

Thread breakage detector mechanism [BAS-364, 366, 370, 375]

Ref.No. Partname Partcode Q’ty

5Threadbreakagedetector(B)assy S25115-001 1

5-1 Ampunit S17031-000 1

5-2 Ampunitsetplate(N) S29469-000 1

5-3 Screw, pan M3×6 062300-612 2

5-4 Washer,plainM3 025030-232 2

5-5 Fiberunit(N) S29468-100 1

5-6 Fiberunitpresserplate S25102-201 1

5-7 Screw, pan M3.57–40 ×6 062670-612 1

5-8 Cordholder 145595-001 2

5-9 Screw, pan M3.57–40 ×6 062670-612 2

5-10 Thread retainer 152889-001 1

5-11 Screw, pan M3.57–40 ×6 062670-612 2

5-12 Cordholder(L) 142268-001 2

5-13 Rubbercap,18.5 S23337-009 1

5-14 Cordbush 157984-009 1

5-15 Cordbush 146020-009 1

BAS-364, 366, 370, 375 6/10 2000.7

Thread tension [BAS-364, 366, 370, 375]

BAS-364, 366, 370, 375 7/10

2000.7

Thread tension (For 2-step thread tension) [BAS-364, 366, 370, 375]

Ref.No.

Partname Partcode Q’ty

22-stepthread tensionassy S29416-001 1

2-1 Threadtensionassy S24927-101 1

2-1-1 Threadbush 146924-000 2

2-2 Disc,tension 145446-001 2

2-3 Discpresser,tension 159805-001 1

2-4 Tensionspring 148851-001 1

2-5 Flangewasher,tensionspring 144105-000 1

2-6 Tensionnutassy S11182-009 1

2-6-1 Controldial S11183-009 1

2-6-2 Tensionadjustscaleplate S11184-009 1

2-7 Screw, flat M4×8 004400-814 2

2-8 Twinrod cylinderassy S30004-000 1

2-8-1 Twinrodcylinder S12103-000 1

2-8-2 Tubeelbow,M-5HL-4 S12150-000 2

2-8-3 ExtendedjointM -5J S24930-000 1

2-9 Screw, pan M4×20 062402-016 2

2-10 Washer,spring 2–4 028040-243 2

2-11 Countersinkclaw S24931-001 1

2-12 Screw,pan(S/P washer) M4×8 052400-806 2

2-13 Airtube,L=3250 S11440-002 2

2-14 Cordbush 146020-009 2

2-15 Solenoid valve S29696-000 1

2-16 Halfunion,Q4M5 S18415-101 2

BAS-364, 366, 370, 375 8/10 2000.7

Manual switch mechanism [BAS-364, 366, 370, 375]

Ref.No. Partname Partcode Q’ty

21-1 SW-ABS310N(Mushroom type,green) S11750-002 2

22 Handswitchharness(A) S17012-000 1

23 Handswitchharness(B) S17013-000 1

24-1 SW-ABS310N(Mushroom type,yellow) S11750-000 1

25 EMharness S24185-000 1

26 EMswitchholder S24184-009 3

27 EMswitchindicationplate S33524-009 3

28 Screw, truss M4 ×8 008400-804 6

29-1 Switchbracket S33525-001 2

30 Bolt, socket M5×12 018501-236 6

31 Washer,spring2-5 028050-246 6

32 Washer,plainM5 025050-236 6

34-1 Bolt, socket M4×8 018400-836 4

35 Footswitchharness(B) S17015-000 1

Manual switch mechanism [BAS-364, 366, 370, 375]

Ref.No. Partname Partcode Q’ty

21-2 SW-ABFS210N(withguard,green) S17030-001 2

24-2 SW-ABFS210N(with guard,yellow) S17030-002 1

29-2 Switchbracketright S33526-001 1

29-3 Switchbracketleft S33527-001 1

33 Spacer S31909-001 4

34-2 Bolt, socket M4×20 018402-036 4

BAS-364, 366, 370, 375 9/10

2000.7

Presser foot lifter mechanism [BAS-364, 366, 370, 375]

< For air bags >

Ref.No. Partname Partcode Q’ty

101 Workclampcontrolassy S29731-001 1

101-1Stopperarm S16989-001 1

101-2 Bolt, socket M6×16 018061-622 1

101-3Stopper S16940-001 1

101-4 Setscrew,socket(CP)M4.76 014710-522 1

101-5Workclampcontrolcamassy S30025-001 1

101-6 Set screw, socket (FT) M5×5 012500-536 1

101-7Controlcamshaft S16888-001 1

101-8 Set screw, socket (FT) M4×3.2 S23452-001 2

101-9Holesensorsetplate S16950-001 1

101-10 Screw, pan M3.57-40 ×8 062670-812 1

101-11 BH-200575042-B04 Z25701-001 1

101-12 Bolt, socket M4×12 018401-222 4

101-13 Washer,spring2-4 028040-242 4

101-14 Washer,plainS4 025040-132 4

101-15 Pulsemotorharness(A) S20098-000 1

101-16 Pulsemotorharness(B) S20099-000 1

101-17 Holesensor S20083-000 1

101-18 Headsensorharness(C) S20068-000 1

101-19 Cordholder(5N) S00480-000 1

101-20 BandPLTIM S04557-000 2

101-21 Washer,spring2-3.5 028350-242 1

101-22 Washer,plainS4 025040-132 1

BAS-364, 366, 370, 375 10/10 2000.7

Bottom mechanism [BAS-364, 366, 370, 375]

Ref.No. Partname Partcode Q’ty

1Bottomassy S37397-001 1

1−1Bottomcylinderassy S16893-000 1

1−1−1Cylinder S16903-000 1

1−1−2Elbow M5 S03820-000 2

1−1−3Y-type fitting S16936-000 1

1−2Cylindersupportshaft S16902-001 1

1−3Washer,plainM6 025060-232 1

1−4Retainingring,E4 048040-342 1

1−5Beltshiftbar 141574-001 1

1−6Retainingring,E7 048070-342 1

1−7Washer 110367-001 1

1−8Set screw, socket (FT) M6×6 012060-636 1

1−9Bottomlever S16905-101 1

1−10 Washer 153596-001 1

1−11 Air valve S29696-000 1

1−12 Halfunion(Q4M5) S18415-001 2

1−13 Airtube4-G(L=1310) S08168-000 2

1−14 Bottomneedleplate S16725-000 1

1−15 Bottomplunger(A) 157795-101 1

1−16 Screw, M3.18 100080-003 2

2Bottomplunger(B) 157796-101 1

3Bottomplunger(C) S05137-101 1
