Brother BAS-705 Manuale utente

BAS−7050 1/12

2002.9

BAS−7050

Automatic Belt Loop Sewer

Specifications

Machine head Lock stitch pattern tacker

Sewing speed 2,100 rpm

Stitch length 0.1-10.0 mm

Sewing area X-Y 22 ×3 mm

Number of stitches 29, 36, 43

Height of presser foot 19 mm

Needle type DP ×17NY #19, #21

Shuttle hook Double

Needle gauge 40-70 mm

Loop cutting Flat-end or V-shaped cut selection

Loop width Flat cut : 9 – 20 mm, V-cut : 9 – 16 mm

Machine time 1.4sec. / loop (29 stitches)

Cycle time 14sec. (29 stitches, 5 loops, including handling)

Power source 3-phase 220 V, 380 V, 400 V, 415 V 600 VA

Air pressure 0.5 – 0.55 Mpa 90 l / min.

Table height 1,000-1,150 mm

Machine dimensions 1100 (W) ×837 (L) ×1,320 - 1,530 (H) mm

Weight 205 kg (220 V), 230 kg (380 V, 400 V, 415 V)

Operation panel setting

Loop length 50 - 120 mm

Bobbin counter 0 - 999

Production counter Max. 9999

Sewing speed 1,900 - 2,100 rpm ( in steps of 100 rpm)

Sewing pattern Select from 3 sewing patterns (3 settings <enlargement and

reduction> can be applied to each of the patterns)

Enlarging and reducing patterns 45 - 120% in both X and Y directions (with area check)

BAS−7050 2/12

2002.9

GAUGE PARTS LIST

Needle hole plate

Needle hole plate, A

S10211-001

Needle hole plate, D

S29997-001

Needle hole plate, E

S10212-101

Needle hole plate, ED

S30925-001

Needle hole plate, F

S10213-001

Needle hole plate, FD

S30926-001

Needle hole plate, H

S30450-001

Needle hole plate, L

S25127-001

Needle hole plate, EX

S45188-001

Presser foot

Work clamp

<For bar tack length:

Max. 23 mm>

S41796-101

Work clamp, F

<For bar tack length:

Max. 22 mm>

S44762-001

<For bar tack length:

Max. 16 mm>

S44763-001

BAS−7050 3/12

2002.9

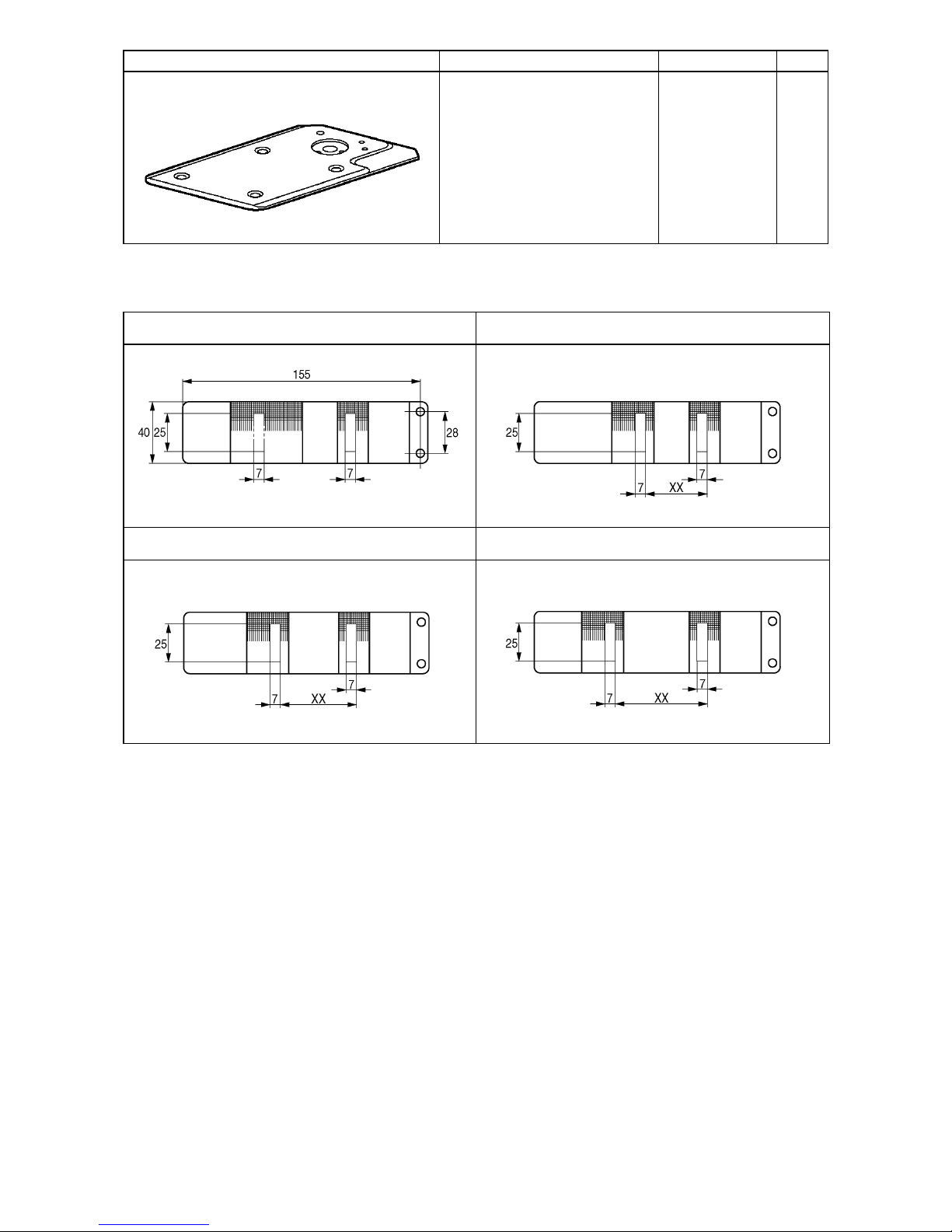

Needle plate (Option parts)

Part name Part code Q’ty

Needle plate, E BM S46563-001 1

*This part can deliver belt loops to a constant location because the fork does not make contact with the lap seams

that are the thickest part of the material.

Feed plate

Feed plate (Blank)

S41803-001

Feed plate, S

S44961-0XX XX=40−51

Feed plate, M

S44962-0XX XX=51−60

Feed plate, L

S44963-0XX XX=61−70

*Stitch interval = XX

BAS−7050 4/12

2002.9

Feeder mechanism

Ref. No. Part name Part code Q’ty

For light materials loop

246 Fork assy, A S44957-001 2

246-1 Fork, A S43959-001 2

246-3 Fork shaft, 2.0L S41626-001 2

246-4 Fork shaft, 2.0S S41627-001 2

246-5 Set screw, socket (FT) M4 ×4 012400-436 4

For medium materials loop

246 Fork assy, B S44958-001 2

246-1 Fork, B S43960-001 2

246-3 Fork shaft, 2.0L S41626-001 2

246-4 Fork shaft, 2.0S S41627-001 2

246-5 Set screw, socket (FT) M4 ×4 012400-436 4

For heavy materials loop

246 Fork assy, C S44959-001 2

246-1 Fork, C S43961-001 2

246-3 Fork shaft, 2.0L S41626-001 2

246-4 Fork shaft, 2.0S S41627-001 2

246-5 Set screw, socket (FT) M4 ×4 012400-436 4

BAS−7050 5/12

2002.9

Feeder mechanism

Ref. No. Part name Part code Q’ty

343 Loop presser, 70B S41594-001 1

344 Loop presser, 70F S41595-001 1

Feeder mechanism

For needle gauge 40 – 45 mm

Ref. No. Part name Part code Q’ty

373 Loop presser assy, 40 S44974-001 1

373-1 Loop presser setting pate, SB S43969-001 1

373-2 Loop presser setting plate, SF S43970-001 1

373-3 Bolt, socket M4 ×8 018400-836 4

373-4 Washer, spring 2 - 4 028040-246 4

373-5 Washer, plain M4 025040-236 4

373-6 Loop presser, 40B S43967-001 1

373-7 Loop presser, 40F S43968-001 1

373-8 Bolt, socket M4 ×8 018400-836 4

373-9 Washer, spring 2 - 4 028040-246 4

373-10 Loop wiper, S S43963-001 2

373-11 Loop presser, UBS S43965-001 1

373-12 Loop presser, UFS S43966-001 1

373-13 Loop support, F S41596-201 1

373-14 Loop guide, 1 S44964-000 1

373-15 Loop guide, 2 S44965-000 1

373-16 Bolt, socket M4 ×8 018400-836 1

373-17 Washer, spring 2 - 4 028040-246 1

373-18 Washer, plain M4 025040-236 1

BAS−7050 6/12

2002.9

Feeder mechanism

Using the loop width 25.4mm for flat cut only

Ref. No. Part name Part code Q’ty

570 Gauge set, 1 S47058-001 1

570-1 Channel assy, 25 S44983-001 1

570-1-1 Channel base, 25 S44984-001 1

570-1-2 Channel, back 25 S44985-001 1

570-1-3 Channel, front 25 S44986-001 1

570-1-4 Screw, bind M3 ×5 060300-516 4

570-1-5 Washer, bind 2 - 3 028030-246 4

570-2 Loop presser, BL S44987-001 1

570-3 Loop presser, FL S44988-001 1

570-4 Spring, wide narrow (BL) S44989-001 1

570-5 Spring, wide narrow (FL) S44990-001 1

570-6 Fork shaft, 2.0LL S41919-001 2

570-7 Loop support, B2L S47528-001 1

570-8 Loop guide, 1L S47529-001 2

570-9 Loosen presser foot, BL S47553-001 1

570-10 Loosen presser foot, FL S47554-001 1

BAS−7050 7/12

2002.9

Power supply equipment mechanism

Ref. No. Part name Part code Q’ty

120 PROM assy, I/O check 705 S46502-000 1

910 EM switch spacer, 3 S37057-001 1

920 EMI core, TR - 40 - 27 S40623-000 4

921 Screw, pan (S/P washer) M4 ×16 0A5401-605 4

922 Washer, plain M4 025040-236 4

923 Nut, 1 M4 021400-106 4

924 EMI core, ESD - SR – 25 S40622-000 4

925 Band, PLTIM S04557-000 2

926 Bead band, L 149809-000 1

Attachment set (Option parts)

Ref. No. Part name Part code Q’ty

1 Hand set switch device S41639-001 1

1-1 Hand set switch assy S41640-001 1

1-1-1 Hand switch base S41638-001 1

1-1-2 Hand switch cover S14972-001 1

1-1-3 Hand switch assy S40496-000 1

1-1-4 Screw, truss M3 ×6 008300-604 2

1-2 Bolt, socket M4 ×6 018400-636 2

1-3 Washer, spring 2 - 4 028040-246 2

1-4 Band, PLTIM S04557-000 3

BAS−7050 8/12

2002.9

Attachment set (Option parts)

BAS−7050 9/12

2002.9

Attachment set (Option parts)

Ref. No. Part name Part code Q’ty

10 U-TR. breakage detector assy S40520-009 1

10-1 Setting bracket S09400-009 1

10-2 Fulcrum shaft S09401-001 2

10-3 Washer, plain M3 025030-233 4

10-4 Washer, spring 2 – 3 028030-243 2

10-5 Nut, 1M3 021300-103 2

10-6 Pulley S09402-101 2

10-7 Retaining ring, E2 048020-342 2

10-8 Thread breakage sensor assy S40519-000 1

10-9 Screw, pan M3 ×6 062300-616 4

10-10 Washer, spring 2 – 3 028030-243 4

10-11 Cord holder, 5N S00480-000 1

10-12 Screw, pan M4 ×6 062400-616 1

10-13 Washer, plain M4 025040-233 1

10-14 Cover S09403-009 1

10-15 Screw, pan M3 ×6 062300-616 2

10-16 Washer, plain M3 025030-233 2

10-17 Washer, spring 2 – 3 028030-243 2

10-18 Face plate thread hook S03566-001 1

10-19 Screw, pan (S/P washer) M4 ×8 052400-806 1

10-20 Nut, 2M4 021400-202 1

10-21 Pre-tension assy, A 183377-001 2

10-21-1 Thread guide S02611-001 2

10-21-2 Pre-tension stud S02612-001 2

10-21-3 Thread guide disc 144504-001 2

10-21-4 Spring, pre-tension (A) 154560-001 2

10-22 Set screw, socket (CP) M5 014500-522 2

10-23 Band, PLTIM S04557-000 1

11 Screw, pan SM5.95 – 28 ×12 062761-212 2

12 Washer, plain M6 025060-232 4

13 Nut, SM5.95 100022-005 2

BAS−7050 10/12

2002.9

Attachment set (Option parts)
