Brother BE-0901E-AC Manuale di installazione

If your machine settings have not been programmed or if a “hard

reset” has been completed (necessitating reprogramming), these

instructions will walk you through programming the settings list.

PLEASE READ THESE INSTRUCTIONS

COMPLETELY BEFORE ATTEMPTING

ANY OF THESE PROGRAMMING STEPS.

To reset the machine to the default settings:

1.“Power off” the machine.

2.Press and hold the key on the panel.

3.“Power on" the machine. Release the

key after the machine completes the “boot-up”

process.

4. Press the key, when it is available on the

display.

Let the machine complete the deletion process

before continuing.

For Technical Assistance Please Call Toll Free

1-877-4BROTHER

Email: [email protected]

Website: http://www.brother-usa.com/industembroidery/tech_down.aspx

E-

-1

E-

-A

Settings Programming starts:

Press the key twice. Allow time for the display to react to

the first keystroke. The screen should appear as such:

Press the key, which will highlight the icon to the right. The

Display should appear as such:

Press the key. The Display should appear as such (Next

Page):

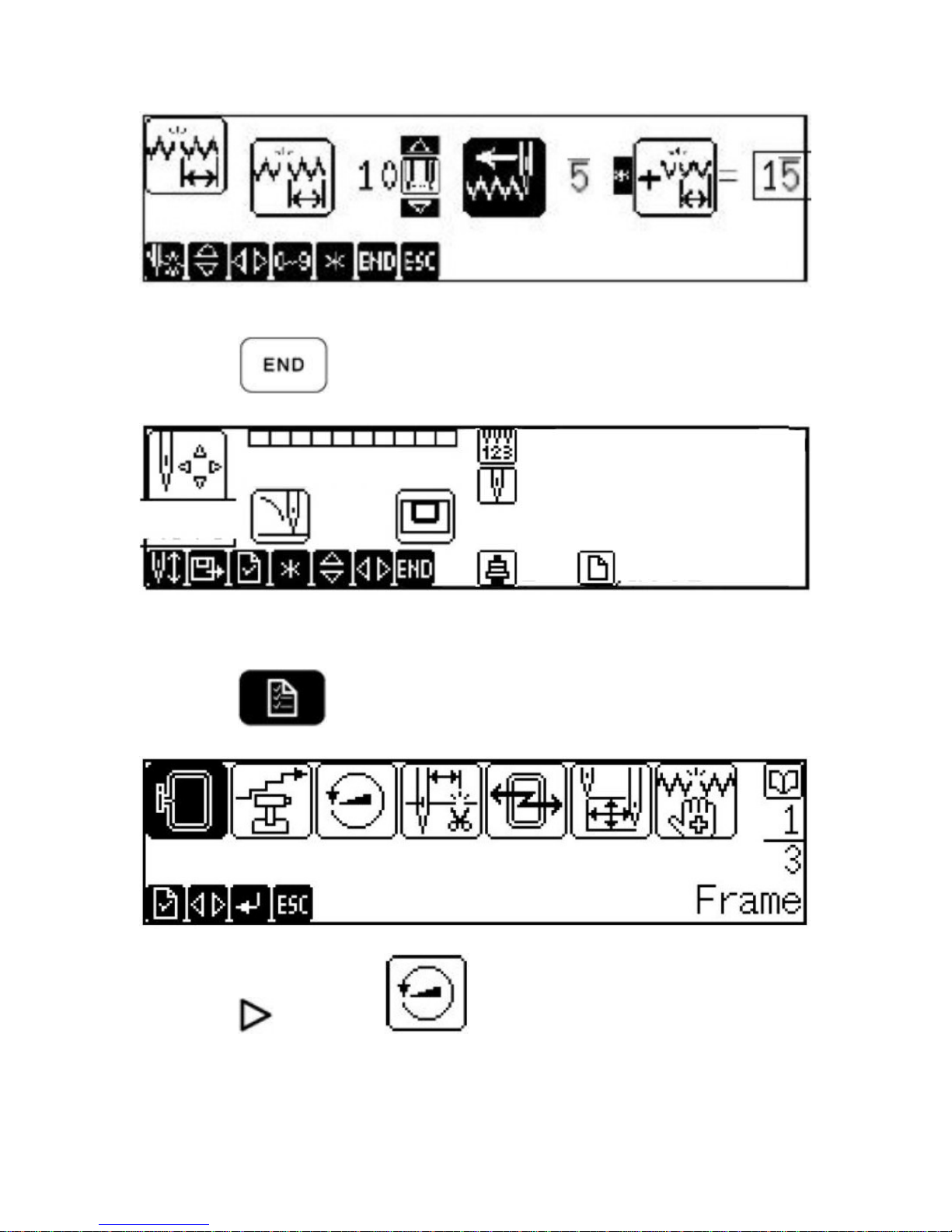

Press the key. The screen should appear similar to such:

The Thread Break feature has now been programmed.

Press the key. The display should appear similar to:

Press the key so the icon is highlighted. The display

should appear as such (Next Page):

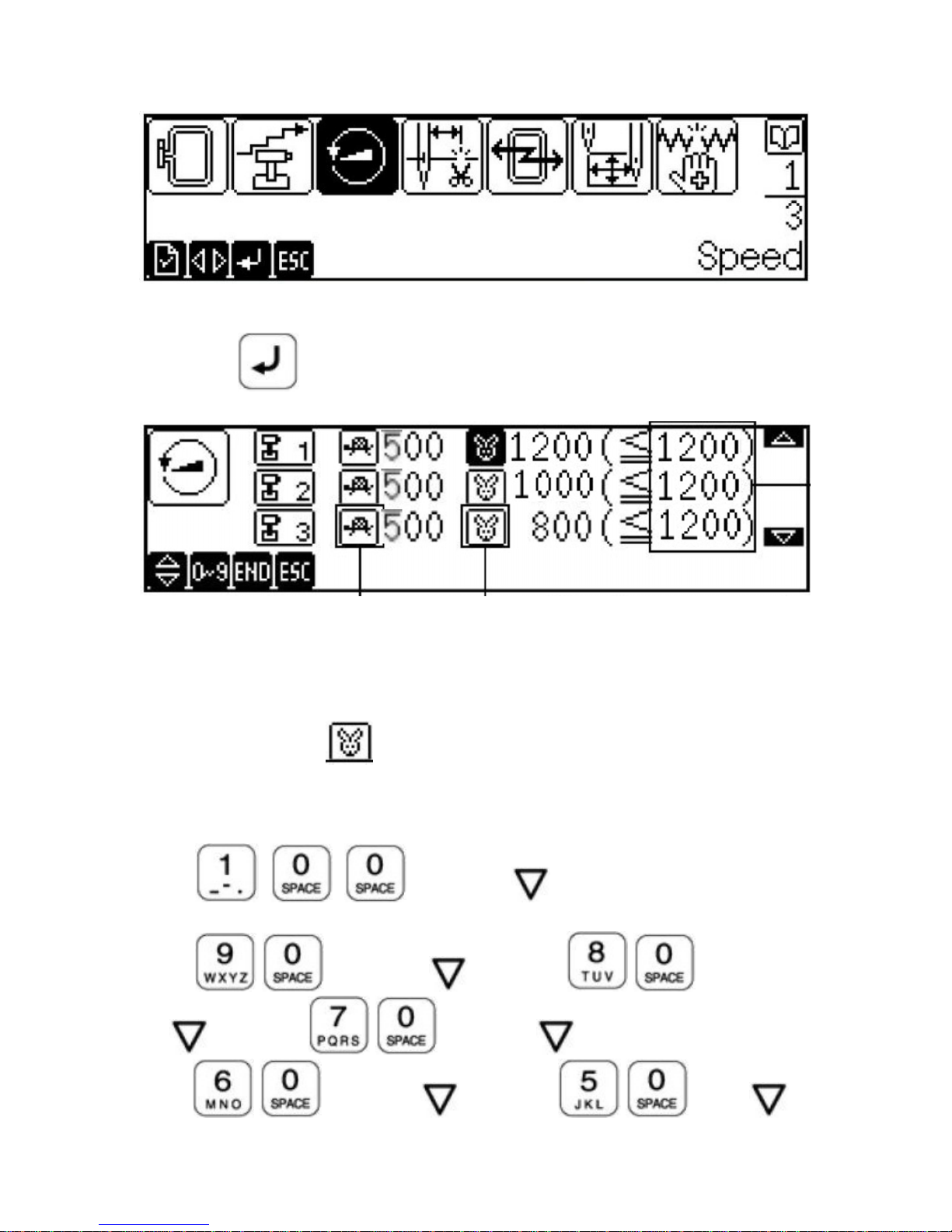

Press the key. The display should appear as such:

There are six speed ranges that can be programmed. The

programming will be set from a high speed of 1000 SPM (Stitches per

Minute) to 500 SPM, decreasing in 100 SPM increments. The image

displayed above, shows the speed of ranges 1, 2, & 3. The number

to the right of each icon shows the current programmed speed

of each range. Range 1 is shown with a speed of 1200 SPM, in the

image above.

Press , , & then the key. You have just set

range one to be 1000 SPM, and are now able to the second range.

Press ,& then the key; press ,& then

the key; press ,& then the key;

press ,& then the key; press ,. The

key will not have to be pressed after setting the sixth speed range.

The six speed ranges should now be programmed as 1000, 900, 800,

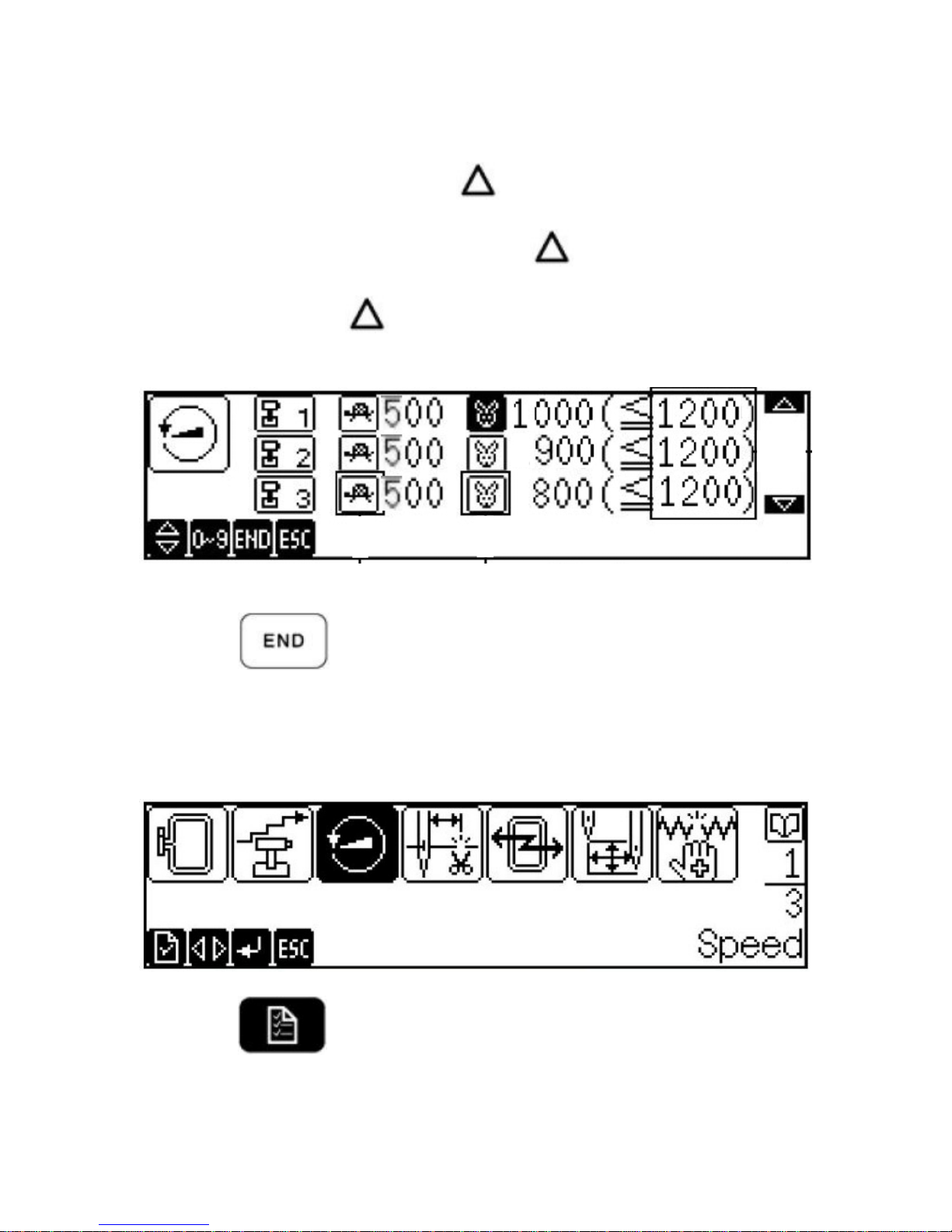

700, 600 & 500 SPM. Press the key 5 times, pausing to review

each programmed value as you scroll. Verify each setting increases

by a value of 100 SPM as you press the key. You may press the

number keys to alter a value if you see that it is programmed

incorrectly. After the key has been pressed so speed range one

is highlighted, the display should appear as:

Press the key to accept the new speed settings.

The screen should appear as such:

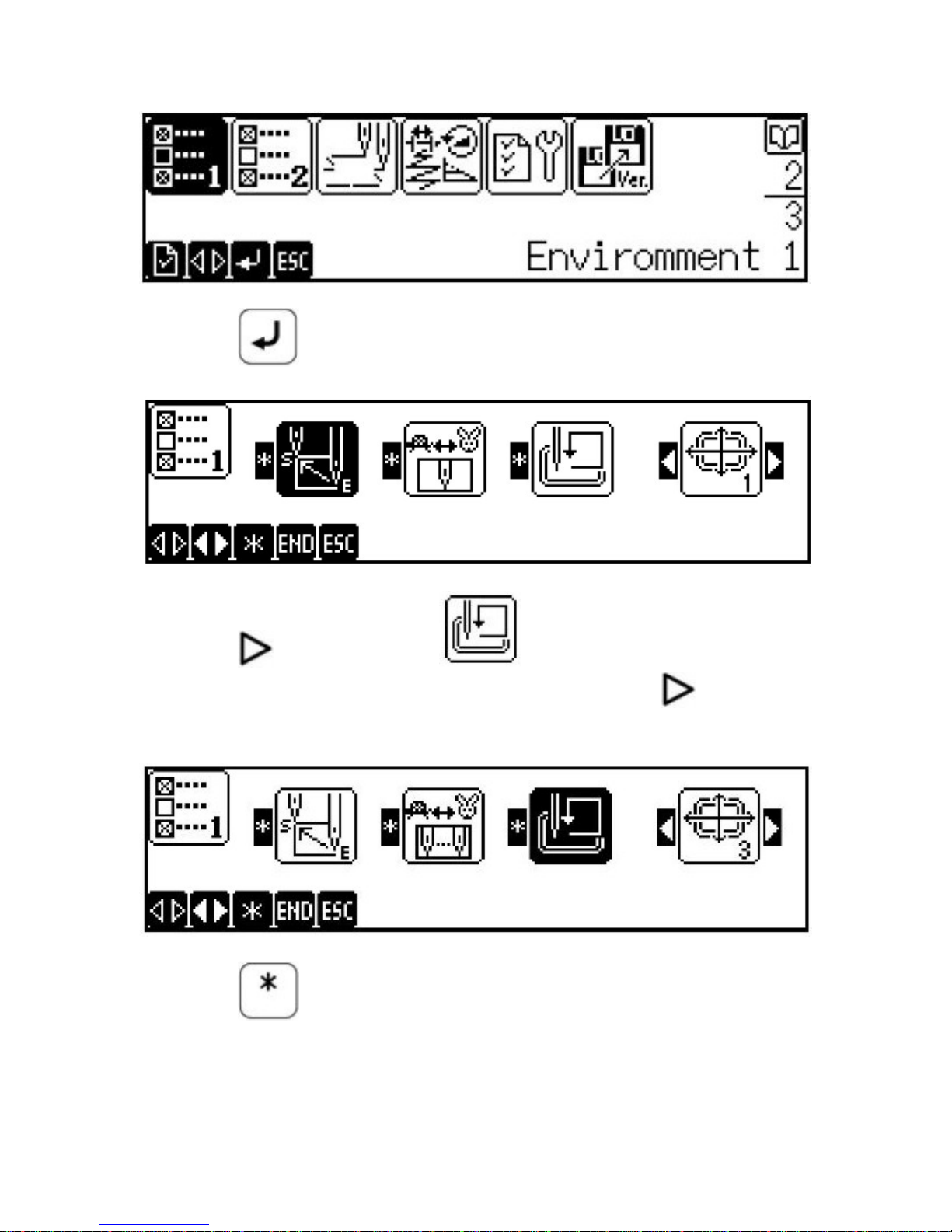

Press the key. The display should appear as such (Next

Page):

Press the key. The display should appear as such:

Press the key twice so the icon is highlighted. Let the

display react to the first keystroke before pressing the key the

second time. The display should appear as such:

Press the key to change the trace from rectangular to

octagonal. The screen should appear as such (Next Page):

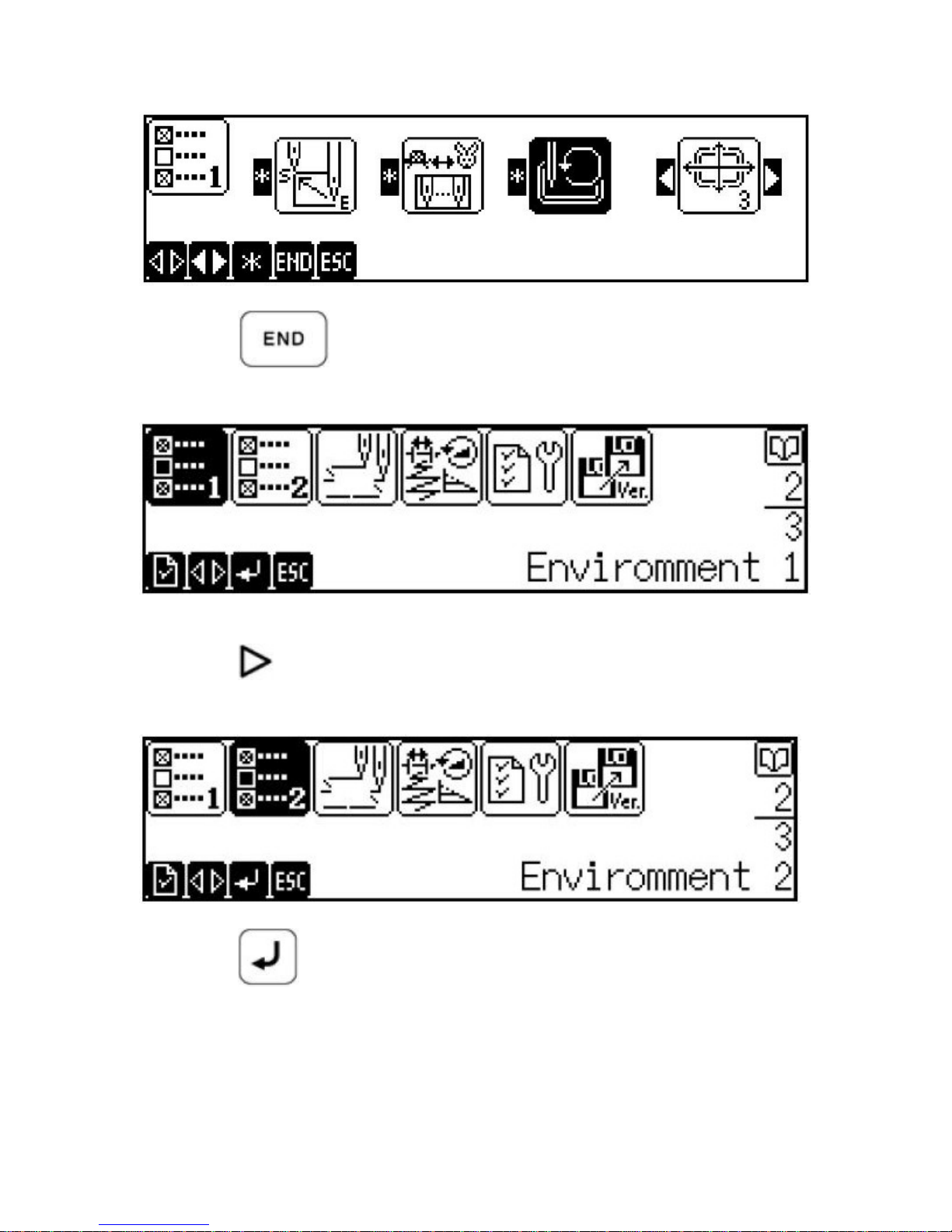

Press the key. The display should appear as such:

Press the key once. The display should appear as such:

Press the key. The display should appear as such (Next

Page):

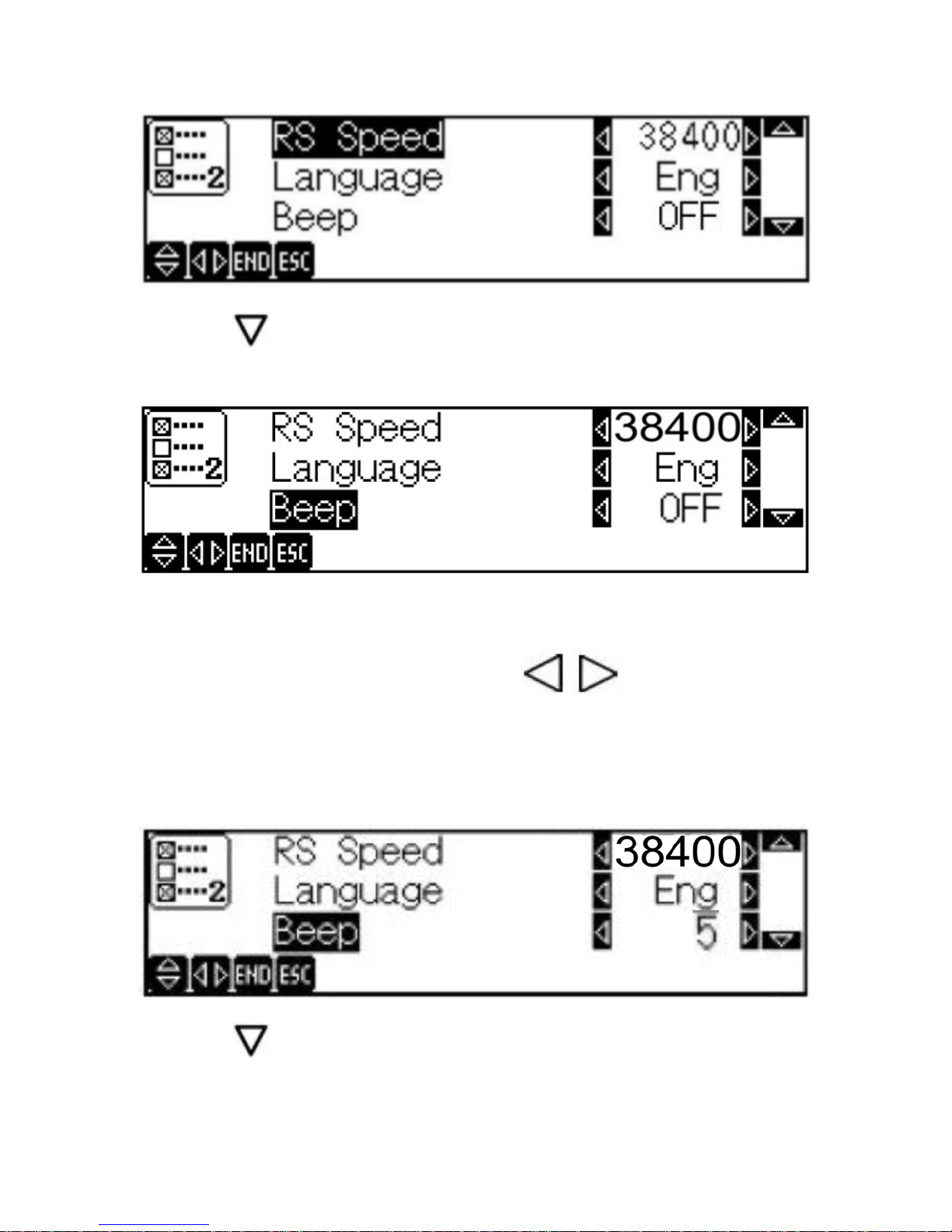

Press the key two times so the word “Beep” is highlighted. The

screen should appear as such:

There are three options for the “Beep” setting; OFF, ON, or 5. This

will determine if the panel “beeps” when there is a thread break, or

how many times it will beep. Press the arrows to scroll

through the choices. Most operators prefer the setting of “5”, so the

machine will alert them when a thread break occurs, but stop beeping

after five beeps. When the “5” is selected, the screen should appear

as such:

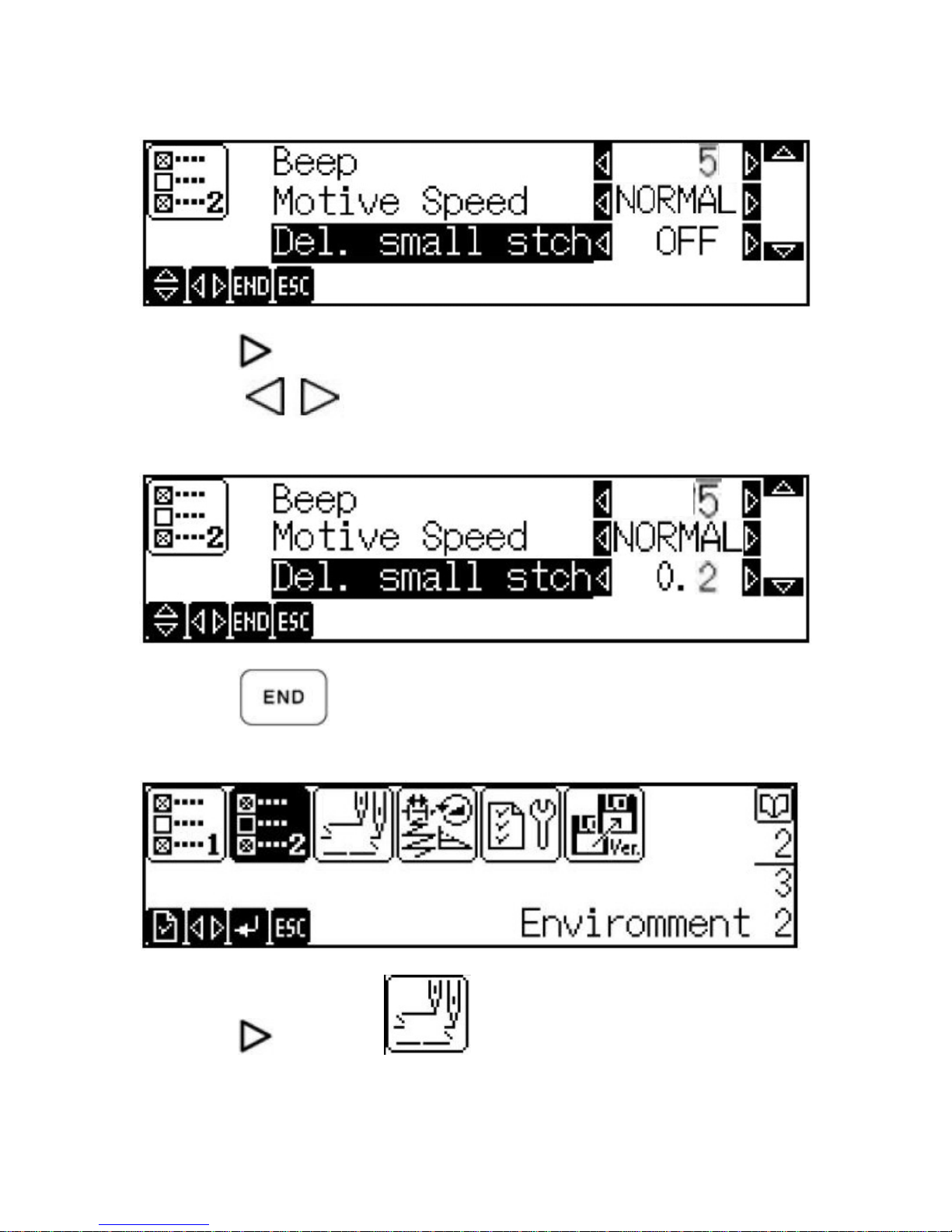

Press the key two times, so “Del. small stch” appears (allow for

the display to react to each key pressed). The display should appear

as such (Next Page):

Press the key until “0.2” replaces the word “OFF”. Each time

one of the keys is pressed, the value will increase or

decrease by 0.1 mm. The display should appear as such:

Press the key. The display should appear as such:

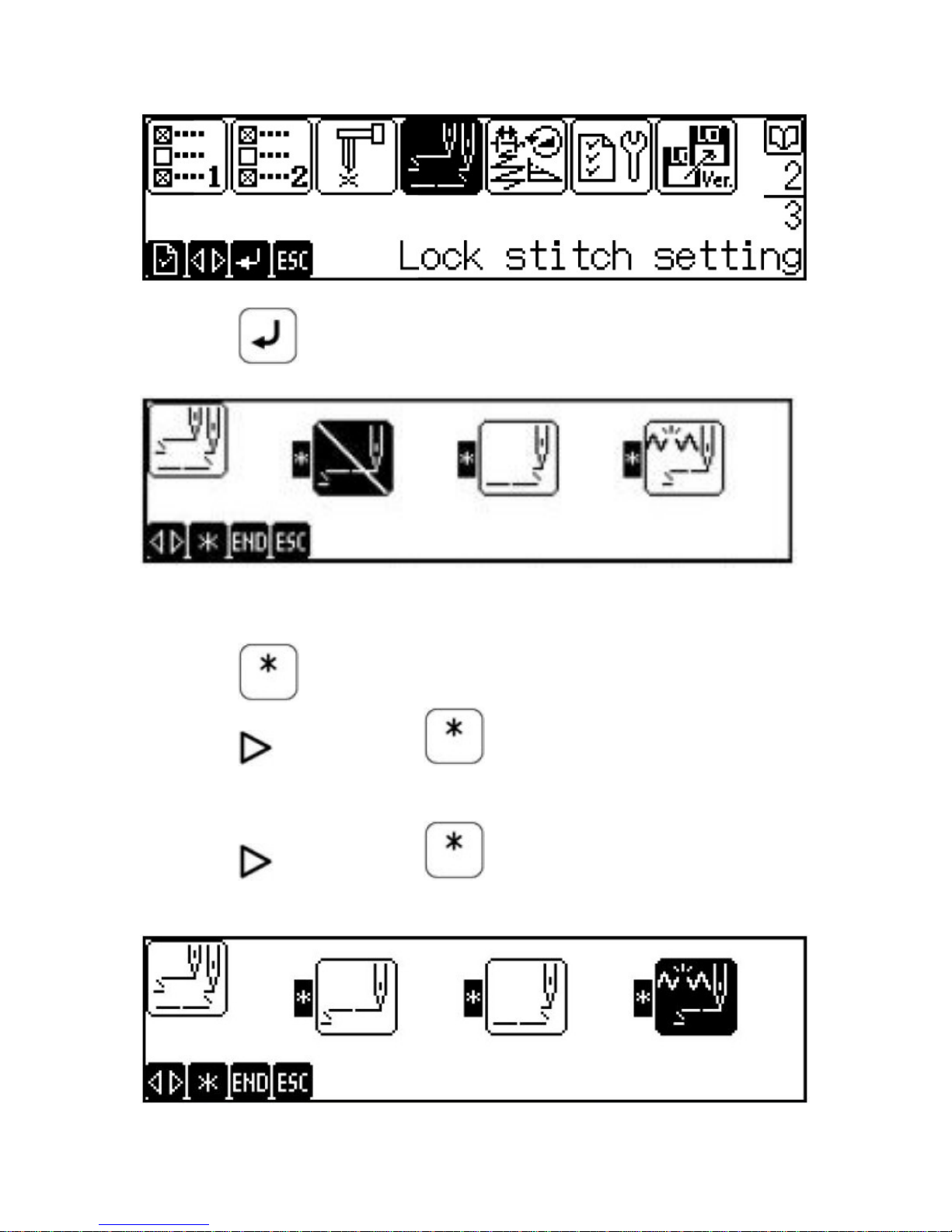

Press the key so the icon is highlighted. The display

should appear similar to (Next Page):

Press the key. The display should appear as such:

Each icon will have a slash through it as shown in the first icon.

Press the key. The slash will be removed from the first icon.

Press the key & then the key to remove the slash from the

second icon.

Press the key & then the key to remove the slash from the

third icon. The display should appear as such:
