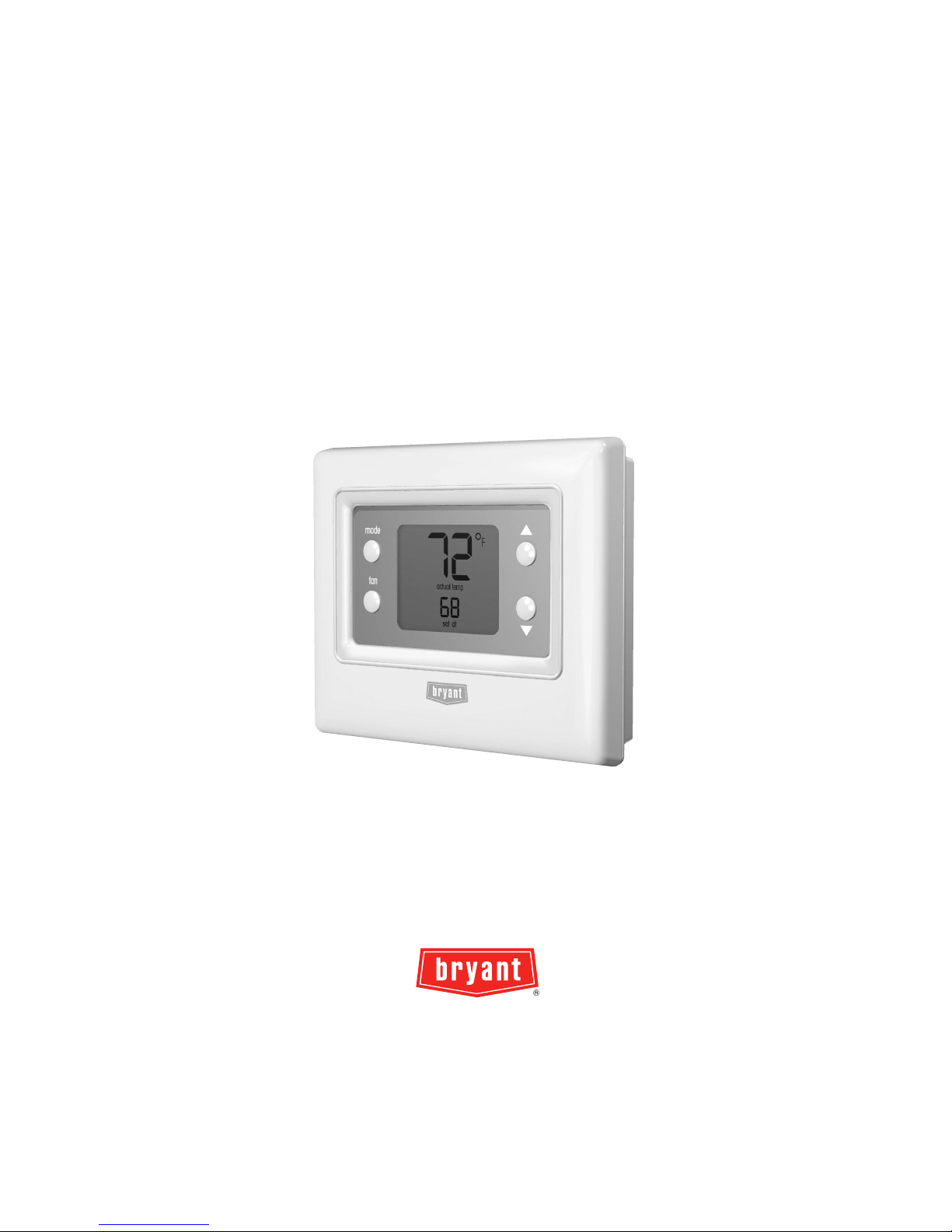

Legacy™Non-Programmable Owner’s Manual

You will love this thermostat.

This Legacy™non-programmable thermostat is an easy

to use model that provides the most sought-after

features for keeping your home comfortable. And with

aslim profile, it is designed to be as smart – and smart-

looking – as anyof the other electronics in your home.

Let this manual show you how easy it is to enjoy the

newest experience in home comfort.

Table of Contents

Button Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

On-screen Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Operating the Thermostat

Setting the temperatures for heating and cooling . . . . . . . . . . . . . . 8

Using the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Using emergency heat (heat pump systems only) . . . . . . . . . . . . . 1

Installing or replacing the batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Using the thermostat to turn the heating and cooling system off . . . 1

Auto changeover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Advanced Options

Advanced options display codes chart . . . . . . . . . . . . . . . . . . . . . . . 15

Changing from Fahrenheit to Celsius . . . . . . . . . . . . . . . . . . . . . . . . . 16

Turning on the continuous backlighting . . . . . . . . . . . . . . . . . . . . . . . 17

Keypad lockout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Unlocking the keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table of Contents

What If . . .

The battery icon is displayed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

“Aux heat on” is displayed (heat pump systems only) . . . . . . . . . .

“Em heat” is displayed (heat pump systems only) . . . . . . . . . . . . . .

Thereis a power outage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

You get a system error message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Common Terms and Whereto Find Them

Auto changeover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Auxiliaryheat (heat pump systems only).......................

Backlighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Emergency heat (heat pump systems only) . . . . . . . . . . . . . . . . . . . .

Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Button Identification

FAN Selects whether the fan operates continuously (on) or only when needed for

heating or cooling (auto)

MODE Selects whether thermostat is set for heating, cooling, emergency heat (heat

pump system only), auto (heat and cool as needed), or off

UP Increases the temperature or adjusts the screen selection up when setting

advanced programming features

DOWN Decreases the temperature or adjusts the screen selection down when

setting advanced programming features

On-Screen Indicators

actual temp

off

heat

aux

heat

fan

auto

fan

cool

on2

set at

On-Screen Indicators

1. Fan mode – on or auto

2. System is in auxiliary (supplemental) mode

3. Current temperature

4. Thermostat mode is either off or using emergency heat

5. Fahrenheit

6. Keypad is locked (no padlock means unlocked)

7. Celsius

8. Battery strength indicator

9. Selected cooling set point; “on”indicates system is in cooling mode

10. Second stage of cooling is active

Operating the Thermostat

Setting the temperatures for heating and cooling

Your thermostat is installed with the heating set at 68° F and the

cooling set at 72° F. You can use these or change them so your home

is as warm or as cool as you would like it to be. These steps will hold

the temperature where you set it.

1. To change the heating temperature, press the mode

button on the left until the screen says heat.

2. Press the up or down button located on the right side

of the display until you reach the desired temperature.

3. To change the cooling temperature, press the mode

button on the left until the screen says cool.

4. Press the up or down button located on the right side

of the display until you reach the desired temperature.
