Bryant TSTATBBPS701 Guida

Meets California Title 24 Residential

MODEL TSTATBBPS701

PROGRAMMABLE DIGITAL

THERMOSTAT

NOTE TO INSTALLER:

This manual must be left with the equipment user.

Heating & Cooling Systems

USERS INFORMATION MANUAL

HEAT

COOL

AUTO

6:03

Heat Pump & Heat Cool

7 Day Programmable

4 Time Periods per Day

Auto Changeover

Large, Easy To Read

Display

Thermoglow Backlight

Very Easy to Program

Programmable Fan

No Batteries Required

Outdoor Temperature

Sensor Available

Table Of Contents

FRONT PANEL

DISPLAY

QUICK START Set the clock and go

BASIC OPERATION

PROGRAMMING 4 Time Periods

ADVANCED SETUP

ABOUT ADVANCED OPERATION

WARRANTY

Page 1

CAUTION

Follow Installation Instructions before proceeding.

SET THERMOSTAT TO MODE “OFF” PRIOR TO

CHANGING SETTINGS IN SETUP OR RESTORING

FACTORY DEFAULTS.

Residential Light Commercial Systems Carrier Corporation 4/01

TSTATBBPS101

Front Panel

Page 2

Backlit LCD Display

Warmer or + Button

Cooler or - Button

Mode Button

Heat or Cool Indicator

Red = Heat, Green = Cool

HEAT

COOL

AUTO

6:03

SET CLOCK

PROGRAMVACATIONOUTSIDEFAN MODE

Programmable

Thermostat

FAN PROGRAMVACATION SET CLOCKOUTSIDE

HEAT

COOL

AUTO

6:03

Mode Indicators

Selects the operation mode of the equipment.

HEAT - indicates the heat mode.

COOL - indicates the air conditioning mode.

AUTO - indicates the system will automatically

changeover between heat and cool modes

as the temperature varies.

OFF - indicates the entire system is turned off.

PROGRAM ON - indicates the stored program

is enabled to run. Page 8.

Clock with Day of the Week

Indicates the current time and day. This clock is

also used to program the timer periods. Page 5.

Room Temperature Display

Indicates the current room temperature.

Desired Set Temperature

Indicates desired room temperature(s). Page 7.

Display

Page 3

HEAT

COOL

OFF

AUTO

Fan On

Program

ServiceFilter

Locked

Setup

Start

12:00

SMTWTFS

Outside

Day

Night

Evening

Morning

Outside Indication

Indicates the temperature displayed is from

the optional outside sensor. Page 21.

Morning, Day, Evening & Night Indication

Indicates the program time period. Page 8-11.

Setup Indication

Indicates the thermostat is in the programming

mode. Page 12.

Fan Operation Indication

Fan On - indicates constant, continuous fan

operation.

When Fan On is not lit - indicates the fan will

only operate when necessary to heat or

to cool. Page 7.

Service Filter Indication

Service Filter indicates when the filter should

be serviced under normal conditions.

Appears after 0 - 1950 hours of blower

operation (adjustable). Page 15.

Locked Indication

Locked appears after the right combination of

buttons are pressed, rendering the buttons

inoperative. Page 22.

Start Indication

Start appears when programming

timer functions. Page 8.

Display

Page 4

During Setup & Programming:

(Represented in dark black)

Pressing the Up and Down

buttons will modify the flashing

selection.

Press the SET CLOCK

button.

Press the SET CLOCK

button as above to

return to normal

operation.

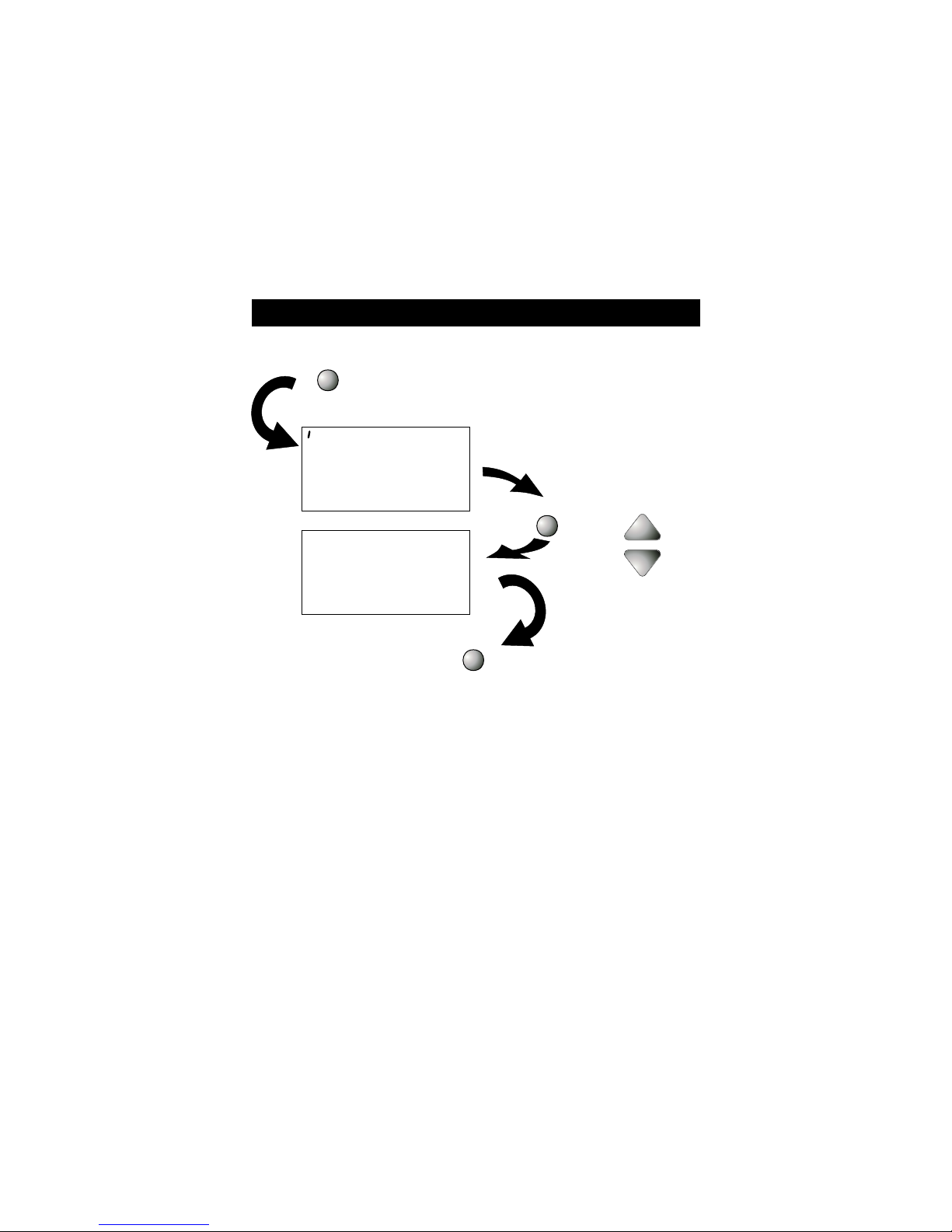

Quick Start Set the Clock and Go

Page 5

This thermostat is preprogrammed from the

factory to operate 1 or 2 Stage equipment without

the need for further programming. To optimize the

installation of this thermostat follow the instructions

in the Advanced Setup section.

Setup

buttons.

To adjust the

clock or Day use

Press

Setup

12:00 i

SET CLOCK

MODE

The HEAT setting indicates the

temperature the room has to

reach before the furnace will

turn on to heat the room.

The COOL setting indicates the

temperature the room has to

reach before the air conditioner

will turn on to cool the room.

OFF indicates both heating

and air conditioning

systems are turned off.

AUTO will automatically select

heat or cool based on room

temperature demand.

Program On will activate the

stored timer operation.

(Morning, Day, Evening

& Night Periods)

Select Mode

Basic Operation

Page 6

HEAT

12:00

COOL

12:00

HEAT

COOL

AUTO

12:00

OFF

12:00

HEAT

COOL

ProgramOn

12:00

Day

Press

MODE

Press

MODE

Press

MODE

Press

MODE

buttons.

In any mode, adjust the

desired Set Temperature

with

Pressing the Up or Down buttons in Auto mode will adjust both the heat and cool

set temperatures simultaneously.

Pressing the Up or Down buttons in Heat or Cool modes will adjust only the

heat or cool set temperature.

Select Desired Temperature

Fan

Operation

Page 7

Basic Operation

HEAT

COOL

AUTO

12:00

Fan On indicates constant fan operation.

This feature is active even if the thermostat

is set to Off.

HEAT

COOL

12:00

Fan On

Press

FA N

Programming 4 Time Periods

Page 8

Press the PROGRAM button to enter time period programming.

Continued

Select the day of week

Adjust the start time

for Morning.

Adjust the heating

setpoint for Morning.

Adjust the cooling

setpoint for Morning.

(M - S)

(35 - 99 )

Start

7 30

Morning

COOL

7 30

Morning

HEAT

COOL

7 30

Morning

Use the back cover Programming Worksheet to help with this section.

Press

PROGRAM

Press

MODE

Press

MODE

Press

MODE

Press

MODE

Programming 4 Time Periods

Page 9

Continued

Adjust the start time

for Evening.

Adjust the cooling

setpoint for Evening.

Adjust the start time

for Day.

Adjust the heating

setpoint for Day.

Adjust the cooling

setpoint for Day.

(35 - 99 )

Start

I0 30

Day

Start

5 30

Evening

Day

COOL

I0 30

Evening

COOL

5 30

Day

HEAT

COOL

I0 30

Press

MODE

Press

MODE

Press

MODE

Press

MODE

Press

MODE
