Introduction

The award winning Mini-TX UHD is the world's smallest ultra-low latency UHD wireless video transmitter on the

market, measuring just 85mm long by 56mm wide and 28mm deep. It can transmit in two entirely different

frequency bands via its software-defined radio, offering complete on-site spectrum flexibility without the need for

changeable radio modules. But, even with its compact size, the Mini-Tx UHD includes all the features expected

from a traditional wireless video transmitter, and more, with pre-distortion, GPS, Wi-Fi, and a 3-axis accelerometer

as standard and a dual UHF receiver to add robustness and flexibility to the camera control.

The Mini-Tx UHD also includes changeable connector panels for different applications, like a single UHD/HD video

input, Quad HD/Single UHD inputs or Quad HD with power and control over SDI. Additional features available with

the Mini-Tx UHD include video formats up to 2160p59; HEVC and AVC video encoding at 8/10-bit 4:2:2/4:2:0; up

to 32 Mbps video bitrate per pedestal; four channels of embedded SDI audio; two channels of analogue MIC/Line

selectable audio with MIC phantom power; MPEG1L2 audio encoding; support for HDR; and Tx frequency options

from 1.4 to 7.5 GHz. The transmitter also allows power and BSI data to be transmitted over SDI (HD only).

Location and functions of parts

This section provides an overview of the components and connectors on the Mini Tx UHD. You should

familiarize yourself with this information before installing and operating the transmitter.

Top view

The top of the Mini-Tx UHD’s RF section provides connectors to attach a UHF input antenna and an RF output

antenna.

Key

Component

Description

SMA connector

Use to connect a UHF antenna to receive camera control data from a data

transmitter.

SMA connector

(Low-band)

Use to connect an RF antenna of frequency 1.4 or 2GHz to the Mini Tx UHD.

SMA connector

(High-band)

Use to connect an RF antenna of frequency 7GHz to the Mini Tx UHD.

Mini-Tx UHD | Product Manual

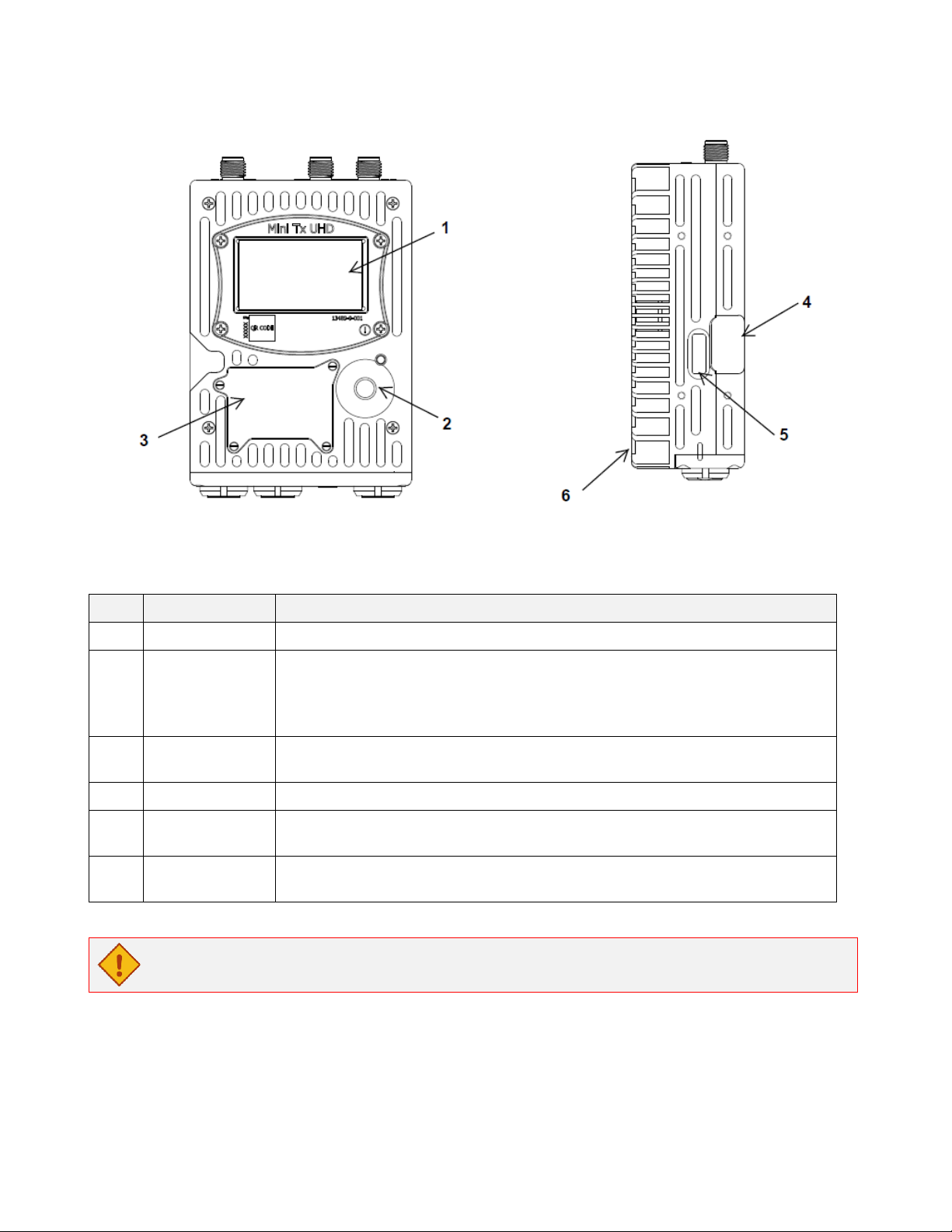

Front view & side view

Key

Component

Description

LCD

Use to view status information and configurations of the Mini Tx UHD.

Joystick

Use to navigate through the Mini Tx UHD’s display screen. Press and hold

‘Enter’ on the joystick for more than 4sec to enter the menu page.

Toggle the joystick up/down to change values and left/right to scroll through

the menus.

GPS Antenna

Use to receive GNSS signals needed for the Mini-Tx UHD to relay location

information.

Wi-Fi Antenna

Use to wirelessly communicate with other networking devices.

Micro USB

Use to provide firmware upgrade, peripheral connection, and USB to Ethernet

dongle.

Fan housing

Ensures proper heat transfer and circulation of air to avoid over-heating of the

Mini-Tx UHD.

CAUTION: Do not cover the Wi-Fi and GPS antennas with any RF blocking items as it can disturb

the signal in an unpredictable way.

Mini-Tx UHD | Product Manual

Bottom view

View the bottom view of Mini-Tx UHD for single input and quad input below,

Mini-Tx UHD Single Input

Key

Component

Description

CAM CTRL

Use to connect the camera back transmitter to the ‘Remote’ port on the camera to

control camera settings. See Cable for Remote ports to connect different cameras to the

Mini-Tx UHD.

Connector: LEMO 0B 7-pin.

AUDIO

Use to connect a microphone or audio signal from signal-processing equipment and

mixing consoles.

Connector: LEMO 0B 6-pin

SDI

Use to connect the Mini-Tx UHD to the camera’s SDI port if you are using SDI as the

video source.

Connector: HD-BNC (F).

Use to connect an external DC power supply(8-20 V) to power the Mini-Tx UHD.

Connector: LEMO 0B 2-pin

Mini-Tx UHD | Product Manual

Mini-Tx UHD Quad Input

NOTE: The front panel board of Mini-Tx UHD has three versions of SDI input which are all valid,

single UHD input, Quad 12G, and Quad 3G-CXP input.

Key

Component

Description

AUX

Use for auxiliary data and analog audio input.

Connector: LEMO 0B 9-pin

SDI IN 1

Use to connect the Mini-Tx UHD to the camera’s SDI port if you are using

SDI as the video source.

The Mini-Tx UHD has the following versions of SDI input- single UHD

input, quad 12G input, and quad 3G-CXP input.

Connector: HD-BNC (F).

SDI IN 2

SDI IN 3

SDI IN 4

8-20 V DC

Use to connect an external DC power supply to power the Mini-Tx UHD.

Connector: LEMO 0B 2-pin

Mini-Tx UHD | Product Manual

Installation

This chapter contains the installation instructions for the Mini Tx UHD.

Before installing, you should familiarize yourself with the Location and functions of parts, which provides

information about the Mini Tx UHD.

Overview

The main installation steps for a Mini Tx UHD are as follows:

1. Attach the camera mount to the camera.

2. Attach the Mini Tx UHD to the camera mount.

3. Connect the Mini Tx UHD to the camera.

Preparation

Before connecting and configuring the Mini Tx UHD, you should familiarize yourself with the transmitter’s

environmental and power requirements.

Specification

Details

Humidity

95% non-condensing

Temperature

-20 to +45 degrees C

Table 1: Environmental requirements

Power requirements

The following table summarizes the power requirements for a Mini-Tx UHD.

Specification

Details

Connector

LEMO 0B 2-pin ECG.0B.302.CLV

Supply

8-20 V DC

Table 2: Power requirements

Unpack the Mini Tx UHD

Unpack the Mini Tx UHD and refer to the packing list to ensure that all items are included. Report any missing

items immediately to the Real Freedom Team.

Inspect the Mini Tx UHD for signs of damage. Report any damage to the Real Freedom Team.

Additional items required for installation

To install the Mini Tx UHD, you will require the following additional items:

•Camera

The Mini Tx UHD is compatible with most hand-held broadcast cameras.

Indice

Altri manuali BSi Trasmettitore

BSi

BSi Real Freedom Manuale utente

Manuali Trasmettitore popolari di altre marche

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuale del proprietario

Honeywell

Honeywell 5816WMBR Manuale utente

Kamstrup

Kamstrup READy MTU Istruzioni operative

Omega

Omega ZW Series Manuale utente

ABB

ABB Field 264H Guida

Alinco

Alinco DJ-V17T Manuale utente

Dejero

Dejero EnGo 3x Manuale utente

Rosemount

Rosemount 4600 Manuale utente

Speaka Professional

Speaka Professional 2342740 Manuale utente

trubomat

trubomat GAB 1000 Manuale utente

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuale utente

Rondish

Rondish UT-11 Manuale utente

MG 10JRE Manuale utente

Burkert

Burkert 8177 Manuale utente

Firetide

Firetide HotPort 3203 Manuale

Tele Radio

Tele Radio T9-02 Manuale utente

Rotronic

Rotronic HygroFlex HF3 Series Manuale utente

Jamara

Jamara FCX6 Pro Tel Manuale utente
