5
344082
BT00641-a-EN
TECHNICAL SHEETS

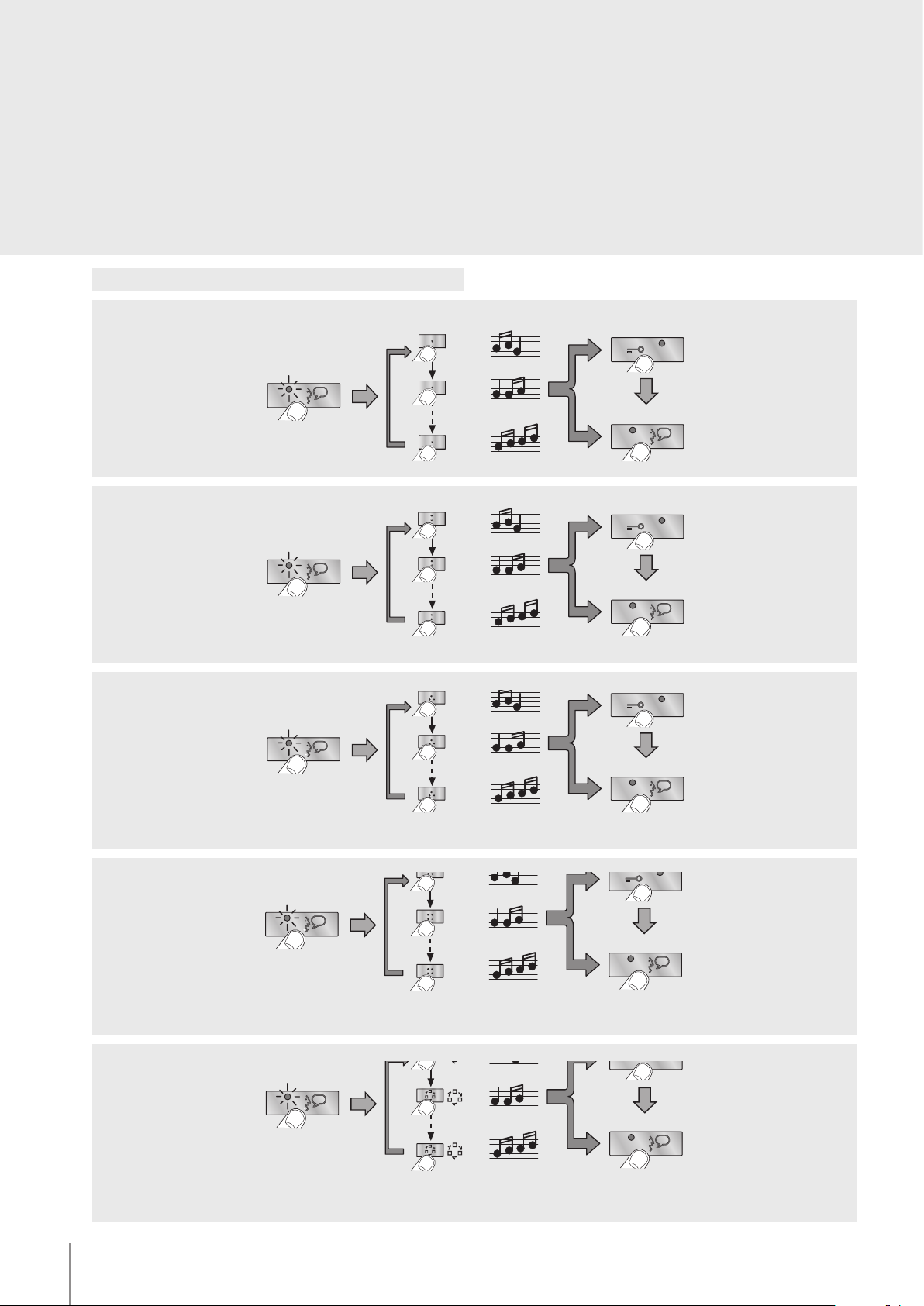

MODE KEY FUNCTION NOTES
6
MOD = 1Activation of the scenario saved in the scenario module (SCENARIO 1)
2Activation of the scenario saved in the scenario module (SCENARIO 2)
3
EP door lock release (congured with P+1), directly, without call, or activation of
the actuator, item 346200 (congured with P+1 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+1)
4
EP door lock release (congured with P+2), directly, without call, or activation of
the actuator, item 346200 (congured with P+2 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+2)
7
MOD =
1Intercom inside the apartment, in systems with apartment interface item 346850,
or intercom among apartments without apartment interface. 1
N=1N=3
1
N=2N=1
1
N=
=1
2Intercom inside the apartment, in systems with apartment interface item 346850,
or intercom among apartments without apartment interface. 2
2
2
3Activation of the scenario saved in the scenario module (SCENARIO 1)
4Activation of the scenario saved in the scenario module (SCENARIO 2)
8
MOD = 1Activation of the scenario saved in the scenario module (SCENARIO 1)
2Activation of the scenario saved in the scenario module (SCENARIO 2)
3Activation of the scenario saved in the scenario module (SCENARIO 3)
4Activation of the scenario saved in the scenario module (SCENARIO 4)
1
MOD = 1General Intercom, sends a call to all the handsets of the system.
2EP activation (congured with P+1), directly, without call, or activation of the
actuator, item 346200 (congured with P+1 and MOD=9)
3
EP door lock release (congured with P+1), directly, without call, or activation of
the actuator, item 346200 (congured with P+1 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+1)
4
EP door lock release (congured with P+2), directly, without call, or activation of
the actuator, item 346200 (congured with P+2 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+2)
1 2
MOD =
1Intercom between apartments, in systems with apartment interface, item 346850
1
2Intercom between apartments, in systems with apartment interface, item 346850
2
3
EP door lock release (congured with P+1), directly, without call, or activation of
the actuator, item 346200 (congured with P+1 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+1)
4
EP door lock release (congured with P+2), directly, without call, or activation of
the actuator, item 346200 (congured with P+2 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+2)
