1 Introduction

1.1 Warnings and tips

Before proceeding with the installation read this manual carefully. The guarantee is automatically

cancelled in the case of negligence, incorrect use and tampering by unauthorised people.

Thus the Axolute Video Station:

- must only be installed indoors;

- must not be exposed to drips or splashes of water;

- must only be used on BTicino digital 2-wire video door entry systems.

1.2 Package content

The package contains:

Axolute Video Station•

Metal base for wall installation•

Installation manual•

User manual•

CD•

Cleaning cloth•

Installation manual

AXOLUTE

Nighter &Whice

2 Description

2.1 Main functions

The BTicino Axolute Video Station is the evolution of the video handset which can be used in man-

aging the home system. As well as all the 2-wire digital door entry functions, in systems combined

with the My Home multimedia system, Axolute Video Station can manage the home: from security

to well-being to entertainment (display of the alarm state, sound system, temperature setting in

single rooms) with sound system amplifier function.

It has an 8" colour LCD screen, audio stereo loudspeakers, icon menu, capacitive keypad with blue

LED backlit keys for navigation in the menu and video door entry function keys.

COMBINATIONS

Communication:

Allows access via the main menu page to a set of predefined video door entry function keys:

INTERCOM – intercom call to an audio handset

CAMERA – direct activation of the camera associated to the entrance panel or separate for video

CCTV

ACTIVATION – direct activation of the actuator associated to the entrance panel

SEQUENTIAL SWITCHING – sequential activation of the cameras in the system

Scenarios:

Can activate the first five scenarios saved in the scenario module.

Alarms:

Can display the divided zones, the system state and the last three alarms received with information

on them (date, time and type of alarm).

Sound system:

Can manage the BTicino digital sound system: cycle the sources and the tune/station of the active

source and adjust the volume of the local amplifier (if locally supplied).

Temperature control:

Can monitor the state of the temperature control unit, display and adjust the temperature (manu-

al) in the single zones of the home and set the Protection/Week/Off state.

Multimedia:

Can access and manage the multimedia system.

2.2 Front view

2 Description

8" colour LCD screen1 -

Microphone2 -

Navigation keys3 -

Led and Video door entry function keys4 -

Installation manual

AXOLUTE

Nighter &Whice

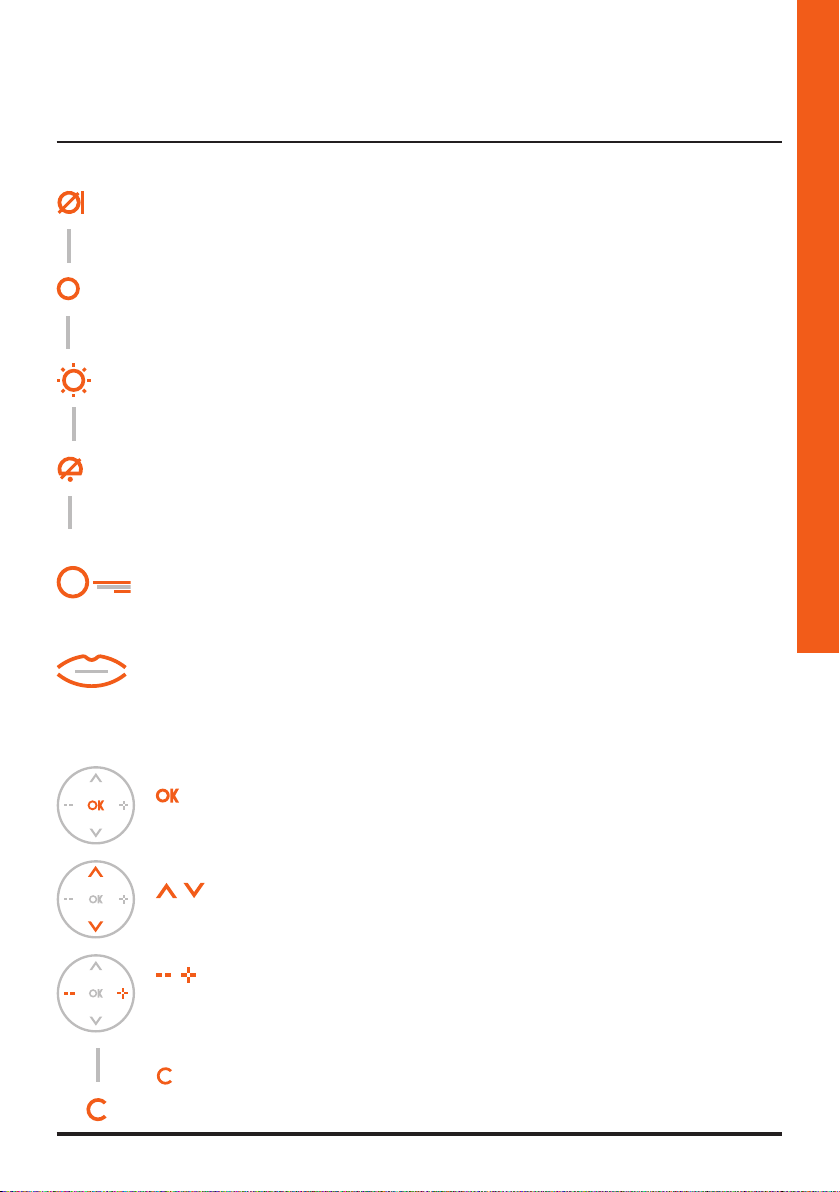

2.3 Video door entry function keys

2.4 Navigation keys

Connection key

Activates/deactivates the connection. If a call is received the LED flashes, during the

conversation it shines steadily.

At rest activates the paging function (if enabled).

Door lock key

In connection opens the door lock of the connected Entrance Panel, at rest that of

the associated Entrance Panel.

The LED signals its operation.

Staircase lights

Activates the staircase light relay.

Mute

Disables/enables the microphone during a sound connection. Activating the Mute during

the conversation the connection key LED turns red.

Call Exclusion

Disables/enables the call bell. If the bell is disabled, the exclusion LED lights up and the

Connection LED signals the call (flashing)

Activation Entrance Panel/Cycling

Activates the switching ON of the associated Entrance Panel and cycles any other Entrance

Panels/cameras.

key

Gives access to the menu; confirms the selection made.

keys

Inside the menus change the value set.

In audio/video connection allow quick access to the audio/video adjustments.

keys

Inside the menus selects the previous or next item.

key

Returns to the previous screen. If on the first screen switches the display OFF.

2.5 Rear view

Configurator socket1 -

Mini-USB connector for connection to the PC2 -

Loudspeakers to play voice and stereo sound3 -

Screw to fasten the Video Station to the metal base4 -

Connector for extra power supply5 -

Connector for connection of the BTicino 2-wire digital system BUS6 -

Stretch end ON/OFF microswitch7 -

2 Description

Installation manual

AXOLUTE

Nighter &Whice

3 Installation

3.1 Wall installation with metal base supplied

To fasten the base use screw anchors and screws of the correct size.

Do not fasten the base directly to the flush-mounted box.

To complete the installation turn the fastening screw

in the lower part of the Video Station anticlockwise.

Make sure that the nut

is positioned at the

lower end.

After making all the connections fasten

the Axolute Video Station to the base

being careful to arrange the wires so

that they are not damaged.

1 2 3 4

BUS 12

346000

230 Vac

4 Quick configuration

N = (in double figures) address of the device in the video door entry system

P = address of the Entrance Panel associated with the device

M = mode (defines the main menu page and thus the functions which can be used)

CAUTION

If the device is configured by configurations the con-

figuration CANNOT BE EDITED from the menu

The quick configuration is recommended for standard video door entry systems where no special

functions are required and short installation times are important.

In this case the device is configured physically, inserting the configurators in sockets N, P and M.

The configurator in M defines the video door entry mode corresponding to a predefined set of five

video door entry functions.

QUICK CONFIGURATION BY MEANS OF M CONFIGURATOR

Note: If the apartment has the 2-wire apartment interface item 346850 the Axolute Video Station

should be configured using Advanced Configuration
