Buell 2006 P3 Manuale utente

2006 BUELL P3

SERVICE MANUAL

Part Number 99492-06Y

Section 1: Maintenance

Section 2: Chassis

Section 3: Engine

Section 4: Fuel System

Section 5: Starter

Section 6: Drive/Transmission

Section 7: Electrical

Appendix

1-2 Edit Me: Printed April 15, 2005 10:56 am

Appendix A: Tools A-1

HOME

TOOLS A.1

Part No. B-35316-5 12 Inch Bolt.

Used with Part No. HD-39302.

Part No. B-41174 Rear Wheel Support Stand and

Part No. B-41174-2 Replacement Pad.

Part No. B-41177 Front Fork HoldingTool

Part No. B-43933 Wheel Bearing Remover/Installer.

Use with Part No. HD-44060.

Part No. B-43982 Sprocket LockingTool

Part No. B-43983 Main Drive Gear Cross Plate.

Used with Part No. HD-35316A.

Part No. B-43985Transmission Remover/Installer

Part No. B-43987 Engine Cradle

Used with HD-42310

A-2 Appendix A: Tools

HOME

Part No. B-43991 Fork Seal/Bushing Driver

Part No. B-59000A Pro Level Oil Gauge

Part No. HD-25070 Robinair Heat Gun

Part No. HD-33446A CylinderTorque Plates

andTorque Plate Bolts Part No. HD-33446-86.

Part No. HD-33223-1 Cylinder Compression Gauge

Part No. HD-33413-A Carburetor Idle AdjustmentTool

Part No. HD-33416 Universal Driver Handle

Part No. HD-33418 Universal Puller Forcing Screw

Appendix A: Tools A-3

HOME

Part No. HD-33813 InductiveTiming Light

Part No. HD-34623B Piston Pin

Retaining Ring Installer/Remover

Part No. HD-34643A Shoulderless Valve Guide

Seal Installer

Part No. HD-34723 Valve Guide Hone (8 mm)

Part No. HD-34731 Shoulderless Valve Guide

InstallationTool

Part No. HD-34736B Valve Spring Compressor

Part No. HD-34740 Driver Handle and Remover. Use with

Part No. HD-34643A and art No. HD-34731.

Part No. HD-34751 Nylon Valve Guide Brush

A-4 Appendix A: Tools

HOME

Part No. HD-34902-B Primary Bearing Race Remover/

Installer

Part No. HD-35102 Wrist Pin Bushing Hone (20 mm)

Part No. HD-35316-A Main Drive Gear Remover/Installer

and Main Drive Gear Bearing Installer.

Part No. HD-35381 BeltTension Gauge

Part No. HD-35457 Black Light Leak Detector

Part No. HD-35500A Digital Multi-Meter (FLUKE 23)

Part No. HD-35518 Internal/External

Retaining Ring Pliers

Part No. HD-35667A Cylinder LeakdownTester

CYLINDER LEAKDOWN TESTER

JHYUY

Guibikhf iugu iu ptr td6rd

Foihjolm oijfollkop Yuooifoihfm

knsdl hlno hslnslnnsdl hlno

bs npond bpdk kznh

odlbndpob npond bndb n

CYLINDER LEAKDOWN TESTER

Bdhgkjsbkdv ' ksjjlkn lk

knsdl hlno hslnsln nlslns finbp pffb

odlbndpob nponno[bho

knsdl hlno hslnsln nlslns finbp pffb

odlbndpob npdb ndbno[bho

knsdl hlno hslnslnnsdl hlno hso[bho

knsdl hlno hslnslp pffb

odlbndpob npond bndb ndbno[bho

Bdhgkjsbkdv ' ksjjlkn lk

knsdl hlno hslnsln nlslns finbp pffb

odlbndpob nponno[bho

knsdl hlno hslnsln nlslns finbp pklhb

odlbndpob npdb ndbno[bho

knsdl hlno hslnslnnsdl hlno hso[bho

bs npond bpdk kznh

odlbndpob npond bndb ndbno[bho

Bdhgkjsbkdv ' ksjjlkn lk

knsdlhlno hslnsln nlslns finbp pffb

odlbndpobnponno[bho

knsdlhlno hslnsln nlslns finbp pklhb

Bdhgkjsbkdv Majjlkn Nolk

knsdl hlno hslnsln

ndpob npond

Bdhgkjsbkdv hlno hslnslp

knsdl hlno hslnsln

ndpob npond

Appendix A: Tools A-5

HOME

Part No. HD-35758 Neway Valve Seat Cutter Set

Part No. HD-37842A Inner/Outer Main Drive Gear

Needle Bearing Installer

Part No. HD-38125-6 PackardTerminal CrimpTool

(Sealed and non-sealed connectors)

Part No. HD-38125-7 PackardTerminal CrimpTool

(Sealed connectors)

Part No. HD-38125-8 PackardTerminal CrimpTool

Part No. HD-38361 Cam Gear Gauge Pin Set

(0.108 in. (2.74 mm) Diameter)

Part No. HD-38362 Sprocket Locking Link

Part No. HD-38515-A Clutch Spring CompressingTool

and Part No. HD-38515-91 Forcing Screw.

A-6 Appendix A: Tools

HOME

Part No. HD-38871- 2 Reamer. Use with Part No. B-43988

Camshaft Bushing Reamer Fixture

Part No. HD-39151 Shift Drum Retaining Ring Installer

Part No. HD-39301-A Steering Head Bearing

Race Remover

Part No. HD-39302 Steering Head Bearing

Race Installer

Part No. HD-39458 Sprocket Shaft Bearing Outer

Race Installer

Part No. HD-39565 Engine Sound Probe

Part No. HD-39617 Inductive Amp Probe.

Use with Part No. HD-35500A.

Part No. HD-39621 ElectricalTerminal Repair Kit

SPOR

STER

Appendix A: Tools A-7

HOME

Part No. HD-39782 Cylinder Head Support

Part No. HD-39786 Cylinder Head Holding Fixture

Part No. HD-39800 Oil Filter Crusher, Small

Part No. HD-39823 Oil Filter Crusher, Large

Part No. HD-39847 Universal RatchetingTap/

Reamer Handle

Part No. HD-39932 (Steel) or HD-39932-CAR (Carbide)

Intake and ExhaustValve Guide Reamer.

Part No. HD-39964 Reamer Lubricant (CoolTool)

Part No. HD-39965 DeutschTerminal CrimpTool

A-8 Appendix A: Tools

HOME

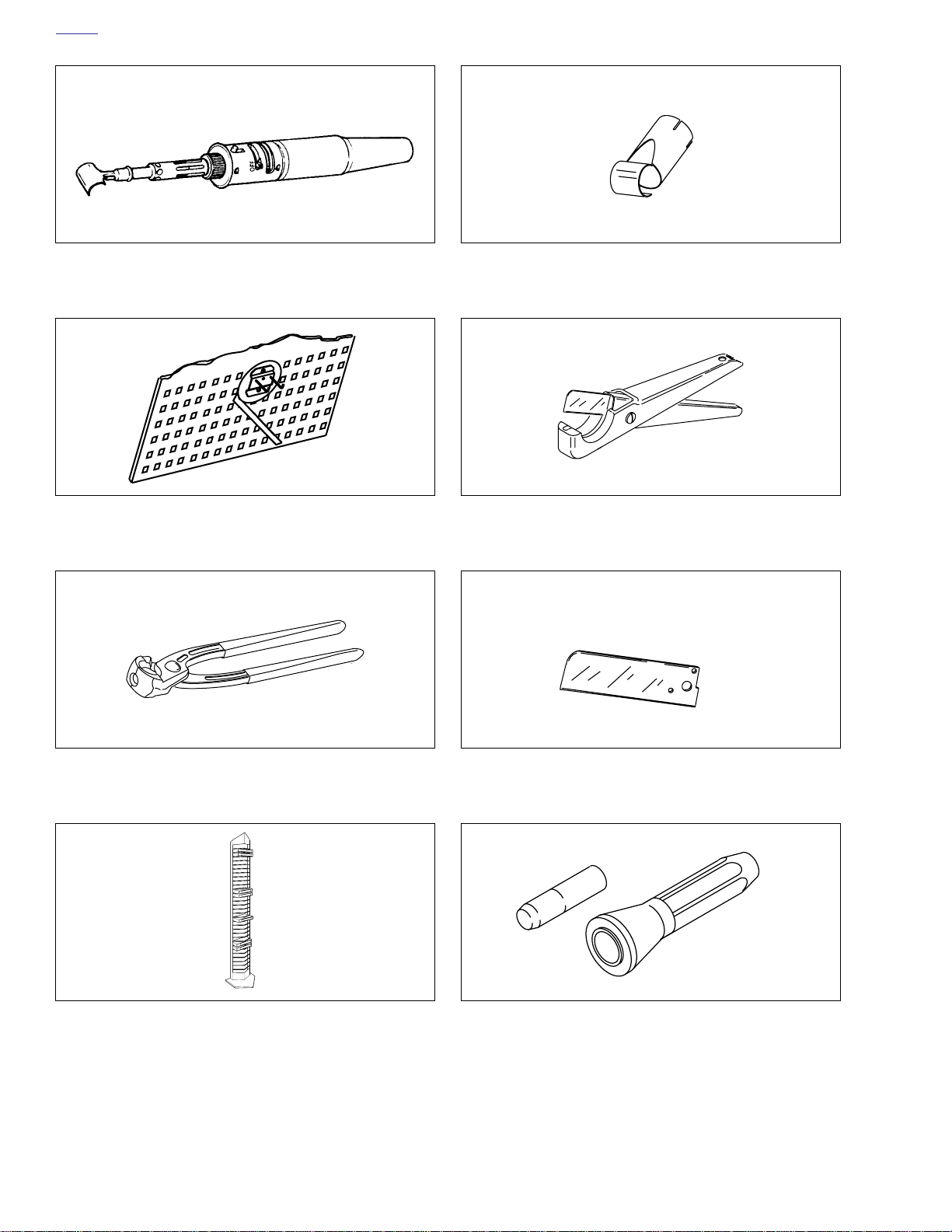

Part No. HD-39969 Ultra-Torch UT-100

Part No. BU-44473Tool Organizational System

Part No. HD-41137 Hose Clamp Pliers

Part No. HD-41155 VHS Video Shelf

Part No. HD-41183 Heat Shield Attachment.

Use with Part No. HD-25070.

Part No. HD-41185 Hose CuttingTool

Part No. HD-41185-1 Oil Hose Cutter-Replacement Blade

Part No. HD-41405 Main Drive Gear Seal Installer
