2007 BUELL FIREBOLT MODELS

SERVICE MANUAL

Part Number 99493-07Y

Section 1: Maintenance

Section 2: Chassis

Section 3: Engine

Section 4: Fuel System

Section 5: Starter

Section 6: Drive/Transmission

Section 7: Electrical

Appendices

2007 Buell Firebolt: Appendix A A-1

HOME

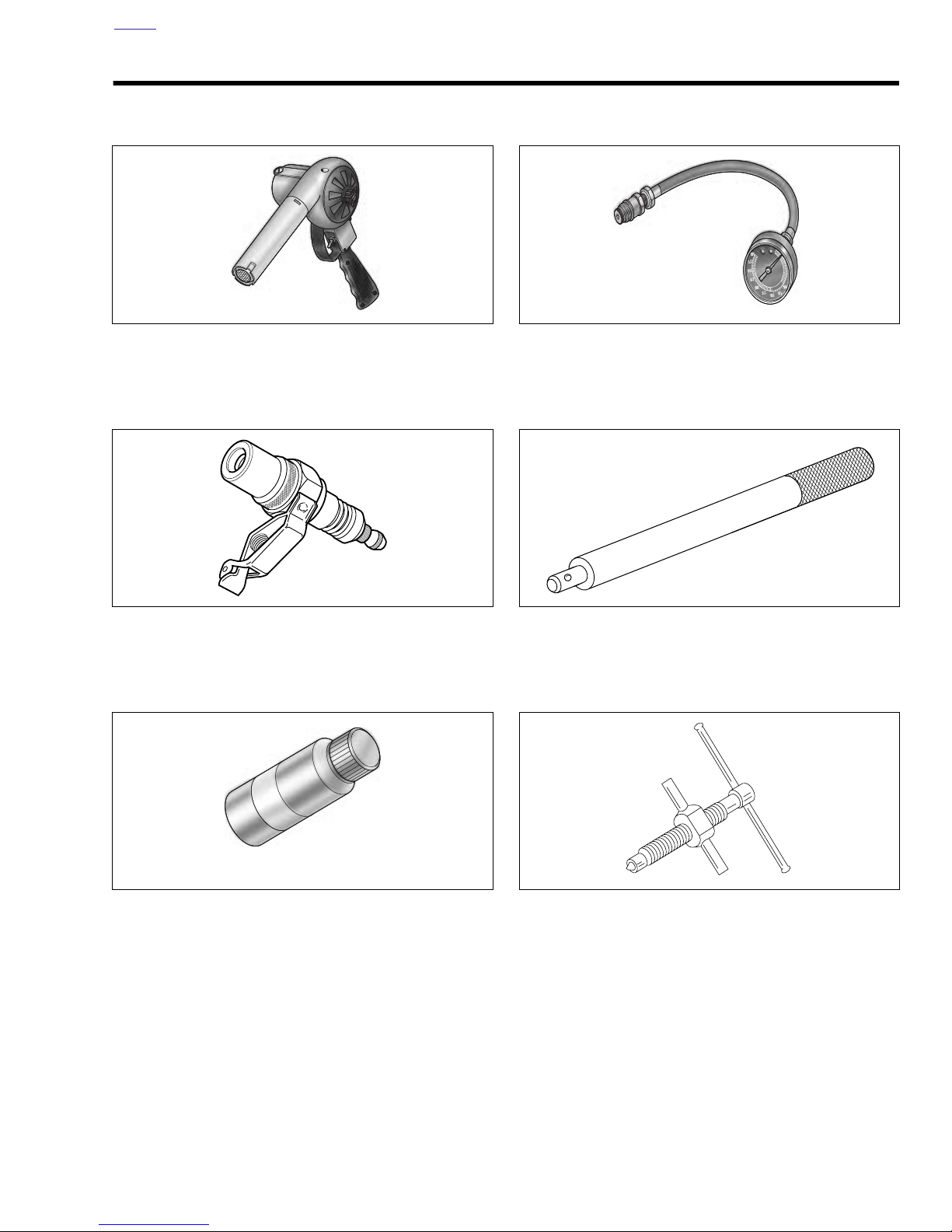

APPENDIX A–TOOLS A.1

Part No. HD-25070 Robinair Heat Gun

(Use with HD-41183)

Part No. HD-26792 Spark Tester

Part No. HD-28431-B Black Light Fluorescent Additive

(Use with HD-)

HD-25070

HD-26792

HD-28431-6 Fluorescent Additive 6 1-oz. bottles

HD-28431-22 Fluorescent Additive 1 22-oz. container

HD-28431B

Part No. HD-33223-1 Cylinder Compression Gauges

Part No. HD-33416 Universal Driver Handle

Part No. HD-33418 Universal Puller Forcing Screw

h33223

HD33416

h33418

A-2 2007 Buell Firebolt: Appendix A

HOME

Part No. HD-33446A Cylinder Torque Plates

and Torque Plate Bolts Part No. HD-33446-86

Part No. HD-34623C Piston Pin

Retaining Ring Installer/Remover

Part No. HD34736-B Valve Spring Compressor

Part No. HD-34751 Nylon Valve Guide Brush

h33446

b1001a3x

h34726B

h34751

Part No.HD-34902-B Mainshaft Primary Bearing Race

Remover And Installer

Part No. HD-35102 Wrist Pin Bushing Hone (20 mm)

Part No. HD-35316-C Main Drive Gear Remover/Installer

and Main Drive Gear Bearing Installer

Part No. HD-35457 Black

Light Leak Detector

h34902b

h35102

HD-35316C

h35457

2007 Buell Firebolt: Appendix A A-3

HOME

Part No. HD-35518 Internal/External

Retaining Ring Pliers

Part No. HD-35667A Cylinder Leakdown Tester

Part No. HD-35758-B Neway Valve Seat Cutter Set

Part No. HD-38125-6 Packard Terminal Crimp Tool

(Sealed)

HD-35518

CYLINDER LEAKDOWN TESTER

JHYUY

Guibikhf iugu iu ptr td6rd

Foihjolm oijfollkop Yuooifoihfm

knsdl hlno hslnslnnsdl hlno

bs npond bpdk kznh

odlbndpob npond bndb n

CYLINDER LEAKDOWN TESTER

Bdhgkjsbkdv ' ksjjlkn lk

knsdl hlno hslnsln nlslns finbp pffb

odlbndpob nponno[bho

knsdl hlno hslnsln nlslns finbp pffb

odlbndpob npdb ndbno[bho

knsdl hlno hslnslnnsdl hlno hso[bho

knsdl hlno hslnslp pffb

odlbndpob npond bndb ndbno[bho

Bdhgkjsbkdv ' ksjjlkn lk

knsdl hlno hslnsln nlslns finbp pffb

odlbndpob nponno[bho

knsdl hlno hslnsln nlslns finbp pklhb

odlbndpob npdb ndbno[bho

knsdl hlno hslnslnnsdl hlno hso[bho

bs npond bpdk kznh

odlbndpob npond bndb ndbno[bho

Bdhgkjsbkdv ' ksjjlkn lk

knsdlhlno hslnsln nlslns finbp pffb

odlbndpobnponno[bho

knsdlhlno hslnsln nlslns finbp pklhb

Bdhgkjsbkdv Majjlkn Nolk

knsdl hlno hslnsln

ndpob npond

Bdhgkjsbkdv hlno hslnslp

knsdl hlno hslnsln

ndpob npond

HD35567

HD-35758

HD-38125-6

Part No. HD-38125-7 Packard Terminal Crimp Tool

(Nonsealed)

Part No. HD-38125-8 Packard Terminal Crimp Tool

Part No. HD-38515-A Clutch Spring Compressor

Part No. HD-39302 Steering Head Bearing Race Installer

(Used with B-45521)

HD-38125-7

HD38125-8

h38515A

h39302

A-4 2007 Buell Firebolt: Appendix A

HOME

Part No. HD-39565 Engine Sound Probe

Part No. HD-39617 Fluke AC/DC Current Problem

Part No. HD-39782-A Cylinder Head Support Stand

Part No. HD-39786 Cylinder Head Holding Fixture

HD-39565

HD39617

h39782

h39786

Part No. HD-39964 Reamer Lubricant (Cool Tool)

Part No. HD-39965 Deutsch Terminal Crimp Tool

Part No. HD-39969 Ultra-Torch UT-100

Part No. HD-39978 Fluke 78 Multimeter (DVOM)F

HD39964

HD39965

HD-39969

HD39978

2007 Buell Firebolt: Appendix A A-5

HOME

Part No. HD-41025-A Tool Board System

Part No. HD-41137 Two-Way Hose Clamp Pliers

Part No. HD-41155 VHS Tape Storage Rack

Part No. HD-41177 Fork Tube Holder

HD-41025-A

HD-41137

HD41155-2

b41177-94

Part No. HD-41185 Hose Cutting Tool

Part No. HD-41334 RPM Inductive Pickup

Part No. HD-41354 Speedometer Tester

Part No. HD-41404 Harness Connector Test Kit

HD-41185

HD39617

h41354

HD41404

A-6 2007 Buell Firebolt: Appendix A

HOME

Part No. HD-41417 Propane Enrichment Kit

Part No. HD-41475 Deutsch Terminal Repair Kit

Part No. HD-41475-100 Deutsch Connector Pick Tool

Part No. HD-41496 Main Drive Gear Seal Installer

HD-41417

h41475

h41475-100

HD41496

Part No. HD-41609 Amp Multi-Lock Crimper

Part No. B-41623-B Oil Line Remover

Part No. HD-41675 Oil Pressure Sending Unit Wrench

Part No. HD-42310 Engine Transmission Stand

HD39965

B41623

HD41675

h42310a

2007 Buell Firebolt: Appendix A A-7

HOME

Part No. HD-42310-150 Engine Stand Drip Tray

Part No. HD-42311 Oil Filter Wrench

Part No. HD-42320-A Piston Pin Extractor

Part No. HD-42322 Piston Support Plate

h42310-150a

h42311a

h42320a

h42322

Part No. HD-42326-A Crankshaft Guide

Part No. HD-42376 Battery Load Tester

Part No. B-42887 Brake Caliper Piston Remover

Part No HD-43646-A Rolling Engine Stand

h42326

600 200

Made in USA

PP-9606- 0001

h42376a

b42887

h43646a

A-8 2007 Buell Firebolt: Appendix A

HOME

Part No. HD-43646-10 Oil Drip Tray

Part No. B-43721 Front Fork Seal Driver

Part No. B43982 Transmission Locking Tool

Part No. HD-43984 Crankshaft Locking Tool

h43682-10a

b43721

b-43982

hd43984

Part No. B-43987 Engine Cradle

Part No. B-43993 Wheel Bearing Collets

Part No. HD-44060 Wheel Bearing Remover/Installer

Part No. HD-44067-A Oil Filter Wrench

b43987a

B-43993a

hd44060

hd44067b

2007 Buell Firebolt: Appendix A A-9

HOME

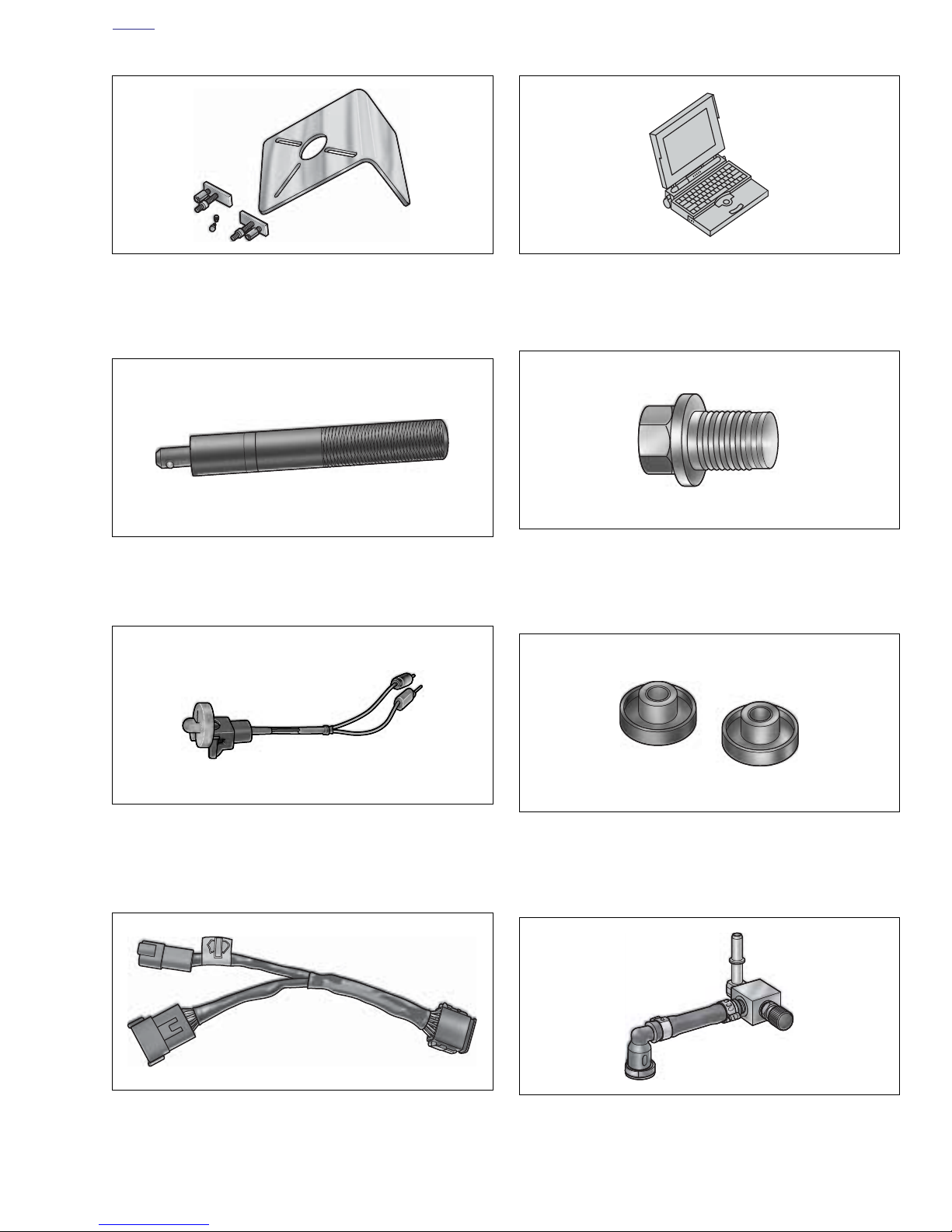

Part No. HD--44358 Flywheel Support Fixture

Part No. HD-44567 7" Universal Driver Handle

Part No HD-44687 Ignition Coil Test Adapter

Part No. HD-44720 TSSM Adapter Cable

h44358bc

h44567

h44687

HD44720a

Part No. HD-44750-P29 Panasonic Toughbook

(touch screen) and HD-44750-P50 Panasonic Toughbook

(non-touch screen)

Part No.B-45520 Gear Detente Assembly Aid

Part No. B-45521 Steering Head Bearing

Remover/Installer

Part No. B-45522 Fuel Pressure Gauge Adapter

HD-44750

b45520

b45521

B-45522a
