Introductory information

Dear customer,

Congratulations on purchasing a BURY hands-free car kit. You have chosen a high quality product that

is extremely easy to use.

Chère cliente, cher client,

Vous venez d’acheter un kit mains-libres de la marque BURY et avez ainsi choisi un produit de haute

qualité ainsi que de confort d‘utilisation le plus élevé.

Estimado Cliente:

Usted ha adquirido un kit de telefonía manos libres de la marca BURY, optando con ello por un producto

de alta calidad y máximo confort de manejo.

Installation of the hands-free car kit

Scope of supply

Alcance de suministro

Fourniture

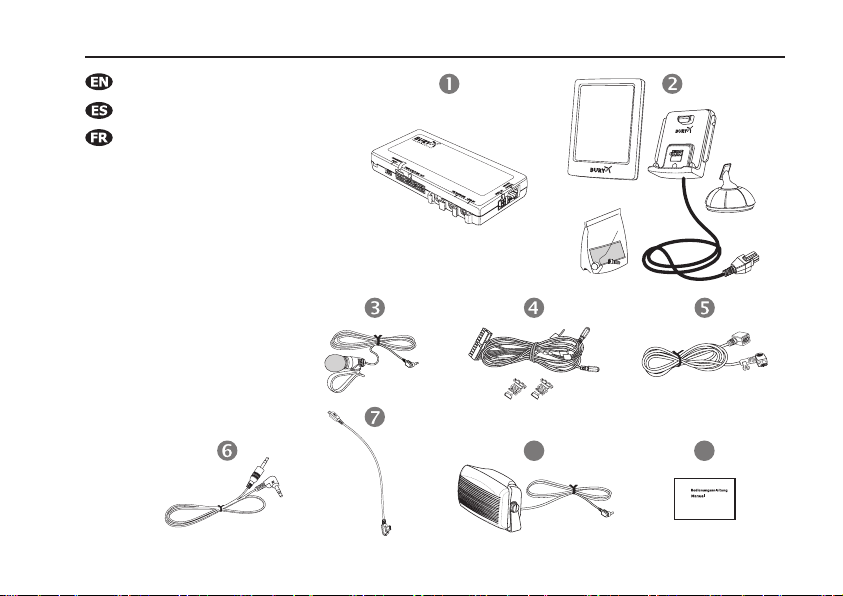

Scope of delivery:

1. Electronic box

2. Multifunction display with cradle and mount,

screws for the holder and rubber cover,

adhesive tape

3. Microphone

4. 24-Pin Molex to jack connector cable,

with fuses

5. Extension cord

6. AUX-In cable

7. Micro USB charging cable

8. External loudspeaker

9. Quick user guide

Contenido:

1. Caja electrónica

2. Pantalla multifuncional con soporte y pie de

montaje, tornillo para el soporte y cubierta

de caucho, cinta adhesiva

3. Micrófono

4. Molex de 24 pines en arnés de cables jack,

con fusibles

5. Cable de prolongación

6. Cable AUX-In

7. Cable de carga micro USB

8. Altavoz externo

9. Guía rápida

Contenu de la livraison :

1. Boîtier électronique

2. Écran multifonctionnel avec support et pied

de montage, vis pour le support et cache

en caoutchouc, ruban adhésif

3. Microphone

4. Connecteur Molex à 24 broches sur le

faisceau de câble jack, avec fusibles

5. Rallonge

6. Câble d’entrée auxiliaire

7. Câble de charge micro-USB

8. Haut-parleur externe

9. Guide rapide

Installation of the hands-free car kit

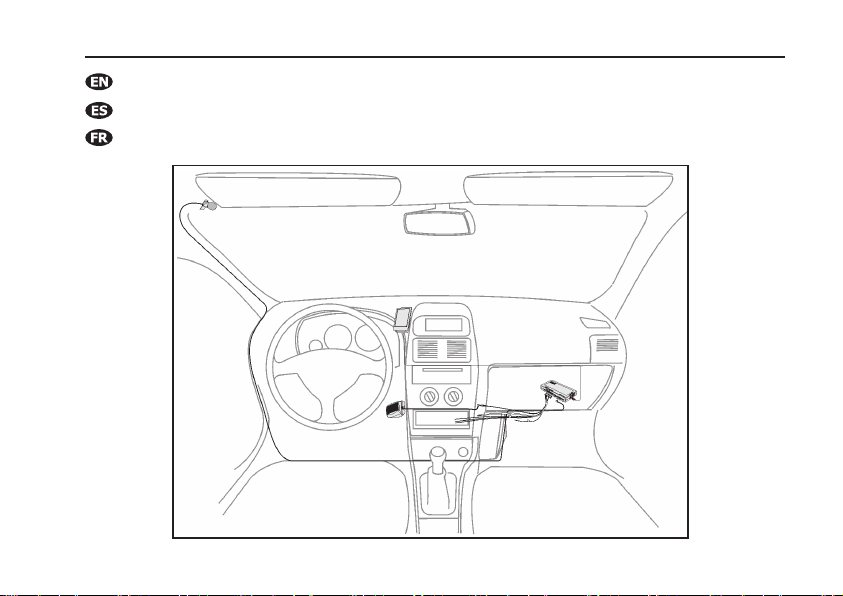

Installation overview

Plano general de montaje

Vue d’ensemble du montage

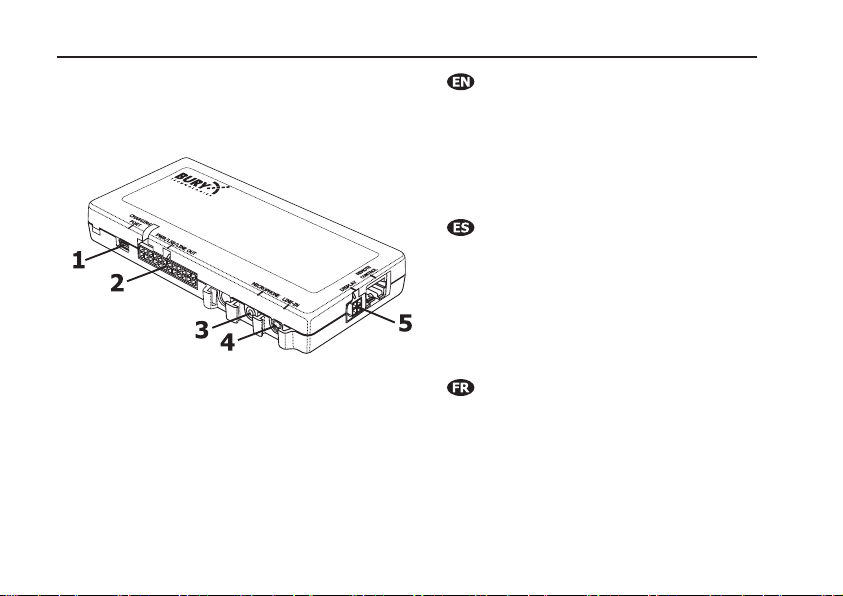

Conexiones en la caja electrónica:

1 Mini USB

2 Suministro de corriente/Silenciamiento

a través del mazo Molex de 24 pines

en arnés de cables jack

3 Micrófono

4 LINE-IN

5 Pantalla multifuncional

Connections on the electronics box:

1 Mini-USB

2 Power supply/Muting using Mute via

24-Pin Molex to jack connector cable

3 Microphone

4 LINE-IN

5 Multifunction display

Connexions au boîtier électronique :

1 Mini-USB

2 Alimentation/Mise en sourdine via

le harnais Molex à 24 broches sur

le faisceau de câble jack

3 Microphone

4 LINE-IN

5 Écran multifonctionnel

Installation of the hands-free car kit

1 2 3 4

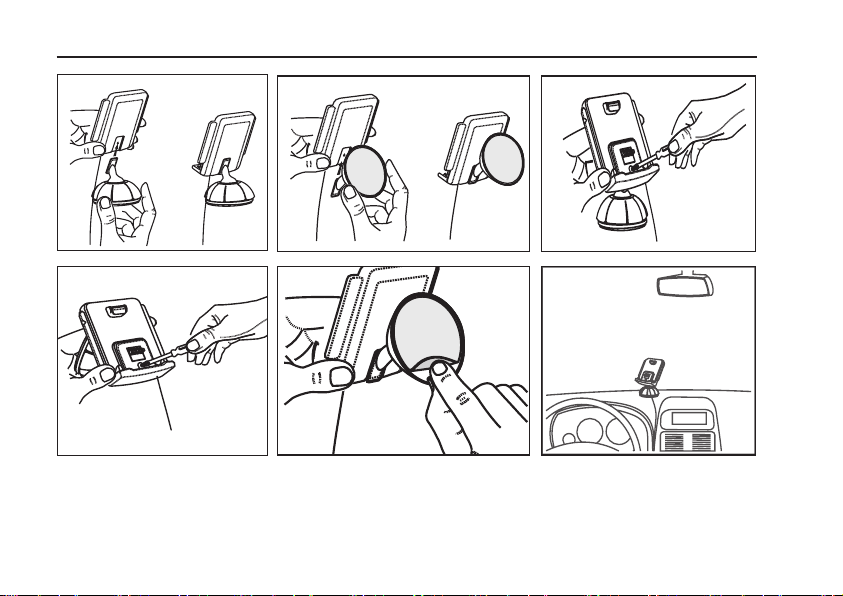

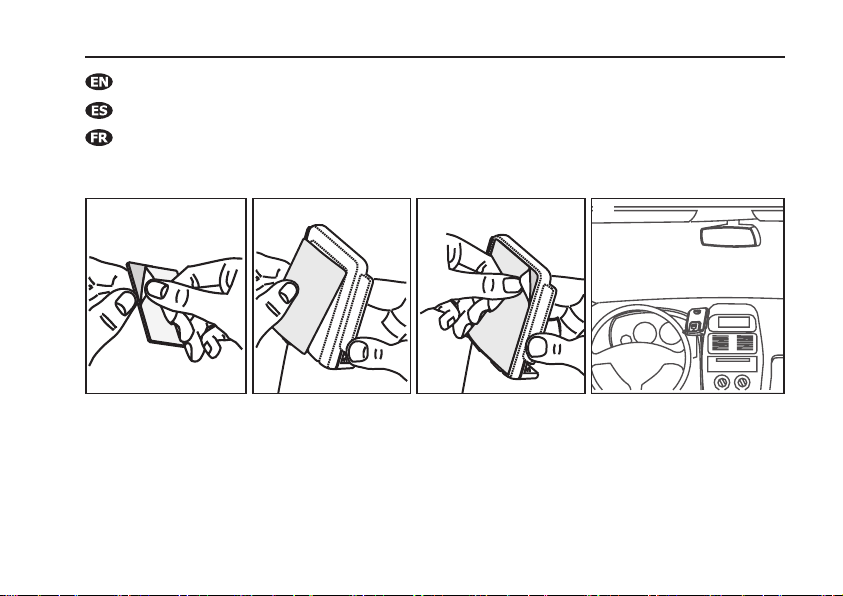

Installation of the system

Montage du système

Montaje del sistema

1 2 3

4 5 6

Installation of the hands-free car kit

Step 1:

The power supply of the hands-free car kit is established via a 4-core cable. Connect the black (clamp 31 – mi-

nus), the red (clamp 30 – steady plus) and the blue cable (clamp 15 – ignition plus) to the power supply of your

radio (where required via the cigarette lighter or the fuse box). After connection to the counterpart, the yellow

cable provides for radio muting during a phone conversation.

Attention:

If you also connect the blue cable to clamp 30 (steady positive), the HFCK will be permanentlyX

supplied with power. If the vehicle is not running for a longer period, this could lead to a discharge

of the car battery.

If you deviate from the specified connection descriptions it may be the case that certain func-X

tions on the HFCK (e.g. the on-call duty) will not function correctly.

Step 2:

Installation instructions for the fuses (see picture)

Please cut through the red and the blue cable between quick release couplings and cable ends by means

of a wire cutter or scissors. Now insert the two endings of the red cable resulting from the cut into one of the

binders, then close it. If you hear two clicking noises, the clamp snapped in properly. Now insert one of the

fuses and then repeat the procedure with the other cable.

PWR/LSP/LINE OUT
