TROPHY CAM™

I N ST R U C T I O N M A N UA L

Model#s: 119435 / 119445 / 119455

Lit# 98-1559 / 1-10

TABLE OF CONTENTS PAGE #

ENGLISH

FRANÇAIS

ESPAÑOL

DEUTSCH

ITALIANO

PORTUGUÊS

5-31

32-64

65-97

98-133

134-166

167-199

IMPORTANT NOTE

Congratulations on your purchase of one of the best trail cameras

on the market! Bushnell is very proud of this little unit and we

are sure you will be pleased with it as well. We appreciate your

business and want to earn your trust. Please refer to the notes

below and the instructions in this manual to ensure that you are

completely satisﬁed with this product.

If your Bushnell Trophy Cam does not seem to be

functioning properly or if you are having photo/video quality

issues, please check the Troubleshooting/FAQ section

on pages 25-28.

Problems are often due to something simple that was

overlooked, or require only changing one setting to solve.

If your problem continues after trying the solutions in

the Troubleshooting/FAQ section, please call Bushnell

Customer Service at (800) 423-3537. In Canada, call (800)

361-5702.

Bushnell recommends using 8 Energizer®Lithium AA batteries in

all Trophy Cams to obtain maximum battery life

Bushnell recommends using SanDisk®SD and SDHC Cards

(up to 16GB capacity) in all Trophy Cams

INTRODUCTION

About the Trophy Cam

The Bushnell Trophy Cam is a digital scouting camera. It can be triggered

by any movement of game in a location, detected by a highly sensitive

Passive Infra-Red (PIR) motion sensor, and then take high quality pictures

(up to 8MP still photos), or video clips.

The Trophy Cam consumes very little power (less than 300µA) in a stand-

by (surveillance) state. This means it can deliver up to six months stand-by

operation time when the device is powered by eight AA alkaline batteries,

and up to twelve months utilizing lithium AA batteries. Once motion in the

monitored area is detected, the digital camera unit will be triggered at once

(typically within one second) and then automatically take photos or videos

according to previously programmed settings. The Trophy Cam is equipped

with built-in infrared LEDs that function as a ﬂash, so that it delivers clear

photos or videos (in black & white) even in the dark, and it can take color

photos or videos under sufﬁcient daylight. The Trophy Cam is designed for

outdoor use and is resistant against water and snow.

Applications

The Trophy Cam can be used as a trail camera for hunting or scouting

game. It is also suitable for surveillance usage.

PARTS AND CONTROLS

The Trophy Cam provides the following connections for external devices:

USB port, SD card slot, TV Out, and external DC power in (Fig. 1).

A 3-way power switch is used to select the main operating modes: OFF,

SETUP, and ON (Fig. 2).

A control key interface with six keys is primarily used in SETUP mode to

select operational functions and parameters. As shown in Fig. 2, these keys

are: UP, DOWN, LEFT, RIGHT, OK and MENU. Four of the keys can also

perform a second function (shortcut operations in SETUP mode) in addition

ENGLISH

to their main function: The DOWN key can be used to set the camera to

Photo mode (still camera icon), and the UP key can set the camera to Video

mode (movie camera icon). The RIGHT key also serves as the manual shutter

(“SHOT”) button of the camera and the OK key switches the camera to

the Playback (“REPLAY”) mode. These secondary functions are indicated by

icons or text above the key as shown in Fig. 2.

Fig. 2: Button and

Switch Guide

Fig. 1: Connections

TV Out USB Port

SD Card Slot

DC In

SETUP

OFF

LED IR Flash

Motion/ Low Battery Indicator

Lens

Lock Hole

PIR Sensor

FRONT VIEW

LCD Screen

Power/Mode

Switch

UP/Video

DOWN/Photo

LEFT

OK/Replay

RIGHT/Shot

Cable to Battery

Compartment

INSTALLING THE BATTERIES AND SD CARD

Before you begin learning how to use your Trophy Cam, you will ﬁrst need

to install a set of batteries and insert an SD card. Although that may only take

you a minute, there are some important notes about both batteries and SD

cards you should be aware of, so please take the time to read the following

directions and cautions:

Loading Batteries

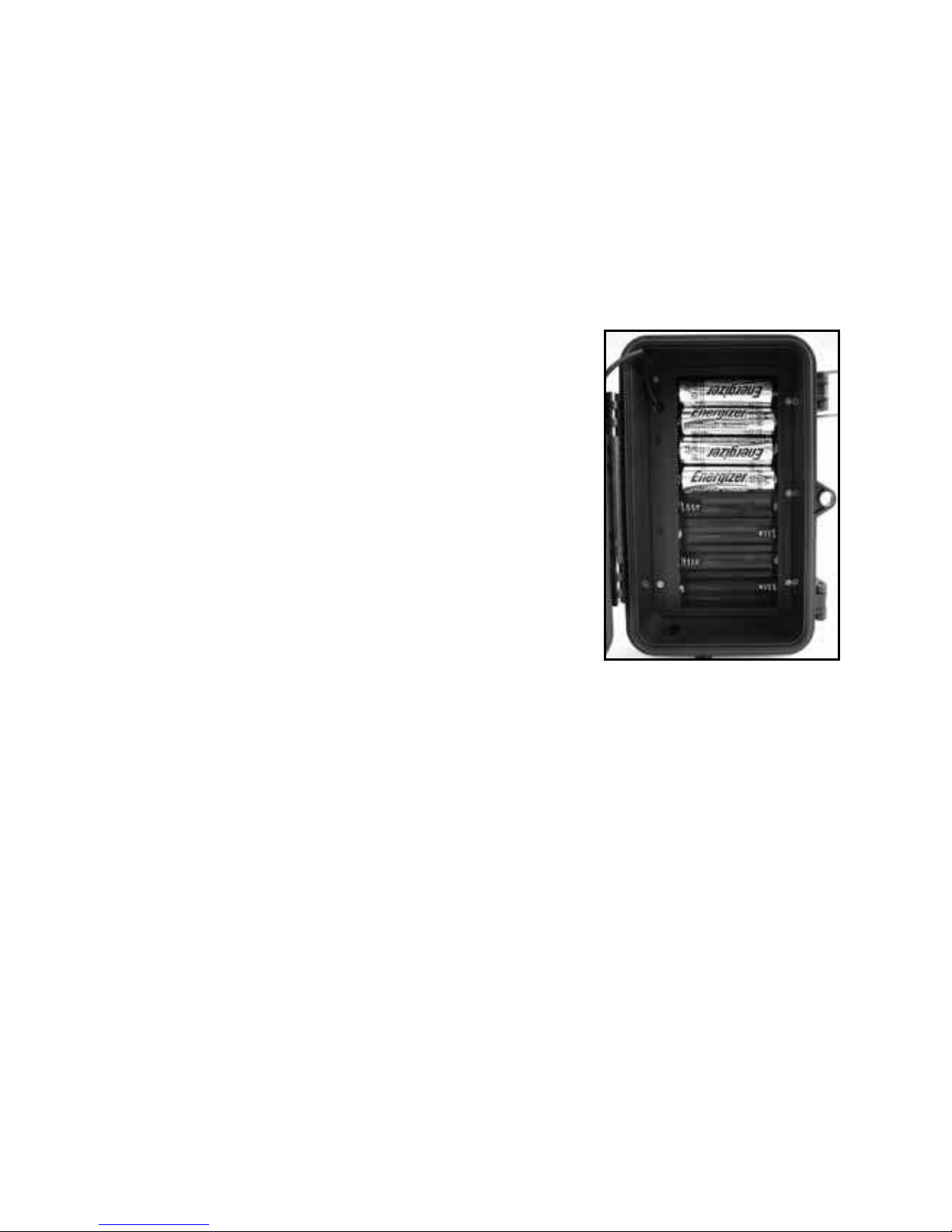

After opening the two latches on the right side

of the Trophy Cam, you will see that the Trophy

Cam has eight battery slots. Starting at the top

of the battery compartment, slots 1, 2, 3 and 4

form one group, while slots 5, 6, 7 and 8 form

the other group, each providing 6 volts in parallel.

For maximum battery life, you should install a full

set of eight batteries. The Trophy Cam may also

be operated by just four batteries installed in

the top group only (see right), starting at slot 1.

Battery life will be shorter with 4 batteries, but

the camera will operate normally. Whether you use 4 or 8, be sure to insert

each battery with correct polarity (negative or “ﬂat” end against the long

spring of each battery slot).

Bushnell recommends using eight new lithium AA (Energizer® brand) or

alkaline AA batteries. NiMh Rechargeable batteries can also be used, but

they might have a shorter life span due to their reduced efﬁciency over time

and at low temperature. It is also possible to use a lead-acid external battery cell

with 6V output or suitable AC adapter-see below for more details.

Using an External Power Source (optional, user provided)

Optionally, you can connect an external 6V DC power source to the “DC In”

jack at the bottom of the Trophy Cam. It is recommended to use a power

source with a current output greater than 1000mA. However, during bright

daytime operation when no ﬂash is required, the Trophy Cam can function

with much less current (>400mA). Please use a compatible power source

cable (not provided) to connect the external DC power source with the power

input jack of the Trophy Cam, making sure that the polarity is correct. Note:

The power connector is a 4.0x1.7mm coaxial DC power plug with positive

“tip” (inside pin) polarity (Radio Shack P/N 274-1532 or equivalent).

If both an external power source is connected and batteries are installed, the

Trophy Cam will be powered by the external power source.

When the batteries become weak, the low-battery indicator LED will glow

blue, indicating the batteries should be changed (pg 6, “Front View”).

Inserting the SD Card

The Trophy Cams have 32MB internal memory, which can hold only about

20 photos (@ 5MP resolution). This is handy for testing and getting familiar

with the camera, but you will no doubt want to leave the camera unattended

for longer than a day, so using an SD card is recommended. Insert the SD

card (with the camera’s power switch in the OFF position) before beginning

to operate the camera. Don’t insert or remove the SD card when the power

switch is in the ON position.

The Trophy Cam uses a standard SD (Secure Digital) memory card to save

photos (in .jpg format) and/or videos (in .asf format). SD and SDHC (High

Capacity) cards up to a maximum 16GB capacity are supported. Before

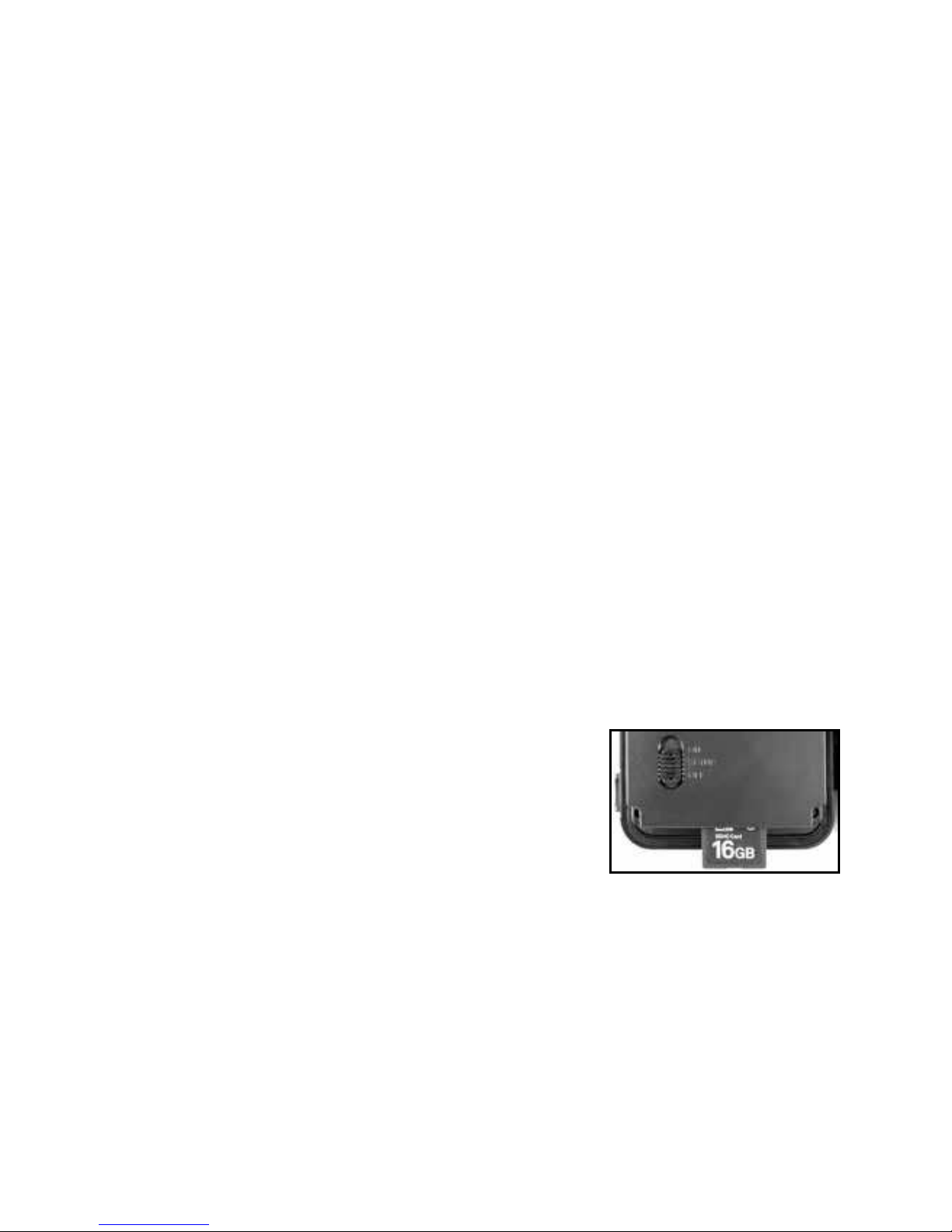

inserting the SD card into the card slot after opening the camera’s front

cover, please make sure that the write-protect

switch on the side of the card is “off” (NOT in the

“Lock” position). The following describes how to

insert and remove the SD card:

label side upwards (see above). A “click” sound

indicates that the card is installed successfully. If the wrong side of the

card is facing up, you will not be able to insert it without force-there is only

one correct way to insert cards. If the SD card is not installed correctly,

the device will not display an SD card icon on the LCD in SETUP mode

(the SD card icon displayed after switching to SETUP mode will have a “lock”

symbol inside it in it if the card is locked). Formatting the SD card by using

the Trophy Cam’s “Format” parameter before using it for the ﬁrst time is

recommended, especially when a card has been used in other devices

(see “Changing Menu Parameter Settings” for details).

in the card (do not try to pull it

out without pushing in ﬁrst). The card is released from the slot and ready

to be removed when you hear the click.

USING THE TROPHY CAM

Once you’ve prepared your Trophy Cam by properly installing batteries and

an SD card, you could simply take it outside, strap it to a tree, switch it on

and leave-and you might get some great photos that are exactly what you

wanted. However, we highly recommend that you ﬁrst spend some additional

time indoors with this manual and your camera until you know a bit more

about what the 3-way switch and those control keys do. If nothing else, you’ll

probably want to at least set the date and time so the camera will imprint

them (or not-it’s your option) on your photos as they are taken, learn how to

set the camera to shoot video clips instead of still photos if you like, and read

some tips about mounting it on a tree.

THE OFF, ON, AND SETUP MODES

The Trophy Cam has three basic operational modes:

OFF mode: Power switch in the OFF position.

ON mode: Power switch in the ON position (LCD screen is off.)

SETUP mode: Power switch at SETUP position (LCD screen is on).

OFF Mode

The OFF mode is the “safe” mode when any actions must be taken, e.g.,

replacing the SD card or batteries, or transporting the device. You will also

WARNING

Be sure the camera’s power is switched OFF

before inserting or removing SD cards or batteries.
