PRODUCT INFORMATION

BULLETIN

105 Bonnie Drive

Butler, PA 16002

724-283-4681

724-283-5939 (fax)

www.bwieagle.com

AIR-EAGLE®SR PLUS

2.4 GHz RF Transmitter

MODEL 36-1200-BAT

DESCRIPTION

The AIR-EAGLE SRPLUS, MODEL 36-1200-BAT is an R.F. transmitter

designed to send a single stop command to any Air-Eagle SR Receiver

from up to 600 feet away. Any number of transmitters and receivers

can be combined to create a remote control system. This unit has eight

network frequencies and sixteen digital addresses to allow multiple

systems to operate simultaneously in the same area without

interference.

APPROVALS

United States (FCC)

OUR-XBEEPRO

Canada (IC)

4214A-XBEEPRO

Europe (CE)

ETSI

INSTALLATION

1. Mount the AIR-EAGLE SR PLUS TRANSMITTER in a convenient

location where the operator will have easy access to thestop button.

2. Install Ch. 2-4 wiringtocontact input terminalstrip if desired.

3. Install the two AA lithium batteries that were provided.

4. Install antenna onto connector on the right side of the enclosure.

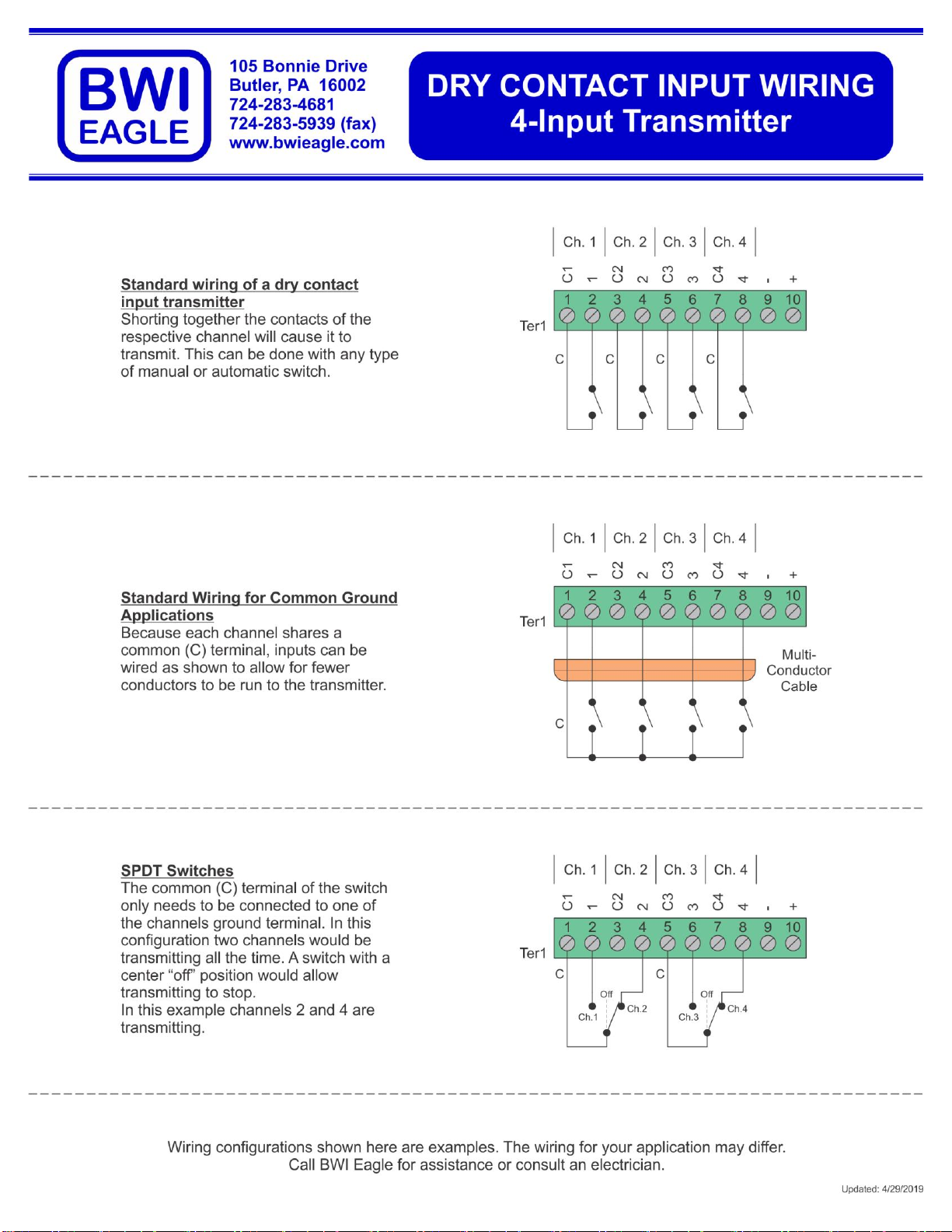

TERMINAL STRIP WIRING

Wire as shown based on number of contact inputs

E-Stop Button Pre-

Wired to Input 1

C Input 2

Input 2

C Input 3

Input 3

C Input 4

Input 4

Not Used

Dimensions (with mounting plate) 6.3” L x 4.8” W x 4.3” H

CONTROLS & INDICATORS

TX LED

Illuminates red while booting up, then

extinguishes.Illuminates red while any contact

input is closed and unit is transmitting.When

this LED blinks briefly following a

transmission, the battery needs to be

replaced.

Dry Contact Inputs

Transmits individual RF codes to the receiver

SEL2

Dip switch bank for digital address selection

SEL1

Dip switch bank for frequency selection

AIR-EAGLE®SR PLUS

2.4 GHz RF Transmitter

MODEL 36-1200-BAT

DIGITAL ADDRESS & FREQUENCY SET-UP

This transmitter is factory programmed to Digital Address “1”and

Frequency “1”. These settings can be changed by the user in any

combination but must match the receiver that is set up to

communicate with this transmitter. Note –only change digital

address if using with a digitallyaddressable receiver. Otherwise, the

digital address must be kept at the default of Digital Address “1”.

1) Remove power from unit.

2) Remove top cover.

3) Select desired digital address and/or network frequency using table

below.

4) Reattach cover and apply power.

5) Programming is now complete.

DIGITAL ADDRESS SET-UP

SEL2 (SW1 –4)

SEL2

(SW1-4)

Digital

Address

SW1

SW2

SW3

SW4

1 (default)

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

SEL2 (SW5-7) –Leave in OPEN position!!

FREQUENCY SET-UP

SEL1 (SW1-3)

SEL1

(SW1-3)

Network

Frequency

SW1

SW2

SW3

1 (default)

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

OPEN

CLOSED

SEL1 (SW4) –Not used on this model

SPECIFICATIONS

Power Requirements

3.0 VDC

Battery Type

(2) 1.5V lithium or alkaline each, size

AA, to equal 3.0VDC nominal.

Battery Life

(Active Usage)

Approximately 3 months

Battery Life (Idle)

Up to 1 Year

Enclosure

Polycarbonate IP66

Transmit Frequency

2.4GHz Spread Spectrum

Transmitter Coding

128 Digital Addresses

(Available only when communicating with model

38-8000)

Transmitter Channels

8 Independent Network Frequencies

Antenna Connection

TNC Female

RF Output Power

60 mW

Transmit Range

Approximately 600 Feet

Operating Temperature

-40oF to +185oF

REPLACEMENT PARTS & ACCESSORIES

PC Board (Main)

36-1202-BAT

Standard Antenna (Included):

2.4GHz TNC Portable Antenna (For

distances up to 600 feet*)

49-1201

Optional Antennas and Accessories –

Used to increase range in both non line of sight and line of sight

applications. - Contact BWI Eagle for recommendations

2.4GHz Thru-Hole Mount Mobile Antenna

49-2201

2.4GHz Magnetic Mount Mobile Antenna

49-2202

2.4GHz Omni Directional Antenna

49-3201

2.4GHz 13dB Yagi Antenna

49-3202

Flex Coax Cable w/Connectors –Connects

external antenna(s) to base unit(s).

49-4000-XX

(XX = # of Feet)

* = Line of Sight

LIMITED WARRANTY STATEMENT

BWI Eagle Inc. warrants the Air-Eagle Remote Control System, if properly

used and installed, will be free from defects in material and workmanship

for a period of 1 year after date of purchase. Said warranty to include the

repair or replacement of defective equipment. This warranty does not

cover damage due to external causes, including accident, problems with

electrical power, usage not in accordance with product instructions,

misuse, neglect, alteration, repair,improperinstallation, or improper

testing. This limited warranty, and any implied warranties that may exist

under state law, apply onlyto the original purchaser of the equipment, and

last only for as long as such purchasercontinues to own the equipment.

This warranty replaces all other warranties, express or implied including,

but not limited to, the implied warranties or merchantability and fitness for

a particular purpose. BWI Eaglemakes no express warranties beyond

those stated here. BWI disclaims without limitation, implied warranties of

merchantability and fitnessfor a particular purpose. Some jurisdictions do

not allowthe exclusion of implied warranties so this limitation maynot

apply to you. To obtain warranty service, contact BWI Eagle for a return

material authorization. When returning equipment to BWI Eagle, the

customer assumes the risk of damage or loss during shipping and is

responsible for the shipping costs incurred.

DOCUMENT DATE: 04/24/2019 / PRODUCT REV. 5
