(A)For 2000V Series (UL Listed)-Drill & tap for (6) 1/4"-20P x 3/4” machine screws (4xD,2xE) for Exit Device.
Drill (6) 7/32" Pilot Holes (4xD,2xE) for Self Tapping machine screws or wood screws for Exit Device.
(B)For F2000V (Fire Rated)-Drill 9/32" holes (4xD,2xE) inside and 3/8" holes (4xD,2xE) outside for
the (6)thru bolts .
GG
E
D
D
F
ROUND HEAD SCREWS
FLAT HEAD MACHINE SCREWS
FOLD REVERSELY FOR
TOP STRIKE INSTALLATION
ROUND HEAD SCREWS
TOP LATCH UNIT
TEMPLATE(B)
LINE W
1/4”-20Px 3/4” x 4
1/4”-20P x 3/4” x 1
1 39/64”
”61/72
DD
CAUTION：
BE SURE THE DISTANCE
FROM BOTTOM SIDE OF
DOOR EDGE TO BOTTOM
OF BOTTOM LATCH UNIT
MUST BE 13/32”
BOTTOM LATCH UNIT
1 39/64”
”61/72
”23/92
”23/31
1/4”-20P x 3/4” x 2
FLAT HEAD MACHINE SCREWS
CAUTION：DRILL”F”
HOLE AFTER LATCH BOLT
PROPERLY WORKS.
FOLD ON DOTTED LINE
AND FIT ON DOOR
FRAME
CAUTION：
BE SURE THE DISTANCE FROM DOOR
FRAME TO LINE W MUST BE 2”
1/4”-20P x 3/4” x 2

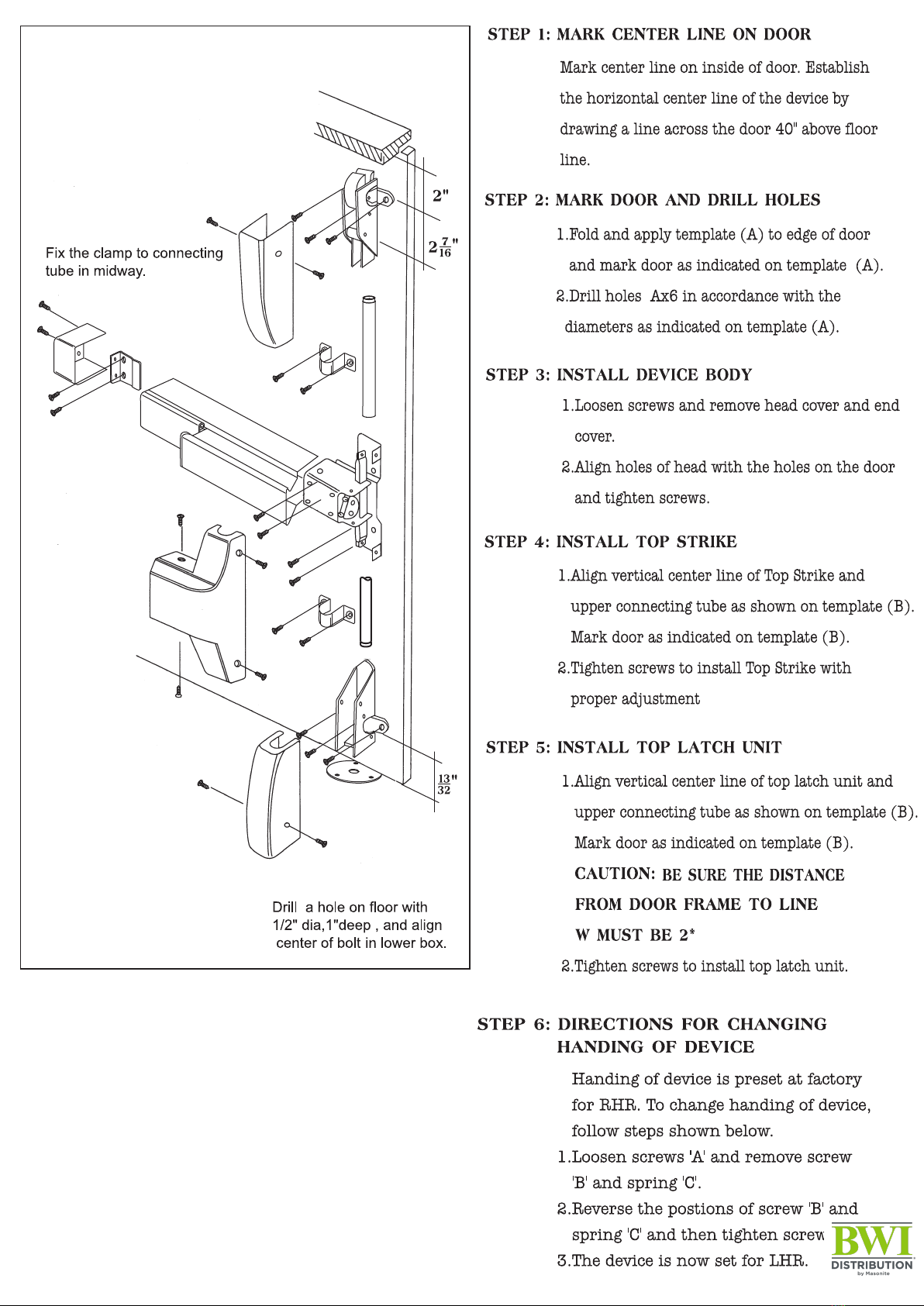

Note: When installing top latch unit:
1. Drill (1) E hole and install screw but
do not tighten all the way.
2. Make sure distance from door frame
to line W is 2".
3. Drill (2) D holes and install and
tighten screws.
4. Tighten screw in hole E all the way.
