BZB Gear BG-HDKVM-50 Manuale utente
BG-HDKVM-50
HDMI/USB KVM Extender
Over Cat5e/6
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this
manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction ................................................................................... 3
2. Features.......................................................................................... 3
3. Package Contents......................................................................... 3
4. Specifications ................................................................................ 4
5. Operation Controls and Functions................................................ 5
5.1 Transmitter Panel ......................................................................... 5
5.2 Receiver Panel............................................................................. 5
6. Connection Diagram .................................................................... 7
7. Second Year Assurance................................................................ 8
8. Mission Statement.......................................................................... 9
1. Introduction
The BG-HDKVM-50 HDMI/USB KVM Extender can extend high definition
HDMI and USB signals up to 164ft/50m over a single Cat5e/6 cable with zero
latency. It supports HDMI 1.4b and USB 2.0 standards. Two-way POC (Power
over Cable) function allows either TX or RX be powered by a single 12V@1A
power supply. It’s an ideal product for cyber bar and KVM extender markets.
2. Features
HDMI 1.4b, HDCP 1.4 and DVI compliant
Video resolutions up to 1080p@60Hz
HDMI audio pass through
Zero latency and uncompressed transmission technology
USB 2.0 Full-speed transmission and routing
12V POC (Power over Cable) function supported
3. Package Contents
1 x Transmitter
1 x Receiver
1 x User Manual
1 x DC 12V/1A Power Adapter
4. Specifications
Technical
HDMI Compliance
HDMI 1.4b
HDCP Compliance
HDCP 1.4
USB Compliance
USB 2.0
Video Resolutions
720x576p50,720x480p60,640x480p60/75,800x600p60/75,
1024x768p60/75,1280x1024p60,1680x1050p60,1280x720p25/30/
50/60,1920x1080p25/30/50/60
Transmission Range:
HD [1080p@60Hz 24-bit color] up to 50m [164ft]
Color Depth
8-bit
HDMI Audio Formats
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+
ESD Protection
Human body model —±8kV (air-gap discharge) & ±4kV (contact
discharge)
Connections
Transmitter
Input
1x HDMI Type A [19-pin female]
1x USB-B [USB B type]
Output
1x HDMI Type A [19-pin female]
1x CAT [RJ45]
Receiver
Input
1x CAT [RJ45]
Output
1x HDMI Type A [19-pin female]
2x USB-A [USB A type]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
109mm [W]x76.5mm [D]x25.4mm [H]
Weight
TX:213g RX:212g
Power Supply
Input: AC100 - 240V 50/60Hz
Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption
TX:1.92W (Max) RX:1.68W (Max)
Operation
Temperature
32 - 104°F / 0 - 40°C
Storage temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)
5. Operation Controls and Functions
5.1 Transmitter Panel
1) POWER: System power indicator.
2) HDMI: Input HDMI signal indicator LED. On means there is an active
signal.
3) USB: USB status indicator LED, no USB signal being transmitted will show
slow flashing, when USB signal being transmitted will show quick flashing.
4) DC 12V: Connect to a 12V DC power supply. No needs to connect another
power supply if receiver is powered by an external 12V DC power supply.
POC function allows you to power on Tx or Rx on any side)
5) HDMI IN: Connect to HDMI source device such as Blue-ray player or
Set-Top box with an HDMI cable.
6) HDMI OUT: Connect to HDMI display device for local display.
7) CAT5e/6 (POC): Connect to receiver box CAT port through a CAT5e/6
cable length up to 164ft/50m.
8) USB IN: Connect to PC USB host port.
5.2 Receiver Panel
1) POWER: System power indicator.
2) HDMI: HDMI output connection indicator LED. On means there is an
active HDMI display device be connected.
3) USB: USB status indicator LED, no USB signal being transmitted will
show slow flashing, when USB signal being transmitted shows quick
flashing.
4) DC 12V: Connect to a 12V DC power supply. No needs to connect
another power supply if your transmitter box is powered by an external
12V DC power supply. (POC function allows you to power on Tx or Rx
on any side)
5) HDMI OUT: Connect to HDMI display device.
6) CAT5e/6 (POC): Connect to transmitter box CAT port through a
CAT5e/6 cable length up to 164ft/50m.
7) USB Keyboard: Connect to USB keyboard or a USB slave device;
8) USB Mouse: Connect to USB mouse or a USB slave device;

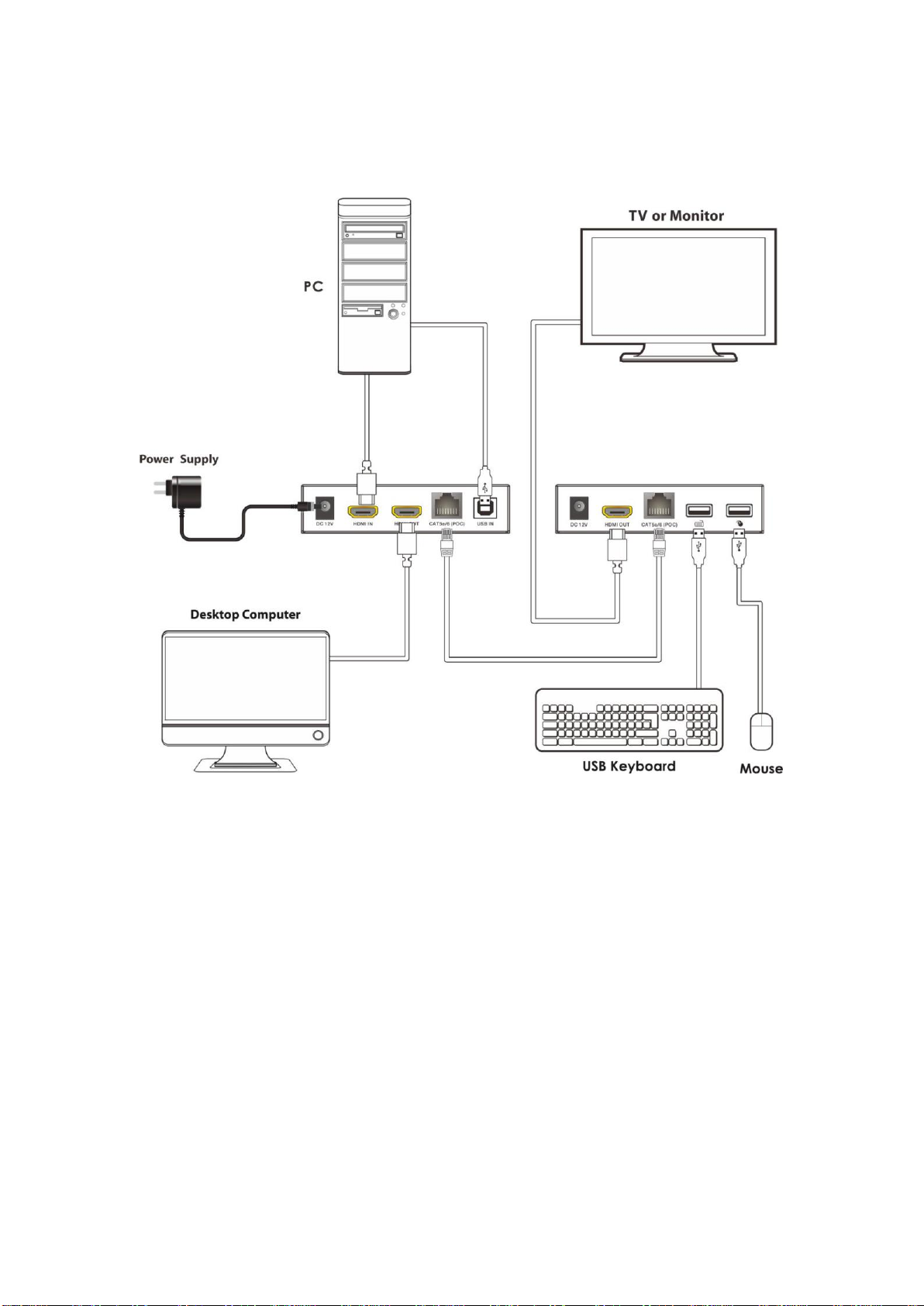

6. Connection Diagram
7. Second Year Assurance
BZB Gear wants to assure you peace of mind. We're so confident in the quality
of our products that along with the manufacturer's one-year limited warranty,
we are offering free second-year warranty coverage upon registration*!
Taking advantage of this program is simple, just follow the steps below:
1. Register your product within 90 days of purchase by visiting
BZBGear.com/warranty.
2. Complete the registration form. Provide all necessary proof of purchase
details, including serial number and a copy of your sales receipt.
For complete warranty information, please visit BZBGear.com/warranty or
scan the QR code below.
*Terms and conditions apply. Registration is required.
8. Mission Statement
BZB Gear manifests from the competitive nature of the audiovisual industry to
innovate while keeping the customer in mind. AV solutions can cost a pretty
penny, and new technology only adds to it. We believe everyone deserves to
see, hear, and feel the advancements made in today’s AV world without
having to break the bank. BZB Gear is the solution for small to medium-sized
applications requiring the latest professional products in AV.
We live in a DIY era where resources are abundant on the internet. With that in
mind, our team offers system design consultation and expert tech support
seven days a week for the products in our BZB Gear catalog. You’ll notice
comparably lower prices with BZB Gear solutions, but the quality of the
products is on par with the top brands in the industry. The unparalleled support
from our team is our way of showing we care for every one of our customers.
Whether you’re an integrator, home theater enthusiast, or a do-it-yourselfer,
BZB Gear offers the solutions to allow you to focus on your project and not
your budget.
