BZB Gear BG-USB-LR100 Manuale utente
BG-USB-LR100
USB 2.0 Extender up to 330ft
User Manual
BZBGEAR BG-USB-LR100 PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 2
BZBGEAR BG-USB-LR100 PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Technical Specifications 6
Operation Controls and Functions 7
Application Example 8
Tech Support 9
Warranty 10
Mission Statement 11
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 3
BZBGEAR BG-USB-LR100 PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
●The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
●Do not expose the product to rain or moisture.
●Unplug this device during lightning storms
●Clean only with a soft dry microfiber cloth.
●To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
●Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
●This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
●Installation and use of this product must strictly comply with local electrical safety
standards.
●Only use accessories specified by the manufacture
●Product specifications may be subject to technical upgrades without further notice
●Do not hot plug when it is working.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 4
BZBGEAR BG-USB-LR100 PRODUCT MANUAL
Introduction
The BG-USB-LR100 USB 2.0 extender can extend USB signals up to 328ft (100m) via a Cat
5e/6 cable. Connect the transmitter to a PC and the receiver to USB devices via the two
USB ports such as a flash drive or printer. The transmitter and receiver support PoC (Power
over Cable) meaning only one of the units needs to be connected to a power supply. Simple
plug and play operation means there are no drivers or software installation necessary.
Features
●USB 2.0 protocol, transmission rate up to 480Mbps
●Extend distance up to 328ft (100m) via CAT 5e/6 cable
●One USB-B port input on the transmitter
●Two USB 2.0 ports output on the receiver
●PoC functionality means that only one unit, either the transmitter or receiver, is
connected to a powered supply.
●Simple plug and play, no drivers or software installation required
●Compact design for easy and flexible installation
Packing List
●1x USB 2.0 Extender (Transmitter)
●1x USB 2.0 Extender (Receiver)
●1x USB cable (USB-B male head to
USB-A male head, one meter)
●1x 12V/1A Locking Power Adapter
●1x User Manual
●1х Quick Start Guide
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 5
BZBGEAR BG-USB-LR100 PRODUCT MANUAL
Technical Specifications
Technical
USB protocol
USB 2.0
Transmission rate
Up to 480Mbps
Transmission distance
100M (328ft)
ESD Protection
Human-body Model：±8kV (Air-gap discharge),
±4kV (Contact discharge)
Connections
Transmitter
Input port: 1xUSB [USB-B, female]
Output port: 1xCAT [RJ45, female]
Receiver
Input port: 1xCAT [RJ45, female]
Output port: 2xUSB [USB-A, female]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
Transmitter / Receiver: 3.2” (W) x 1.9” (D) x 0.8” (H) [82mm (W) x 49mm (D)
x 20mm (H)]
Weight
Transmitter / Receiver: 0.22lbs [l00g]
Power Supply
Input: AC100~240V 50/60Hz, Output: DC 12V/1A
Power Consumption
Transmitter: 1.3W, Receiver: 2.3W
Operating Temperature
32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature
-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity
20~90% RH (non-condensing)
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 6
BZBGEAR BG-USB-LR100 PRODUCT MANUAL
Operation Controls and Functions

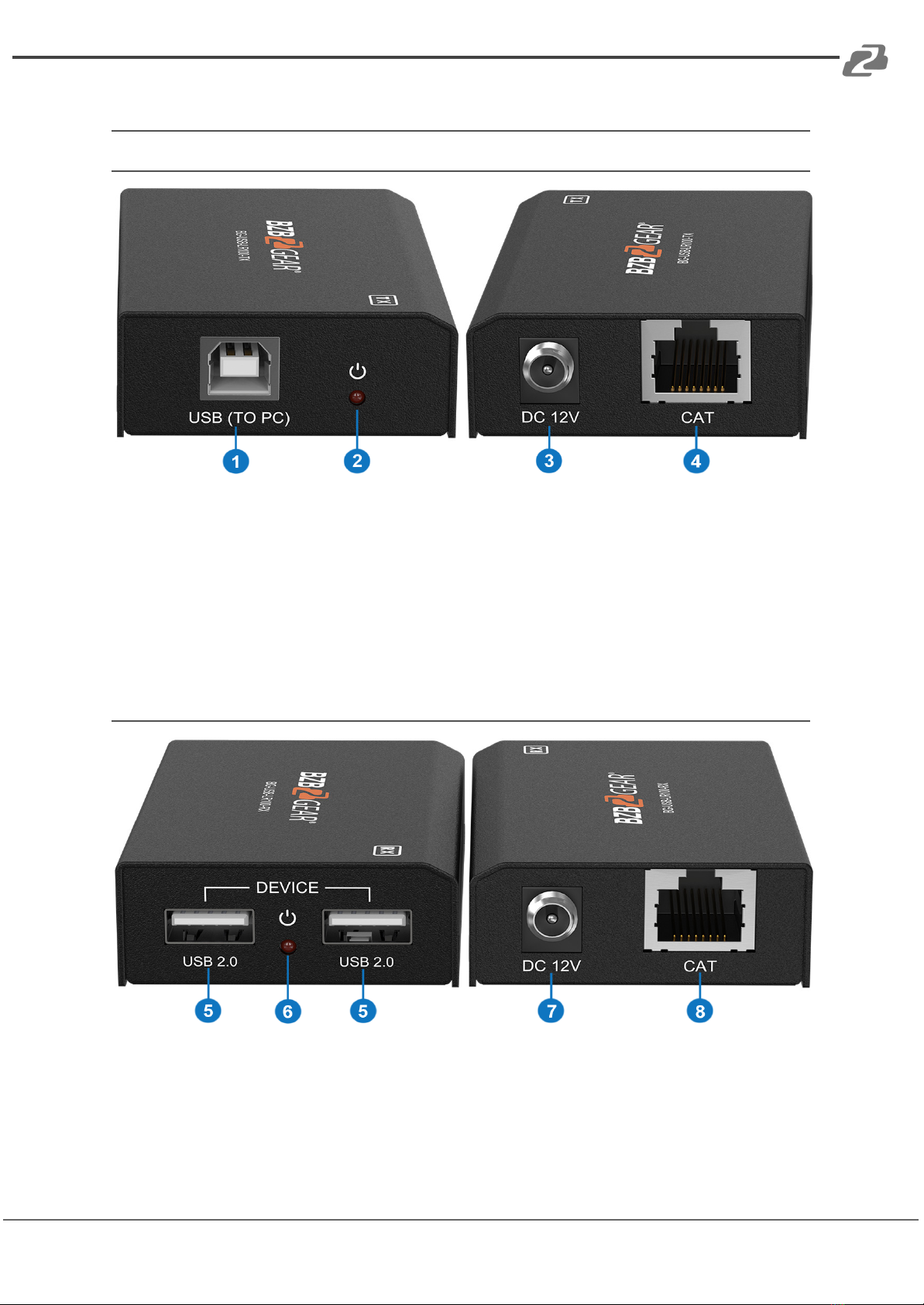

Transmitter Panel
1. USB port: Use a USB-B male to USB-A male cable to connect to the USB port of a
PC. Note: The PC can control USB ports device of the receiver.
2. POWER LED: Power LED indicator. The LED will illuminate when transmitter is
connected to/provided power.
3. DC 12V: Connect the DC 12V/1A power supply into the unit and connect the
adapter to an AC outlet.
4. CAT port: The CAT port is connected to the receiver’s CAT port by CAT 5e/6 cable.
Receiver Panel
5. USB 2.0 port: Connect to a device with a USB port such as a printer or flash drive.
6. POWER LED: Power LED indicator. The LED will illuminate when the receiver is
connected to/provided power.
7. DC 12V: Connect the 12V/1A DC power supply into the unit and connect the
adapter to an AC outlet.
8. CAT port: The CAT port is connected transmitter’s CAT port by CAT 5e/6 cable.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 7
BZBGEAR BG-USB-LR100 PRODUCT MANUAL

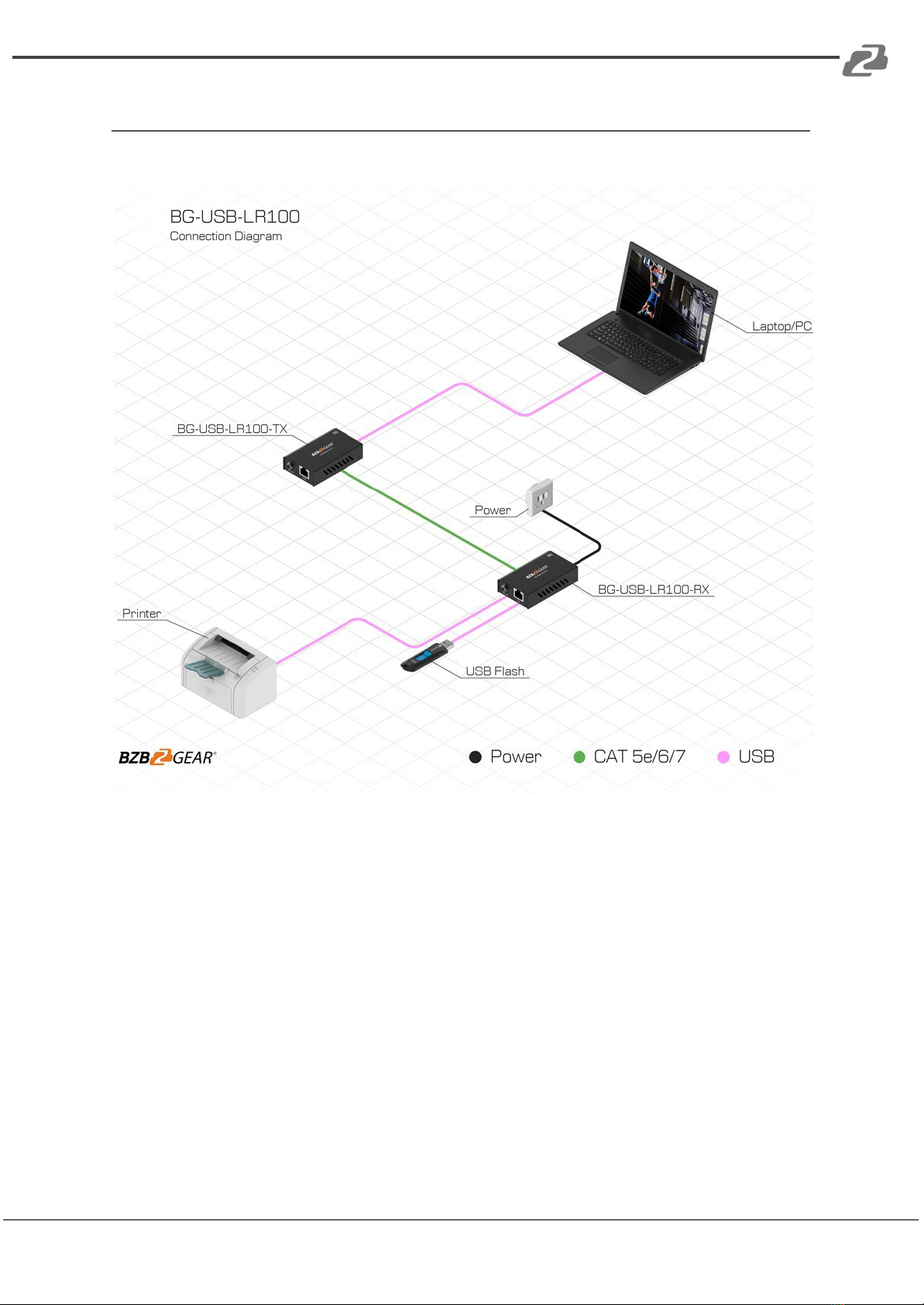

Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 8
BZBGEAR BG-USB-LR100 PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 9
BZBGEAR BG-USB-LR100 PRODUCT MANUAL
Warranty
BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended
two-year warranty is available for our cameras upon registration for a total of five years.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 10
