HVLP AIR CAP AND FLUID NOZZLE CHART

MODEL

NO. AIR CAPS

PRESS.

SIPHON

*MAX GUN

INLET PRESS.

FOR HVLP

FAN

CONTROL

SCFM @

MAX GUN

INLET

STANDARD

IN CAT

PACK

AVAILABLE FLUID

NOZZLES TIPS

NEEDLES /

marking on needle

23-1308 Pressure Included 33-0208 0.8mm (.022") 40-1808 (08)

23-1310 Pressure 33-0210 1.0mm (.040") 40-1810 (1810)

23-1312 Pressure 33-0212 1.2mm (.046") 40-1812 (1812)

23-1313 Pressure Included 33-0213 1.3mm (.052") 40-1813 (1813)

23-1314 Pressure 33-0214 1.4mm (.055") 40-1814 (1814)

23-1315 Pressure 33-0215 1.5mm (.059") 40-1815 (1815)

23-1317 Pressure Included 33-0217 1.7mm (.070") 40-1817 (1817)

Actual fluid nozzle and air cap combinations are determined by application (see application chart page 4)

*Note: Air cap test gages are available to confirm HVLP compliance.

*Gun inlet pressures may vary as required by application

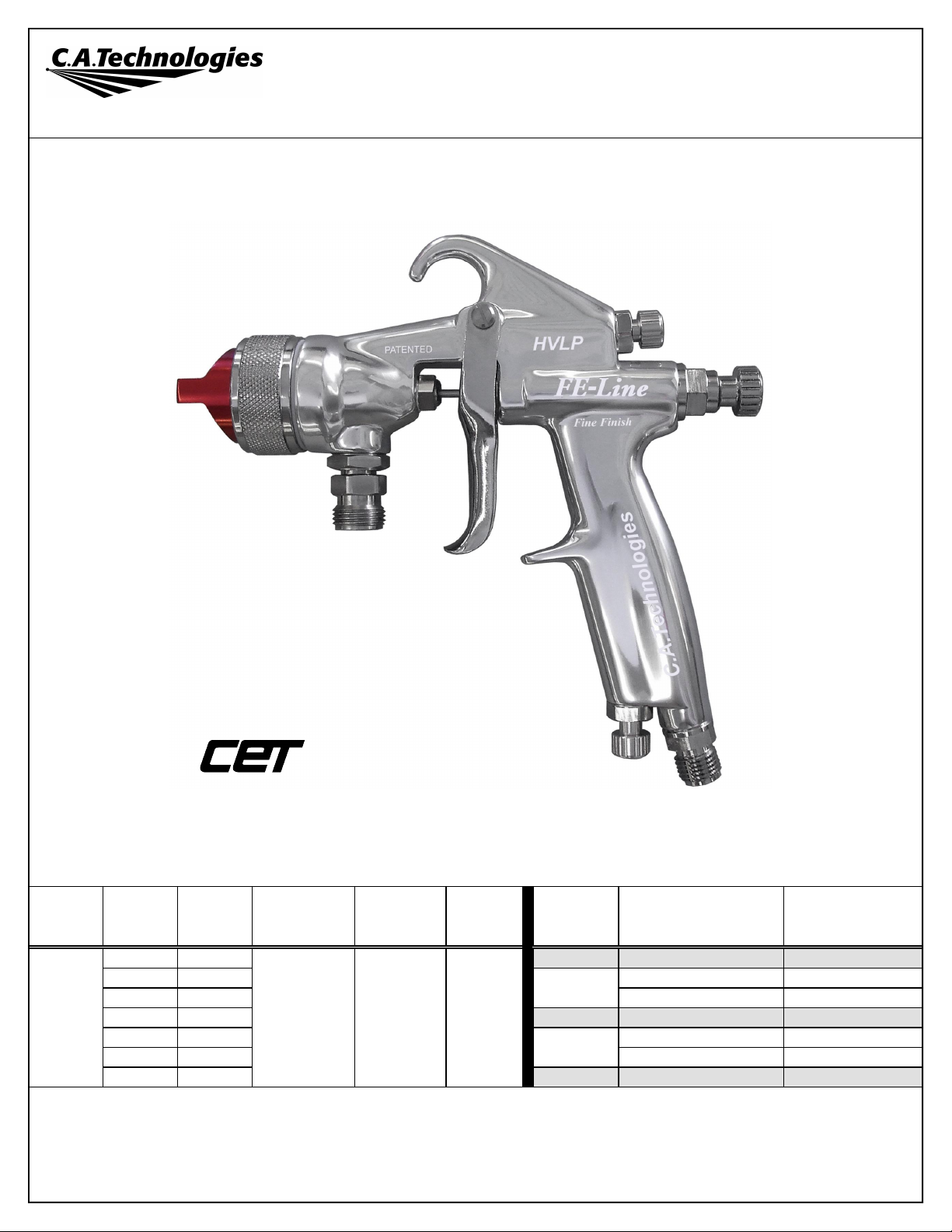

FE-LINE

FINE

FINISH

(FEFF)

60-131729* 13.5

FE-Line Fine Finish

PRESSURE FEED SPRAYGUN

PRODUCT INFORMATION

DISTRIBUTED BY COATING EQUIPMENT TECHNOLOGY, INC

PHONE: 586-210-0555

WEB: www.cetinc.com

Operation and Maintenance Instructions for FE-FF Spray Guns

Operation

1. Connect air supply hose at handle of gun.

2. Connect a pressurized fluid supply to the gun fluid inlet.

3.Fluidflowcan be controlledusingthefluidcontrolknob, thisrestricts flow bylimitingneedletravel.Itisbesttocontrol

fluid flow byproper selection of fluid orifice size and use the fluid control knob to “fine tune flow rate”.

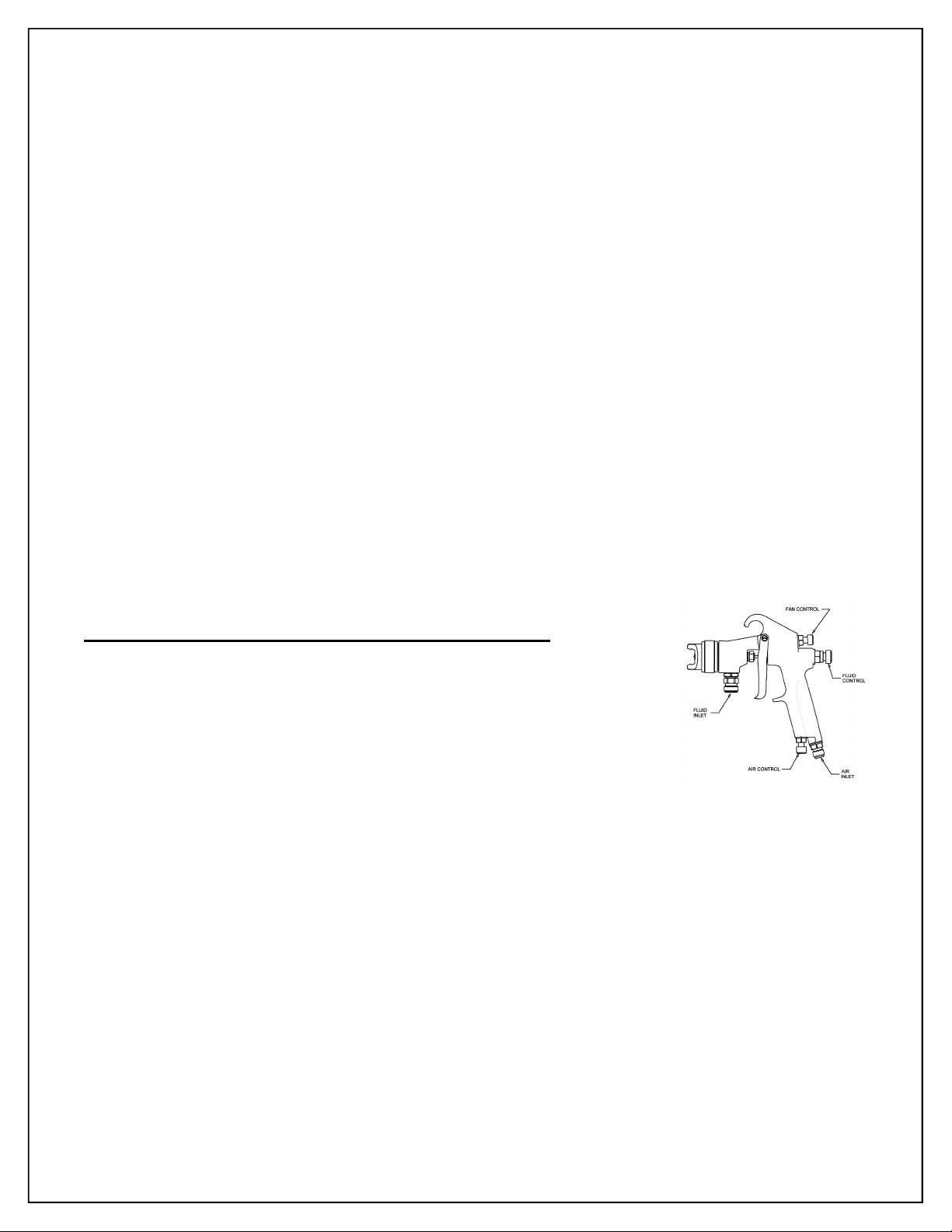

4. Fan width can be adjusted using the fan control knob. Turning the knob clockwise narrows the fan.

Maintenance

IMPORTANT! Routine cleaning and maintenanceis essential toinsure propergun operation.

Severalstatesprohibitsprayingsolvent intothe atmosphere and requirethe use ofcoveredgun cleaner.

1. If a gun cleaner is being used, connect and clean the gun in the gun cleaner according to the manufactures

instructions.

2. If a gun cleaner is not being used:

Removeair cap andclean separatelyusingcleansolvent.

For pressure setups, connect a pressurized solvent supply to the fluid inlet, trigger the gun allowing solvent to flow

thru the gun until clean.

NOTE:Gun head disassembly is not recommended for normal cleaning and maintenance.

Not recommended to soak entire spray gun in solvent.

Gun head disassembly and reassembly instructions:

Haverepairkit#10-140availablebefore gundisassembly.

Disassembly

1.Remove the triggerbyremovingbothscrews(19).

2.Removefluidcontrolknob (11).

3.Removeneedlereturnspring(13)and needle(12).

4. Removeair valve assembly(9) using a 9/16”wrench.

5.Using a 7/16” wrench removethe needle sealcartridge (20).

6. Using a 13 mm wrench remove the side port control (10) and air control (15).

7. Using a 11/16” wrench loosen locknut (18), using a 5/8” wrench remove fluid inlet (17).

8. Remove air cap (1), remove fluid tip (2) using a 3/8” socket.

9.Using a 1”wrenchremove head insert(3).

Reassembly

1. Install a new o-ring (7 and 8) on air valve assembly, lightly lubricate o-rings with vasoline and reinstall air valve (9) into

the gun body(6).

2.Installa newseal(5)in gun body(6).Installnewo-ring(4) onhead insert (3).Reinstallheadinsert intogunbodyand

tighten. Reinstall fluid tip (2) and tighten.

3. Install new seal (5) in gun body. Reinstall and tighten fluid inlet (17). Tighten locknut (18) after fluid inlet has been

tightened.

4.Remove the shippingpinfrom a newneedle sealcartridge(20). Install newneedleseal cartridge(20).

5. Reinstall side port control (10) and air control (15).

6.Reinstallneedle (12), needlereturn spring (13)and fluid control knob (11).

7. Reinstall air cap (1).

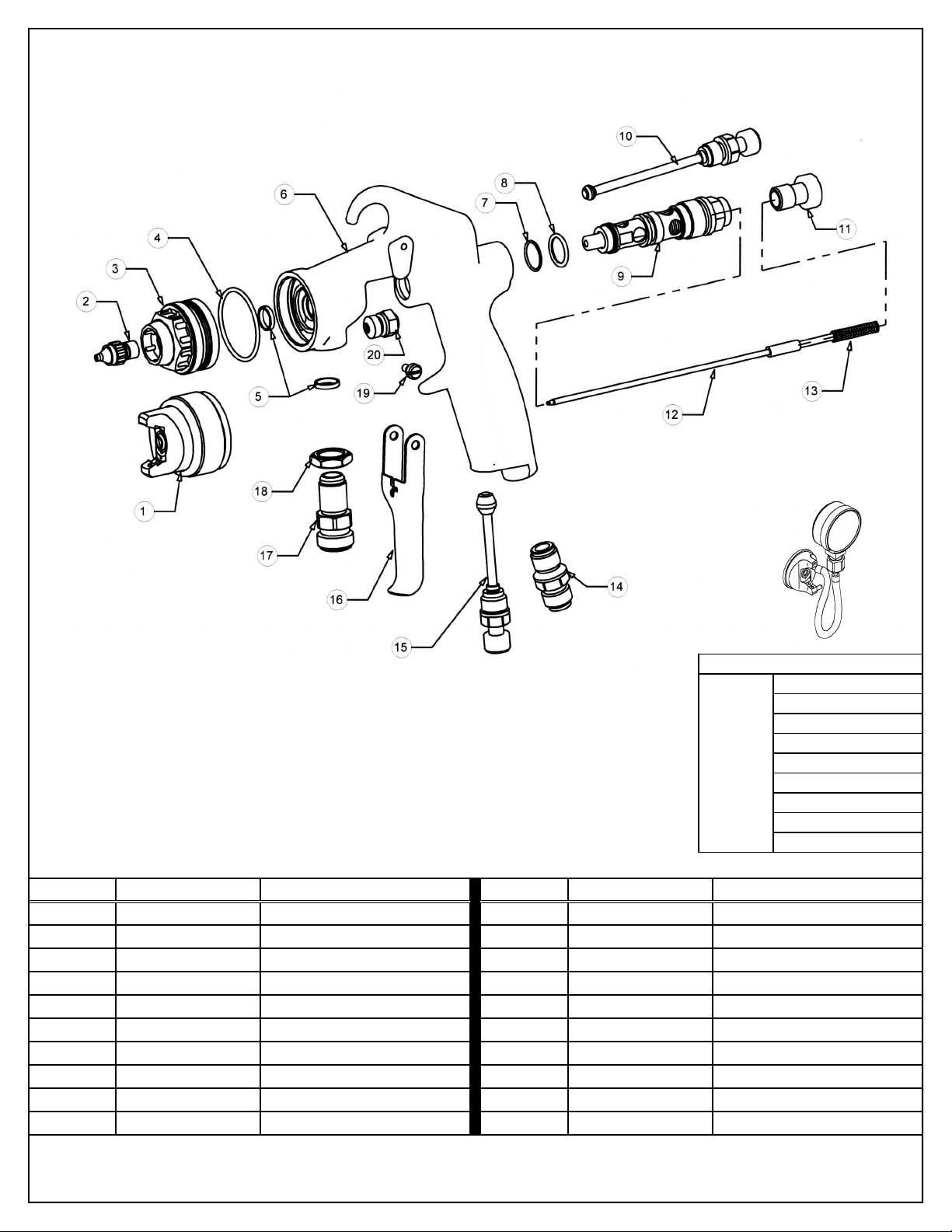

ITEM NO. PART NO. DESCRIPTION ITEM NO. PART NO. DESCRIPTION

1See Air Cap Chart Air Cap** 11 60-1312 Fluid Control Knob

2See Air Cap Chart Fluid Nozzle Tip** 12 See Air Cap Chart Fluid Needle**

3 60-35 Head Insert 13 60-211 Needle Return Spring*

498-8026 O-Ring* 14 60-104 Air Inlet Fitting

560-137 O-Ring* 15 60-1319 Air Control

6 60-1301-CL Gun Handle 16 60-2111 Trigger

7 98-5125 O-Ring* 17 60-126 Fluid Inlet

898-5225 O-Ring* 18 60-128 Locknut

9 60-1320 Air Valve Assembly 19 60-1315 Trigger Pivot Set (2)

10 60-1317 Side Port Control 20 60-1329 Needle Seal Cartridge*

**See air cap selection chart on page 1

*Indicates part included in repair kit # 10-140

HVLP AIR CAP TEST GAGES

23-1308-G

23-1310-G

23-1312-G

FOR

FE-FF

GUNS

23-1313-G

23-1314-G

23-1315-G

23-1322-G

23-1317-G

23-1319-G

FE-FF HVLP SPRAY GUN

MATERIAL TYPE FLUID ORIFICE x

AIR CAP MAXIMUM

PATTERN WIDTH PRESS. / SIPHON

Very Thin

less than 16 sec. Zahn #2

inks , dyes,

solvents, stains

Thin

16 to 20 sec. Zahn #2

lacquers, enamels,

primers, sealers

Medium

21 to 30 sec. Zahn #2

automotive base coat

enamels, primers

epoxies, urethanes

automotive clear coat

Heavy

over 30 sec. Zahn #2

heavy body primers

high solid enamels

high solid automotive coatings

adhesives

1.5 mm x 1315

1.7 mm x 1317 12

12 P

FLUID NOZZLE / AIR CAP SELECTION CHARTS

FE-FF Series - Pressure Feed Guns

1.0 mm x 1310 12 P

1.0 mm x 1310

1.3 mm x 1313 12

12 P

1.3 mm x 1313

1.5 mm x 1315

1.7 mm x 1317

Revised12/23/15

CP-FEFF-303R2 CP-FEFF-PPSR2

CP-FEFF

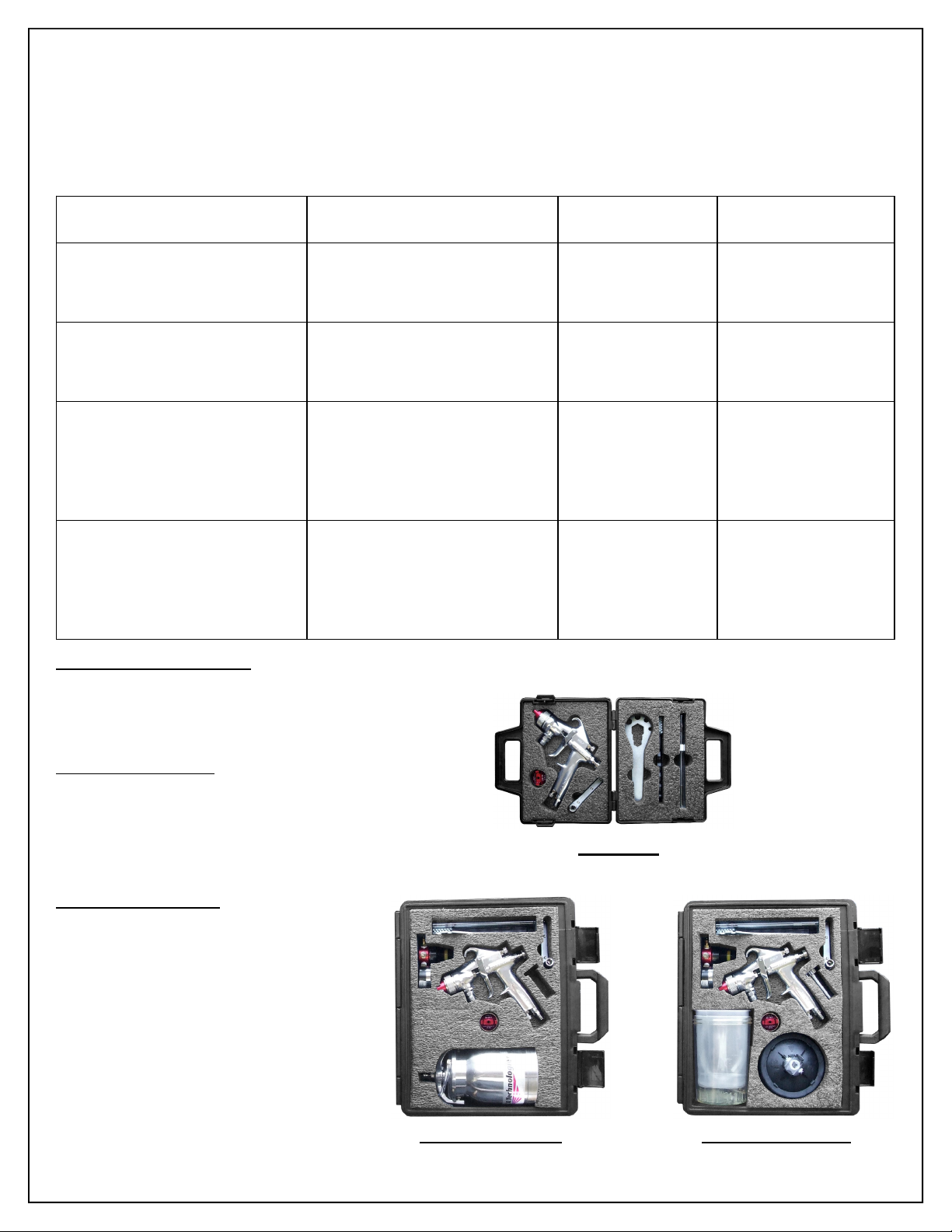

CP-FEFF Smart Pack Includes:

98-0104 3/8” Socket

98-0112 Ratchet Wrench

60-8001 Gun Wrench

98-0113 Gun Cleaning Brush

Air Caps and Needles Shown on Page 1

CP-FEFF-303R2 Includes:

51-303 1 QT Aluminum Pressure Cup

52-5R2 Pressure Cup Regulator

98-0104 3/8” Socket

98-0112 Ratchet Wrench

60-8001 Gun Wrench

98-0113 Gun Cleaning Brush

Air Caps and Needles Shown on Page 1

CP-FEFF-PPSR2 Includes:

91-460 950 mL 3M™ PPS™ Pressure Cup

91-462 Lids and Liners (Available in 25 Pack)

91-475 #18 PPS Adapter

52-5R2 Pressure Cup Regulator

98-0104 3/8” Socket

98-0112 Ratchet Wrench

60-8001 Gun Wrench

98-0113 Gun Cleaning Brush

Air Caps and Needles Shown on Page 1
