Alva TT v2 and Alva ST Turntables
Last updated: April 21, 2022 03:19. Revision #3805
User's Manual
4
Introduction
Last updated: April 21, 2022 03:19. Revision #3815
This guide is designed to make installing and using this product as easy as possible. Information in this document has been carefully checked for
accuracy at the time of printing; however, Cambridge Audio’s policy is one of continuous improvement, therefore design and specifications are
subject to change without prior notice.
This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic or other means, in any form, without prior written permission of the manufacturer. All trademarks and registered trademarks
are the property of their respective owners.
© Copyright Cambridge Audio Ltd .
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries, used with permission. aptX is a trademark
of Qualcomm Technologies International, Ltd., registered in the United States and other countries, used with permission.
Qualcomm aptX is a product of Qualcomm Technologies International, Ltd.
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Audio Partnership
Plc is under license. Other trademarks and trade names are those of their respective owners.
For upcoming news on future products, software updates and exclusive offers, make sure you register your product at
http://www.cambridgeaudio.com/register
5

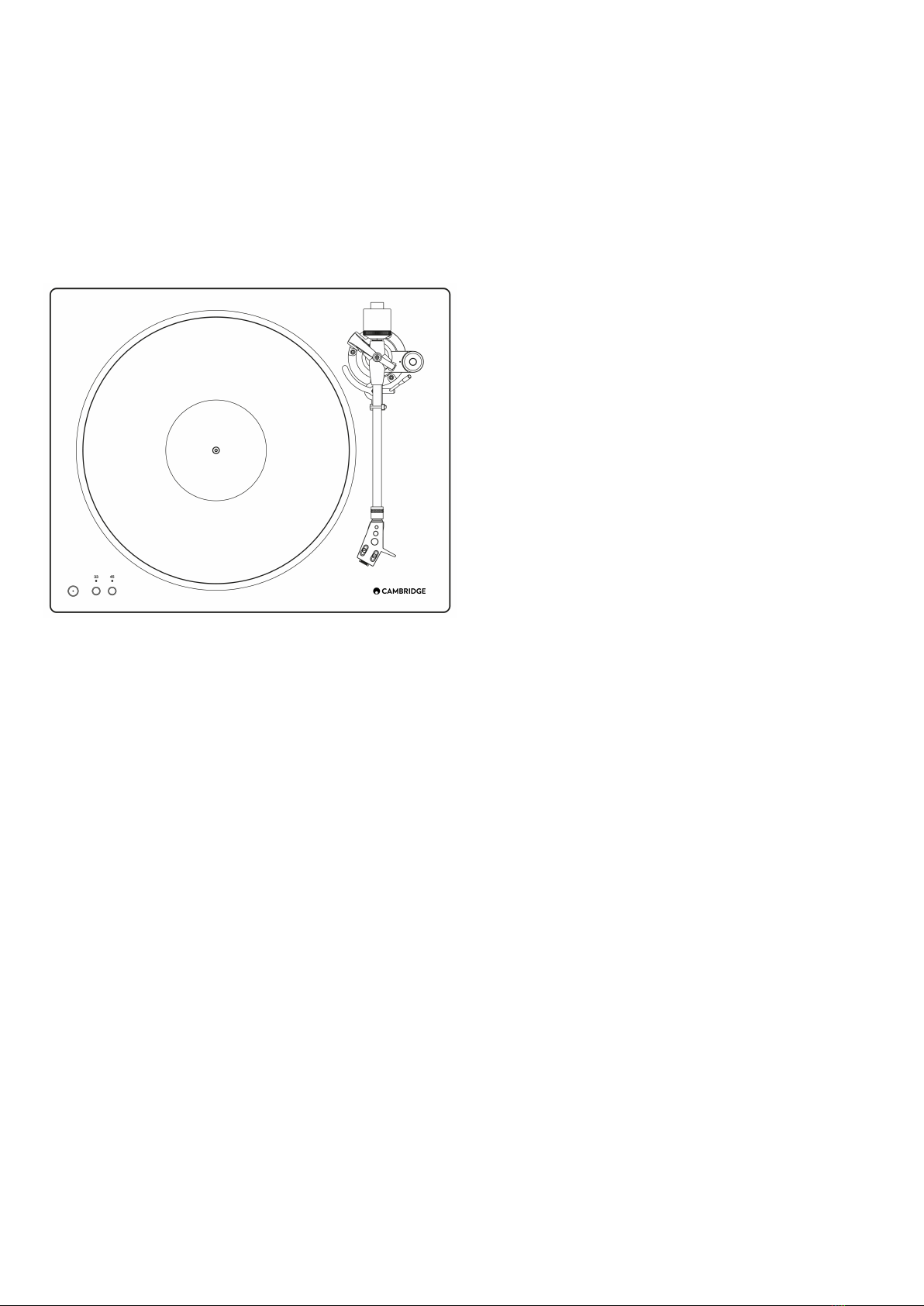

Top view
Last updated: April 5, 2022 02:48. Revision #3651
1. Standby/On
Switches the unit between Standby mode (indicated by the dim LED) and On (indicated by the bright LED).
2. Record speed buttons and start/stop
3. Belt drive motor (Alva ST only)
4. Main platter
5. Tonearm counterweight
Used to adjust tracking force (downforce).
6. Anti-Skating dial
7. Tonearm lift lever
8. Tonearm rest
9. Tonearm
10. Fitted Cambridge Audio MC cartridge
11. Headshell with finger lift
6
Rear view
Last updated: April 5, 2022 03:44. Revision #3652
1. Lid
2. Lid hinges and fasteners
3. Ground
4. Output level (Phone/Line) switch
With the switch position set to Line (Alva TT/ST), the internal phono stage will be used.
With the switch position set to Phono (External), an external phono stage needs to be used.
5. Signal output sockets
Caution - You must connect appropriately based on output level switch position.
6. Bluetooth status with LED On/Off switch
7. Bluetooth pairing button
8. Power socket
Alva TT v2: AC power socket
Alva ST: DC 12V 2.0A power adaptor socket
7
Setting up the Alva ST
Last updated: April 5, 2022 03:48. Revision #3653
1. Place the platter on the turntable.
2. Install the belt drive. Make sure that the belt is installed properly around the motor.
8
3. Push and rotate counterweight onto tonearm and then carefully insert the headshell into the tonearm.
4. Place the rubber mat on the turntable.
9
5. Release tonearm from rest and remove the stylus guard.
Important notes:
- Take care when handling the cartridge. Lower gently onto the platter, do not drop.
- Make sure that the Anti-Skate dial is set to '0'.
10
6. Place tonearm force gauge on the platter and carefully lower stylus onto "2".
Adjusting the counterweight ensures the pressure the stylus applies to the record is correct. Too much pressure can cause distortion and lost
information as well as wear to your records. Too little pressure and the stylus will jump and potentially damage your records.
Return the arm to its armrest to adjust the counterweight. This part of the process requires care and patience. Rotate anti-clockwise to increase
balance weight or clockwise to decrease balance weight.
Adjust the counterweight until the stylus force gauge is in balance. Once the stylus is in balance, return the tonearm to its armrest. The anti-skate
dial should be set to match the tracking force of the cartridge. Your factory-fitted cartridge has a tracking force of '2'.
