INSTRUCTION MANUAL

Raven XT-Telus

Sierra Wireless Cellular Modem

Dec 2011

Campbell Scientific (Canada)Corp.

WARRANTY AND ASSISTANCE

This equipment is warranted by CAMPBELL SCIENTIFIC (CANADA) CORP. (“CSC”) to

be free from defects in materials and workmanship under normal use and service for

twelve (12) months from date of shipment unless specified otherwise. ***** Batteries

are not warranted. ***** CSC's obligation under this warranty is limited to repairing or

replacing (at CSC's option) defective products. The customer shall assume all costs of

removing, reinstalling, and shipping defective products to CSC. CSC will return such

products by surface carrier prepaid. This warranty shall not apply to any CSC products

which have been subjected to modification, misuse, neglect, accidents of nature, or

shipping damage. This warranty is in lieu of all other warranties, expressed or implied,

including warranties of merchantability or fitness for a particular purpose. CSC is not

liable for special, indirect, incidental, or consequential damages.

Products may not be returned without prior authorization. To obtain a Return

Merchandise Authorization (RMA), contact CAMPBELL SCIENTIFIC (CANADA) CORP.,

at (780) 454-2505. An RMA number will be issued in order to facilitate Repair Personnel

in identifying an instrument upon arrival. Please write this number clearly on the outside

of the shipping container. Include description of symptoms and all pertinent details.

CAMPBELL SCIENTIFIC (CANADA) CORP. does not accept collect calls.

Non-warranty products returned for repair should be accompanied by a purchase order to

cover repair costs.

1. General Description......................................................2

2. Establish Cellular Service............................................2

2.1 Raven XT-Telus Cellular Coverage/Service Requirements..............................................2

3. Specifications ...............................................................3

3.1 Raven XT-Telus Specifications ........................................................................................3

4. Configuration ................................................................4

4.1 Base Station Requirements for Raven XT-Telus..............................................................4

4.2 Datalogger Site Equipment...............................................................................................4

4.3 Power Considerations .......................................................................................................9

5. Program the Raven XT-Telus Modem .......................10

5.1 Indicator Lights...............................................................................................................10

5.2 Using AceManager to Configure the Modem.................................................................11

5.3 Configuring the Raven for Dynamic IP..........................................................................14

6. LoggerNet/PC400W Software Setup .........................15

7. Troubleshooting .........................................................18

Appendices

A. AceManager Setup without Template File ............ A-1

B. Configuring the Raven XT Modem for PPP ........... B-1

C. EmailSend Using the Telus Outgoing SMTP Server .. C-1

Raven XT-Telus CDMA Sierra Wireless Cellular Modem

Raven XT-Telus CDMA Sierra

Wireless Cellular Modem

1. General Description

This manual provides information for interfacing the Sierra Wireless Raven

XT-Telus cellular modem to Campbell Scientific dataloggers. A Sierra

Wireless CD ships with the modem that includes Sierra Wireless manuals and

software utilities. Sierra Wireless manuals referenced in this manual include:

AceManagerGuide.pdf

Raven_XT_UserGuide.pdf

Raven_XT_QuickStart.pdf

The Raven XT-Telus digital cellular modems are manufactured by Sierra

Wireless for use on the Telus Wireless Code Division Multiple Access

(CDMA)/1xRTT networks. The modem is accessed through the Internet using

TCP/IP communications protocol using a Dynamic or Static IP address.

•A Dynamic IP address is assigned on a “need to have” basis. A dynamic

IP address is used with a service such as IP Manager (Section 5.4) to

translate domain name to a dynamic IP address, so that the Raven can be

contacted by name as if it had a static IP.

•A Static IP address is permanently assigned to a particular account and

will always be used whenever the Raven connects to the Internet.

A Telus account can be setup for a Dynamic or Static IP address; a Dynamic IP

is preferred. Generally, there is an associated monthly customer charge to use

a Static IP account. Please ask your service provider for details on the monthly

charge for static IP.

2. Establish Cellular Service

2.1 Raven XT-Telus Cellular Coverage/Service Requirements

What you need:

Determine coverage at the datalogger site for your chosen service provider.

Coverage maps are available on each providers website. It is also possible to

search for “Canadian cellular tower maps” for information on tower locations

and possible coverage.

CDMA/1xRTT Dynamic IP or Static IP account established with Telus

Wireless. Telus’s Broadband Access Plan is recommended.

To setup an account you will need the ESN number of the modem. The ESN

number is listed on a label on the modem, and also on the box.

Raven XT-Telus CDMA Sierra Wireless Cellular Modem

What you receive from Telus:

Activation Code (MSL)

10-digit Mobile Directory Number (MDN or MIN/MSID)

IP address (for a Static IP account only)

Recommended Dealers:

1. Communications Group, Red Deer, AB (403) 347-0777

3. Specifications

3.1 Raven XT-Telus Specifications

Sierra Wireless Raven XT, model V2227

Technology: CDMA: EV-DO Rev. A, EV-DO Rev. 0,

1xRTT, IS-95

Bands: 800 MHz Cellular,

1900 MHz PCS

Transmit Frequency: 1850 to 1910 MHz and 824 to 849 MHz

Transmit Power: 1.0 W for 1900 MHz; 0.8 W for 850 MHz

Receiver Frequency: 1930 to 1990 MHz and 869 to 894 MHz

CDMA Throughput: up to 80 kbps

RS-232 Data Rates: 300 bps to 115.2 kbps

Serial Interface: RS-232, DB9-F

Serial Protocols: AT Commands, PPP, UDP/IP, TCP/IP, SMTP,

HTTP, DHCP, SMS, SLIP

RF Antenna Connector: 50 Ohm SMA (female)

Input Current Range: 50 to 250 mA

Typical Current Drain (at 12 Vdc): 50 mA dormant (idle for 10 to 20 seconds),

120 mA transmit/receive

Input Voltage Range: 9 to 28 VDC

Operating Temperature Range: -30° to +70°C

Operating Humidity Range: 5% to 95% RH non-condensing

Status LEDs: Power, Network, Signal, Activity

Dimensions: 7.6 x 2.7 x 10 cm (3”W x 1”D x 4”L)

Weight: 160g (5.6 oz)

Raven XT-Telus CDMA Sierra Wireless Cellular Modem

4. Configuration

4.1 Base Station Requirements for Raven XT-Telus

PC running Campbell Scientifics’ LoggerNet or PC400 software, with access

to the internet.

4.2 Datalogger Site Equipment

•Raven modem with power cable (included with modem).

•Datalogger—21X, CR510, CR10(X), CR23X, CR7, CR1000, CR5000,

CR3000, CR800.

•SC105 or SC932A Interface—connects the modem to the 21X, CR510,

CR10(X), CR7, or other dataloggers’ CS I/O port.

•The SC105 must be configured for use with the modem using the Device

Configuration Utility. Settings should be:

CS I/O Mode: SDC Address 7

RS-232 Mode: Modem

Baud Rate: 115.2K or 9600 baud depending on datalogger model

8 data bits, 1 stop bit, no parity

•PN L18663 Null Modem Cable—connects the modem to the CR23X,

CR3000, CR800, CR2XX, CR1000 or CR5000 RS-232 port.

If you have a black SC12 cable that is not Rev 1 or newer (as

indicated on cable), it is a CS I/O cable only and will not work

for RS-232. Connect the black SC12 cable between the

datalogger and the SC932A. Use a 9-pin serial cable or a blue

ribbon cable between the phone and the SC932A.

NOTE

Raven XT-Telus CDMA Sierra Wireless Cellular Modem

Wiring:

Red 12V (or

switched 12V)

Black G

White Not Used

PN L18663

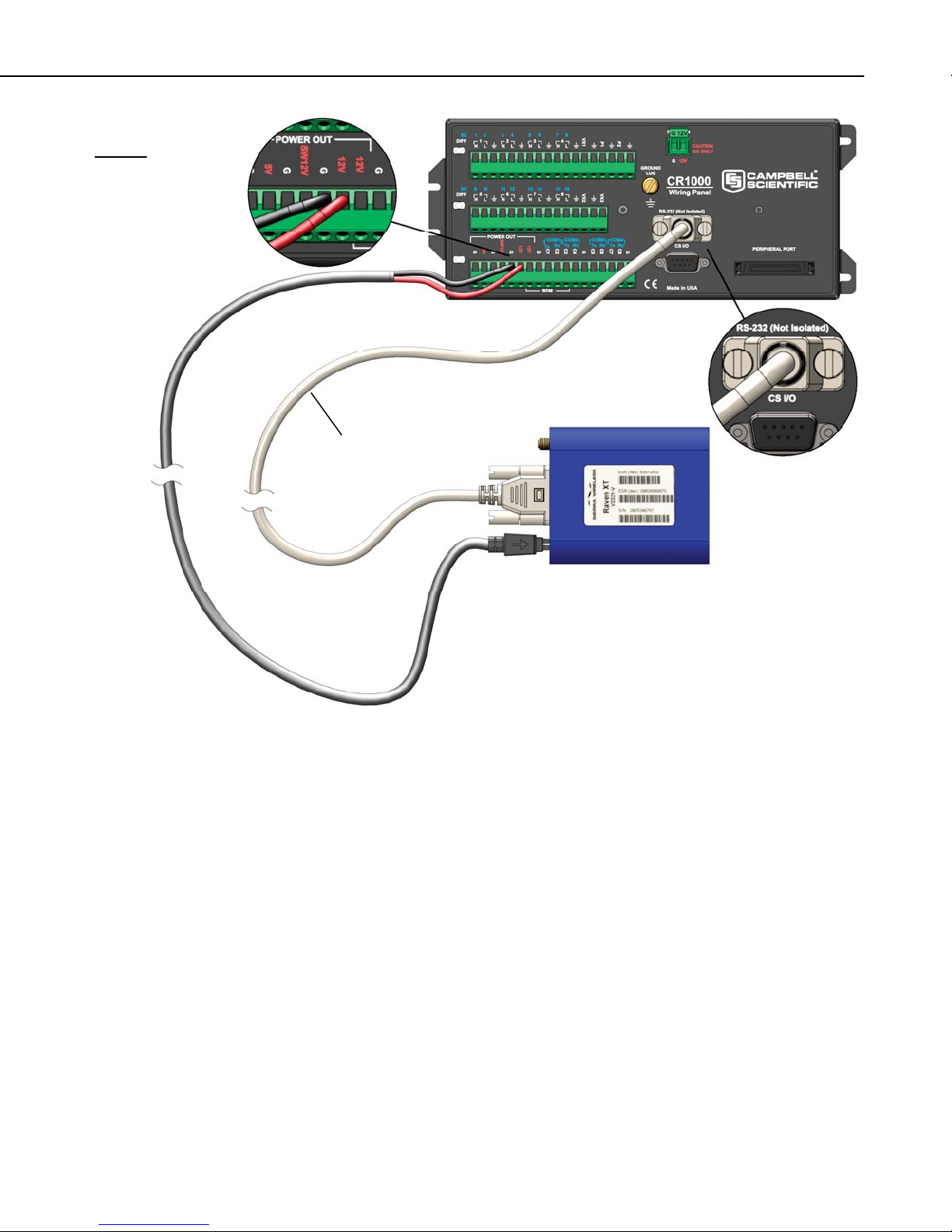

PN L18663 Null Modem Cable—connects the modem to the CR23X, CR3000, CR800, CR2XX, CR1000

or CR5000 RS-232 port

(not compatible with the 21X, CR510, CR10X, or CR7 dataloggers).

Raven XT-Telus CDMA Sierra Wireless Cellular Modem

Wiring:

Red 12V (or

switched 12V)

Black G

White Not Used

L10873 serial cable

provided with the SC105

SC105 Settings:

CS I/O Mode: SDC Address 7

RS-232 Mode: Modem

Baud Rate: 115.2K or 9600 baud depending on datalogger model

8 data bits, 1 stop bit, no parity

SC105 interface connects the modem to a datalogger’s CS I/O port;

recommended for dataloggers with the Pakbus Operating System.

Raven XT-Telus CDMA Sierra Wireless Cellular Modem

Wiring:

Red 12V (or

switched 12V)

Black G

White Not Used

L10873 serial cable

provided with the SC932A

SC932A interface connects the modem to the CS I/O port;

recommended for dataloggers with the Mixed-Array Operating System.

FIGURE 4.2-1. Modem Interface Options.

Raven XT-Telus CDMA Sierra Wireless Cellular Modem

•PN L14394 Raven Mounting Kit—includes mounting hardware for

securing the modem to below referenced environmental enclosure and a 9-

pin male to 9-pin female cable.

•Antenna—the following antennas are available from Campbell

Scientific. Contact a Campbell Scientific Applications Technician for

help in determining the best antenna for your application.

oThe C2446 is a dual-band, omnidirectional antenna for our

CDMA and GPRS digital-cellular modems. This antenna is

recommended for locations where cellular coverage is strong.

The C2446 includes a mount/u-bolt assembly that allows the

antenna to be mounted to a mast, crossarm, or user-supplied pole

(outer diameter of up to 1.5" (3.8 cm)).

oThe L18285 1 dBd omnidirectional antenna. This antenna is dual

band, covering both the 800 MHz and 1.9 GHz bands, and is

strongly recommended where cellular coverage is strong. The

L18285 includes a mount/u-bolt assembly for attaching the

antenna to a mast, post, or crossarm up to 1.5" (3.8 cm) in

diameter.

oThe C2445 9dBd Yagi Antenna is a higher gain antenna that

should be "aimed" at the service provider's antenna. The C2445

is a 800 MHz antenna and bracket/u-bolt assembly for attaching

the antenna to a mast or post. The antenna comes with 10’ of

cable. This antenna is recommended for fringe areas that require

a higher gain antenna.

oThe L21831 Half-Wave Dipole Whip Antenna is a lower gain

antenna used in transmitting short distances. It is an 800 MHz

cellular antenna that terminates in a SMA Male connector for

attachment to the modem. This antenna is intended for use inside

the enclosure. Please note that the backplate of the enclosure is a

grounded plane. If it is interposed between the antenna and the

cell tower, it may attenuate the strength of the transmission

signal. Simply turning the enclosure 90 to 180 degrees on its

mounting mast may solve weak transmission issues.

Indice

Altri manuali Campbell Modem

Campbell

Campbell Redwing CDMA1X Manuale utente

Campbell

Campbell IPn3Gb Manuale utente

Campbell

Campbell COM110A Manuale utente

Campbell

Campbell Sierra Wireless AirLink RV50 Manuale utente

Campbell

Campbell COM9602 Manuale utente

Campbell

Campbell Sierra Wireless AirLink RV50 Manuale utente

Campbell

Campbell RF401 Manuale utente

Campbell

Campbell RavenXTV CDMA Manuale utente

Campbell

Campbell Raven II Manuale utente

Campbell

Campbell RF401 Manuale utente

Campbell

Campbell 9522B Manuale utente

Campbell

Campbell COM220 Manuale utente

Campbell

Campbell RavenXTG GPRS/EDGE Manuale utente

Campbell

Campbell COM220 Manuale utente

Campbell

Campbell COM200 Manuale utente

Campbell

Campbell Sierra Wireless AirLink RV50 Manuale utente

Campbell

Campbell Raven100 Manuale utente

Campbell

Campbell R410 Manuale utente

Campbell

Campbell Sierra Wireless RavenXTV Manuale utente

Campbell

Campbell Raven110 Manuale utente

Campbell

Campbell Sierra Wireless AirLink RV50 Manuale utente

Campbell

Campbell Raven CDMA1X Manuale utente

Campbell

Campbell RavenXT-Series Manuale utente

Campbell

Campbell COM200A Manuale utente

Manuali Modem popolari di altre marche

Davicom

Davicom DM562AP Manuale utente

EpiValley

EpiValley TATA indicom SXC-1080 Manuale utente

Zte

Zte WiMAX Manuale utente

Intelimax

Intelimax MA-2060 Manuale utente

SMC Networks

SMC Networks D3CM1604V Manuale per l'uso e la cura

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuale utente

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuale utente

Samsung

Samsung AceLink SAM-335A Manuale utente

Enfora

Enfora Enabler-G Guida rapida alla configurazione

iRZ

iRZ ATM2-232 Manuale utente

Zhone

Zhone 6310 Manuale utente

Paradyne

Paradyne Hotwire 7976 Manuale utente

US Robotics

US Robotics 3453C Manuale utente

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuale utente

Zte

Zte MF823 Manuale utente

Four-Faith

Four-Faith F1403 Manuale utente

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuale utente

Gemtek

Gemtek WiMAX WIXFBR-103 Manuale utente
