Raven110 GPRS AirLink Cellular

Modem

1. General Description

This manual provides information for interfacing the AirLink Raven110

cellular modem to Campbell Scientific dataloggers. An AirLink CD ships with

the modem that includes AirLink manuals and software utilities. AirLink

manuals referenced in this manual include:

AirLinkSetupWizard_InstallationInstructions.pdf

WirelessAce3G_UserGuide2.00.pdf

Cingular_EDGE-GPRS_Raven_UserGuide2.20.pdf

Cingular_EDGE-GPRS_Raven _QSG2.01.pdf

The Raven110 digital cellular modem is manufactured by AirLink for use on

the Cingular General Packet Radio Service (GPRS) network. The modem is

accessed through the Internet using TCP/IP communications protocol using a

Static or Dynamic IP address.

•A Static IP address is permanently assigned to a particular account and

will always be used whenever the Raven connects to the Internet.

•A Dynamic IP address is assigned on a “need to have” basis. A dynamic

IP address is used with a service such as IP Manager (Section 5.3) to

translate a dynamic IP address to a domain name, so that the Raven can be

contacted as if it had a static IP.

A Cingular GPRS account can be setup for a Static or Dynamic IP address; a

Static IP is preferred.

2. Establish Cellular Service

2.1 Raven110 Cellular Coverage/Service Requirements

What you need:

Cingular GPRS coverage at the datalogger site (for a coverage map refer to:

http://www.cingular.com/refresh/common/estore_zipcode_maps).

GPRS Static IP or Dynamic IP account established with Cingular or Motient

Corporation.

At the present time, Cingular does not offer a public Internet APN account. A

Custom APN is required, which takes four to six weeks to setup and costs

about $1000. Cingular also charges an engineering fee for any changes made

to an existing account.

To setup an account call Cingular Wireless Business Solutions at 1-866-429-

7222. The Data Connect Plan (Custom APN) is recommended.

For most users, it is less expensive to use Motient Corporation as the provider.

Motient Corporation has more flexible plans and faster activation times. To

setup an account contact:

Raven110 GPRS AirLink Cellular Modem

Motient Corporation

James Fahey, National Sales Manager

Phone: 847-478-4310 (office)

Email: james.fahey@motient.com

Web: www.motient.com

To setup an account you will need the IMEI number of the modem. The IMEI

number is listed on a label on the modem, and also on the box.

Information that you will receive from Cingular / Motient includes:

SIM card

Access Point Name (APN)

IP address

MSISDN 10-digit phone number associated with account

The SIM card must be installed in the modem as described in Appendix B.

3. Specifications

3.1 Raven110 Specifications

Airlink Raven Model G3210 GPRS-EDGE modem

Network: 1900/850 MHz

Transmit Frequency: 1850-1910 MHz and 824-849 MHz

Transmit Power: 1.0 W for 1900 MHz; 2.0 W for 850 MHz

Receiver Frequency: 1930-1990 MHz and 869-894 MHz

Modes Supported: GPRS and SMS

Throughput: up to 40 kbps

RS-232 Data Rates: 1200 bps to 115.2 kbps

Input Voltage: 10 to 28 Vdc

Input Current: 20 to 250 mA

Typical Current Drain at 12 Vdc: 20 mA dormant connection (idle for 10 to 20

seconds), 130 mA transmit/receive

Operating Temperature Range: -30° to +70°C (10% duty cycle limit above

60°C)

Operating Humidity: 5% to 95% non-condensing

Serial Protocols: AT Commands, PPP, SLIP, UDP, TCP

Serial Interface: RS-232

RF Antenna Connector: 50 Ohm TNC

Status LEDs: Power, Channel Acquired, Link Status, Network Registration,

RSSI, Transmit/Receive, Block Errors

Dimensions: 3"W x 1"D x 5.1"L (5.8"L w/connector), 7.6 W x 2.5 D x

13 L cm (14.7 L cm w/connector)

Weight: <1 lb (<0.5 kg)

Raven110 GPRS AirLink Cellular Modem

4. Configuration

4.1 Base Station Requirements for Raven110

PC running Campbell Scientifics’ LoggerNet or PC400 software, with access

to the internet.

4.2 Datalogger Site Equipment

•Raven modem with power cable (included with modem).

•Datalogger—21X, CR510, CR10(X), CR23X, CR7, CR1000, CR5000,

CR3000, CR800.

•SC105 or SC932A Interface—connects the modem to the 21X, CR510,

CR10(X), CR7, or other dataloggers’ CS I/O port.

If you have a black SC12 cable that is not Rev 1 or newer (as

indicated on cable), it is a CS I/O cable only and will not work

for RS-232. Connect the black SC12 cable between the

datalogger and the SC932A. Use a 9-pin serial cable or a blue

ribbon cable between the phone and the SC932A.

•PN 18663 Null Modem Cable—connects the modem to the CR23X,

CR3000, CR800, CR2XX, CR1000 or CR5000 RS-232 port.

SC105 interface connects the modem to a datalogger’s CS I/O port;

recommended for dataloggers with the Pakbus Operating System.

NOTE

Raven110 GPRS AirLink Cellular Modem

SC932A interface connects the modem to the CS I/O port;

recommended for dataloggers with the Mixed-Array Operating System.

PN 18663 null modem cable connects the modem to a datalogger's

RS-232 port (not compatible with the 21X, CR510, CR10X,

or CR7 dataloggers).

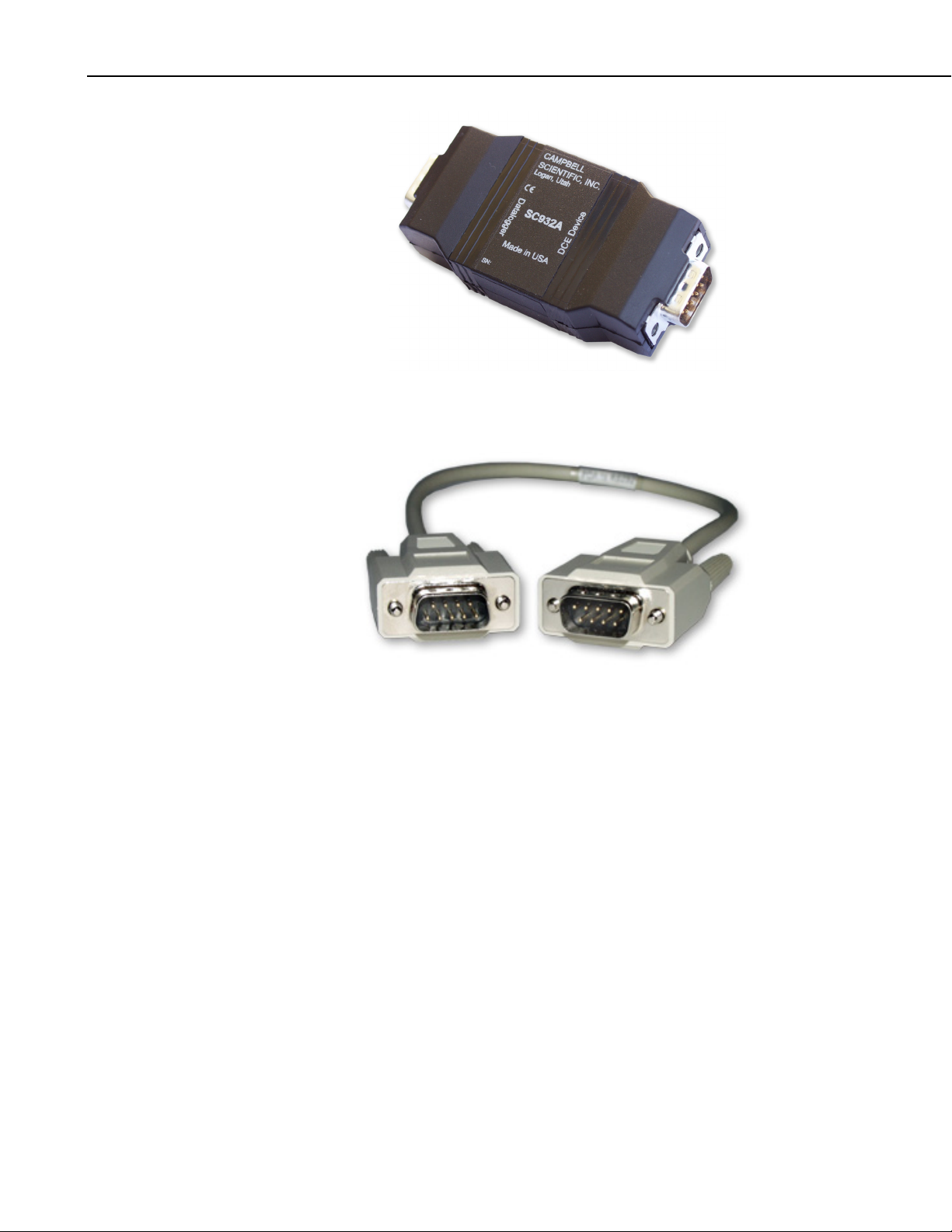

FIGURE 4.2-1. Modem Interface Options.

•PN 13493 Raven Mounting Kit—includes mounting hardware for securing

the modem to below referenced environmental enclosure and a 9-pin male

to 9-pin female cable.

•Antenna—the following antennas are available from Campbell

Scientific. Contact a Campbell Scientific Applications Technician for

help in determining the best antenna for your application.

oThe 18285 1 dBd omnidirectional antenna. This antenna is dual

band, covering both the 800 MHz and 1.9 GHz bands, and is

strongly recommended where cellular coverage is strong. The

18285 includes 10 feet of cable fitted with a TNC male connector

for attachment to the Raven, and a mount/u-bolt assembly for

attaching the antenna to a mast, post, or crossarm up to 1.5" (3.8

cm) in diameter.

Raven110 GPRS AirLink Cellular Modem

oThe 14454 9dBd Yagi Antenna is a higher gain antenna that

should be "aimed" at the service provider's antenna. The 14454

includes 10 feet of cable fitted with a TNC male connector for

attachment to the GPRS modem, and a bracket/u-bolt assembly

for attaching the antenna to a mast or post. This antenna is

recommended for fringe areas that require a higher gain antenna.

oThe 14453 Half-Wave Dipole Whip Antenna is a lower gain

antenna used in transmitting short distances. It is an 800 MHz

cellular antenna that terminates in a TNC Female connector for

attachment to the Redwing modem. This antenna is intended for

use inside the enclosure. Please note that the backplate of the

enclosure is a grounded plane. If it is interposed between the

antenna and the cell tower, it may attenuate the strength of the

transmission signal. Simply turning the enclosure 90 to 180

degrees on its mounting mast may solve weak transmission

issues.

PN 18285 1 dBd Omni Directional Antenna

PN 14454 9dBd Directional Yaggi Antenna

PN 14453 Half-Wave Dipole Whip Antenna

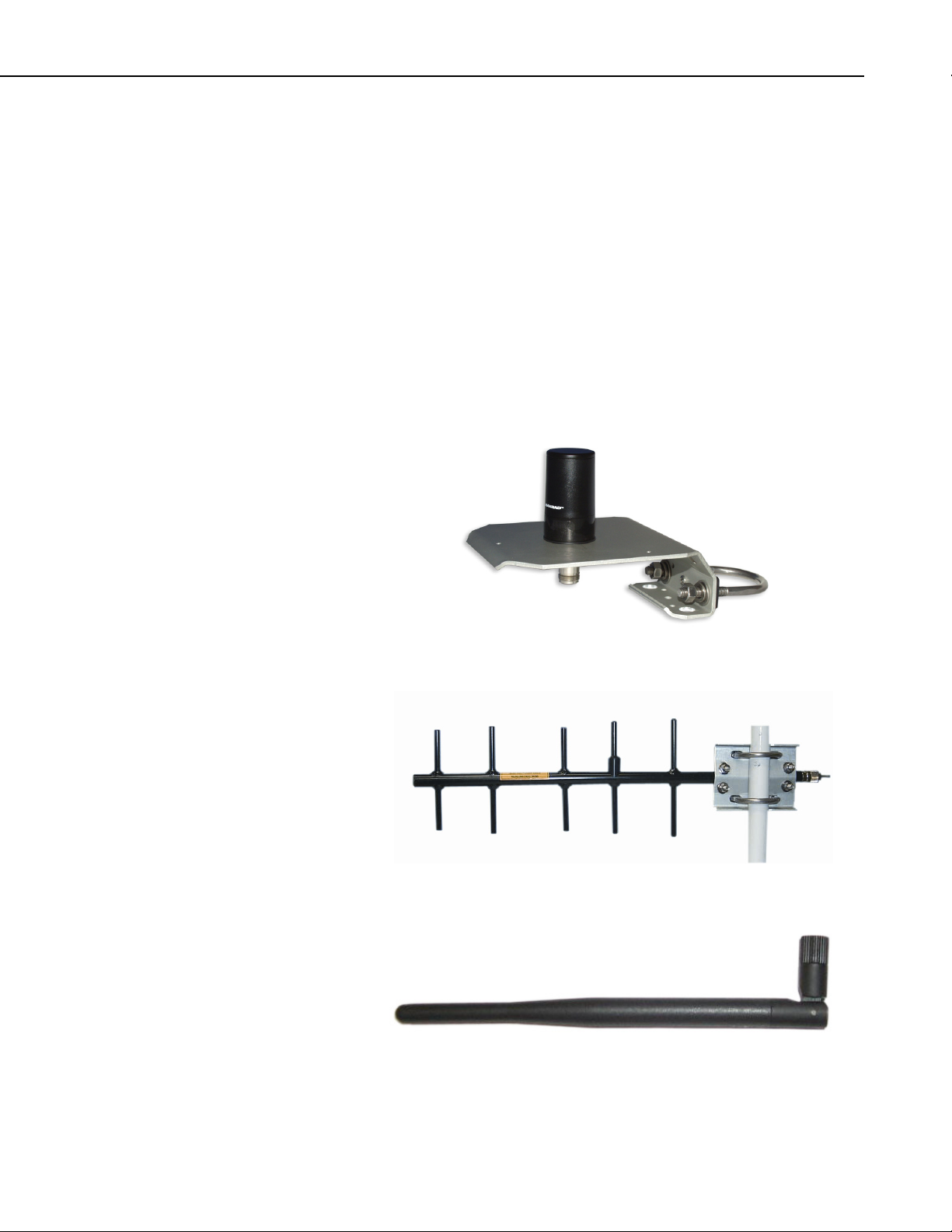

FIGURE 4.2-2. Antennas for Use with the Raven Modems

Raven110 GPRS AirLink Cellular Modem

•Power Supply (see power considerations).

•Environmental Enclosure— ENC 10/12, ENC 12/14, or ENC 16/18.

4.3 Power Considerations

•A power cable included with the modem connects to the datalogger's 12 V

or switched 12 V terminal. Connection to the switched 12 V terminal

allows the datalogger to switch power to the modem during scheduled

transmission intervals if desired.

•When using the switched 12 V terminal, the modem can typically be

powered with a BP12 battery, CH100 charger/regulator, and MSX10 solar

panel.

5. Program the Raven110 Modem

The following software is used to program the modem:

Airlink's SetupWizard, which provisions and activates the modem.

Airlink's Wireless Ace 3G, which configures the generic parameters of the

modem.

Campbell Scientific's Raven GPRS template file. The template file is available

from: www.campbellsci.com/downloads.

The Setup Wizard and Wireless Ace 3G utilities can be found on the CD

included with the modem, or from Airlink’s website: www.airlink.com.

5.1 Setup Wizard Installation

The Setup Wizard will provision and test the modem, and perform firmware

updates where necessary.

The Setup Wizard utility is on the CD shipped with the Raven modem, and is

also available from AirLink (http://www.airlink.com/support). Additional

information on the Setup Wizard is available from the

AirLinkSetupWizard_InstallationInstructions.pdf manual.

To install the Setup Wizard from the AirLink CD, click on the “Verizon Setup

Wizard” link and follow the prompts. Once the application has been installed,

it can be run from the Windows Start menu or from the desktop icon.

5.2 Using the Setup Wizard to Provision and Activate the

Modem

1. Install the SIM card as shown in Appendix B.

2. Connect the modem to the computer’s serial port using a serial cable.

3. Connect the power cable to 12 V, and the antenna to the modem.

4. Run the Setup Wizard from the Windows Start menu. Start>All

Programs>AirLink Communications>Setup Wizard>Setup Wizard.

Altri manuali per Raven110

Indice

Altri manuali Campbell Modem

Campbell

Campbell Sierra Wireless AirLink RV50 Manuale utente

Campbell

Campbell RF500M Manuale utente

Campbell

Campbell COM320 Manuale utente

Campbell

Campbell Sierra Wireless AirLink RV50 Manuale utente

Campbell

Campbell Sierra Wireless AirLink RV50 Manuale utente

Campbell

Campbell COM310 Manuale utente

Campbell

Campbell Sierra Wireless AirLink RV50 Manuale utente

Campbell

Campbell RavenXTG GPRS/EDGE Manuale utente

Campbell

Campbell R410 Manuale utente

Campbell

Campbell 9522B Manuale utente

Campbell

Campbell COM200 Manuale utente

Campbell

Campbell 9522B Manuale utente

Campbell

Campbell Sierra Wireless RavenXTV Manuale utente

Campbell

Campbell Raven110 Manuale utente

Campbell

Campbell COM300 Manuale utente

Campbell

Campbell IPn3Gb Manuale utente

Campbell

Campbell RavenXTV CDMA Manuale utente

Campbell

Campbell Raven100 Manuale utente

Campbell

Campbell Raven II Manuale utente

Campbell

Campbell CS-SRM Manuale utente

Campbell

Campbell Raven CDMA1X Manuale utente

Campbell

Campbell COM110A Manuale utente

Campbell

Campbell Redwing CDMA1X Manuale utente

Campbell

Campbell DCSCOM Manuale utente

Manuali Modem popolari di altre marche

Davicom

Davicom DM562AP Manuale utente

EpiValley

EpiValley TATA indicom SXC-1080 Manuale utente

Zte

Zte WiMAX Manuale utente

Intelimax

Intelimax MA-2060 Manuale utente

SMC Networks

SMC Networks D3CM1604V Manuale per l'uso e la cura

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuale utente

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuale utente

Samsung

Samsung AceLink SAM-335A Manuale utente

Enfora

Enfora Enabler-G Guida rapida alla configurazione

iRZ

iRZ ATM2-232 Manuale utente

Zhone

Zhone 6310 Manuale utente

Paradyne

Paradyne Hotwire 7976 Manuale utente

US Robotics

US Robotics 3453C Manuale utente

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuale utente

Zte

Zte MF823 Manuale utente

Four-Faith

Four-Faith F1403 Manuale utente

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuale utente

Gemtek

Gemtek WiMAX WIXFBR-103 Manuale utente
