INSTRUCTION MANUAL

Redwing 100 and Redwing 105

Airlink CDMA Modems

7/04

Campbell Scientific, Inc.

Warranty and Assistance

The REDWING 100 AND REDWING 105 AIRLINK CDMA MODEMS is

warranted by CAMPBELL SCIENTIFIC, INC. to be free from defects in

materials and workmanship under normal use and service for twelve (12)

months from date of shipment unless specified otherwise. Batteries have no

warranty. CAMPBELL SCIENTIFIC, INC.'s obligation under this warranty is

limited to repairing or replacing (at CAMPBELL SCIENTIFIC, INC.'s option)

defective products. The customer shall assume all costs of removing,

reinstalling, and shipping defective products to CAMPBELL SCIENTIFIC,

INC. CAMPBELL SCIENTIFIC, INC. will return such products by surface

carrier prepaid. This warranty shall not apply to any CAMPBELL

SCIENTIFIC, INC. products which have been subjected to modification,

misuse, neglect, accidents of nature, or shipping damage. This warranty is in

lieu of all other warranties, expressed or implied, including warranties of

merchantability or fitness for a particular purpose. CAMPBELL SCIENTIFIC,

INC. is not liable for special, indirect, incidental, or consequential damages.

Products may not be returned without prior authorization. The following

contact information is for US and International customers residing in countries

served by Campbell Scientific, Inc. directly. Affiliate companies handle repairs

for customers within their territories. Please visit www.campbellsci.com to

determine which Campbell Scientific company serves your country. To obtain

a Returned Materials Authorization (RMA), contact CAMPBELL

SCIENTIFIC, INC., phone (435) 753-2342. After an applications engineer

determines the nature of the problem, an RMA number will be issued. Please

write this number clearly on the outside of the shipping container.

CAMPBELL SCIENTIFIC's shipping address is:

CAMPBELL SCIENTIFIC, INC.

RMA#_____

815 West 1800 North

Logan, Utah 84321-1784

CAMPBELL SCIENTIFIC, INC. does not accept collect calls.

Redwing CDMA Table of Contents

PDF viewers note: These page numbers refer to the printed version of this document. Use

the Adobe Acrobat® bookmarks tab for links to specific sections.

1. Introduction.................................................................1

2. Specifications .............................................................1

2.1 Base Station Requirements .......................................................................1

2.2 Datalogger Site Equipment .......................................................................1

2.3 Power Considerations ...............................................................................2

3. Configuration ..............................................................2

3.1 Establish Cellular Service .........................................................................2

3.2 Program the Modem .................................................................................2

3.3 Setup LoggerNet .......................................................................................3

Appendix

A. Configuring Modem with a Terminal Emulator ....A-1

A.1 HyperTerminal Setup ...........................................................................A-1

A.2 Programming the Redwing’s Phone Number .......................................A-2

A.3 Programming the Redwing for Use with a Datalogger.........................A-3

This is a blank page.

Redwing100 and Redwing105 AirLink

CDMA Modems

1. Introduction

Redwing modems are full-duplex, digital cellular modems that communicate

with a base station PC via Code Division Multiple Access (CDMA) network

and Public Switched Telephone Network (PSTN). Redwing100 modems are

for use on the Verizon network only. Redwing105 modems are for use on the

Alltel network.

2. Specifications

2.1 Base Station Requirements

•PC with Hayes-compatible modem, running Campbell Scientific’s

LoggerNet or PC400 software.

•Subscription to the Verizon CDMA network with coverage at the

datalogger site.

2.2 Datalogger Site Equipment

•Redwing modem—includes power cable; the modem is configured using

the CellSet.exe program

•Datalogger—CR510, CR10(X), CR23X, CR7, CR5000, or CR2XX

•SC105 or SC932A Interface—connects the modem to the CR510,

CR10(X), or CR7 dataloggers’ CS I/O port

•14392 Null Modem Cable—connects the modem to the CR23X, CR2XX,

or CR5000 RS-232 port

•14394 Redwing Mounting Kit—includes mounting hardware for securing

the modem to below referenced environmental enclosure and a 9-pin male

to 9-pin female cable.

•Antenna—the following antennas are available from Campbell Scientific;

sites near the edge of the CDMA coverage may require the Yagi antenna.

Contact a CSI applications engineer for help in determining the best

antenna for your application.

o14453 0 dBd ½ Wave Dipole Whip Cellular Antenna

o14454 8 dBd Yagi Cellular Antenna with 10' Cable

•Power Supply (see power considerations)

•Environmental Enclosure— ENC 10/12, ENC 12/14, or ENC 16/18

Redwing100 and Redwing105 AirLink CDMA Modems

2.3 Power Considerations

•A power cable included with the modem connects to the datalogger's 12 V

or switched 12 V terminal. Connection to the switched 12 V terminal

allows the datalogger to switch power to the modem during scheduled

transmission intervals if desired.

•When using the switched 12 V terminal, the modem can be powered with

a BP12 battery, CH100 charger/regulator, and MSX10 solar panel.

3. Configuration

3.1 Establish Cellular Service

Prior to contacting Verizon (Redwing100) or Alltel (Redwing105), have the

following information on hand:

1. Electronic Serial Number (ESN). The ESN is found on the unit label.

2. Desired area code and local prefix. Normally, choose the same area code

and prefix as the calling PC. These will ensure that calls are billed at local

rates, even if the phone is used outside the local calling area.

Contact the provider, tell the account representative that you would like to

open an account for a new voice phone. Request a voice plan similar to

Verizon’s America’s Choice 400 Plan. Ask that voice mail NOT be activated.

The provider will provide you with the following:

1. A 10-digit phone number.

2. System ID (SID). You may need to ask for this.

3.2 Program the Modem

Program the modem with CELLSET.EXE, available from Campbell Scientific,

Inc. The appendix describes how to program the modem via a terminal

emulator; however, programming via a terminal emulator is NOT

recommended.

1. Connect the phone to your computer COM port.

2. Apply 12 volts to the phone. Red lead to +, black lead to -.

3. Start CELLSET.EXE and enter the 10-digit phone number to be

programmed into the phone.

4. Enter the SID. If you do not have the SID, try entering zero.

5. For CR10(X), CR510, CR7, 21X, or CR200 dataloggers, set the baud rate

to 9600. For CR23X or CR5000 dataloggers, set the baud rate to 38400.

6. Press “Set Settings” button to program the phone.

Redwing100 and Redwing105 AirLink CDMA Modems

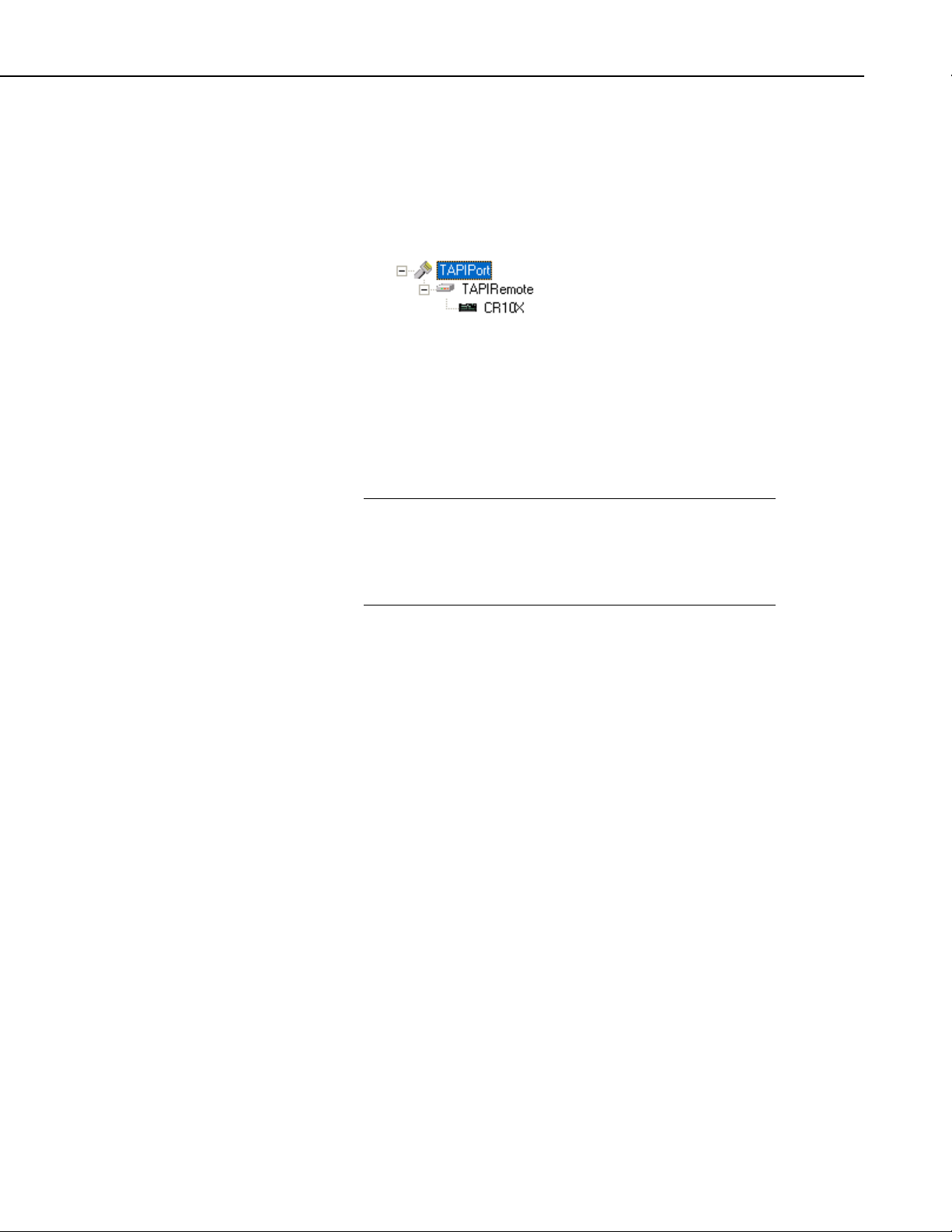

3.3 Setup LoggerNet

1. Select Add Root | TapiPort.

2. Add a TapiRemote to the TapiPort.

3. Add a datalogger to the TapiRemote.

4. On the TapiPort page, select your installed modem on the Tapi Line.

5. On the TapiRemote un-check “Use Tapi Dialing Properties.“

6. Enter the phone number of the CDMA phone.

7. Apply the changes and test.

If you have a black SC12 cable, that is not Rev 1 or newer, it is a

CS I/O cable only and will not work for RS-232. Connect the

black SC12 cable between the datalogger and the SC932A. Use

a 9-pin serial cable or a blue ribbon cable between the phone and

the SC932A.

NOTE

Redwing100 and Redwing105 AirLink CDMA Modems

This is a blank page.

A-1

Appendix A. Configuring Modem with a

Terminal Emulator

Programming the modem with a terminal emulator is not

recommended. Please first attempt programming with the

CELLSET.EXT program available from Campbell Scientific,

Inc.

Items needed:

•Computer with a COM port.

•9-pin cable to connect between the computer and the Redwing.

•A terminal program on the computer “HyperTerminal”.

•12 volt DC applied to the Redwing.

•CDMA account

A.1 HyperTerminal Setup

Under “Connect using”, select the COM port you will be using.

Set COM Properties to:

Bits per second (baud) = 115200

Data bits = 8

Parity = None

Stop bits = 1

Flow control = None

NOTE

Appendix A. Configuring Modem with a Terminal Emulator

A-2

Apply power to the modem and connect it to the computer via the 9-pin serial

cable.

Enter the following AT command: at+ipr=9600 and then press Enter.

This has now changed the baud rate from 115200 to 9600. You need to change

the baud rate in HyperTeminal to 9600 now. At the top of the HyperTerminal

window select Call |Disconnect. Select File | Properties | Configure.

Change the baud rate to 9600. Select OK. Select Call | Call.

A.2 Programming the Redwing’s Phone Number

Your provider should give you a Phone number and a System Identification

(SID) number to program into the Redwing.

Do the following substituting the phone number and SID with yours:

(Example Phone number - 4355551212, SID - 134)

•Type AT~NAMLCK=000000 then press Enter.

•Type AT~NAMVAL=0,4355551212,134,65535 then press Enter.

There are no O’s in the above strings, they are Zero’s.

Remove the power from the Redwing and power it up again.

You can type AT~NAMVAL?0 to make sure your phone was programmed

correctly.

NOTE
