Overview of the Machine

This section shows the component names of the machine and describes the basic operations you need

to know before using it.

Main Components

Front View

Rear View

Inside View

Operation Panel

How to Navigate Menus on the LCD

Selecting Menus on the HOME Screen

Selecting Setting Items

Other Operations

Page top

Page 3 of 815 pagesOverview of the Machine

Advanced Guide Troubleshooting

Contents > Overview of the Machine > Main Components

Main Components

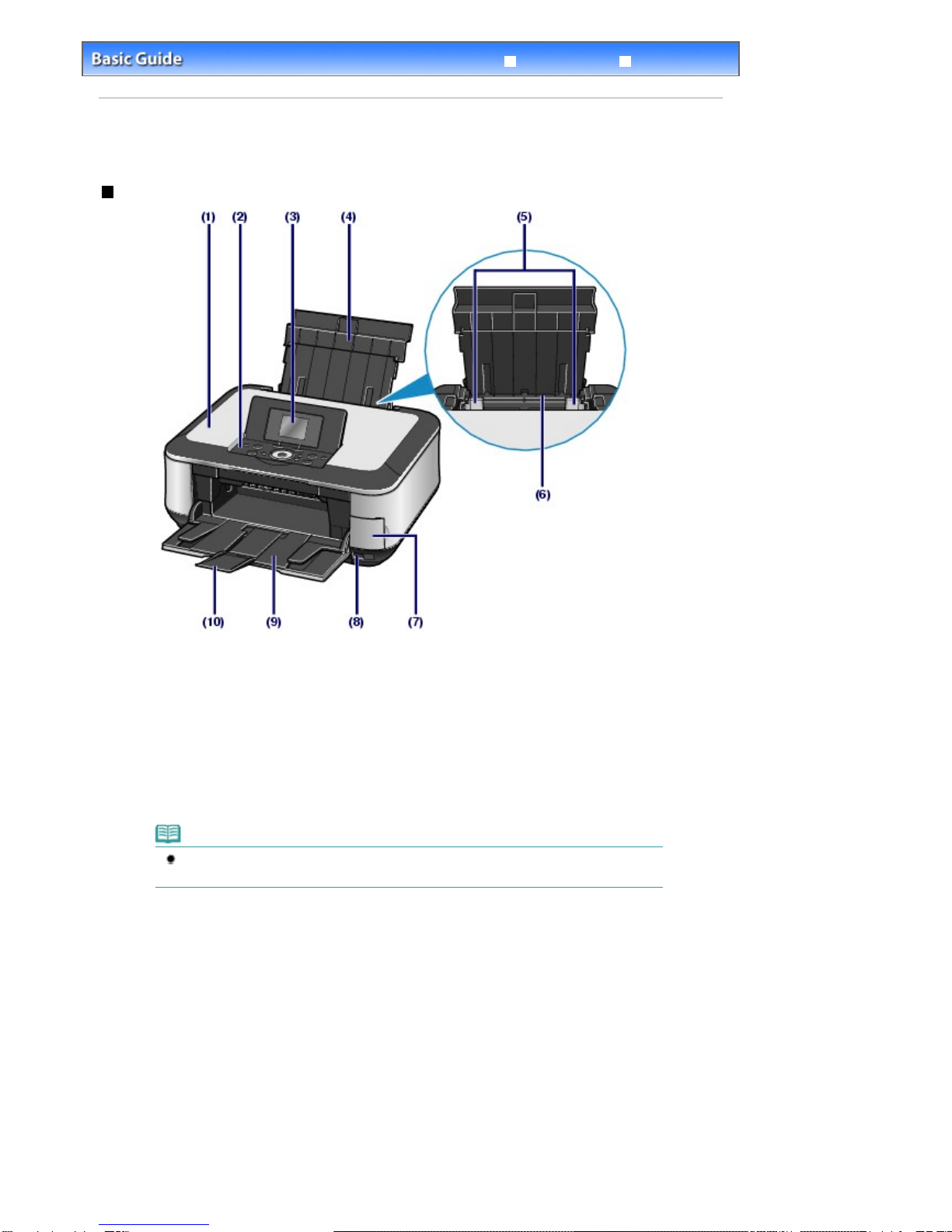

Front View

(1) Document Cover

Open to load an original on the Platen Glass.

(2) Operation Panel

Use to change the settings of the machine or to operate it.

See Operation Panel.

(3) LCD (Liquid Crystal Display)

Displays messages, menu selections, and the operation status. You can also preview photos on the LCD

before printing.

Note

The LCD will turn off if the machine is not operated for about 5 minutes. To restore the

display, press any button except the ON button or perform the print operation.

(4) Paper Support

Raise and tip back to load paper in the Rear Tray.

(5) Paper Guides

Slide to align with both sides of the paper stack.

(6) Rear Tray

Load various sizes or types of paper which you can use on the machine. Two or more sheets of the same

size and type of paper can be loaded at the same time, and fed automatically one sheet at a time.

See Loading Paper.

(7) Card Slot Cover

Open to insert a memory card.

See Inserting the Memory Card.

(8) Direct Print Port

Connect a PictBridge compliant device such as a digital camera or the optional Bluetooth Unit BU-30* when

Page 4 of 815 pagesMain Components

printing directly.

See Printing Photos Directly from Your Mobile Phone or Digital Camera.

You can also insert a USB flash drive to this port to save scanned data on it.

See Saving Scanned Data.

* The Bluetooth Unit is not available in some countries or regions depending on the local laws and

regulations. For details, contact your local Canon service representative.

Warning

Do not connect any equipment other than PictBridge compliant devices, the optional

Bluetooth Unit BU-30, and USB flash drives to the Direct Print Port of the machine. This

may cause fire, electric shock, or damage to the machine.

Caution

Do not touch the metal casing.

(9) Paper Output Tray

Opens automatically when printing or copying starts and printed papers are ejected.

(10) Output Tray Extension

Open to support the printouts. Open it when printing or copying.

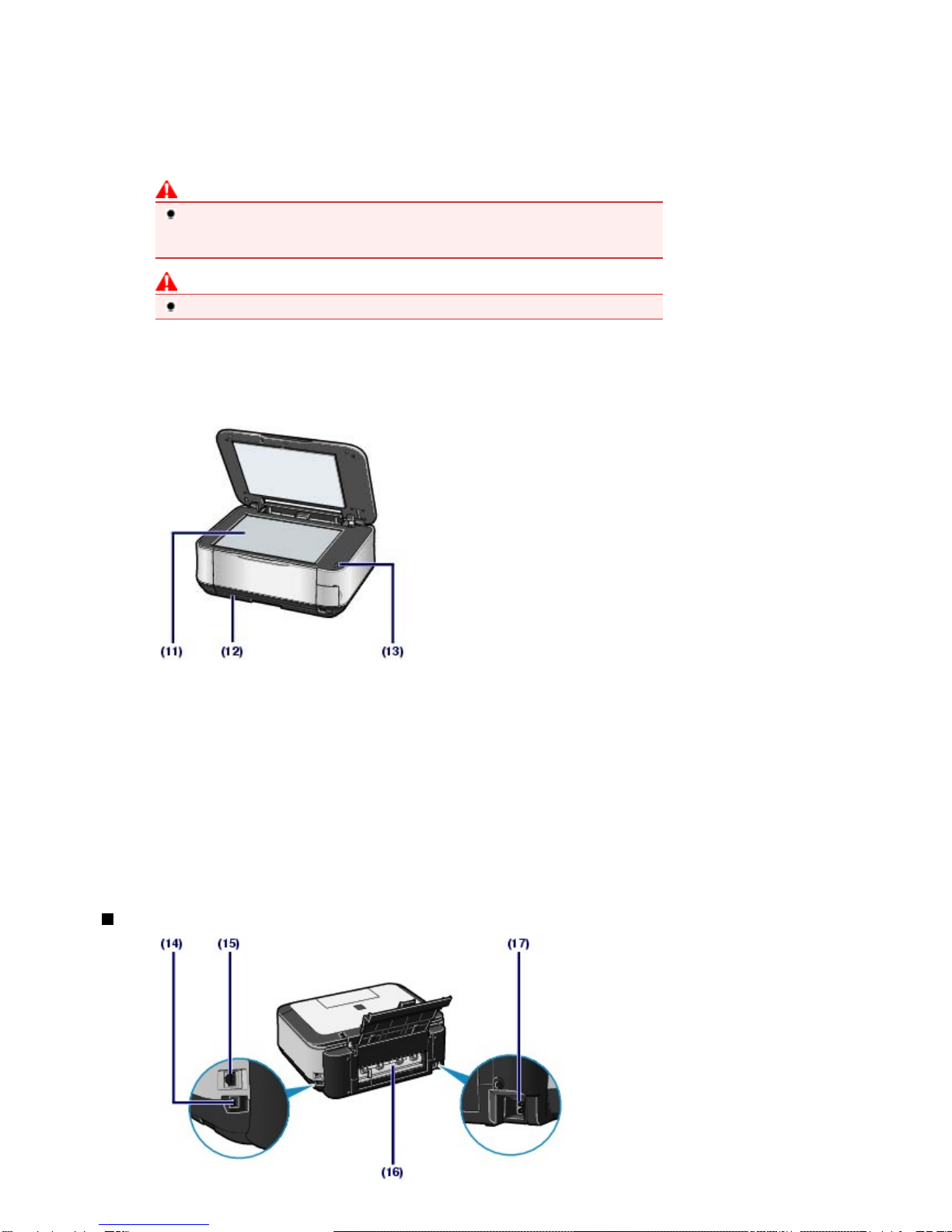

(11) Platen Glass

Load an original to copy or scan.

(12) Cassette

Load A4, B5, A5, or Letter-sized plain paper and insert it into the machine. Two or more sheets of the same

size of paper can be loaded at the same time, and fed automatically one sheet at a time.

See Loading Paper.

(13) Scanning Unit Detection button

Locks the Scanning Unit (Cover) while the Document Cover is open. This button is pressed down when the

Document Cover is closed, so that you can open the Scanning Unit (Cover). (You do not need to touch this

button.)

For information on the Scanning Unit (Cover), see Scanning Unit (Cover).

Rear View

Page 5 of 815 pagesMain Components

(14) USB Port

Plug in the USB cable to connect the machine with a computer.

Caution

Do not touch the metal casing.

Important

Do not plug in or unplug the USB cable while the machine is printing from or scanning

originals to the computer.

(15) Wired LAN Connector

Plug in the LAN cable to connect the machine to a LAN.

Caution

Do not touch the metal casing.

(16) Rear Cover

Detach to remove jammed paper.

(17) Power Cord Connector

Plug in the supplied power cord.

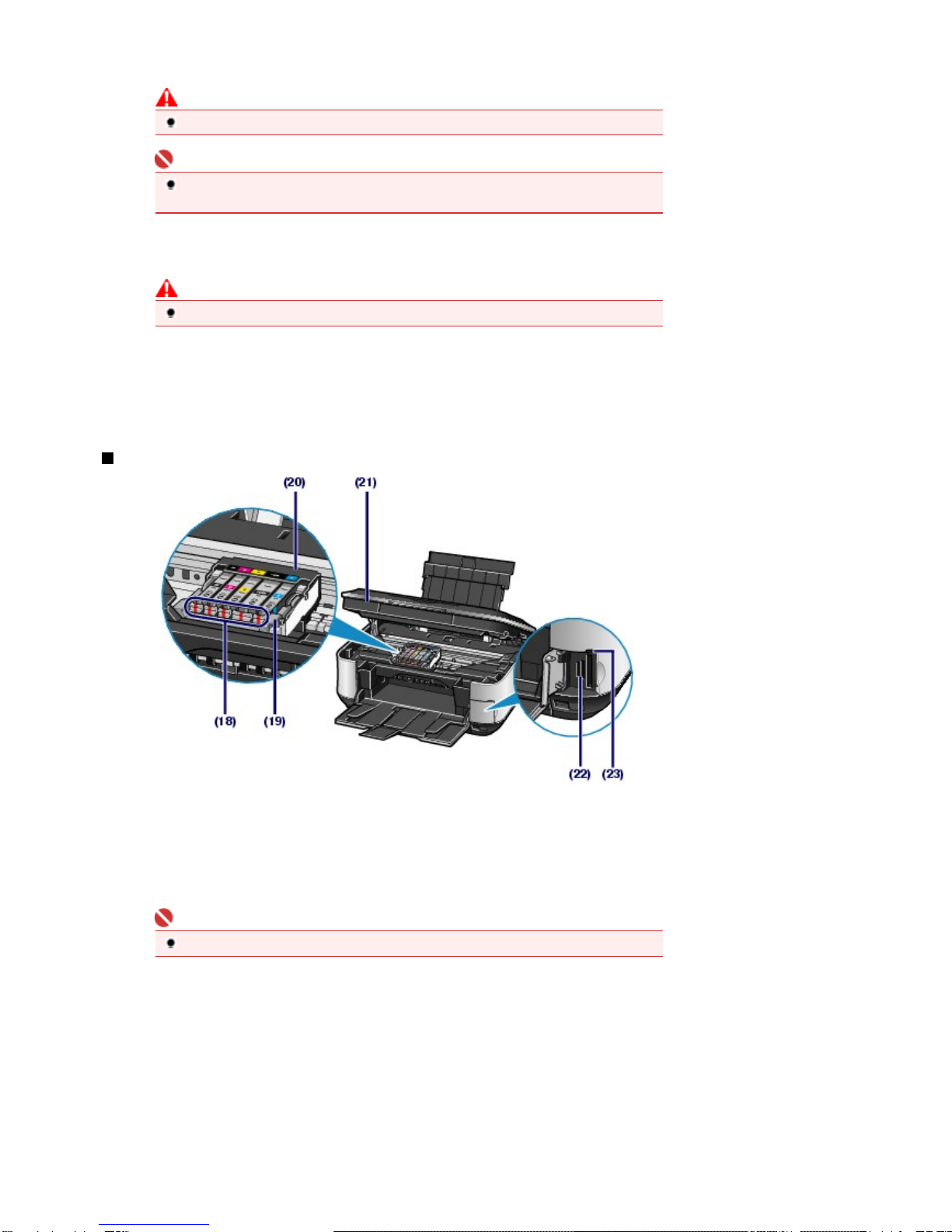

Inside View

(18) Ink lamp

Lights or flashes red to indicate the ink tank status.

See Checking the Ink Status.

(19) Print Head Lock Lever

Locks the Print Head into place.

Important

Do not raise this lever after installing the Print Head.

(20) Print Head Holder

Install the Print Head.

(21) Scanning Unit (Cover)

Scans originals. Open it to replace ink tanks, to check ink lamps, or to remove jammed paper inside the

machine. When opening the Scanning Unit (Cover), lift it with the Document Cover closed.

(22) Card Slot

Insert a memory card.

See Inserting the Memory Card.

(23) Access lamp

Lights or flashes to indicate the memory card status.

Page 6 of 815 pagesMain Components

See Inserting the Memory Card.

Note

For details on installing the Print Head and ink tanks, refer to the printed manual: Getting

Started.

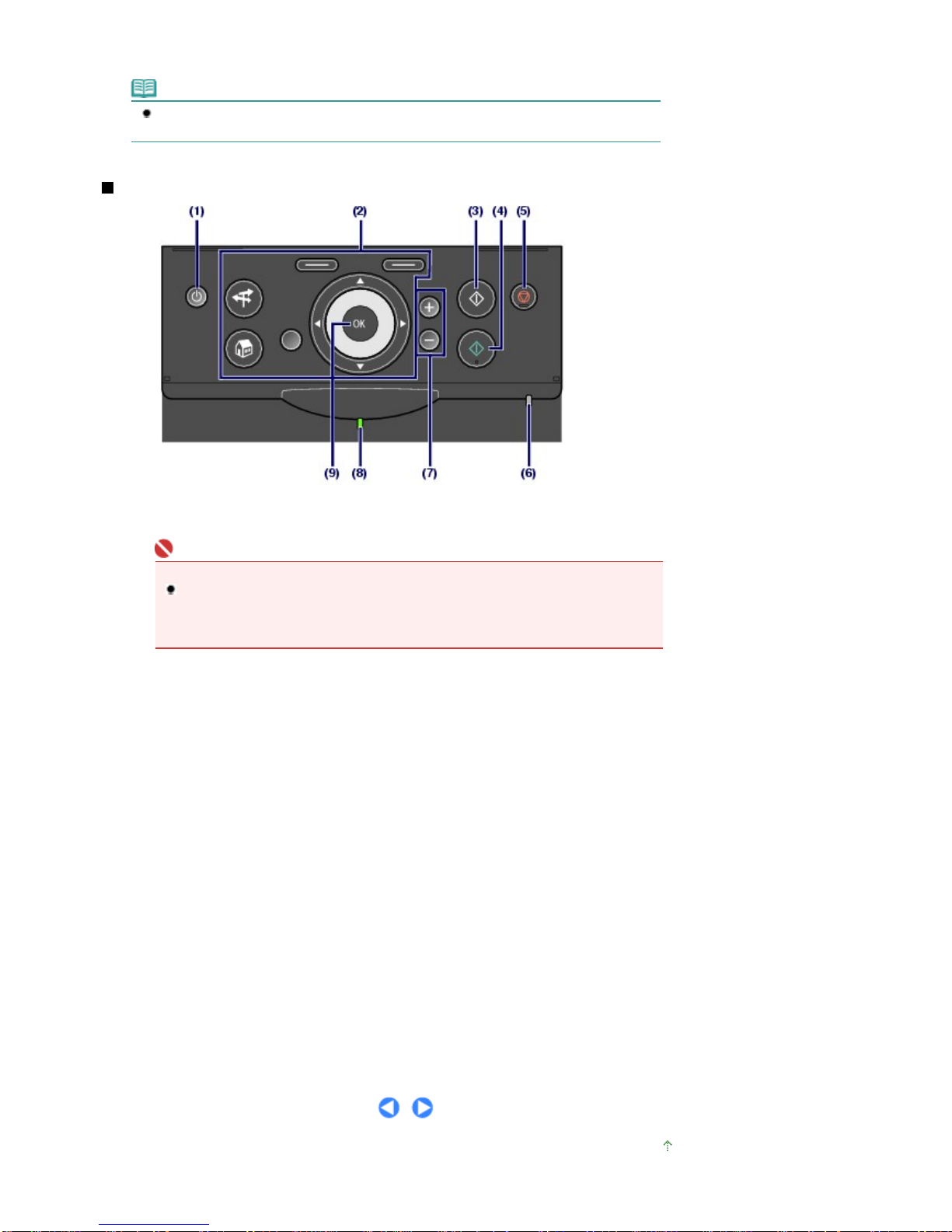

Operation Panel

(1) ON button

Turns the power on or off. Before turning on the power, make sure that the Document Cover is closed.

Important

Disconnecting the power plug

When disconnecting the power plug after turning off the power, be sure to confirm that

the Power lamp is not lit. If the power plug is disconnected from the wall outlet while the

Power lamp is lit or flashing, the machine may become unable to print properly since the

Print Head is not protected.

(2) Buttons to use when navigating menus on the LCD

See How to Navigate Menus on the LCD .

(3) Black button

Starts black & white copying, scanning, etc.

(4) Color button

Starts color printing, copying, or scanning.

(5) Stop button

Cancels operation when a print job is in progress.

(6) Alarm lamp

Lights or flashes orange when an error, such as paper-out or ink-out, occurs.

(7) [+] [-] buttons

Specifies the number of copies to copy or print.

(8) Power lamp

Lights green after flashing when the power is turned on.

(9) OK button

Selects a menu or setting item. See How to Navigate Menus on the LCD .

Resolves an error when printing is in progress or resumes the machine's normal operation after removing

ammed paper.

Page top

Page 7 of 815 pagesMain Components

Advanced Guide Troubleshooting

Contents > Overview of the Machine > How to Navigate Menus on the LCD

How to Navigate Menus on the LCD

You can use the machine to make copies or various kinds of printings without a computer. You can

operate the machine, using the Easy-Scroll Wheel, (Left), (Right), (Up), (Down) button, or OK

button on the Operation Panel to navigate menus or select setting items on the LCD.

This section describes the basic operation to navigate menus on the HOME screen and to select setting

items necessary for printing.

Selecting Menus on the HOME Screen

The HOME screen appears when the power is turned on or when the HOME button is pressed.

To start printing photos on a memory card, copying, or scanning, select menus on the HOME screen.

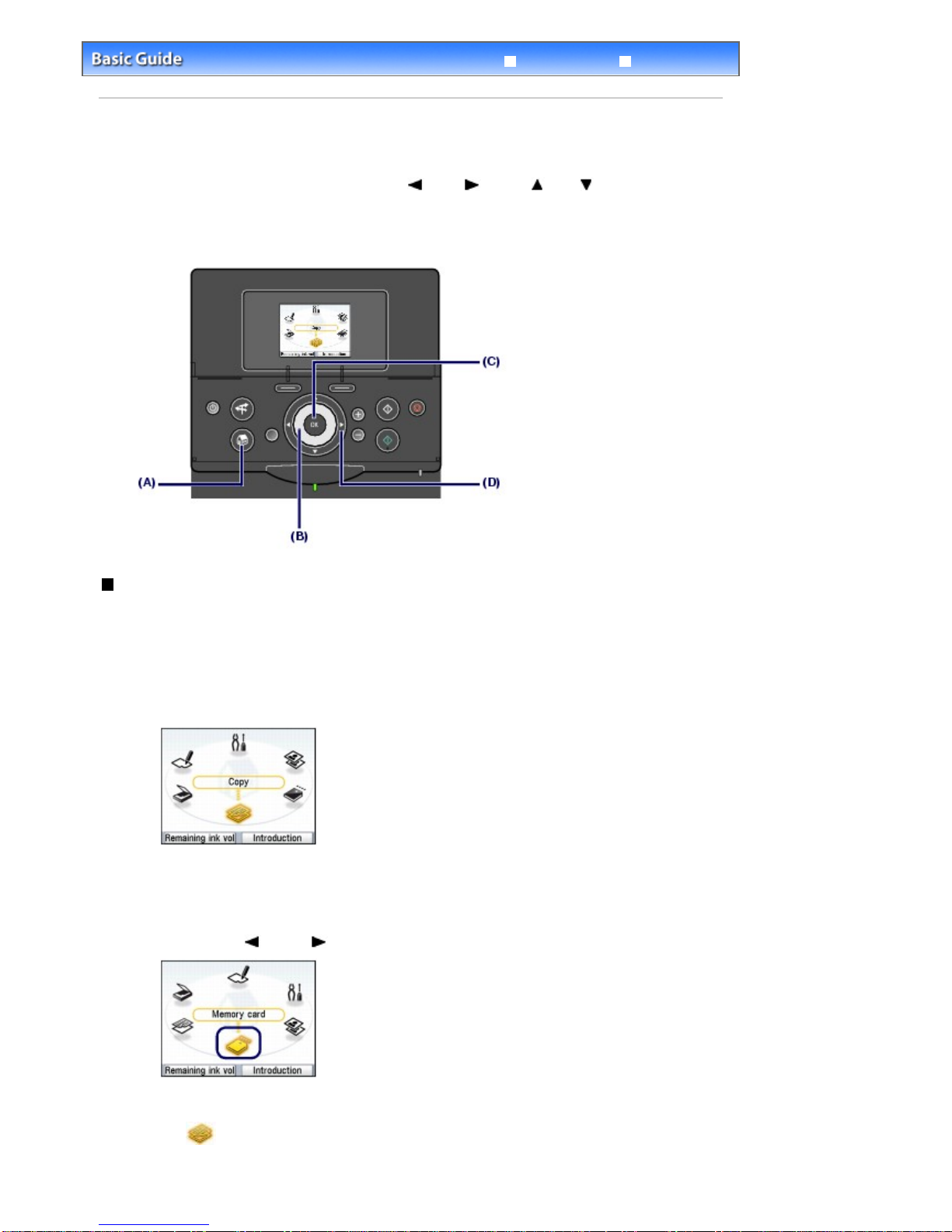

1. Press the HOME button (A).

The HOME screen appears.

2. Turn the Easy-Scroll Wheel (B) to select the menu to use, and press the OK button

(C).

You can also use the (Left) or (Right) button (D) to select the menu.

The selected menu screen appears.

The following menus are available on the HOME screen.

Copy :You can change copy scale or copy in various

layouts.

See Copying.

You can print photos saved on a memory card of

Page 8 of 815 pagesHow to Navigate Menus on the LCD

Memory card :your digital camera.

See Printing from a Memory Card.

Easy photo reprint :You can scan printed photos and print them

easily. You can also specify the number of

copies for each photo.

See Printing Photos from Printed Photos.

Settings :You can maintain the condition of the machine,

change settings of the machine, or print the

notebook or graph paper.

See When Printing Becomes Faint or Colors Are

Incorrect, Cleaning the Paper Feed Roller,

Machine Settings, or Printing the Notebook or

Graph Paper.

Photo index sheet :You can easily print photos on a memory card

using the Photo Index Sheet.

See Using Photo Index Sheet to print.

Scan :You can save scanned data on your computer, or

on a memory card or USB flash drive inserted into

the machine, using the Operation Panel.

See Scanning.

Note

If you insert a memory card while the HOME screen or any screen of the Copy, Easy photo reprint,

and Settings menus appears, the screen changes to the photo selection screen in Select and print

of the Memory card menu.

To select a function other than Select and print, press the HOME button and display the HOME

screen.

Selecting Setting Items

The displayed screen varies depending on the menu you selected, but the operation is the same.

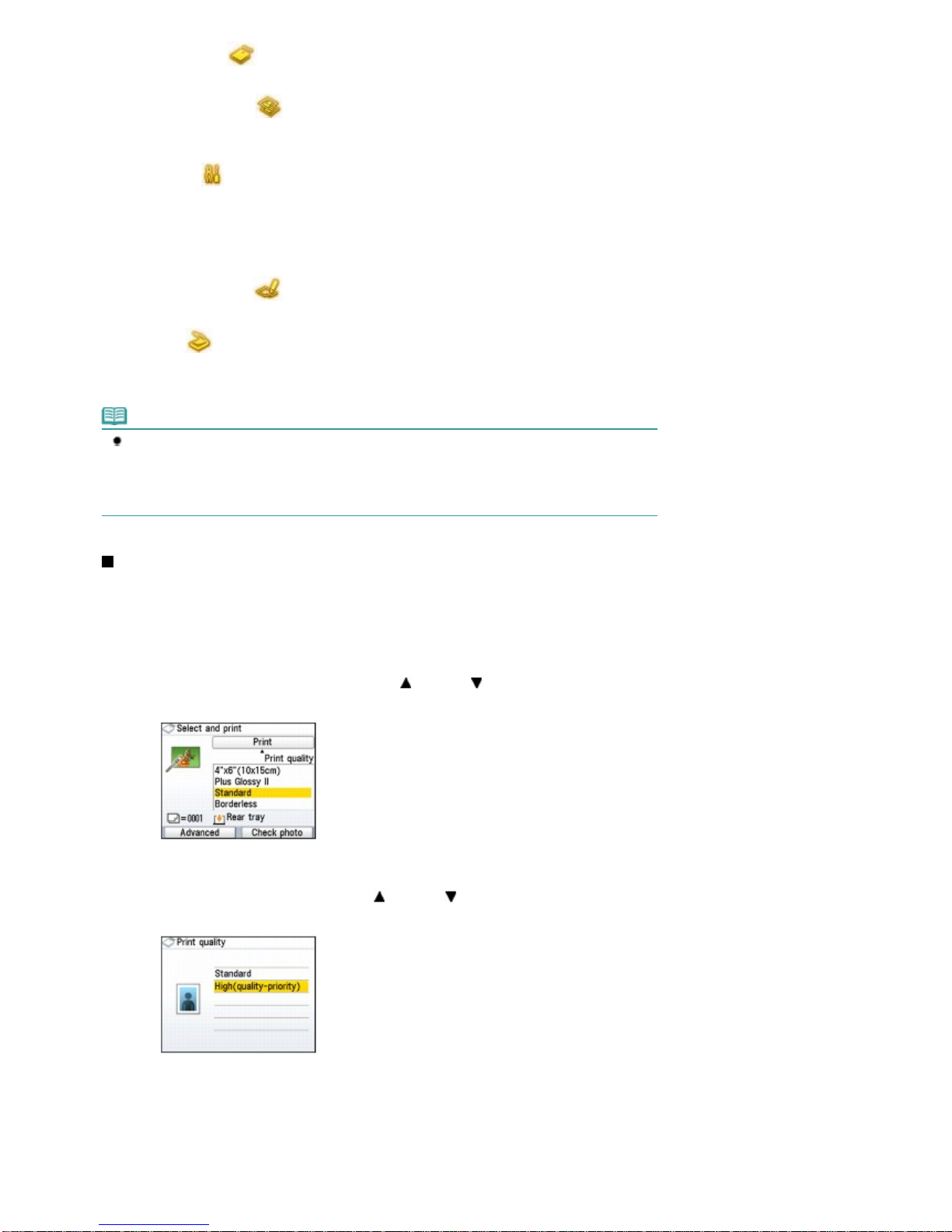

This section describes how to change the print quality, using the example of the print confirmation

screen in Select and print of the Memory card menu.

1. Use the Easy-Scroll Wheel (B) or the (Up) or (Down) button (D) to select the

print quality, and press the OK button (C).

2. Use the Easy-Scroll Wheel or the (Up) or (Down) button to select another print

quality, and press the OK button.

The screen returns to the print confirmation screen in Select and print.

Page 9 of 815 pagesHow to Navigate Menus on the LCD

Other Operations

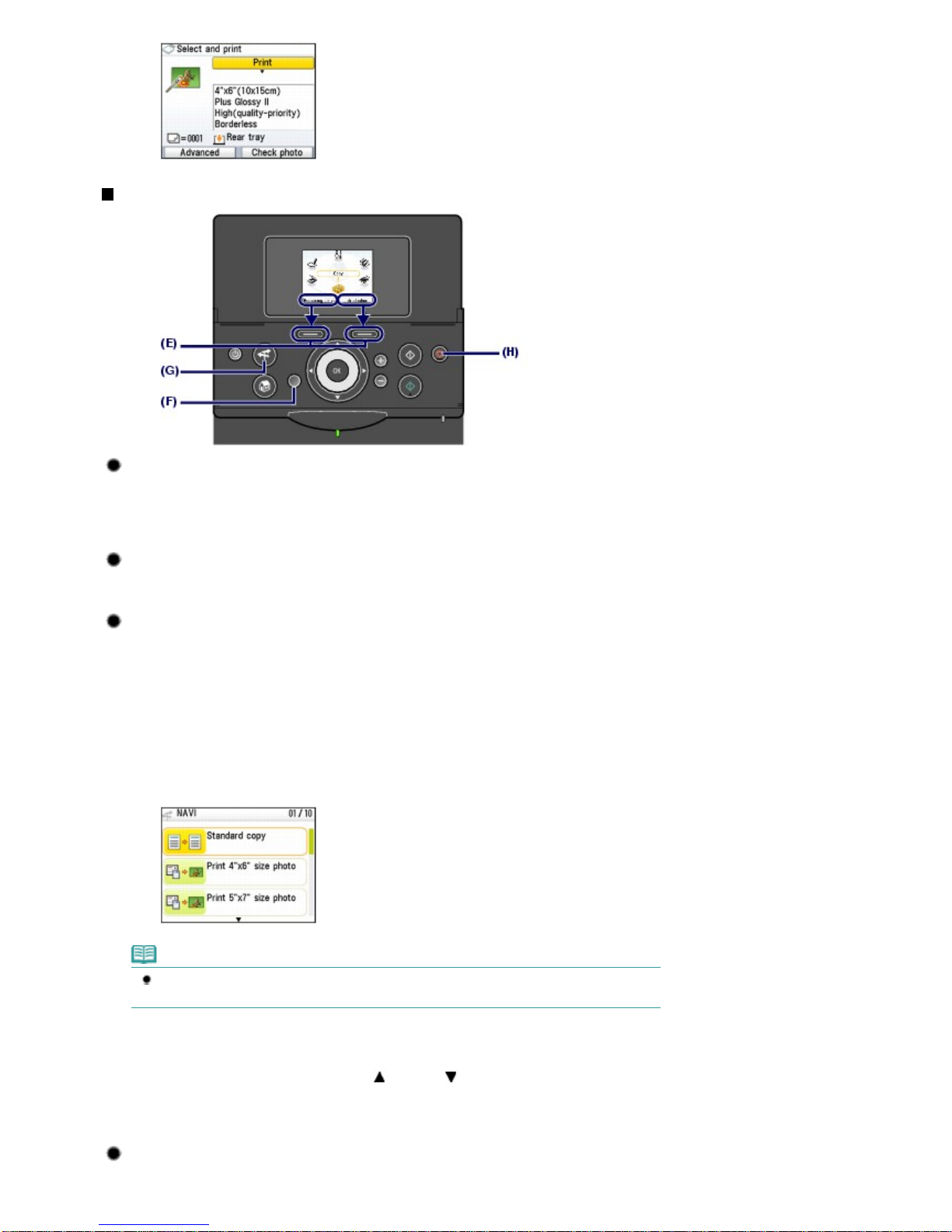

Selecting Items at the Bottom of the LCD

You can use the two Function buttons (E) to select items displayed at the bottom of the LCD.

You can press the right Function button to select the item on the right, and the left Function button to

select the item on the left. The item displayed at the bottom of the LCD varies depending on the screen.

Returning to the Previous Screen

You can press the Back button (F) to return to the previous screen.

Performing the Frequently-Used Functions with Easy

Operation

You can use the NAVI button (G) to perform the frequently-used functions easily, just by following the

instructions displayed on the screen. You can also display the information on the functions or

instructions on how to load paper.

1. Press the NAVI button (G).

The NAVI screen appears.

Note

When you press the Back button while the NAVI screen appears, the screen returns to the

HOME screen.

2. Use the Easy-Scroll Wheel or the (Up) or (Down) button to select the item,

and press the OK button.

Follow the instructions on the LCD.

Canceling Copying or Printing

You can press the Stop button (H) to cancel a copy or print job in progress.

Page 10 of 815 pagesHow to Navigate Menus on the LCD

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Canon Stampante tutto in uno

Canon

Canon iR6570 series Manuale utente

Canon

Canon PIXMA MG3120 Manuale utente

Canon

Canon MultiPASS C20 Manuale utente

Canon

Canon PIXMA MG6220 Installing Manuale utente

Canon

Canon MF7280 - ImageCLASS B/W Laser Manuale di installazione e funzionamento

Canon

Canon DR 7090C - imageFORMULA - Document Scanner Manuale utente

Canon

Canon TS6420a Guida all'installazione

Canon

Canon Color imageRUNNER C3200 Manuale utente

Canon

Canon PIXMA MP830 Manuale utente

Canon

Canon PIXMA MP500 Manuale utente

Canon

Canon imageCLASS MF7460 Manuale utente

Canon

Canon MultiPASS F50 Manuale utente

Canon

Canon imageRUNNER ADVANCE C7500 II Series Manuale tecnico

Canon

Canon imageCLASS MF7460 Manuale utente

Canon

Canon mg6400 series Guida all'installazione

Canon

Canon iR2020 Series Scheda informativa del prodotto

Canon

Canon MP980 series Manuale utente

Canon

Canon Color imageCLASS MF8180c Guida utente

Canon

Canon imageCLASS MF5630 Manuale utente

Canon

Canon MultiPASS MP360 Manuale utente

Canon

Canon imageRUNNER ADVANCE C5500 Series Manuale tecnico

Canon

Canon MultiPASS F30 Manuale utente

Canon

Canon PIXMA MP450 Manuale di istruzioni

Canon

Canon MX490 Series Manuale utente

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Brother

Brother MFC-J430w Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Brother

Brother MFC-9760 Manuale utente

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Brother

Brother Business Smart MFC-J4510dw Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente

Oce

Oce VarioLink 5022 Manuale utente
