Canon ImageCLASS MPC190 Manuale

Setup Sheet

Unpack the machine and its components.

Check that you have the following:

NOTE

• A printer cable is not included.You must purchase a USB cable (less than 5 m/16#/8 ft.) to

connect your machine to a computer.

• Please note that the items included with your machine may vary depending on the

country of purchase.

Black

BCI-24

MadeinJapan

BCI-24

MadeinJapan

Color

Machine

Multi-purpose tray

Printhead

Ink tanks

(Black, colour)

Power cord

Documentation

(Setup Sheet, Basic Guide)

MultiPASS Suite software CD-ROM

Thank you for purchasing the Canon imageCLASS MPC190.

To get your machine ready for use, please follow the instructions in this Setup Sheet

before referring to any other documentation.

READ THIS SHEET FIRSTREAD THIS SHEET FIRST

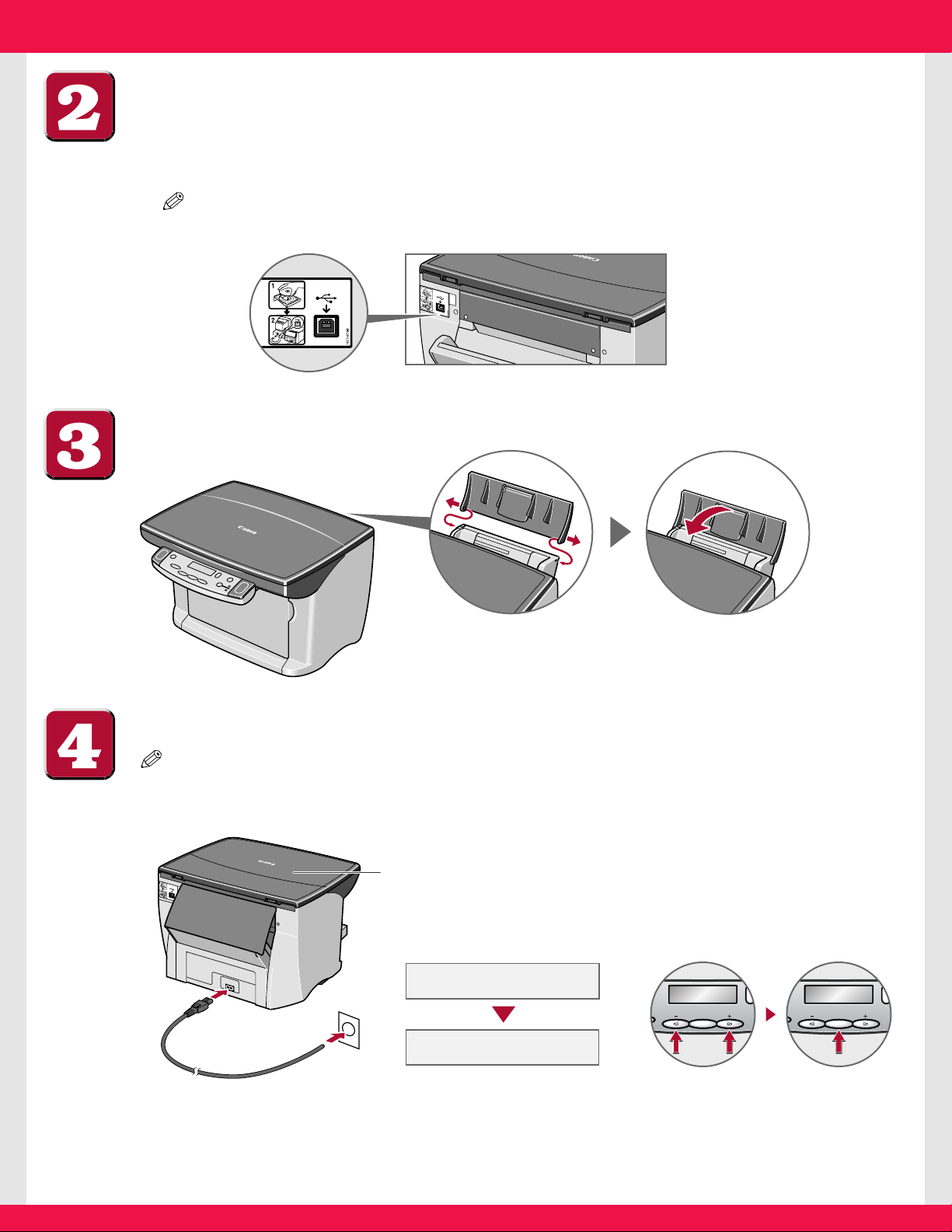

Remove the shipping materials.

1Place the machine on a flat surface.

2Remove all shipping tapes from the exterior of the machine.

NOTE

• DO NOT remove the USB label Aat this stage.

Attach and close the multi-purpose tray.

Connect the power cord.

NOTE

• Before turning on the power, make sure the document cover Ais closed.

• Please note that the cartridge (printhead and ink tanks) is installed in steps 5 and 6.

PLEASE WAIT

DISPLAY LANGUAGE

< ENGLISH >

1Plug the power

cord into a socket.

2When you connect the

machine, the above messages

should appear in the LCD.

•If nothing appears in the LCD, press

[ON/OFF] to turn on the machine.

3Use [2] or [3] to

select the language

for the LCD, then

press [OK].

USB label A

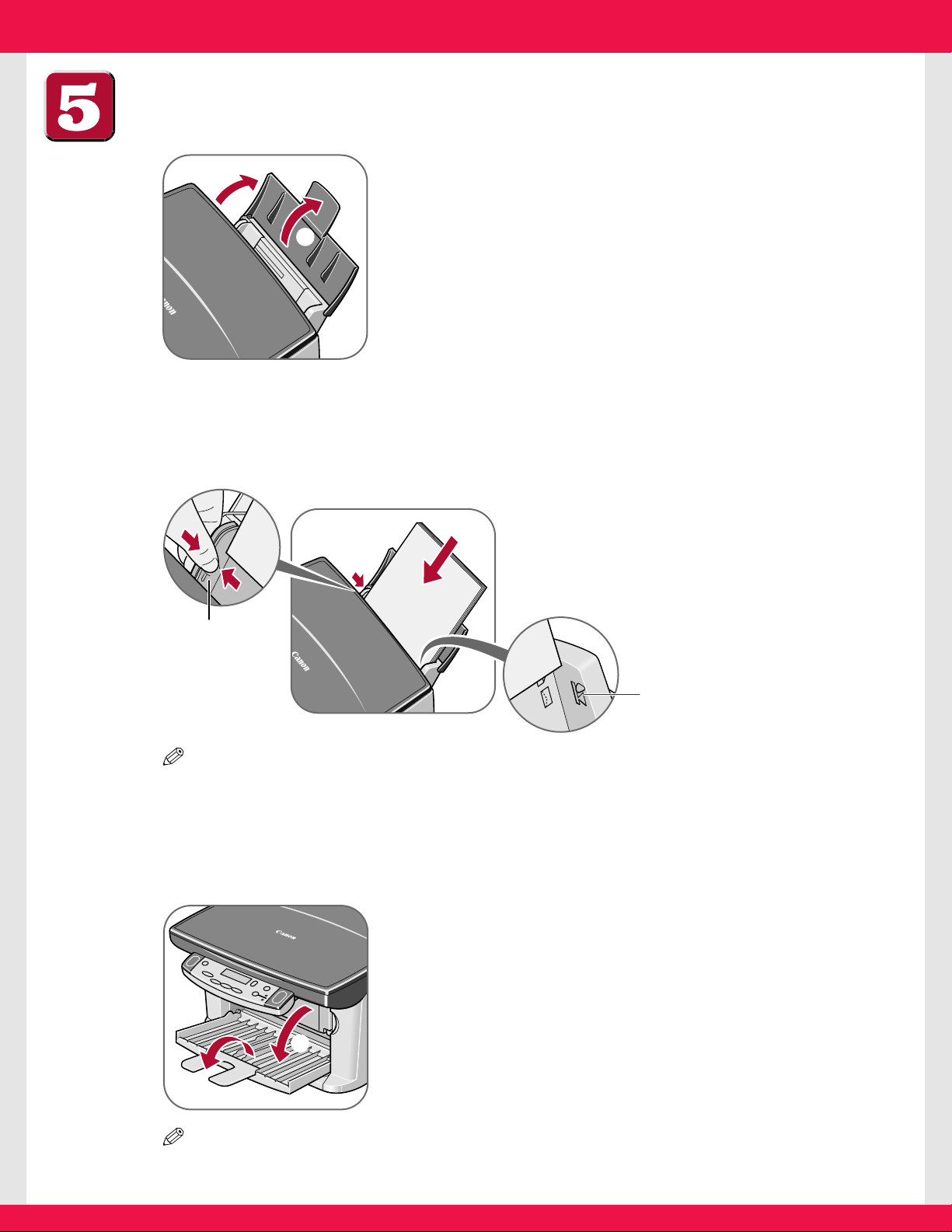

Load paper.

1Open the multi-purpose tray q,then the tray extension w.

2Place a stack of paper (print side up) in the multi-purpose tray qand adjust the

paper guide Ato the width of the stack w.Make sure the stack does not exceed

the paper limit mark B.

NOTE

• When you are not printing, close the multi-purpose tray.

3Open the paper output tray q,then the tray extension w.

Printouts will exit the machine here.

NOTE

• When you are not printing, you can close the paper output tray.

Install the printhead.

IMPORTANT

•To turn off the machine, be sure to always press [ON/OFF].This will ensure that the

printhead is capped and prevent it from drying up.

•If you are not using the machine for a long period of time, we recommend that you

print (in black and colour) or clean the printhead approximately once a month to

maintain the printhead in good working condition.

1Remove the tape q,then open the inner cover w.

• The printhead holder automatically moves to the left of the machine.

IMPORTANT

•Do not try to manually move or

stop the printhead holder.

•Do not touch any metal parts

inside the machine.

•Do not turn off the machine when

opening the inner cover.

2Remove the printhead from its packaging, then remove the orange protective

cap A.

IMPORTANT

• Do not touch the electrical contacts B.

3Raise the lock lever C,then gently slide the printhead into the holder.

Lower the lock lever.

IMPORTANT

• Do not touch the lock lever once the printhead has been installed.

Turn over to

continue

Turn over to

continue

Install the ink tanks.

1Start with the black ink tank. Remove the ink tank from its packaging, hold it as

shown below, then remove the protective cap A.

NOTE

•Do not shake or drop the ink tank as the ink may leak and

stain your clothes or hands.

•Do not attempt to reattach the protective cap Aonce

you remove it.

•Once you remove the protective cap A,do not touch the

ink port B.

2Insert the black ink tank into the right hand slot. Press firmly on the ink tank‘s tab

until it clicks into place.

3Repeat steps 1 and 2 to install the colour ink tank in the left hand slot.

4Close the inner cover.

Be sure to now align the printhead as explained in step 8.

BCI-24

Color

BCI-24

Black

BCI-24

Black

BCI-24

Black

BCI-24

Ink Tank

Madein Japan

Black

Align the printhead.

NOTE

• If you will be installing the MultiPASS Suite software, you can also align the printhead

from the software. For details, see p. 8-7 of the Basic Guide.

1When the LCD Adisplays the following, press [OK].

The machine will print a horizontal pattern, and the LCD will display:

2In column A on the printout, note which box has the most solid image. Note the

value next to this box and use [2] or [3] on the operation panel to enter it.

Then press [OK].

3Repeat step 2 for columns B to F.

After finishing the setup, the machine returns to standby mode.

100% A4 TEXT

PLAIN

Ex:

Most solid

box

Least solid

box

BAD

SAMPLE

GOOD

SAMPLE

Column A Value for column A

CHANGE H VALUE

A 0

ALIGN PRINT HEAD

PRESS OK KEY A

Install the software.

IMPORTANT

• DO NOT connect the USB cable before installing the software.

NOTE

• Windows 98/Me users: You need to have “Client for Microsoft Networks“ installed before

installing the MultiPASS Suite software. For details, refer to p. 9-1 of the Basic Guide.

• When installing the software in Windows XP or Windows 2000, log onto the system as a

member of the Administrator group.

• If you have previously installed an earlier version of the MultiPASS Suite software

(version 4.3 or earlier), you must remove it before installing this version. For details on

removing the software, refer to the documentation of the previous version.

1Make sure both your machine and computer are turned on.

2On your computer, close any open applications, including virus checkers.

3Insert the MultiPASS Suite CD-ROM into your CD-ROM drive.

• The setup program should start automatically. If it does not, double-click [My

Computer] in the Windows screen, double-click the CD-ROM icon, then double-click

[csplash] or [csplash.exe].

4When the next screen appears, click

INSTALL MULTIPASS SUITE.

5Follow the on-screen instructions.

6When prompted, remove the label A,then connect a USB cable B(not

included) to the machine and computer.

Windows 98/Me/2000 Windows XP

NOTE

•If you cannot continue

with the installation after

connecting the USB cable,

refer to p. 9-1 of the Basic

Guide.

• Windows 98/Me/2000 users: Once connected, the USB driver will automatically be

installed.

• Windows XP users: Once connected, the “Found New Hardware Wizard” dialogue box

appears. Click [Install the software automatically], then click [Next].

NOTE

•Windows XP users: If during the installation process

the dialogue box on the right appears A,select the

language you prefer, then click [Next].

7Follow the on-screen instructions to complete installation.

8When installation is complete, restart your computer before using the MultiPASS

Suite software.

Once installed, the MultiPASS Toolbar will be displayed on the desktop:

For details on using the MultiPASS Toolbar, see p. 7-1 of the Basic Guide.

Congratulations! You have now completed your machine

setup.

Where to from here...

Once you have completed all steps in this Setup Sheet, refer to the Basic Guide for

instructions on all functions of your machine. For comprehensive instructions on

the MultiPASS Suite software, refer to the Software Guide (included in the CD-ROM).

Part no. HT3-2128-000-V.1.0

Canon, MultiPASS, imageCLASS, and BCI are trademarks of Canon Inc.

All other products and brand names are registered

trademarks or trademarks of their respective owners.

Specifications subject to change without notice.

PRINTED IN THAILAND
