Canon Color imageCLASS MF8170c Manuale utente

Set-Up Instructions

Thank you for purchasing Canon Color imageCLASS MF8170c.

To get your machine ready for network and printer functions, please follow the instructions in this document before referring to any

other documentation.

READ the Set-Up Instructions for the Machine FIRST, then read this document for Networking and Printing set-up.

What is included in the User Software CD

●MF Setup

This startup menu shows the driver software, applications, and manuals for your new machine.

●CARPS Printer Driver

The CARPS printer driver enables you to use the machine as a printer.

For details, see the Software Guide.

●Fax Driver

The fax driver enables you to fax a document from your computer.

For details, see the Software Guide.

●Cover Sheet Editor

The Cover Sheet Editor enables you to create and edit a cover sheet for your fax.

For details, see the Software Guide.

●Scanner Driver (ScanGear)

The scanner driver enables you to scan printed documents into your computer.

For details, see the Software Guide.

●MF Toolbox

MF Toolbox enables you to process scanned documents in various ways. For details, see the

Software Guide.

●NetSpot Device Installer (NSDI)

NetSpot Device Installer enables you to set up the machine for network operations.

For details, see the Readme file and Online Help for this program.

●Applications

NewSoft Presto! PageManager

Presto! PageManager enables you to manage your documents in many ways.

For details, see the online manual for this program.

ScanSoft Omnipage SE

Omnipage SE enables you to “read” a scanned image and convert it to a text document.

For details, see the online manual for this program.

●Manuals (PDF)

Software Guide

Explains how to install and use printer, fax, and scanner driver software.

Network Guide

Explains the network function of the machine.

Remote UI Guide

Explains how to monitor the machine status and change the settings remotely using a web

interface.

NOTE

●To view the manuals in PDF format, Adobe Reader/Acrobat Reader/Acrobat is required. If Adobe Reader/Acrobat

Reader/Acrobat is not installed on your system, please download it from the Adobe Systems Incorporated website

(http://www.adobe.com).

for Networking and Printing

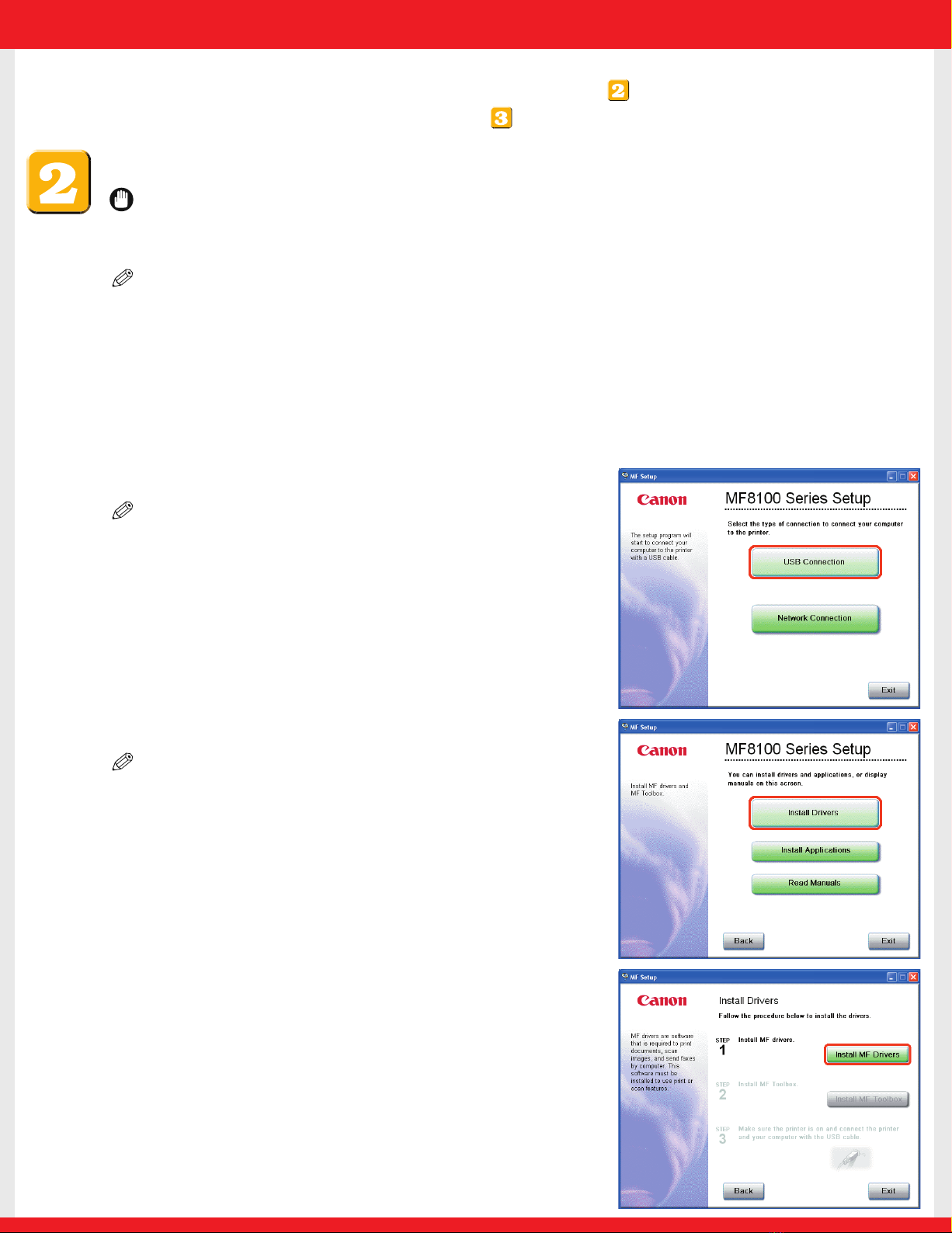

To Use the Machine as a Local Printer (USB Connection)

IMPORTANT

•DO NOT connect the USB cable before installing the software. If you connect the USB cable before installing the

software and the Found New Hardware Wizard screen appears, click [Cancel] and disconnect the USB cable.

NOTE

•For Windows 2000/XP, log on as Administrator to install the software.

•The screenshots below are from Windows XP. However, the installation procedure is essentially the same for other versions

of Windows.

1Turn on your computer.

2Quit any open applications, including virus checking software.

3Insert the User Software CD into the CD-ROM drive.

4When the MF Setup screen appears, click [USB Connection].

NOTE

•If the MF Setup screen is not displayed, on the Windows desktop,

click [start] ➝[My Computer]. Open the CD-ROM icon, then double-click

[Setup (Setup.exe)].

5Click [Install Drivers].

NOTE

•If you would like to install the Presto! PageManager file management

software and/or OmniPage SE OCR software, click [Install Applications] and

follow the instructions on the screen.

•You can also click [Read Manuals] on this screen to read PDF manuals.

6Click [Install MF Drivers].

Installation Options:

•To use the machine as a local printer via USB connection, proceed to .

•To use the machine as a network printer, proceed to .

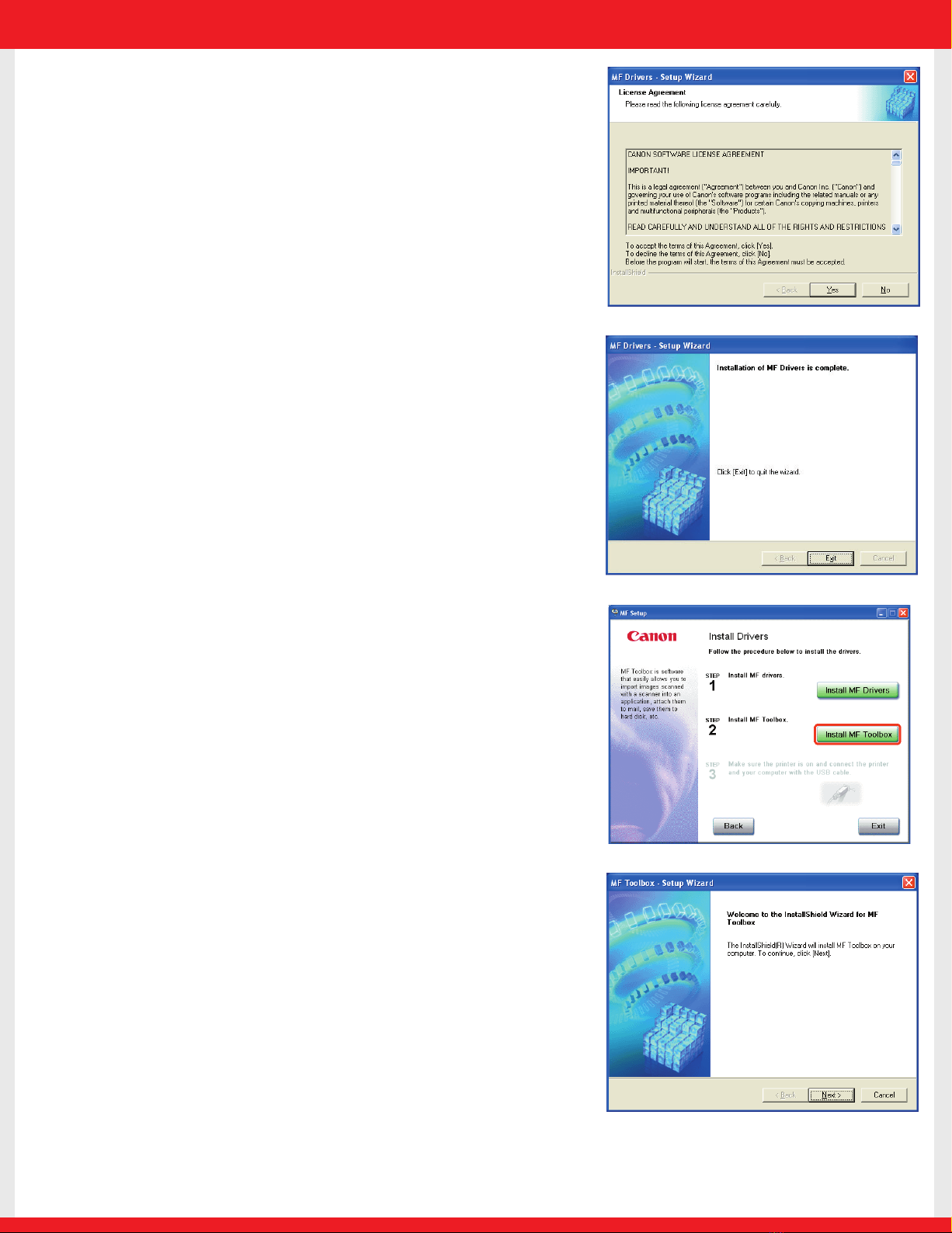

7When the MF Drivers Setup screen appears, click [Yes] and

follow the instructions on the screen.

8When the installation is complete, click [Exit] to close the MF

Drivers Setup screen.

9On the MF Setup screen, click [Install MF Toolbox].

10 When the MF Toolbox Setup screen appears, click [Next]

and follow the instructions on the screen.

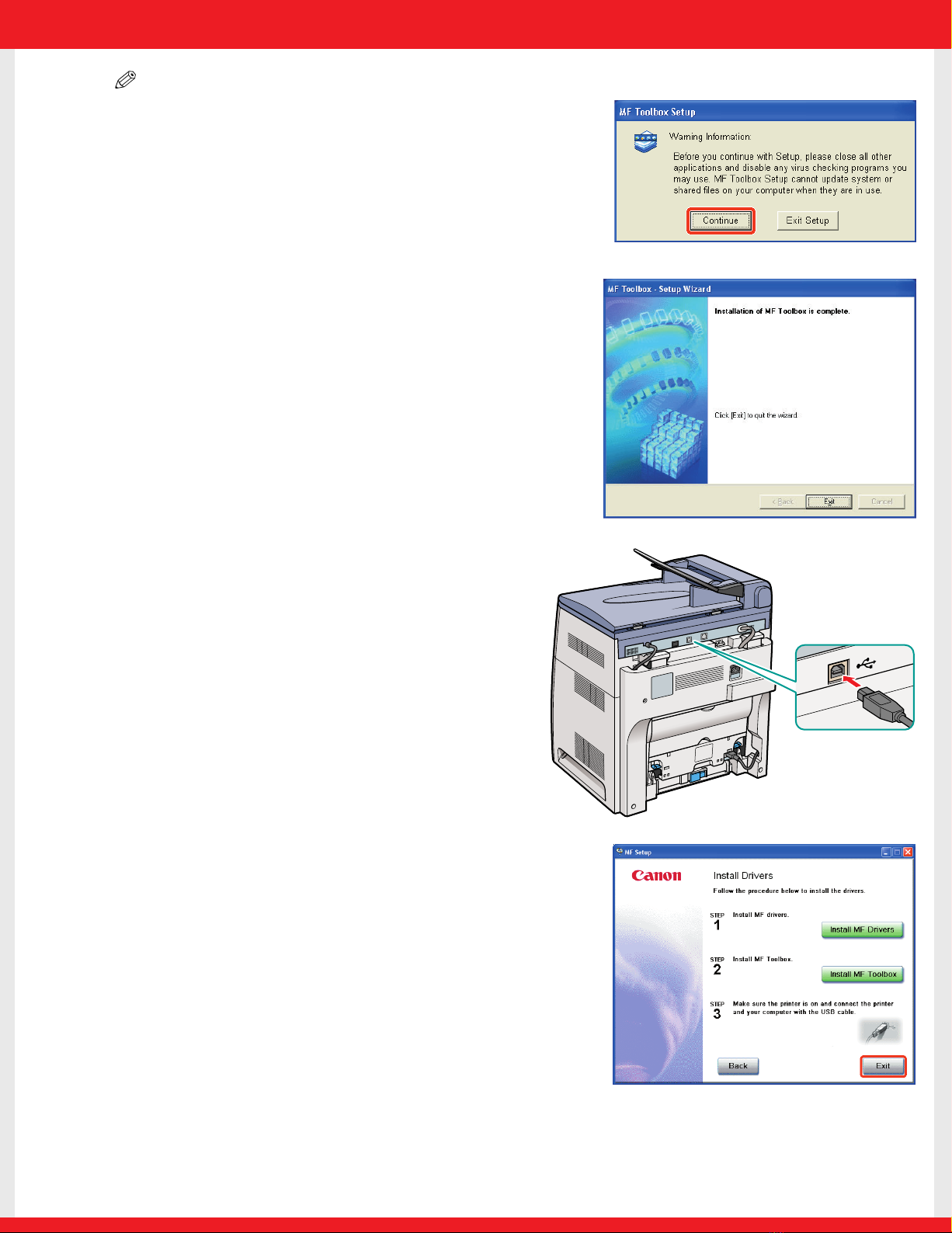

NOTE

•Before installing MF Toolbox, make sure that all other applications are

closed and that any anti-virus software on your computer is disabled.

11 When the installation is complete, click [Exit] to close

the MF Toolbox Setup screen.

12 Make sure the machine’s power is turned on.

Connect the cable to the USB port on the back of the

machine.Then connect the other end of the cable to

the USB port on your computer.

13 After the installation is complete, click [Exit] to close the

MF Setup screen. Remove the User Software CD from the

CD-ROM drive and store it in a safe place.

To Use the Machine as a Network Printer (Network Connection)

IMPORTANT

•The machine needs to be restarted for the specified settings to become effective. To restart the machine,

disconnect the power cord, wait for at least 10 seconds, and connect the power cord again.

NOTE

•For details on specifying network settings, see Chapter 2,“Specifying the Network Settings,” in the Network Guide.

•For additional network protocol settings, see the Network Guide.

•For the values of the network settings, consult your network administrator or internet service provider (ISP).

Specifying Network Settings

1Press [Menu] ➝or to select <6.NETWORK SETTINGS> on the LCD ➝ press [Set].

2Press or to select <1.LAN SETTINGS> ➝ press [Set].

3Press or to select <1.IP ADDRESS AUTO.> ➝ press [Set].

●To obtain an IP address automatically (dynamic allocation):

4Press or to select <ON> ➝ press [Set].

5Press or to select <1.DHCP>,<2.BOOTP>,or<3.RARP> ➝ press [Set].

6Press [Stop/Reset] to return to the standby display.

7Restart the machine by disconnecting the power cord, and then reconnecting it.

●To specify an IP address manually (static allocation):

4Press or to select <OFF> ➝ press [Set].

5Press or to select <2.IP ADDRESS> ➝ press [Set].

6Enter an IP address of the machine using the numeric keys ➝ press [Set].

Write down the IP address you entered: _______ . _______ . _______ . _______

7Press or to select <3.SUBNET MASK> ➝ press [Set].

8Enter the subnet mask using the numeric keys ➝ press [Set].

Write down the subnet mask you entered: _______ . _______ . _______ . _______

9Press or to select <4.DEFAULT GATEWAY> ➝ press [Set].

10 Enter the default gateway address using the numeric keys ➝ press [Set].

Write down the gateway address you entered: _______ . _______ . _______ . _______

11 Press [Stop/Reset] to return to the standby display.

12 Restart the machine by disconnecting the power cord, and then reconnecting it.

6. NETWORK SETTINGS

NETWORK SETTINGS

1. LAN SETTINGS

LAN SETTINGS

1. IP ADDRESS AUTO.

IP ADDRESS AUTO.

1.DHCP

IP ADDRESS AUTO.

OFF

LAN SETTINGS

2. IP ADDRESS

IP ADDRESS

000.000.000.000_

LAN SETTINGS

3. SUBNET MASK

SUBNET MASK

000.000.000.000_

LAN SETTINGS

4. DEFAULT GATEWAY

DEFAULT GATEWAY

000.000.000.000_

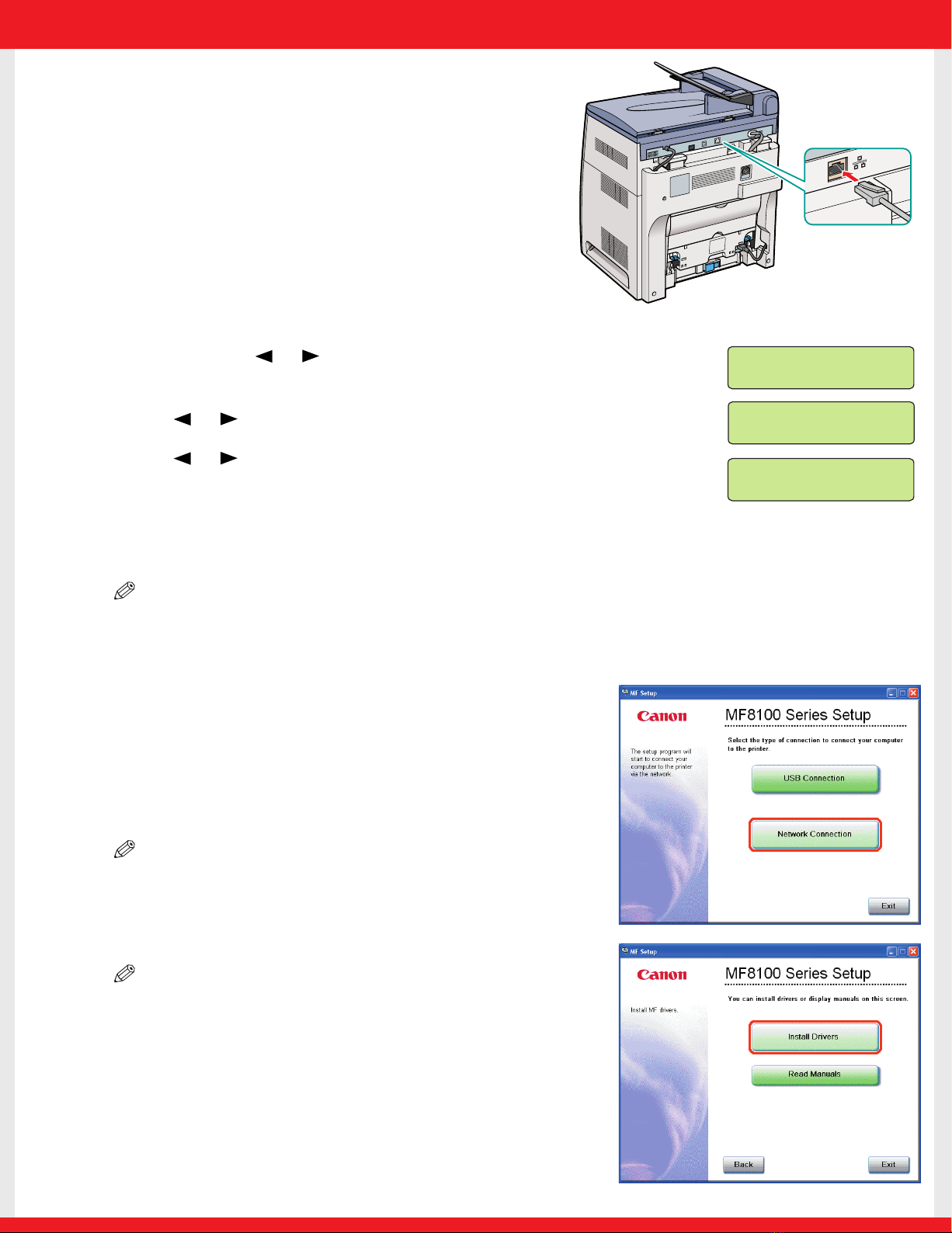

Connecting the Machine to a Network

1Connect a Category 5 rated (Cat 5) twisted-pair LAN

cable to the 10Base-T/100Base-TX port on the back

of the machine. Connect the other end of the cable

to a network router or a hub.

Checking Network Settings

1Press [Menu] ➝or to select <6.NETWORK SETTINGS>

on the LCD ➝ press [Set].

2Press or to select <2.VIEW IP ADDRESS> ➝ press [Set].

3Press or to select the desired setting ➝ press [Set].

4Press [Stop/Reset] to return to the standby display.

Installing Driver Software

NOTE

•For Windows 2000/XP, log on as Administrator to install the software.

•The screenshots below are from Windows XP. However, the installation procedure is essentially the same for other versions

of Windows.

1Turn on your computer.

2Quit any open applications, including virus checking software.

3Insert the User Software CD into the CD-ROM drive.

4When the MF Setup screen appears, click [Network

Connection].

NOTE

•If the MF Setup screen is not displayed, on the Windows desktop, click [start]

➝[My Computer]. Open the CD-ROM icon, then double-click [Setup

(Setup.exe)].

5Click [Install Drivers].

NOTE

•You can click [Read Manuals] to read PDF manuals.

6. NETWORK SETTINGS

NETWORK SETTINGS

2. VIEW IP ADDRESS

VIEW IP ADDRESS

1. IP ADDRESS

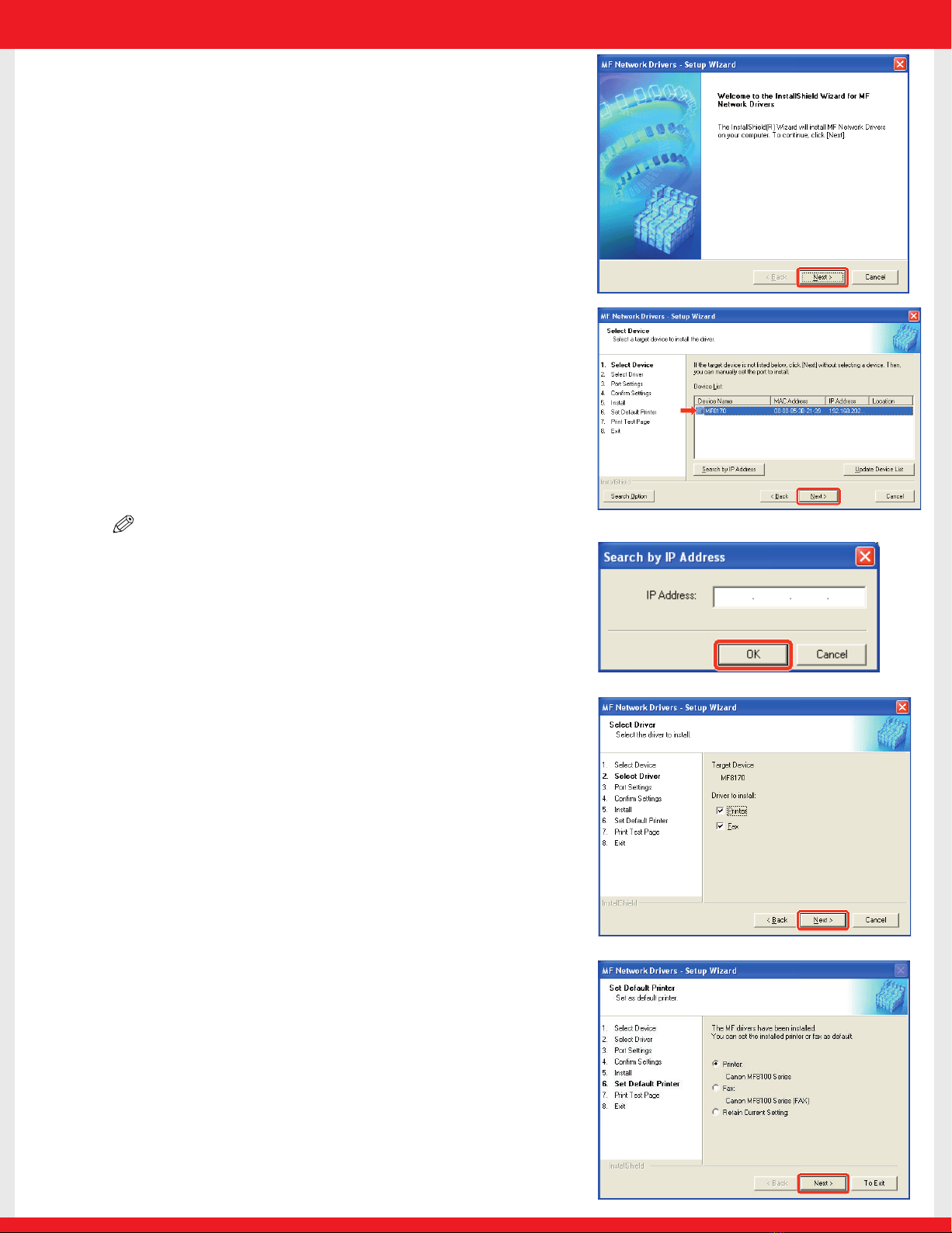

6When the MF Network Drivers - Setup Wizard screen

appears, click [Next] and follow the instructions on the

screen.

7Select the target machine in the Device List ➝ click [Next].

NOTE

•If the target machine is not listed in the Device List, click [Search by IP

Address] and enter the IP address ➝click [OK]. If you do not know the

machine’s IP address, see “Checking Network Settings” on the previous

page.

8Select the driver(s) to install ➝ click [Next]. Follow the

instructions on the screen to start installation.

9After the drivers are installed, select the default printer ➝

click [Next].

Congratulations! You have now completed the machine setup for

networking and printing.

Where to go from here...

For basic operations of all functions of your machine, see the Basic Guide.

For details on sending and receiving faxes, see the Facsimile Guide.

For information on the driver software, see the Software Guide (included in the User Software

CD).

For details on the network function of the machine, see the Network Guide (included in the

User Software CD).

For information on remotely monitoring and controlling machine functions through a

network, see the Remote UI Guide (included in the User Software CD).

Part no. FA7-6663 (000)

Canon and imageCLASS are trademarks of Canon Inc.

All other products and brand names are registered

trademarks or trademarks of their respective owners.

Specifications subject to change without notice.

PRINTED IN CHINA

For installation help and operational instructions, call us at:

1-800-828-4040 1-800 OK CANON

U.S.A. CUSTOMERS CANADA CUSTOMERS

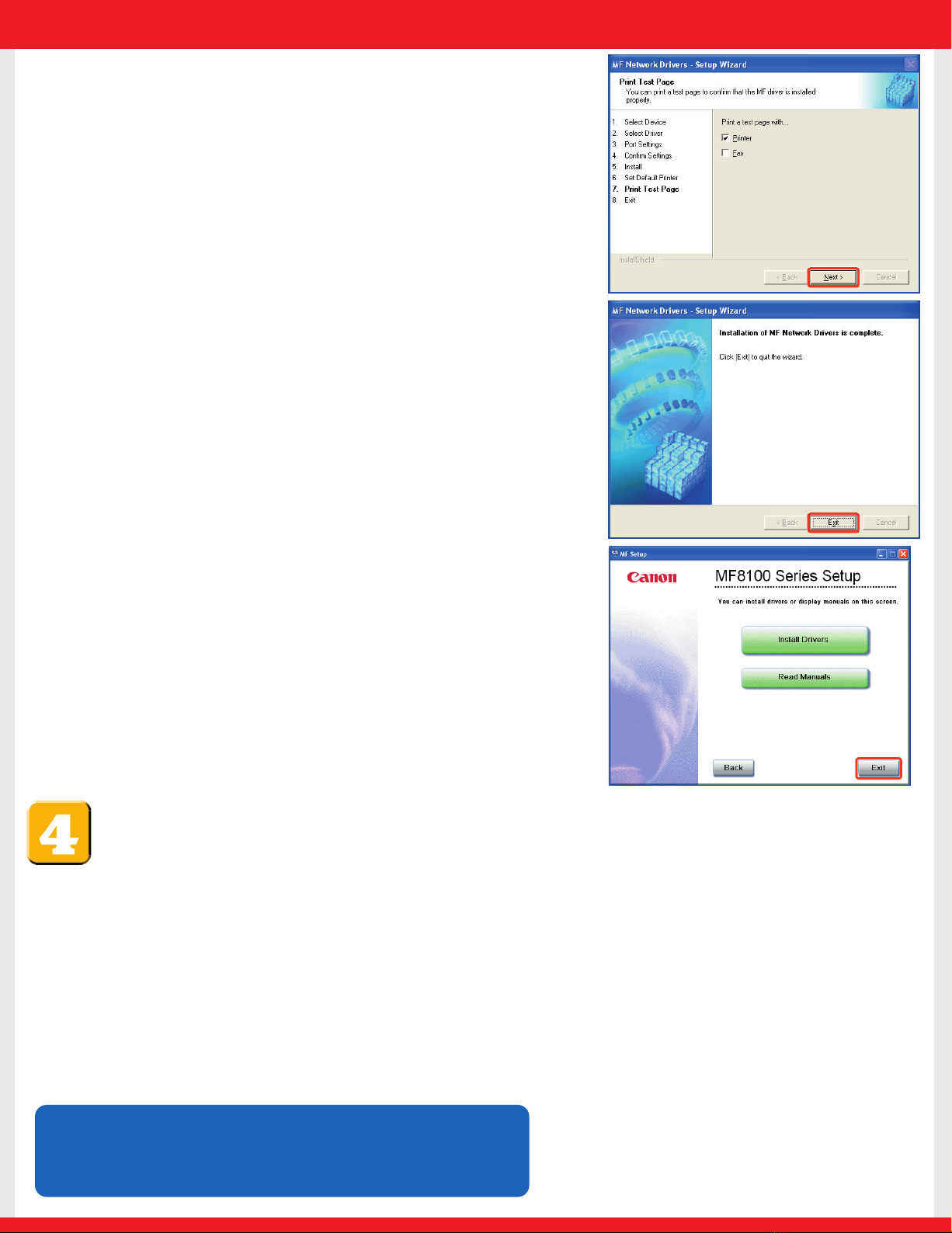

10 Select the driver type (Printer and/or Fax) ➝ click [Next] to

print/fax a test page (optional).

11 When the installation is complete, click [Exit] to close the MF

Network Drivers - Setup Wizard screen.

12 Click [Exit] to close the MF Setup screen. Remove the User

Software CD from the CD-ROM drive and store it in a safe

place.
