Canon MultiPASS MP390 Manuale

Set-Up Sheet

Thank you for purchasing the Canon MultiPASS MP390. To prepare your machine for

use, please follow the instructions in this Set-Up Sheet before referring to any other

documentation.

READ THIS SHEET FIRSTREAD THIS SHEET FIRST

Do not connect the USB cable until , "Connect the USB

cable."

IMPORTANT

Setup procedures Start

Setup flow

Setup procedures End

This side explains the setup procedure for use without connecting to a computer. <Check packed contents, install and adjust machine>

These steps explain the setup procedure for use by connecting to a computer. <Install MP Drivers and Utility Software>

You can use the copy, photo print, fax functions.

You can use the print, PC fax, scan functions.

Connect

power cord

Connect

telephone line

Install Utility Software

Install print head

Install MP Drivers

Install ink tanks

Connect USB cable

Load print media

Align print head

Unpack and install

the machine

Unpack and install the machine.

1Carefully remove all items from the box.

NOTE

When removing the machine from the

box, handle it with care and do not drop it.

2Remove the protective material.

NOTE

After removing the protective material, do

not lift the machine by grasping the scan

unit.

Hold the bottom side.

3Place the machine on a flat surface.

•Be sure to hold the machine by the

sides. Do not place anything in front

of the machine.

4Remove all shipping tape from the

exterior of the machine.

•After removing the tape, remove the

protective sheet.

Do not grasp the

scan unit.

HT3-2145-000-V.1.0

Remove the

protective sheet.

NOTE

A printer cable is not included. You must purchase a USB cable (less than 16 3/8ft./5 m) to

connect your machine to a computer.

MP390 Telephone Line Cord Print Head

Ink Tanks:

BCI-24 Black

BCI-24 Color

Power Cord

Set-Up Sheet

User's Guide

Setup

CD-ROM

The Setup CD-ROM contains the MP

Drivers, as well as the electronic manuals

Software Guide and Photo Application

Guide.

Please read these guides.

Check the contents.

Connect the telephone line and any necessary external

device.

You can connect an

external device

(telephone or answering

machine) if necessary.

Connect the telephone

line cord to the wall jack.

NOTE

•Before using your machine, you need to make sure it is set for your telephone line type.

For details, see page 83 of the User’s Guide.

•Refer to the receive mode instructions after the unit is powered on.

For details on the receive modes, refer to page 104 of the User’s Guide.

Telephone or answering machine

Telephone and answering machine

Built-in computer modem and telephone

Connect external devices as follows:

Telephone

line Machine

Telephone

line Machine

Telephone or

answering machine

Telephone

line Machine

Computer

= Telephone line jack

= External device jack

Answering

machine

LINE TEL Telephone

Telephone

TELLINE

External

device jack

Telephone

line jack

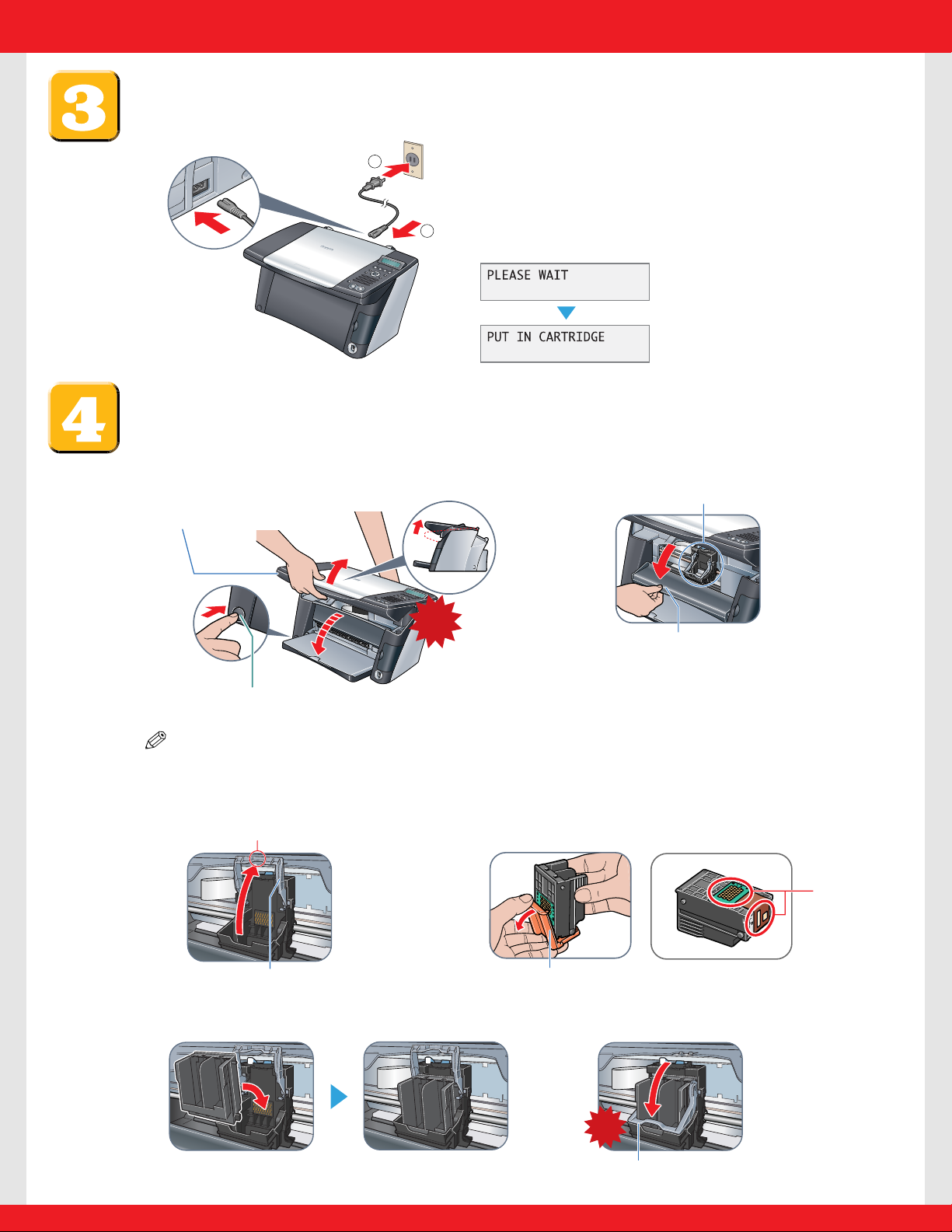

Install the print head.

Connect the power cord.

1Connect the power cord. qConnect one end of the power cord to the

rear of the machine.

wConnect the other end to the AC outlet.

If the message <PUT IN CARTRIDGE> appears,

go to procedure 4, "Install the print head."

Lift the scan unit.

Touch only the lock lever!

Raise this securely. Remove the protective

cap and discard it.

Do not touch!

Snap

Slowly lower the lock lever until you hear

a “snap” sound and it locks into place.

Approx. 15 seconds

If the paper output tray does not open, press

the Open button to open the paper output tray.

Click

NOTE

If you open the scan unit while the machine is turned ON, the paper output tray will open.

qOpen the inner cover.

wThe print head holder moves to the center.

Install the print head here.

5Insert the print head. 6Lower the lock lever.

3Raise the lock lever. 4Prepare the print head.

1Lift the scan unit until it locks into place.

If there is a protective sheet, remove the

protective sheet.

2Open the inner cover.

3Pull out the tray extension of the

paper output tray.

Install the ink tanks.

1Prepare the ink tanks. 2Insert the ink tanks.

Remove the protective

cap and discard it.

Black

Do not touch!

Click

Insert the black ink

tank into the right slot.

Push it in until it

locks into place. Insert the color ink

tank into the left slot.

3Close the inner cover qand

the scan unit w.

Load the paper.

1Open the multi-purpose tray. 2Load the paper.

Incorrectly

installed

Correctly

installed

Rear side a

NOTE

Pull it out until it stops.

qLoad the paper with the print side face up.

Ensure the paper stack does

not exceed paper limit mark.

Click

qLift it upward.

wPinch and adjust the

paper guide to the

width of the stack.

wPull up the tray

extension until it stops.

qOpen the tray.

wLower it into place.

Align the print head from the operation panel.

Be sure to align the position of the print head to ensure print quality.

1Print the print head position pattern.

2Enter checkmarks in the printed patterns.

From column A to column K on the printout,

place a checkmark by the pattern that shows

the most solid box (least number of white

stripes).

3Align the print head.

Using the operation panel, enter the value of the pattern you checked in step 2,then

press [Set].

4Repeat step 3 for columns B through K.

wPress

[Set].

If this message

does not

appear after

closing the

scan unit, see

page 118 of the

User's Guide.

Column A

GOOD SAMPLE

BAD SAMPLE

Least solid box

Most solid box

qPress [+] or [-] to select

the pattern number of

the good sample.

wPress [Set].

Press [+] to increase the number by one digit.

Press [–] to decrease the number by one digit.

You have completed installation and alignment.

If you are connecting the machine to a computer for use, see , and for

instructions on installing the software.

eThe machine prints

a print head

position pattern.

Columns (A to E)

Pattern numbers

Columns (F to K)

qThis message appears.

Install the MP Drivers.

The MP Drivers must be installed on the hard disk of your computer in order to print

from or scan images to the computer. In addition to installing the MP Drivers, install

the MP Toolbox. Use the MP Toolbox to attach scanned images to e-mail, save and

more.

IMPORTANT

•For detailed system requirements, see page 69 of the User's Guide.

•When installing the software in Windows 2000, you must have Service Pack 1 or

later version installed.

•When installing the software in Windows 2000, you must log on as Administrator

or have Administrator privileges, and when installing the software in Windows XP,

you must log on as Administrator.

•If you have an earlier version of the MultiPASS Suite software installed on your

computer, uninstall this version before installing the new version.

For instructions on uninstallation, see the guides for that version of MultiPASS Suite.

•Close any open software applications, including virus checkers prior to installing

the software.

For details, see the instruction guide for each software application.

NOTE

If using the machine with USB 2.0 Hi-Speed mode, you must connect it to a computer

standard-equipped with a USB 2.0 Hi-Speed interface. For details, see page 70 of the User’s

Guide.

The setup program should automatically run.If

the setup program does not automatically run,

click [My Computer], then double-click

[setup.exe] or [setup] on the Setup CD-ROM.

Turn ON your computer,

and start Windows.

Insert the Setup CD-ROM

into the CD-ROM drive.

Click

Prepare the Setup CD-ROM (Installation preparation)

IMPORTANT

If the following screen appears, click Cancel.

If you have connected the USB cable,

disconnect it.

The USB cable is connected.

Perform the following steps.

1. Disconnect the USB cable.

2. Click [Cancel].

1Install the MP Drivers. (Use when printing from PC applications or scanning images.)

Follow the on-screen

instructions to install

the software.

When the InstallShield Wizard Complete window

appears, click [Finish].

If you are prompted to restart your computer after the

installation, restart your computer.

2Install the MP Toolbox.

(Use to attach scanned documents to an e-mail message or save as PDF

files.)

Refer to the following on-screen instructions while installing the software.

When the InstallShield Wizard Complete window

appears, click [Finish].

If you are prompted to restart your computer after the

installation, restart your computer.

3Connect the USB cable

Click

Select [Yes, I want to restart

my computer now.] and then

click [Finish].

When restarting your

computer is

necessary:

Click

When restarting your

computer is not

necessary:

Click

●Outline of the utility software

Easy-PhotoPrint allows you to make high-quality borderless (full page) prints easily by simply

selecting the paper type and image taken with your digital camera.

Easy-PhotoPrint Plus allows easy Red-eye reduction and Digital Face Smoothing.

Easy-WebPrint allows you to print a whole web page from Internet Explorer quickly and easily.

ScanSoft OmniPage SE is an OCR (Optical Character Recognition) program which can convert the

text in books or newspaper characters into editable text.

ArcSoft PhotoStudio allows you to import images from your digital camera to enhance them in

various ways, blend them together, convert their data format, or add them to an album.

The Adobe Acrobat Reader displays documents in PDF (Portable Document Format) form.

Easy-PhotoPrint /

Easy PhotoPrint Plus

Easy-WebPrint

ScanSoft OmniPage SE

ArcSoft PhotoStudio

Adobe Acrobat Reader

Connect the USB cable.

Make sure both your machine and

computer are turned ON.

When connecting the USB cable, the

computer will automatically detect

and install necessary information.

Please wait a few moments. Click [OK]

if you are prompted to restart your

computer.

Install the utility software.

Utility software is also stored on the Setup CD-ROM. You can choose to install the

utility software at this stage or install it later.

The Photo Application Guide is contained on the Setup CD-ROM. For details, see page 163 of the User’s Guide.

●Install the utility software.

Connect one end of the USB cable to the computer,

the other (square shaped plug) to the machine.

Click [Install Utility

Software].

Select the software

to install.

When the InstallShield Wizard

Complete window appears, click

[Finish].

If you are prompted to restart your computer

after the installation, restart your computer.

This procedure varies depending on the

application software.

Click this to read

the guides stored

on the Setup

CD-ROM, such

as the Photo

Application

Guide.

Click Click

To view guides

PRINTED IN THAILAND

You now have completed installation of the software.

For details of the operations, see the User's Guide.

Canon, MultiPASS, and BCI are trademarks of Canon Inc.

All other products and brand names are registered trademarks or trademarks of their respective owners.

Specifications subject to change without notice.

In Windows 2000, the machine may not be set as [Set As Default Printer]. For details, see the Software Guide.

When installation of the MP Drivers completes, the icon appears on the desktop.You

can register your machine online by double-clicking this icon.

Altri manuali per MultiPASS MP390

Indice

Altri manuali Canon Stampante tutto in uno

Canon

Canon Color imageCLASS MF8580Cdw Istruzioni per il montaggio

Canon

Canon PIXMA MP470 Manuale di istruzioni

Canon

Canon imageCLASS MF6500 Series Guida utente

Canon

Canon imageRUNNER 8500 Manuale utente

Canon

Canon PIXMA MP970 Manuale

Canon

Canon iR5075 Scheda informativa del prodotto

Canon

Canon imageRUNNER ADVANCE 400 Series Manuale utente

Canon

Canon PIXMA MX892 Manuale utente

Canon

Canon imageCLASS MF7460 Manuale utente

Canon

Canon imageRUNNER ADVANCE C7500 III Series Manuale tecnico

Canon

Canon imageRUNNER ADVANCE C3500 III Series Manuale utente

Canon

Canon IMAGERUNNER 1670F Manuale utente

Canon

Canon imageRunner 2220i Manuale utente

Canon

Canon MF735C Series Manuale utente

Canon

Canon imageRUNNER 5065 series Manuale utente

Canon

Canon IMAGERUNNER ADVANCE C5051 Manuale utente

Canon

Canon ImageRunner C1225 Manuale utente

Canon

Canon PIXMA MX700 Series Manuale utente

Canon

Canon imageCLASS D340 Manuale

Canon

Canon MultiPASS MP360 Manuale utente

Canon

Canon GX6000 Series Guida all'installazione

Canon

Canon IR3320i Manuale utente

Canon

Canon PIXMA MG5520 Manuale utente

Canon

Canon MF3110 - ImageCLASS Laser Multifunction Manuale utente

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Brother

Brother MFC-J430w Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Brother

Brother MFC-9760 Manuale utente

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Brother

Brother Business Smart MFC-J4510dw Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente

Oce

Oce VarioLink 5022 Manuale utente
