Canon SmartBase MPC400 Manuale di istruzioni

REVISION 1

HY8-30AP-010

FEB. 2002

SmartBase MPC600F H12-2194 230V ENG

SmartBase MPC600F H12-2195 230V GER

SmartBase MPC600F H12-2197 230V FRN

SmartBase MPC400 H12-2204 230V EC

imageCLASS MPC600F H12-2198 230V AUS

imageCLASS MPC600F H12-2199 230V AE

imageCLASS MPC600F H12-2196 230V CHN

imageCLASS MPC400 H12-2208 230V AUS

imageCLASS MPC400 H12-2209 230V AE

imageCLASS MPC400 H12-2206 230V CHN

Application

This manual has been issued by Canon Inc. for qualified persons to learn technical theory, installation, maintenance,

and repair of products. This manual covers all localities where the products are sold. For this reason, there may be

information in this manual that does not apply to your locality.

Corrections

This manual may contain technical inaccuracies or typographical errors due to improvements or changes in products.

When changes occur in applicable products or in the content of this manual, Canon will release technical information

as the need arises. In the event of major changes in the contents of this manual, Canon will issue a new editions of

this manual.

The following paragraph does not apply to any countries where such provisions are inconsistent with local law.

Trademarks

The product names and company names described in this manual are the registered trademarks of the individual

companies.

reproduced or translated into another language, in whole or in part, without the written consent of Canon Inc.

CANON INC.

Consumer Imaging Products Quality Assurance Dept. 1

5-1 Hakusan 7-Chome, Toride-city, Ibaraki 302-8501, Japan

DTP System

The data contained on this manual were created using Windows NT®computers.

Document creation and page layout were performed using Adobe®PageMaker®6.5.

Logos and illustrations were created using Adobe®Illustrator®9.0.

I. CONTENTS

1. ILLUSTRATION INDEX

2. PARTS LAYOUT & PARTS LIST

3. TOOL

4. LUBRICATIONS

5. NUMERICAL INDEX

II. ABOUT THIS MANUAL

1. ILLUSTRATION INDEX

For illustration index, the parts layout illustrations in

this parts catalog are listed in

abbreviated form in order of illustration number to

identify the pages they appear on. To find an

illustrationofapart,seetheILLUSTRATIONINDEX.

2. PARTS LAYOUT & PARTS LIST

Parts layout illustration

a) Parts search

Find a part from the parts layout illustration and

find its key number from the parts list to identify

the part number and name.

Further, screws, nuts, washers, grip rings, pins and

spacers are mentioned in the parts list.

Note: If parts have the same or similar shape but

different specifications,

their key number is assigned to several part

numbers and names in the parts list.

b) Parts replacement procedure

Thepartslayoutillustrations are arranged according

to the disassembly procedure of the product.

When a unit in the illustration can be disassemble

further, a reference illustration page of the

disassembly will be included.

Parts where grease is to be applied are displayed as

"Lubrication". When replacing parts, or if grease

has accidentally been wiped off, refer to "4".

(Lubrications), and reapply the grease.

The letters ( A , Betc.) in the illustration indicate

the connection locations of cables and screws.

Parts list

a) FIGURE & KEY No.

The FIGURE & KEY No. column corresponds to

the key numbers assigned to the parts in the parts

layout illustration.

It also corresponds to the part locations printed on

the PC board.

b) PART NUMBER

The PART NUMBER column gives the part

numbers corresponding to the key numbers. To

order a part, indicate the part number clearly.

Note: Parts marked NPN are not service parts.

c) RANK

The service parts with N in the RANK column are

order parts.

d) QTY

The QTY column gives the number of parts in the

corresponding components layout illustration.

e) DESCRIPTION

The DESCRIPTION column gives the part names

in English.

To order a part, indicate the part name, too.

3. TOOL

This is a list of tools used for servicing products.

4. LUBRICATIONS

Where grease is to be applied in order to allow moving

parts to work smoothly, and to increase conductivity,

the type and amount of grease to be used will be

mentioned.

5. NUMERICAL INDEX

All the parts listed in this parts catalog are arranged in

order of part number. You can identify part locations

and names from the NUMERICAL INDEX.

1-1

1. ILLUSTRATION INDEX

SmartBase MPC600F/MPC400 imageCLASS MPC600F/MPC400

1.ILLUSTRATION INDEX

See page

2-1

FIGURE 1

See page

2-3

See page

2-5 See page

2-7

FIGURE 2

FIGURE 3 FIGURE 4

See FIGURE 1

for disassemb

See FIGURE 1

for disassemb

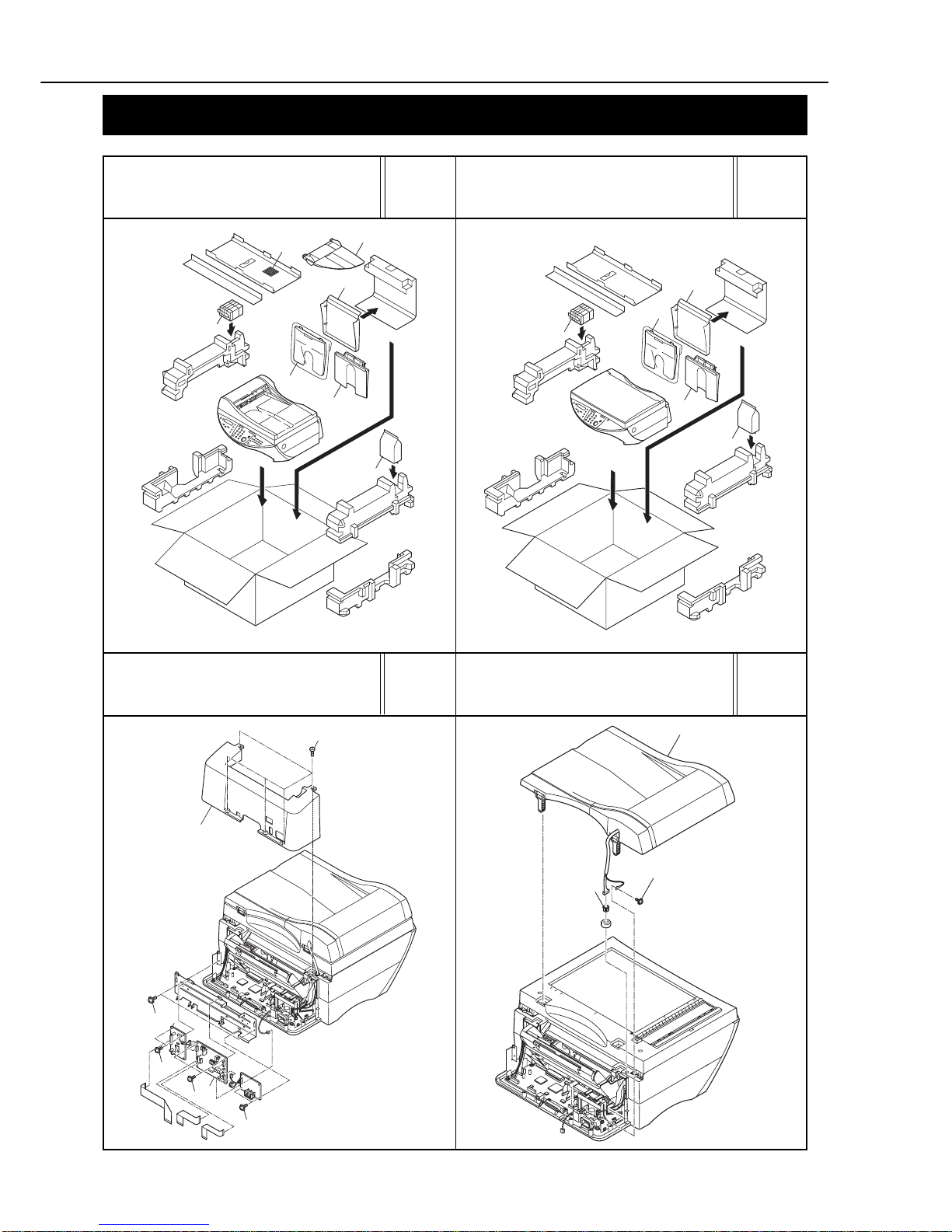

SmartBase MPC600F/

imageCLASS MPC600F

PACKAGE CONTENTS

SmartBase MPC600F/imageCLASS MPC600F

REAR COVER, NCU BOARD,

MODEM BOARD

SmartBase MPC600F/

imageCLASS MPC600F

DOCUMENT FEED ASS’Y

SmartBase MPC400/

imageCLASS MPC400

PACKAGE CONTENTS

1-2

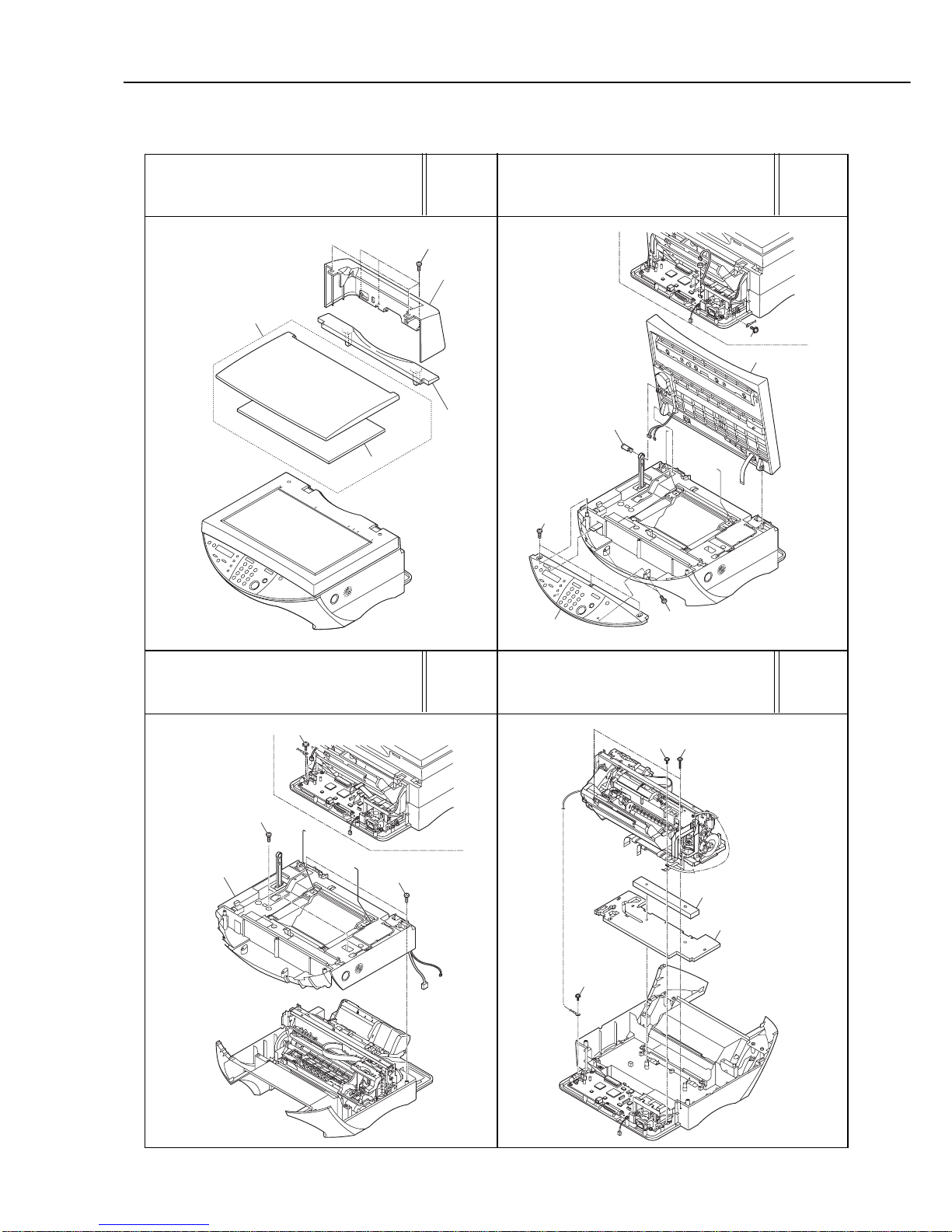

SmartBase MPC600F/MPC400 imageCLASS MPC600F/MPC400

1.ILLUSTRATION INDEX

See page

2-9 See page

2-11

See page

2-13 See page

2-15

FIGURE 5 FIGURE 6

FIGURE 7 FIGURE 8

See FIGURE 1

for disassemb

ee FIGURE 17

for disassembly

SmartBase MPC400/imageCLASS MPC400

REAR COVER, PRESSURE

PLATE

FLAT BED ASS’Y,

OPERATION PANEL UNIT

MIDDLE COVER ASS’Y PRINT & ASF ASS’Y

1-3

SmartBase MPC600F/MPC400 imageCLASS MPC600F/MPC400

1.ILLUSTRATION INDEX

See page

2-17 See page

2-19

See page

2-21

FIGURE 9 FIGURE 10

FIGURE 11

See page

2-23

FIGURE 12

See FIGURE 25

for disassembly

011

FRONT COVER,

SCNT BOARD,

POWER SUPPLY

SmartBase MPC600F/

imageCLASS MPC600F

DOCUMENT FEED ASS’Y(1)

SmartBase MPC600F/

imageCLASS MPC600F

DOCUMENT FEED ASS’Y (2)

SmartBase MPC600F/

imageCLASS MPC600F

DOCUMENT TRAY

1-4

SmartBase MPC600F/MPC400 imageCLASS MPC600F/MPC400

1.ILLUSTRATION INDEX

See page

2-25 See page

2-27

See page

2-29 See page

2-31

FIGURE 13 FIGURE 14

FIGURE 15 FIGURE 16

8210

10*

611

*= Lubrication

See page 4-

217

18 7

*= Lubrication

See page 4-1

*= Lubrication

See page 4-2, 4-3

*= Lubrication

See page 4-4, 4-5

SmartBase MPC600F/

imageCLASS MPC600F

DOCUMENT FEED SECTION (1)

SmartBase MPC600F/

imageCLASS MPC600F

DOCUMENT FEED SECTION (2)

DOCUMENT GLASS,

CONTACT SENSOR FLAT BED MOTOR

1-5

SmartBase MPC600F/MPC400 imageCLASS MPC600F/MPC400

1.ILLUSTRATION INDEX

See page

2-33 See page

2-35

See page

2-37 See page

2-39

FIGURE 17 FIGURE 18

FIGURE 19 FIGURE 20

*= Lubrication

See page 4-5

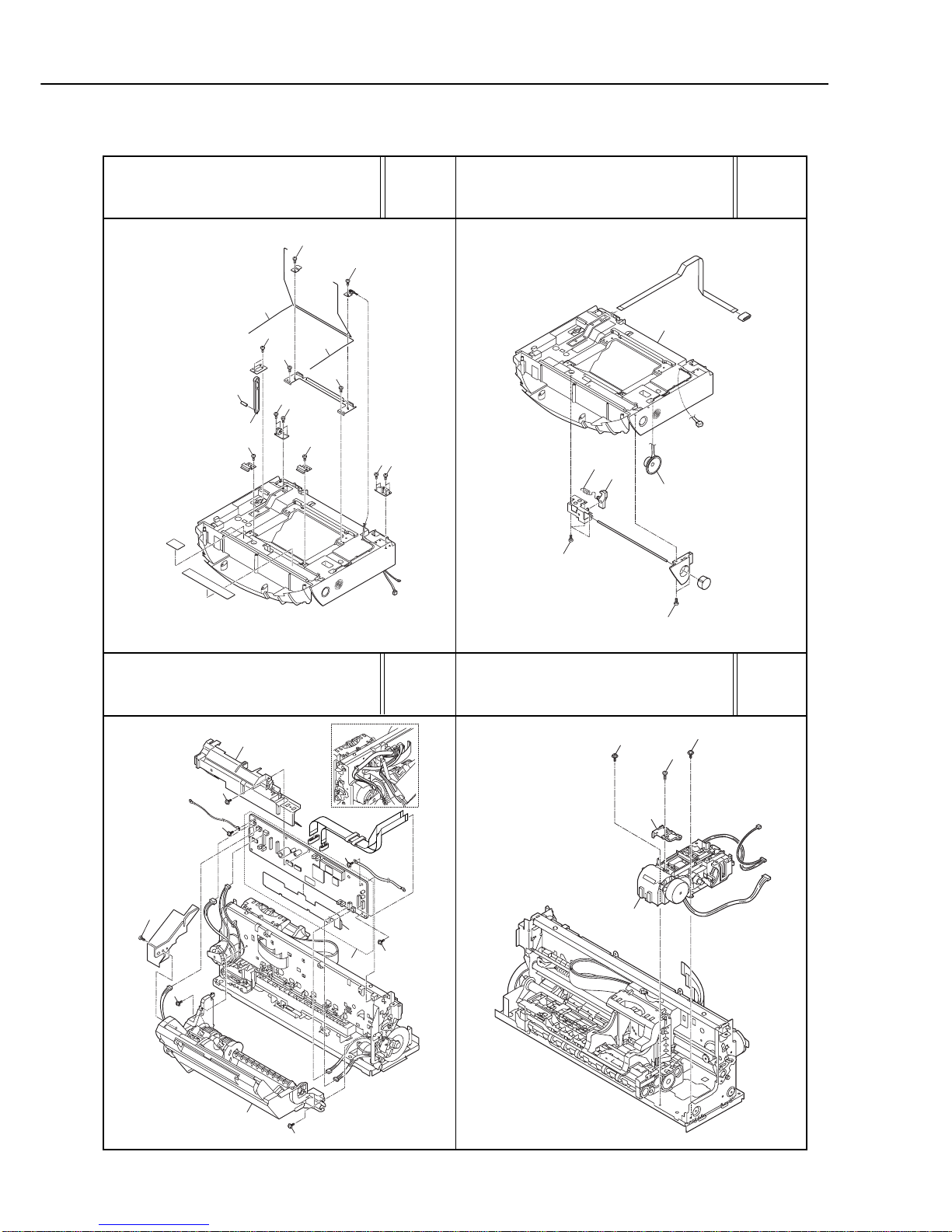

MIDDLE COVER ASS’Y

(1) MIDDLE COVER ASS’Y

(2)

AUTO SHEET FEEDER,

PCNT BOARD PURGE UNIT

1-6

SmartBase MPC600F/MPC400 imageCLASS MPC600F/MPC400

1.ILLUSTRATION INDEX

See page

2-41 See page

2-43

See page

2-45 See page

2-47

FIGURE 21 FIGURE 22

FIGURE 23

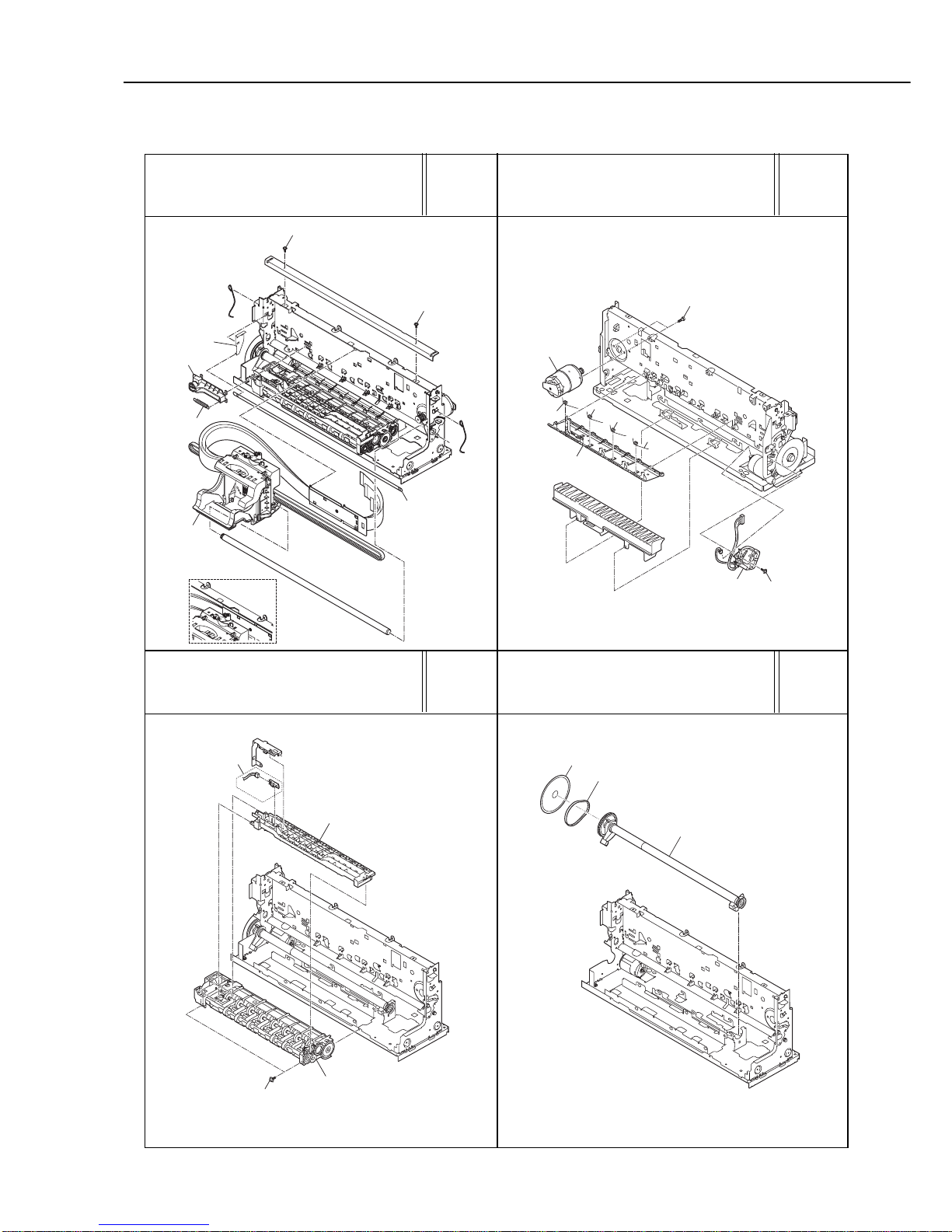

CARRIAGE UNIT CARRIAGE MOTOR,

TIMING SENSOR

PAPER FEED SECTION

FIGURE 24

*= Lubrication

See page 4-6

PAPER FEED ROLLER
