Canon CDI-M186-010 Manuale utente

DPUG7 IMPRIMÉ AU JAPON

Direct Print User Guide

Guide d'utilisation de l'impression directe

Guía del usuario de impresión directa

You don’t even need a computer !

Just connect your camera to your printer and print

Vous n'avez pas besoin d'ordinateur !

Imprimez en raccordant directement l'appareil photo à

l'imprimante

¡No necesita un ordenador!

Simplemente conecte la cámara a la impresora e

imprima

Direct Print User Guide

ENGLISH

Introduction

—

Confirm Your Printer Model and the Section that Applies to You

Operations differ according to your printer model.

According to the procedure below, confirm the section and page

you should read in this user guide.

Connect the camera to the printer with an appropriate cable

and confirm the icon displayed in the camera's LCD monitor.

• For instructions on camera and printer connection methods,

please refer to page 8.

• If one of the aforementioned icons does not appear, the connected printer

cannot be used.

• When the printer is ready for printing, the button lights in blue. The

button blinks during printing.

Confirming the section that applies to you

Icons displayed in the camera's LCD monitor

* Please also refer to the user guide that came with your printer.

Confirm your printer

model.

Read the page

below.

Printer model Refer to the sections

indicated

SELPHY CP

series

Page 10

" Printing with SELPHY CP

Series Printers using

PictBridge"

PIXMA/

SELPHY DS

series

Page 29

" Printing with Bubble Jet

Printers (PIXMA series/

SELPHY DS series) using

PictBridge"

Non-Canon

printers*

Page 47

" Printing with Non-Canon,

PictBridge Compliant Printers"

SELPHY CP

series

Page 48

" Printing with SELPHY CP

Series Printers using Canon

Direct Print"

Bubble Jet

printers

Page 64

" Printing with Bubble Jet

Printers using Bubble Jet

Direct"

Trademark Acknowledgements

• Names and products in this guide may be registered trademarks or

trademarks of their respective companies.

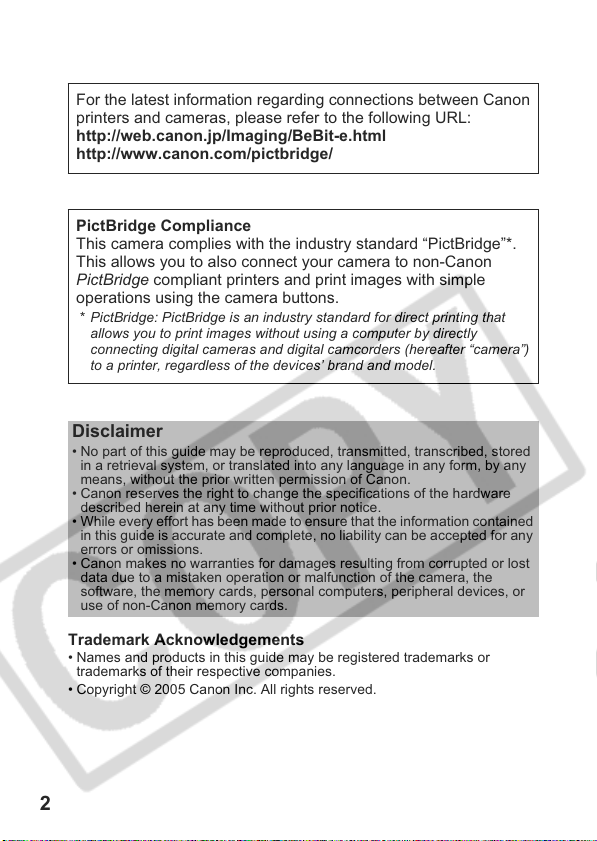

For the latest information regarding connections between Canon

printers and cameras, please refer to the following URL:

http://web.canon.jp/Imaging/BeBit-e.html

http://www.canon.com/pictbridge/

PictBridge Compliance

This camera complies with the industry standard “PictBridge”*.

This allows you to also connect your camera to non-Canon

PictBridge compliant printers and print images with simple

operations using the camera buttons.

* PictBridge: PictBridge is an industry standard for direct printing that

allows you to print images without using a computer by directly

connecting digital cameras and digital camcorders (hereafter “camera”)

to a printer, regardless of the devices’ brand and model.

Disclaimer

• No part of this guide may be reproduced, transmitted, transcribed, stored

in a retrieval system, or translated into any language in any form, by any

means, without the prior written permission of Canon.

• Canon reserves the right to change the specifications of the hardware

described herein at any time without prior notice.

• While every effort has been made to ensure that the information contained

in this guide is accurate and complete, no liability can be accepted for any

errors or omissions.

• Canon makes no warranties for damages resulting from corrupted or lost

data due to a mistaken operation or malfunction of the camera, the

software, the memory cards, personal computers, peripheral devices, or

use of non-Canon memory cards.

Table of Contents

Direct Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Allows for Printing without the Use of a Computer . . . . 6

Various Printing Operations Can Be Performed . . . . . . . 6

You Can Also Perform the Following Printing Operations . .7

Using Canon SELPHY CP Series Printers . . . . . . . . . . 7

Using Canon Printers (PIXMA series/SELPHY series)

with PictBridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Connecting the Camera to the Printer. . . . . . . . . . . . . . . . . 8

Disconnecting the Camera and the Printer. . . . . . . . . . . . . 9

Printing with SELPHY CP Series Printers using PictBridge . . .10

Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Easy Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Print after Changing the Print Settings . . . . . . . . . . . 11

Selecting Print Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Setting the Date and the File Number Printing Option

. 13

Setting the Print Effect . . . . . . . . . . . . . . . . . . . . . . . . 14

Setting the Number of Copies . . . . . . . . . . . . . . . . . . 14

Setting the Printing Area (Trimming) . . . . . . . . . . . . . 15

Selecting the Paper Settings . . . . . . . . . . . . . . . . . . . 17

Printing Multiple Images on a Sheet of Paper . . . 19

Printing by Specifying the Print Size

(ID Photo Print) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Printing Images in the Fixed Size . . . . . . . . . . . . . 22

Printing Movies (Movie Print) . . . . . . . . . . . . . . . . . . . 23

Printing with DPOF Print Settings . . . . . . . . . . . . . . . . . 25

List of Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Printing with Bubble Jet Printers (PIXMA series/

SELPHY DS series) using PictBridge . . . . . . . . . . . . . . . . . 29

Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Easy Print. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Print after Changing the Print Settings . . . . . . . . . . . .30

Selecting Print Settings. . . . . . . . . . . . . . . . . . . . . . . . . . .32

Setting the Date Printing Option . . . . . . . . . . . . . . . . .32

Setting the Print Effect . . . . . . . . . . . . . . . . . . . . . . . . .33

Setting the Number of Copies . . . . . . . . . . . . . . . . . . .34

Setting the Printing Area (Trimming) . . . . . . . . . . . . .34

Selecting the Paper Settings . . . . . . . . . . . . . . . . . . . .37

Printing Multiple Images on a Sheet of Paper . . . .39

Printing with DPOF Print Settings . . . . . . . . . . . . . . . . . .41

List of Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Printing with Non-Canon, PictBridge Compliant Printers

. . . 47

Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Printing with SELPHY CP Series Printers using

Canon Direct Print. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Easy Print. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Print after Changing the Print Settings . . . . . . . . . . . .48

Selecting Print Settings. . . . . . . . . . . . . . . . . . . . . . . . . . .50

Selecting the Number of Copies . . . . . . . . . . . . . . . . .50

Setting the Print Style (Image, Borders and Date) . . .50

Setting the Printing Area (Trimming) . . . . . . . . . . . . .52

Printing by Specifying the Print Size (ID Photo Print)

. .55

Printing Movies (Movie Print) . . . . . . . . . . . . . . . . . . . .58

Printing with DPOF Print Settings . . . . . . . . . . . . . . . . . .60

List of Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

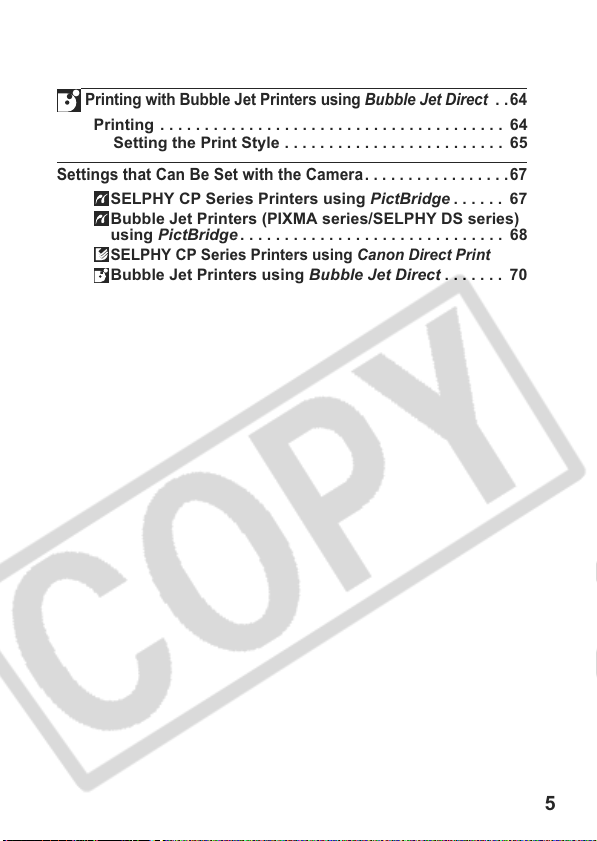

Printing with Bubble Jet Printers using Bubble Jet Direct

. .64

Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Setting the Print Style . . . . . . . . . . . . . . . . . . . . . . . . . 65

Settings that Can Be Set with the Camera . . . . . . . . . . . . . . . . . 67

SELPHY CP Series Printers using PictBridge . . . . . . 67

Bubble Jet Printers (PIXMA series/SELPHY DS series)

using PictBridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

SELPHY CP Series Printers using Canon Direct Print

Bubble Jet Printers using Bubble Jet Direct . . . . . . . 70

Direct Print

Allows for Printing without the Use of a Computer

Connect your camera to the printer with the appropriate cable.

Image selection and printing is operated from the camera.

Various Printing Operations Can Be Performed*

Multiple pictures can be printed at once. (DPOF print setting*)

Prints to cover the entire

surface of the paper.

Or, prints with a border.

Add the date.

Specify which portion of

the image to print.

(Trimming)

03/04/2005

* Some settings may not be selectable for Non-Canon printers.

You Can Also Perform the Following Printing Operations

An image can be trimmed, laid out and printed

as ID photos. (ID photo print (p. 20 or p. 55))

Movie frames can be extracted at fairly

regular intervals and printed on a single

sheet of paper. (Movie print (p. 23 or p. 58))

Using Canon SELPHY CP Series Printers

107-J006

6"25

12"50

18"75

1"25

7"50

13"75

20"00

2"50

8"75

15"00

21"25

3"75

10"00

16"25

22"50

5"00

11"25

17"50

23"75

* Depending on the printer used, the print size may be fixed before printing.

Compositions of multiple

images you specify of the same

dimensions can be printed on a

single sheet of paper (p. 19 or

p. 39). (This function is not

available on some printers.)

Moreover, the DPOF print

setting* function allows you to

separately print different images

by specifying the number of

frames to be printed per image.

* DPOF print settings

This function allows you to preset the images and the number of

copies using the camera button controls. The settings are recorded

to a memory card.

Please refer to the Camera User Guide for instructions on setting

procedure. This guide explains how to print images with DPOF

print settings.

DPOF=Digital Print Order Format

Using Canon Printers (PIXMA series/SELPHY series)

with PictBridge

Connecting the Camera to the

Printer

Connect the camera to the printer. For instructions on printer and

camera operation methods, refer to their respective user guides.

Set one of the following into the camera.

• Compact power adapter (sold separately)

• Fully charged battery

• New batteries

Place paper, ink cassette/cartridge, etc. into the

printer.

Connect the camera to the printer with the

appropriate interface cable supplied with the camera.

Some printers require specific connection cables which differ

from the above cable. Please refer to the printer’s user guide.

Turn the printer’s power on.

Set the camera to Playback mode and turn the

power on.

Depending on the camera model, the camera’s power will

automatically turn on when the printer’s power is turned on.

The following operations are not available during a camera/printer

connection.

• Movie playback.

• Language settings that use the SET button and the MENU button.

• Resetting the camera’s settings to default.

DIGITAL terminal

This illustration shows the PowerShot SD500 DIGITAL ELPH/

DIGITAL IXUS 700 as an example.

Camera: Connect the cable to

the DIGITAL terminal.

Printer: Refer to the printer’s

user guide.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Canon Macchina fotografica digitale

Canon

Canon POWERSHOT SD870IS Manuale utente

Canon

Canon PELLIX QL Manuale utente

Canon

Canon POWERSHOT S10 Manuale utente

Canon

Canon EOS 5DS Guida all'installazione

Canon

Canon EOS 5DS Manuale utente

Canon

Canon PowerShot S110 Digital ELPH Manuale utente

Canon

Canon PowerShot SD630 Digital ELPH Camera Manuale utente

Canon

Canon CDI-E207-010 Istruzioni per il montaggio

Canon

Canon PowerShot SX60 HS Manuale utente

Canon

Canon PowerShot A550 Manuale utente

Canon

Canon Digital IXUS I7 Manuale utente

Canon

Canon EOS-1D Istruzioni per il montaggio

Canon

Canon DIGITAL IXUS 500 Manuale utente

Canon

Canon PowerShot A300 Manuale utente

Canon

Canon Sure Shot Z155 Manuale utente

Canon

Canon EOS 80D (W) Manuale utente

Canon

Canon Powershot SD970 IS Digital Elph Manuale utente

Canon

Canon EOS 550D Manuale utente

Canon

Canon PowerShot G7 X Mark II Manuale utente

Canon

Canon Powershot Pro90 IS Istruzioni per il montaggio

Canon

Canon PowerShot S230 DIGITAL ELPH Manuale di istruzioni

Canon

Canon ELPH Jr IXUS L-1 Manuale utente

Canon

Canon Powershot SD1400 IS Manuale utente

Canon

Canon 3444B001 Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Nikon

Nikon Coolpix 100 Manuale utente
