PARTS

CATALOG

PowerShot G1

No.1

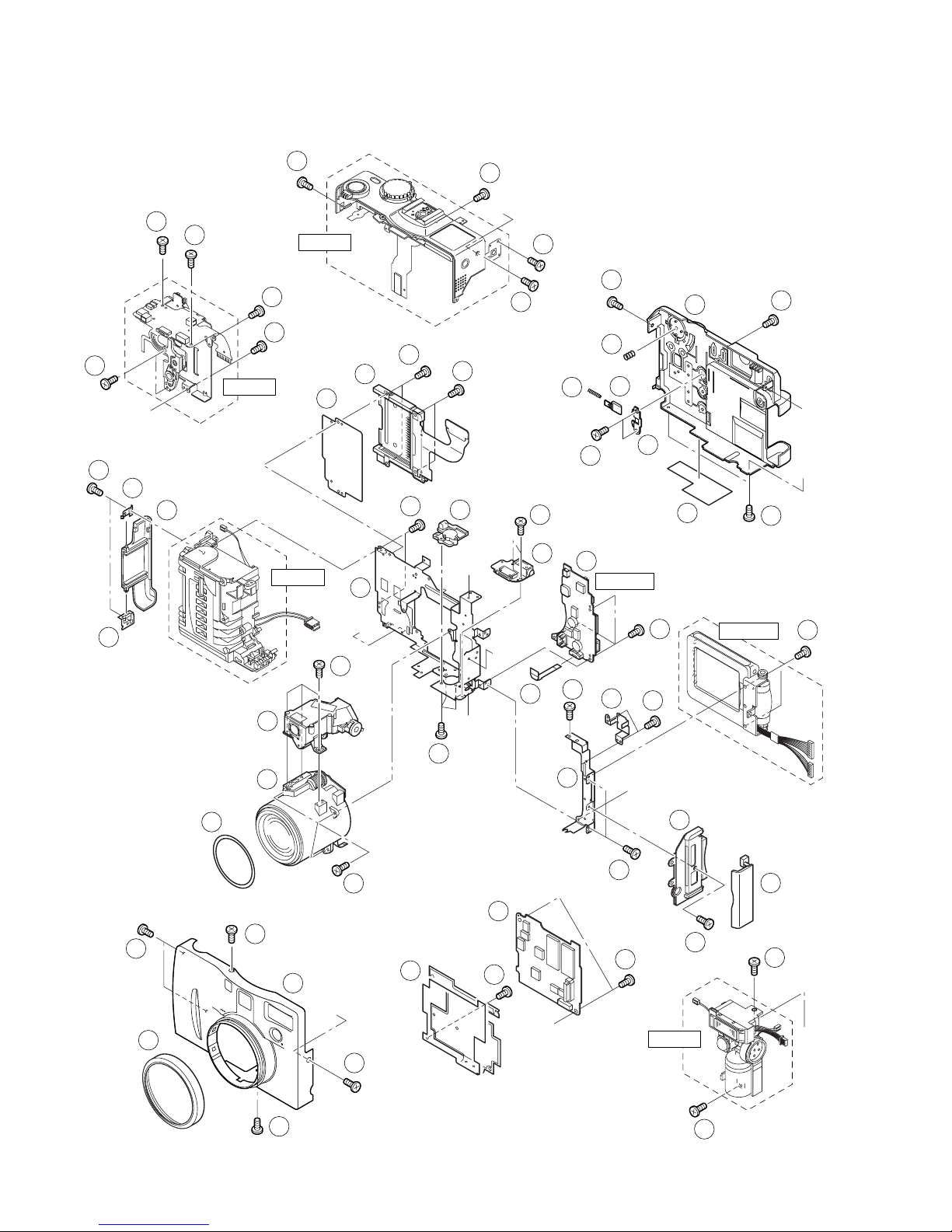

Main parts/units

See P3

See P7

See P9

See P11

See P5

See P21

PowerShot G1

Parts List

SYMBOL NEW PARTS NO. CLASS Q’TY DISCRIPTION REMARKS

1 * CM1-1069-000 B 1 FRONT COVER UNIT

2 * CD1-3216-000 B 1 RING, FRONT

3 * CM1-1068-000 B 1 REAR COVER UNIT

4 * CD1-3191-000 B 1 SLIDER, LCD LOCK

5 * CD1-3192-000 C 1 STOPPER, LCD LOCK

6 * CS8-5210-000 C 1 SPRING, LCD LOCK

7 * CS8-5211-000 C 1 SPRING, SELECTOR

8 * CD1-3185-000 B 1 COVER, JACK

9 * CD1-3174-000 B 1 COVER, SIDE

10 * CD1-3229-000 C 1 SPRING, CF CLICKING 1

11 * CD1-3230-000 C 1 SPRING, CF CLICKING 2

12 * CD1-3176-000 B 1 COVER, CF

13 * CM1-1075-000 C 1 PCB ASS’Y, JACK

14 * CM1-1078-000 C 1 PCB ASS’Y, MAIN

15 * CD1-3197-000 C 1 SHEET, MAIN

16 * CY1-6068-000 B 1 FINDER UNIT

17 * CY1-6069-000 B 1 OPTICAL UNIT

18 * CD1-3268-000 B 1 PLATE, LENS

19 * CD1-3231-000 C 1 PLATE, CF

20 * CM1-1077-000 C 1 CF UNIT

21 * CD1-3253-000 C 1 FRAME, SUB

22 * CD1-3244-000 C 1 FRAME, MINI

23 * CM1-1076-000 C 1 PCB ASS’Y, DC/DC CONVERTER

24 * CK1-0518-008 C 1 FPC, VID

25 * CD1-3255-000 C 1 BASE, TRIPOD

26 * CD1-3232-000 C 1 FRAME, MAIN

27 * CY1-6067-000 B 1 PLATE, BODY NUMBER

28 * CD1-3280-000 F 2 SCREW

29 * CD1-3277-000 F 3 SCREW

30 * CD1-3278-000 F 6 SCREW

31 * CD1-3279-000 F 1 SCREW

32 XA4-9170-409 F 3 SCREW

33 FC2-8736-000 F 2 SCREW

34 XA1-7170-167 F 6 SCREW

35 XA4-9170-359 F 5 SCREW

36 XA1-7170-307 F 19 SCREW

37 XA4-9170-407 F 3 SCREW

38 * XA1-7170-407 F 3 SCREW

39 XA4-9170-609 F 2 SCREW

No.1

Category of “CLASS”

A: Frequency of use: High

B: Frequency of use: Middle

C: Frequency of use: Low

D: Safety-related critical parts

E: Consumable parts

F: Standard screws and washers

S: Supply of the parts is limited

PowerShot G1

No.2

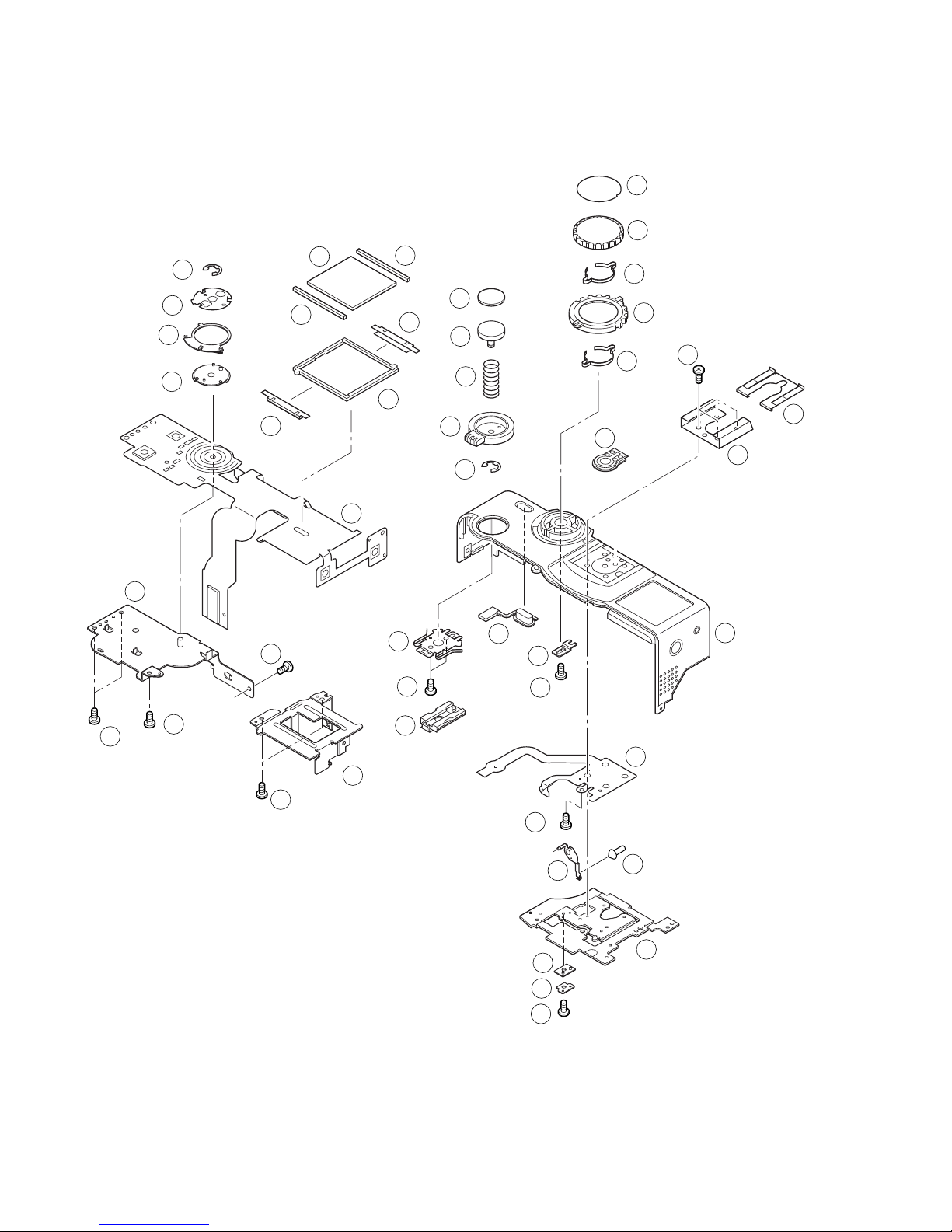

TOP UNIT

28 29

PowerShot G1

Parts List

No.2

SYMBOL NEW PARTS NO. CLASS Q’TY DISCRIPTION REMARKS

1 * CD1-3252-000 B 1 BUTTON, SELF TIMER

2 * CL1-1006-000 C 1 BRUSH, ZOOM

3 * CD1-3260-000 C 1 SPRING, ZOOM

4 * CS2-5656-000 C 1 SPRING, RELEASE

5 * CD1-3259-000 B 1 LEVER, ZOOM

6 * CD1-3250-000 C 1 BUTTON, RELEASE

7 * CD1-3251-000 B 1 CAP, RELEASE

8 * CB2-0574-000 C 1 PLATE, MODE CONNECTIVE

9 * CD1-3243-000 B 1 DIAL, MODE

10 * CD1-3241-000 B 1 PLATE, MODE DIAL

11 * CD1-3242-000 B 1 DIAL, MAIN

12 * CD1-3236-000 B 2 SPRING, MODE CLICK

13 * CD1-3226-000 C 1 BASE, ACCESSORY DETECT 2

14 * CD1-3225-000 C 1 PLATE, ACCESSORY DETECT

15 * CD1-3224-000 C 1 PIN, ACCESSORY SHOE

16 * CD1-3223-000 C 1 BASE, ACCESSORY DETECT 1

17 * CA1-9328-000 C 1 SPRING, ACCESSORY SHOE

18 * CB1-6258-000 C 1 SHOE, ACCESSORY

19 * CD1-3265-000 B 1 FRAME, ACCESSORY SHOE

20 * CK1-0519-000 C 1 FPC, ACCESSORY SHOE

21 * CA1-6504-000 B 1 ACCESSORY CONTACT UNIT

22 * CM1-1081-000 B 1 TOP COVER UNIT

23 * CD1-3234-000 C 1 PLATE, MODE BASE

24 * CL1-1009-000 C 1 BRUSH, MODE DIAL

25 * CL1-1008-000 C 1 BRUSH, MAIN

26 * CL1-1005-000 C 1 FRAME, MODE DIAL

27 * CD1-3246-000 C 2 CLIP, B/W LCD

28 * CK9-0318-000 C 1 PANEL, B/W LCD

29 * CD1-3245-000 C 2 RUBBER, CONTACT

30 * CD1-3248-000 C 1 HOLDER, B/W LCD

31 * CM1-1080-000 C 1 TOP MODULE UNIT

32 * CD1-3249-000 C 1 FRAME, B/W LCD

33 * XD2-1100-132 C 1 RING, E

34 * XD2-1100-172 C 1 RING, E

35 XA1-7170-167 F 6 SCREW

36 XA4-9170-359 F 4 SCREW

37 XA1-7170-307 F 1 SCREW

38 * XA1-3170-407 F 4 SCREW

PowerShot G1

No.3

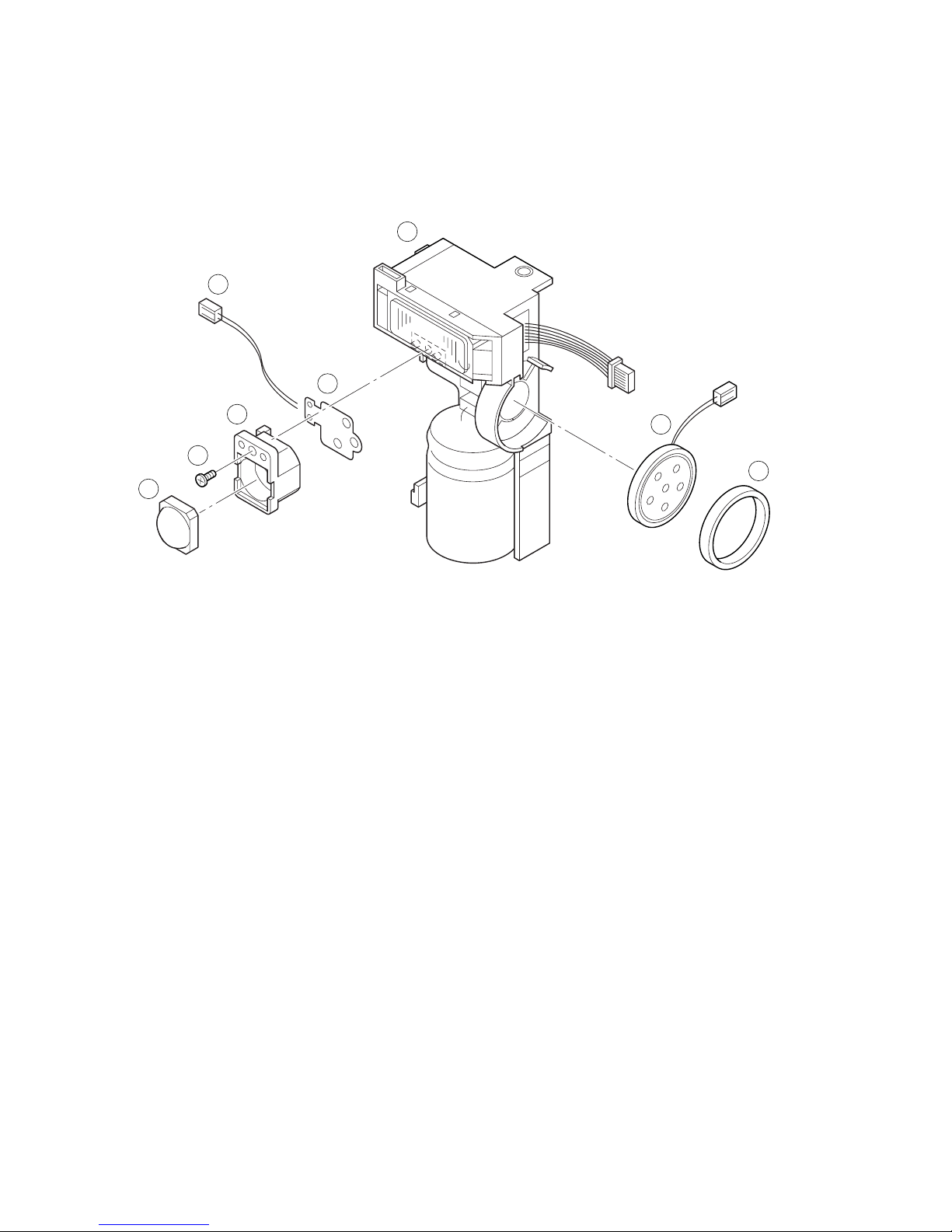

FLASH/SPEAKER UNIT

PowerShot G1

Parts List

No.3

SYMBOL NEW PARTS NO. CLASS Q’TY DISCRIPTION REMARKS

1 * CD1-3281-000 C 1 BUSH, SPEAKER

2 * CM1-1055-000 C 1 SPEAKER UNIT

3 * CM1-1059-000 C 1 FPC, AF LED

4 * CK2-1168-000 C 1 LEAD, AF LED

5 * CD1-3211-000 C 1 HOLDER, AF LED

6 * YN2-1146-000 C 1 LENS, AF LED

7 * CM1-1060-000 C 1 FLASH UNIT

8 XA4-9170-359 F 1 SCREW

PowerShot G1

No.4

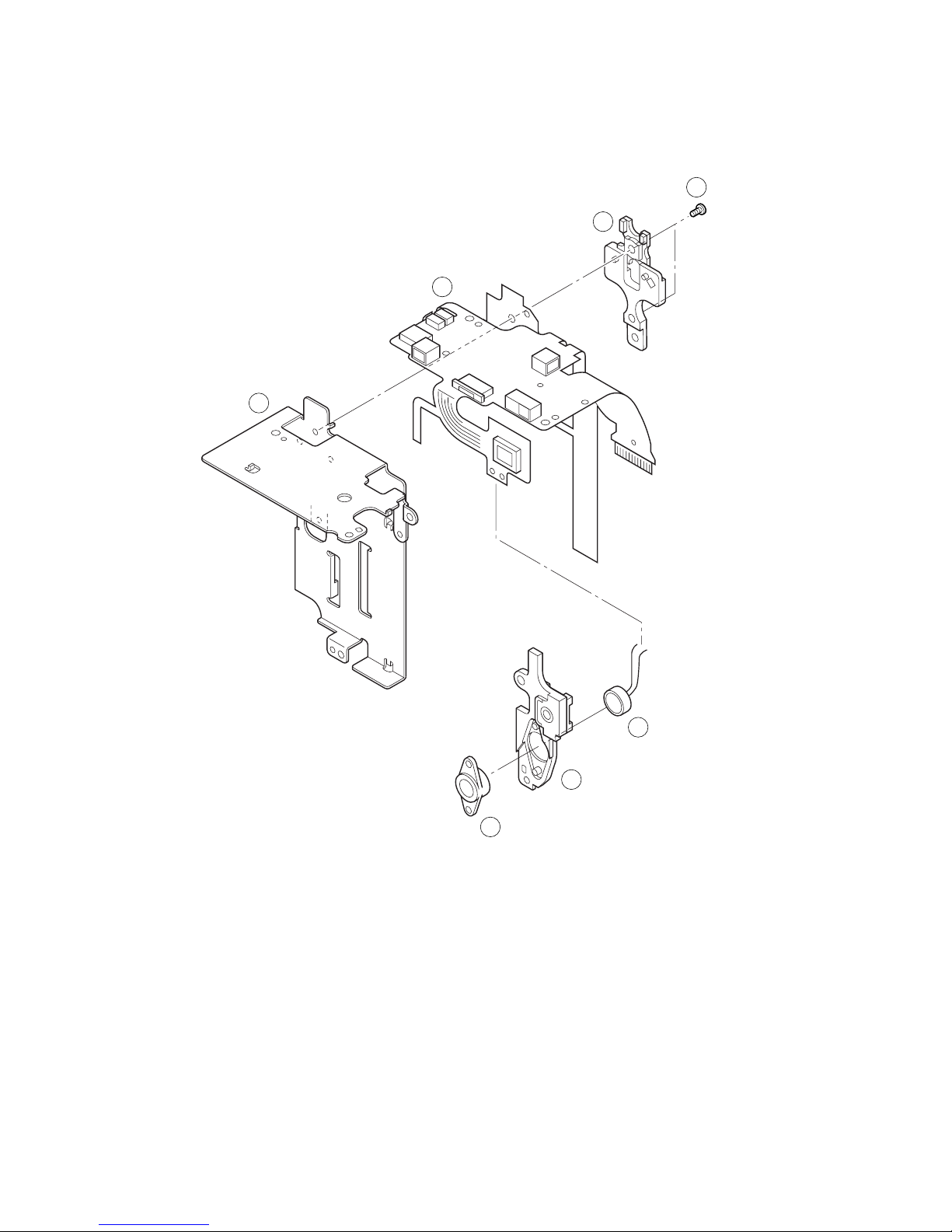

REAR PLATE UNIT

PowerShot G1

Parts List

No.4

SYMBOL NEW PARTS NO. CLASS Q’TY DISCRIPTION REMARKS

1 * CD1-3213-000 C 1 HOLDER, MICROPHONE

2 * CD1-3212-000 C 1 COVER, FLASH IC

3 * CM1-1056-000 C 1 MICROPHONE UNIT

4 * CD1-3187-000 C 1 BASE, SEL.BUTTON

5 * CM1-1083-000 C 1 PCB ASS’Y, BUTTON

6 * CD1-3186-000 C 1 FRAME, REAR

7 XA1-7170-307 F 2 SCREW

PowerShot G1

No.5

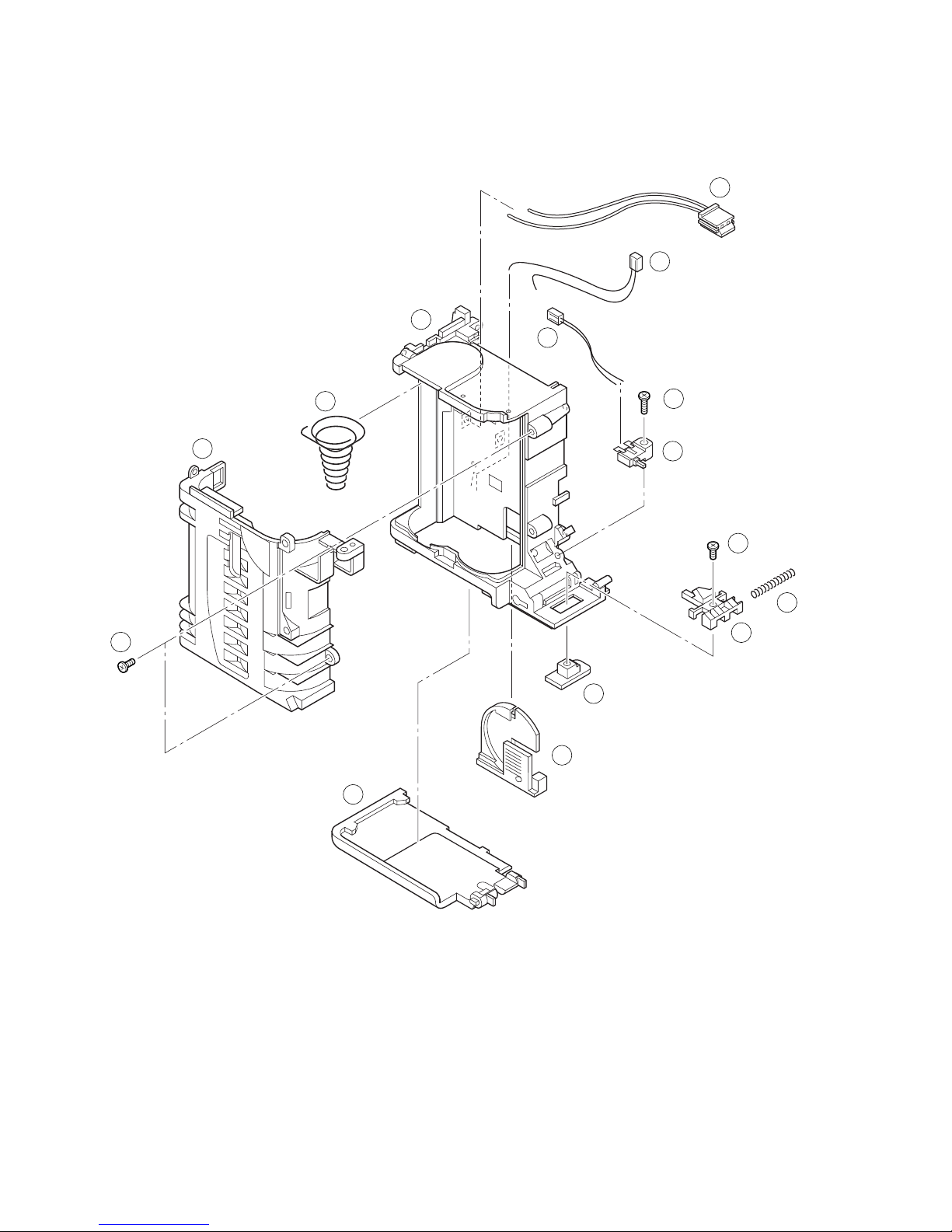

BATTERY BOX UNIT
