10sx Table of Contents Page 1of 2

file://E:\Manuals\BJ-10sx\10sxtoc.htm 11/16/98

Contents

Chapter

1Introduction .................................................................................................................

Features and Benefits ......................................................................................... 1

Using This Manual ............................................................................................. 3

Customer Support ............................................................................................. 5

Chapter

2Setting Up the

Printer ................................................................................................... 7

Unpacking the Printer ......................................................................................... 7

Examining the Printer .......................................................................................... 8

Assembling the Printer ...................................................................................... 12

Chapter

3Using the Printer ........................................................................................................

Choosing a Location for Your Printer ................................................................ 23

Loading Paper .................................................................................................. 24

Using the Printer On a Daily Basis ..................................................................... 31

Traveling With the Printer .................................................................................. 32

Chapter

4Using the Operator Panel ..........................................................................................

Turning On the Printer ....................................................................................... 35

Pausing a Print Operation .................................................................................. 36

Feeding Paper .................................................................................................. 36

Selecting a Print Mode ...................................................................................... 37

Changing the Character Pitch ............................................................................. 37

Changing the Font Style ..................................................................................... 38

Printing the Test Prints ....................................................................................... 41

Chapter

5Using the Printer With Software .................................................................................

Setting Up Windows 3.1 for Your Printer .......................................................... 47

Setting Up Other Software Applications ............................................................ 53

Software and Printer Compatibility .................................................................... 55

Chapter

6Maintaining the Printer ...............................................................................................

Cautions ........................................................................................................... 57

Cleaning the Printer ........................................................................................... 57

Replacing the Ink Cartridge ............................................................................... 59

Storing the Printer ............................................................................................. 65

Chapter

7Troubleshooting .........................................................................................................

Checking the Indicator Lights ............................................................................ 67

Printing the Self Test ......................................................................................... 69

Print Quality Problems ...................................................................................... 70

Paper Loading Problems .................................................................................. 70

Printing Problems ............................................................................................. 71

Clearing Paper Jams ......................................................................................... 72

10sx Table of Contents Page 2 of 2

file://E:\Manuals\BJ-10sx\10sxtoc.htm 11/16/98

Cleaning the Print Head .................................................................................... 75

Chapter

8Customizing the Printer ..............................................................................................

Factory Default Settings ................................................................................... 77

DIP Switch Settings ......................................................................................... 78

BJ-10e Mode ...................................................................................................80

Epson LQ Mode ............................................................................................. 82

Chapter

9Installing and Using Options .......................................................................................

Sheet Feeder .................................................................................................. 85

Battery Pack ................................................................................................... 88

Appendix

APrinter Specifications .................................................................................................

Options Specifications ................................................................................... 100

Appendix

BInterface Specifications ............................................................................................

103

Appendix

CPrinter Mode Command Summaries and Character Sets ..........................................

109

BJ-10e Command Summary ......................................................................... 109

BJ-10e Character Sets ................................................................................. 116

Epson LQ Command Summary .................................................................... 120

Epson LQ Character Sets ............................................................................. 125

Glossary ..................................................................................................................

129

Index ......................................................................................................................

139

Chapter 1

Introduction

Features and Benefits

Congratulations on your purchase of the Canon Bubble Jet Printer BJ-

10sx. It offers exceptional print quality and trouble-free operation with

the convenience of compact size, low cost, and portability. We

appreciate your choosing this portable printer to meet your printer

needs.

This chapter introduces you to features of your new printer and

describes how to use this User's Manual.

The Bubble Jet Printer BJ-10sx produces high-quality printing by

incorporating many useful features.

Feature Benefit

Compact portable design The printer's compact design

(3.7lb/1.7kg) allows it to easily fit into

a briefcase. With the optional battery

pack, you can print documents without

AC power, a fully charged battery can

print up to 40 pages.

Convenient paper handling You can print on paper, envelopes, or

transparencies. An optional sheet

feeder is available for automatically

feeding stacks of paper

Software compatibility Two resident printer control modes

allow the printer to emulate other

printers: BJ-10e mode provides

emulation of the Canon Bubble Jet

printers as well as the IBM proprinter

X24E, an Epson LQ mode provides

emulation of the Epson LQ-510

printer. This means your printer is

compatible with a wide variety of

software applications including those

that support the Proprinter X24E and

LQ-510, as well as any of the other

Canon Bubble Jet printers (BJ-10e, BJ-

10ex, BJ-20, and BJ-130e).

Excellent print quality The high-performance print head of the

ink cartridge offers 360 by 360 dots

per inch (dpi) for high resolution

graphics. This gives you the output

quality of a laser printer and enables

you to create attractive presentations

while on the road.

High-quality ink The ink cartridge contains a high-

quality ink that is not easily affected by

light. It dries very quickly so it is

resistant to smudges. Printed output

does not fade as the cartridge runs out

of ink; the printer maintains the same

print quality regardless of how many

characters have been printed with the

cartridge.

Simple maintenance The replaceable ink cartridge contains

both the ink and the print head for the

printer. When it runs out of ink, you

simply replace it. Each cartridge

typically prints 400 to 500 pages

(700,000 characters) in high quality

(HQ) mode, and 800 to 1000 pages

(1,400,000 characters) in economy

mode.

Quiet printing The printer uses a non-impact printing

method that is very quiet.

Using this Manual

This section describes the contents and conventions of this manual.

Contents

This manual includes all the information you need to set up and operate

your printer in several easy-to-read chapters.

Chapter 1, Introduction

Introduces you to the features of the printer, and describes how this

manual is organized.

Chapter 2, Setting up the Printer

Describes the printer's components, and how to unpack and assemble it.

Chapter 3, Using the Printer

Describes how to select a location for your printer, select paper and load

it in the printer, and print on envelopes, transparencies, and thick paper.

It also includes helpful hints for using the printer on a daily basis and

traveling with the printer.

Chapter 4, Using the Operator Panel

Explains how to control your printer using the buttons on the operator

panel.

Chapter 5, Using the Printer With Software

Describes how to install a printer driver and select a printer control

mode.

Chapter 6, Maintaining the Printer

Describes how to clean the printer, replace the ink cartridge, and store

the printer.

Chapter 7, Troubleshooting

Provides procedures to help you solve problems that may occur when

using the printer.

Chapter 8, Customizing the Printer

Explains how you can customize the factory default settings and select

the printer control mode of the printer by changing the DIP switches.

Conventions

Chapter 9, Installing and Using Options

Describes how to install the options available for the Canon Bubble Jet

Printer BJ-10sx.

The appendices include printer specifications, interface specifications,

and summary tables of the BJ-10e mode and Epson LQ mode printer

commands and characters sets.

At the back of this manual, you'll find a Quick Reference card. To

detach the card, cut along the dotted line at the left side of the card; then

fold the card down the center. Take this Quick Reference with you

when you travel with the printer.

The Canon Bubble Jet Printer BJ-10sx Programmer's Manual is

available for software designers, advanced programmers, and users

interested in using a programming language to send commands to the

printer. To obtain a copy of this manual, call the Canon Computer

Systems Technical Support help desk at 1-800-423-2366.

This User's Manual uses the following conventions to alert you

to the information that will help you to operate the printer

correctly and safely:

NOTE: Notes provide advice or suggestions regarding the use

of the printer.

CAUTION: Cautions alert you to operations that could cause

damage to your printer or other components.

Distinctive typefaces identify the printer buttons you press, the

lights on the operator panel, and any commands you enter at

your computer. For example, the buttons you press appear in

this typeface: POWER. The lights you see appear in this

typeface: ERROR. When you type something on your

computer, it appears in this typeface: DIR /P.

Customer Support

Canon provides customer support and service for all Canon printer

products. If you have any questions regarding the installation or use of

your new printer, don't hesitate to call the Canon Computer Systems

Technical Support help desk at 1-800-423-2366. Assistance is available

Monday through Friday from 9 am to 9 pm, Eastern Standard Time

(EST), except on holidays.

If you seem to have an operational problem, try to solve it by referring

to the information in Chapter 7, Troubleshooting. If you cannot quickly

resume normal operation, contact Canon's experienced support

personnel at the help desk.

Canon also provides a bulletin board service (BBS). To find out the

number for the BBS, call the help desk.

For CompuServe members, Canon provides the Canon Peripherals

Forum. To access the Canon forum, type GO CANON at any

CompuServe prompt.

Customer support for Canadian residents is available at 416-795-2083

from 9 am to 7 pm, EST (except holidays). In other countries, please

contact your Canon dealer.

Chapter 2

Setting up the Printer

This chapter describes the steps you follow to unpack and set up your

printer. It offers guidelines for using the printer, explains how to install

the ink cartridge, and describes how to connect the AC adapter and the

interface cable.

If you have already set up your printer using the Quick Start Guide

included in the box, you may want to scan this chapter for the additional

information that it supplies.

Unpacking the Printer

Carefully remove all items from the box.

In addition to this User's Manual, you will find these items in the

box:

Canon Bubble Jet Printer BJ-10sx

BC-01 ink cartridge

AC adapter

Quick Start Guide

Product Warranty car

Registration card

If your printer was damaged in shipping, or if any items are

missing, notify your dealer immediately.

As you unpack the printer, save the carton and packing materials

in case you want to ship or store the printer in the future.

Remove all shipping tape and any styrofoam packing material

used to protect the printer during shipping. Remove the protector

cover the parellel port on the right side of the printer.

NOTE: Be sure to fill out your Registration card and send it to

Canon Computer Systems, Inc.

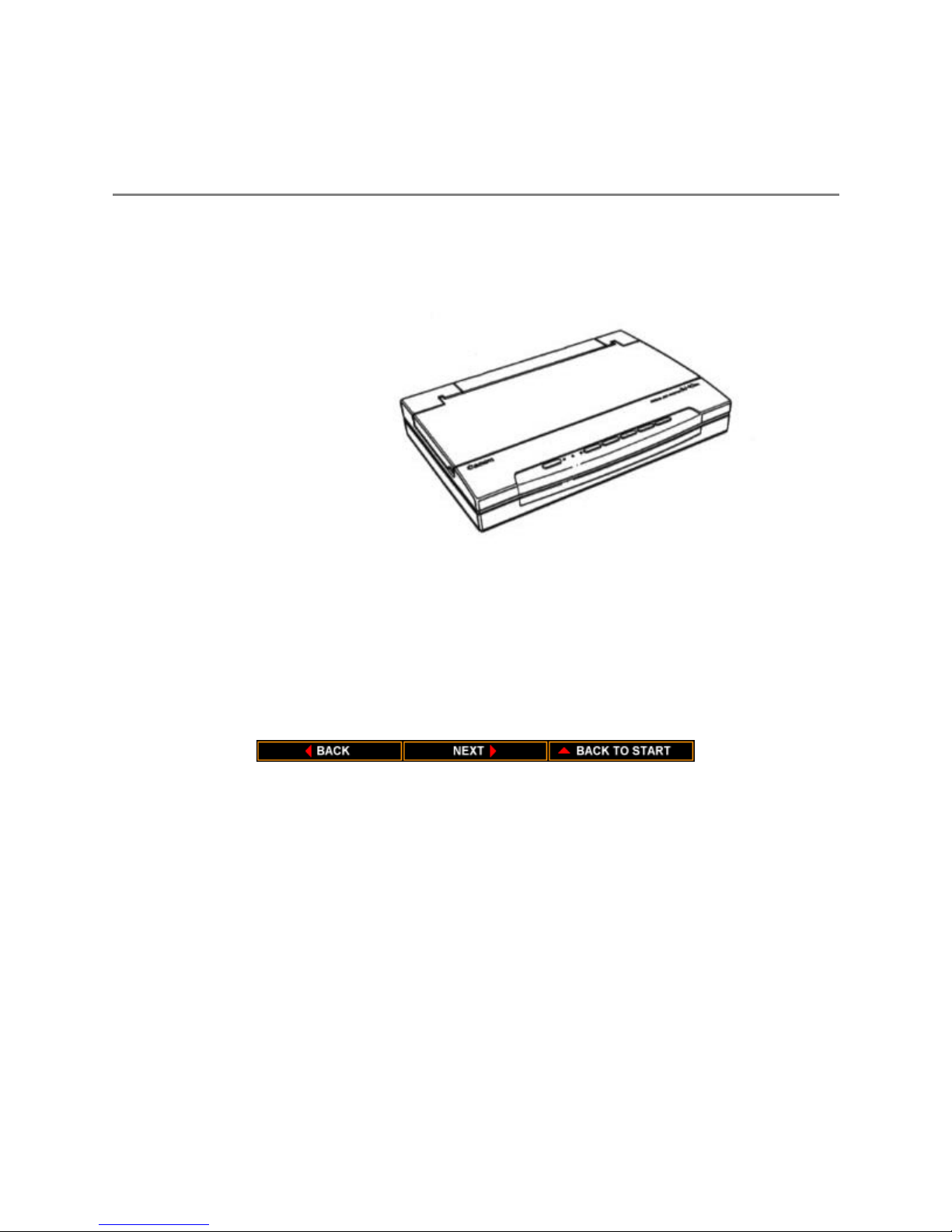

Examining the Printer

Before setting up your printer, take this opportunity to become familiar

with its components and understand their functions.

Indice

Altri manuali Canon Stampante

Canon

Canon PIXMA MP495 Series Manuale utente

Canon

Canon I-Sensys LBP5050 Manuale utente

Canon

Canon GX5000 Series Manuale utente

Canon

Canon Color Bubble Jet BJC-1000 Series Manuale

Canon

Canon iPF700 Manuale utente

Canon

Canon BJ-5 Manuale di istruzioni

Canon

Canon Selphy CP600 Manuale di servizio

Canon

Canon PIXMA MX860 series Istruzioni utente

Canon

Canon 1855B002 Manuale utente

Canon

Canon iP1900 Series Guida utente

Canon

Canon PIXMA MX459 Guida all'installazione

Canon

Canon PIXMA TS3160 Guida all'installazione

Canon

Canon imageRUNNER ADVANCE DX 6870i Guida all'installazione

Canon

Canon imageRUNNER ADVANCE C7580i Guida all'installazione

Canon

Canon 7611A001 - S 330 Color Inkjet Printer Guida utente

Canon

Canon BJC-S820D Manuale utente

Canon

Canon PIXMA TS8152 Manuale utente

Canon

Canon PIXMA MP510 Manuale utente

Canon

Canon DS700 - Selphy Compact Photo Printer Manuale utente

Canon

Canon TR7020a Guida all'installazione

Canon

Canon MX490 Series Guida all'installazione

Canon

Canon Color imageCLASS MF656Cdw Manuale utente

Canon

Canon imageRUNNER ADVANCE 8500 III Series Manuale tecnico

Canon

Canon imageRUNNER ADVANCE DX C357P Manuale utente

Manuali Stampante popolari di altre marche

Lexmark

Lexmark 1400 Series Manuale

Evolis

Evolis Elypso Manuale utente

Kyocera

Kyocera FS-9530DN Manuale utente

Samsung

Samsung BIXOLON SRP-350plusF Manuale utente

Dell

Dell Color Laser Printer 2130cn Manuale utente

Tektronix

Tektronix Phaser 840 Manuale utente

Epson

Epson ET-7750 Istruzioni operative

Eltron

Eltron P210 Guide Manuale utente

Ricoh

Ricoh MD-P1 Manuale utente

Epson

Epson SC-F7100 series Manuale utente

Epson

Epson Stylus C40UX Manuale utente

IRA3D

IRA3D POETRY4 Manuale utente

Ricoh

Ricoh Aficio AP400 Manuale utente

BIXOLON

BIXOLON SRP-352plusV Manuale utente

Epson

Epson Stylus Photo PX700W Istruzioni per il montaggio

Ricoh

Ricoh SP204SF Manuale utente

Star Micronics

Star Micronics futurePRNT TSP100 Manuale utente

Epson

Epson TM-TM88V-i Manuale per l'uso e la cura
