How to replace the printhead - iPF605

Description

How to replace the printhead - iPF605

Solution

Replacing the Printhead (iPF605)

<Caution>

- Do not touch the Printhead immediately after printing. The Printhead becomes extremely hot, and

there is a risk of burns.

<Note>

- Prepare a new Ink Tank when ink levels are low.

- Your hands may become dirty during Printhead replacement. Use the gloves provided with the

new Printhead for replacement.

- Choose On in Auto Print to have the printer automatically adjust the Printhead alignment after

replacement of the Printhead.

1. Press the Menu button to display MAIN MENU .

2. Press or to select Maintenance , and then press the button.

3. Press or to select Replace P.head , and then press the button.

4. Press or to select Yes , and then press the OK button.

Ink is now filled.

After about three minutes, a message is shown on the Display Screen instructing you to open the

Top Cover .

5. Open the Top Cover .

Instructions are now shown on the Display Screen regarding Printhead replacement.

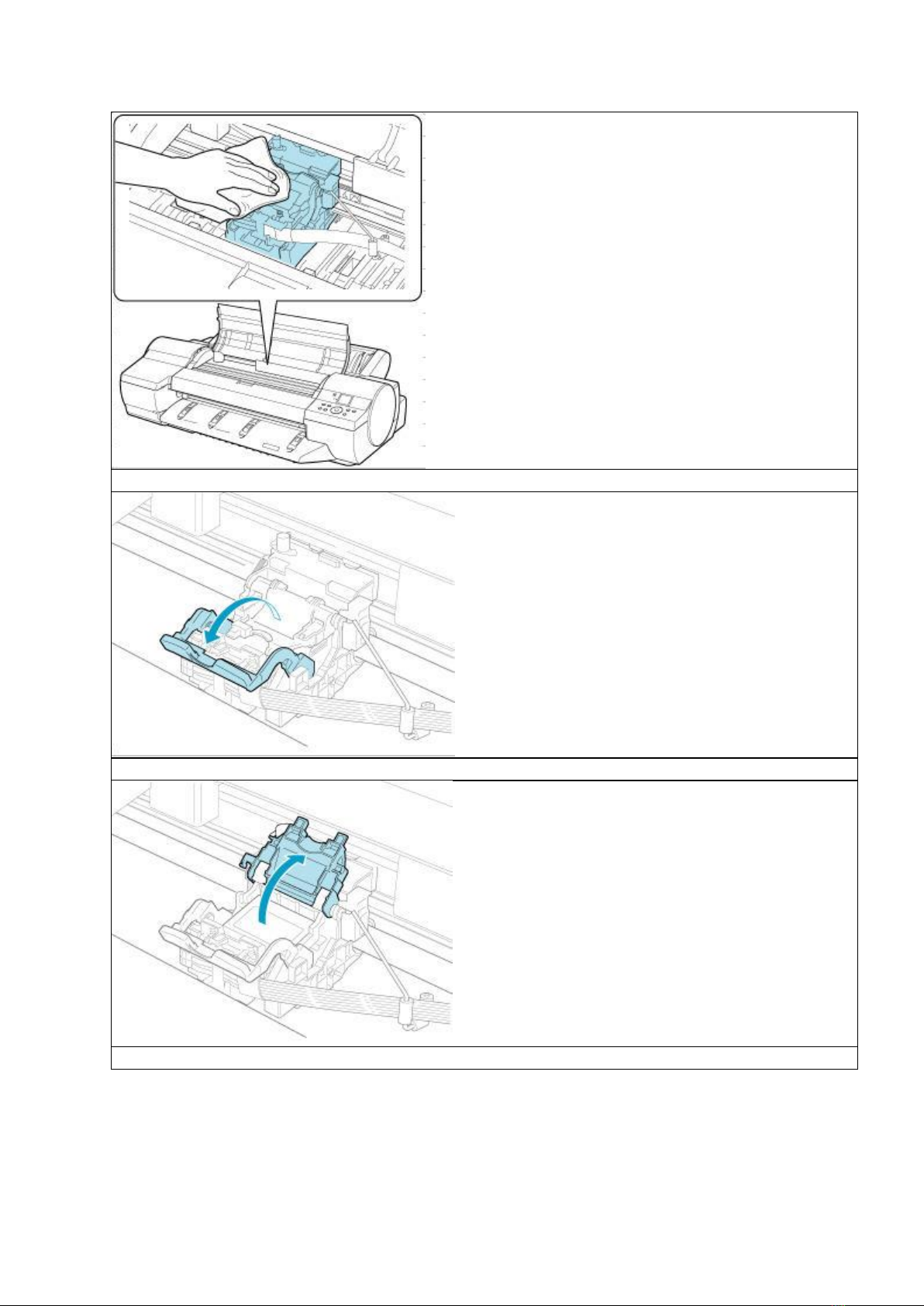

6. If the Printhead Fixer Cover or Printhead Fixer Lever is dirty, use a damp cloth that you have

wrung out completely to wipe it clean.

7. Pull the Printhead Fixer Lever forward all the way to open it completely.

8. Pull up the Printhead Fixer Cover to open it completely.

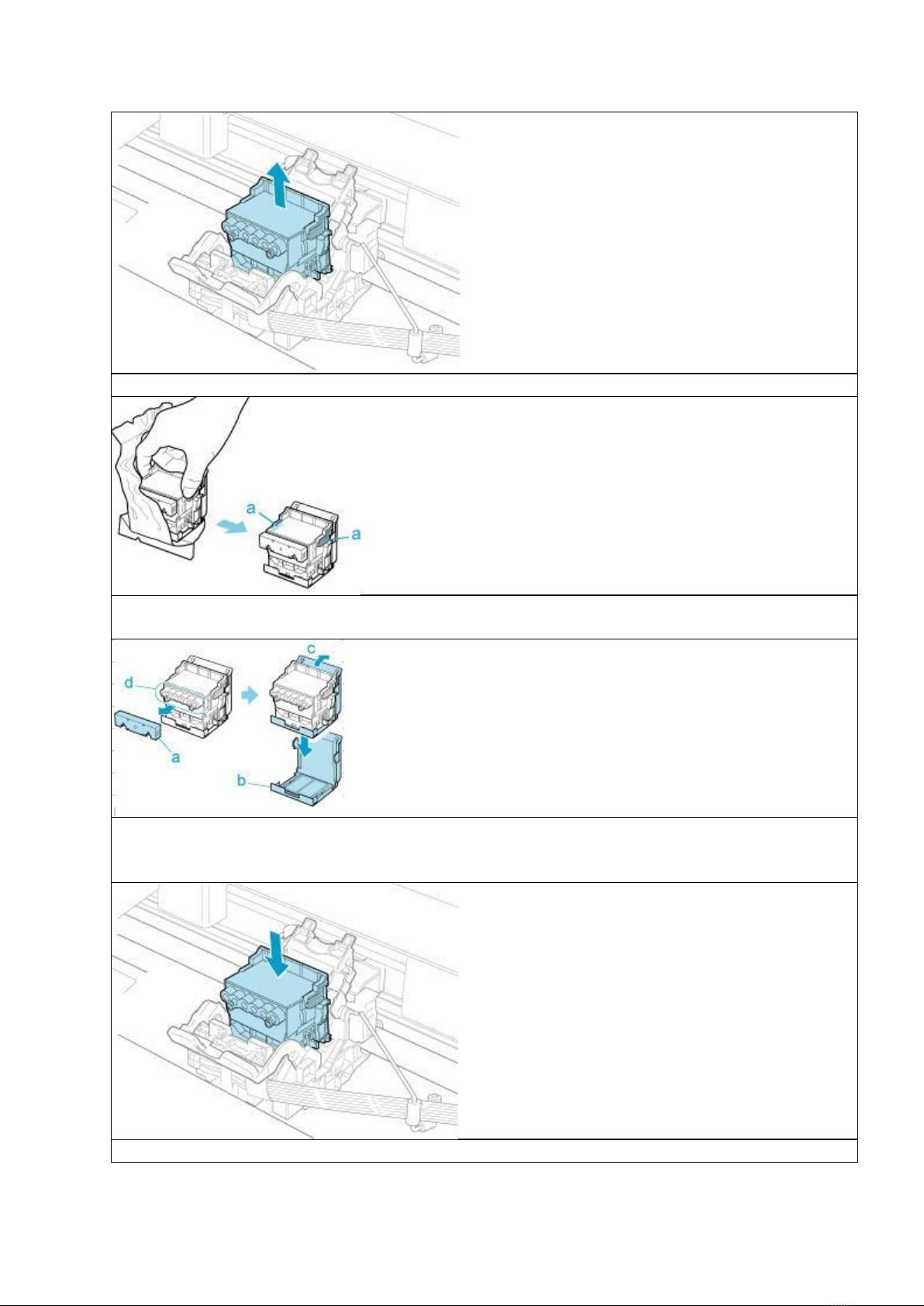

9. Remove the used Printhead .

10. Holding the new Printhead by the grips (a), remove it from the case.

11. While firmly holding the Printhead you have removed, use your other hand to remove the

orange Safety Cap 1 (a). Squeeze the grips (c) of Safety Cap 2 (b) and pull it down to remove it.

12. With the nozzles facing down and the metal contacts toward the back, insert the Printhead into

the Carriage . Making sure that the metal contacts do not touch the Carriage , carefully push the

printhead firmly into the carriage.

13. Pull the Printhead Fixer Cover down toward the front to lock the Printhead in place.

14. Push the Printhead Fixer Lever toward the back of the printer until it clicks.

15. Close the Top Cover .

Ink now fills the system.

After about ten minutes, the Printhead alignment will be automatically adjusted, and the printer will

go online.

If no paper has been loaded, a message is displayed requesting you to load paper.
